Item #sb25-BK

Theory sb25

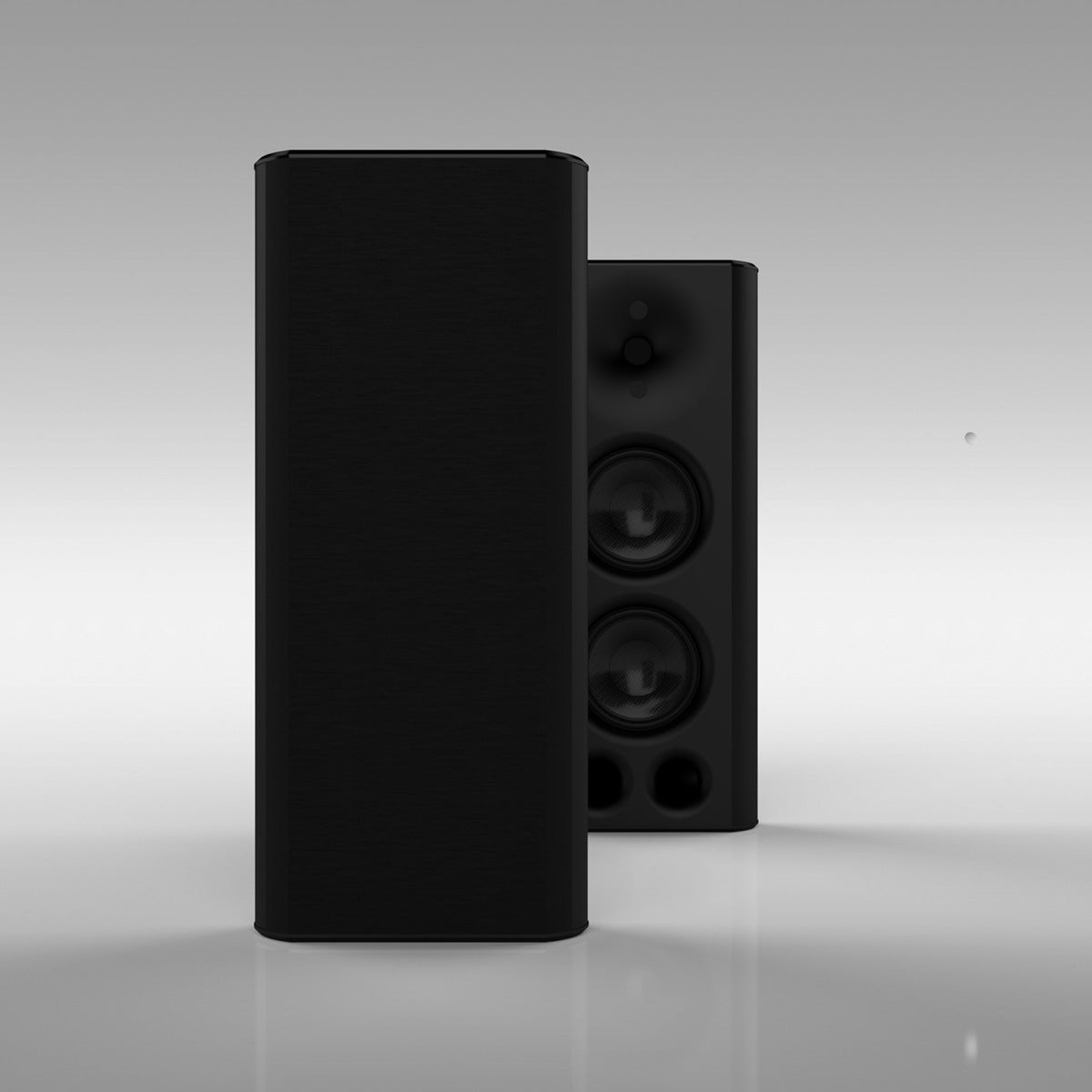

Dual 5" High Output Multi-Use Surface Mount Loudspeaker - Black
Item #sb25-BK

Theory sb25

Dual 5" High Output Multi-Use Surface Mount Loudspeaker - Black
$1,095.00
Call To Purchase

Overview

Compact and Capable

You have never had such a compact and capable loudspeaker in your system design toolbox before.

The Theory sb25 is a wide-bandwidth, high-output multi-use loudspeaker, perfect for restaurants, bars, hotels, retail stores, houses of worship and anywhere high-resolution, high-fidelity background or foreground sound is needed.

Capable of astonishing range and output, the 3.8” deep sb25 is literally a jack of all trades and will have you rethinking how you incorporate sound in your next high-value project.

Details & Specs

Model Theory sb25
Description Compact Surface Mount Multipurpose High Output Loudspeaker System
Operation Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
DSP Requirements Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers 2 x 5" Theory Carbon Fiber Low Frequency Drivers
1 x 1.4" Theory Advanced Polymer High Frequency Compression Driver
Enclosure Powder Coated and Anodized Extruded and Machined Aluminum, Fabric Grille
Terminals Twin Spring-Loaded Push Terminals
Outdoor Capability Indoor Use Only
Mounting Points Two Theory VersaSlot T-Slots Running Full Height with 4 x M5 Captive Nuts
Optional Universal Mount Adapter, and Table Top Stand
Bandwidth 54Hz -23kHz, -6dB
46Hz-24kHz, -10dB
Coverage 125 Degrees Conical
160 Degrees Conical (-12dB @ 10kHz)
Sensitivity 94dB (LF); 108dB (HF) SPL/2.83V/1m
Power Handling 200W (AES)
400W (Continuous)
800W (Peak)
Minimum Recommended Power 50W rms
Maximum Output 117dB SPL / 1m (based on AES power rating)
123dB SPL / 1m (peak)
Nominal Impedance 4-ohms
Colors Black
Dimensions 21.5" H x 9.5" W x 3.8" D (546mm H x 241mm W x 97mm D)
Total Installed Depth (Z-clip Mount) 3.93" D (100mm) Including Z-Clip Mounting Brackets
Net Weight 23 lbs. (10.4kg)
Included Accessories Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting
Optional Accessories sb25 Universal Mount Adapter Kit:
Mount Hole Patterns:
75mm VESA Square
100mm VESA Square
2.0” x 4.25” 1/4”-20 Threads
2.75” x 5.0” 1/4”-20 Threads
Mount Hole for 1/2" Rigid Conduit Hub (1/2" conduit mount)
Compatible Third Party Mounts:
Omnimount 25.0W Wall Ball Mount
Omnimount 25.0C Ceiling Ball Mount
Adaptive Technologies Multimount MM-016-BT Wall Multi-Mount
Adaptive Technologies Multimount MM-017 Wall Pan-Tilt
Adaptive Technologies Multimount MM-018 Ceiling Pan-Tilt
