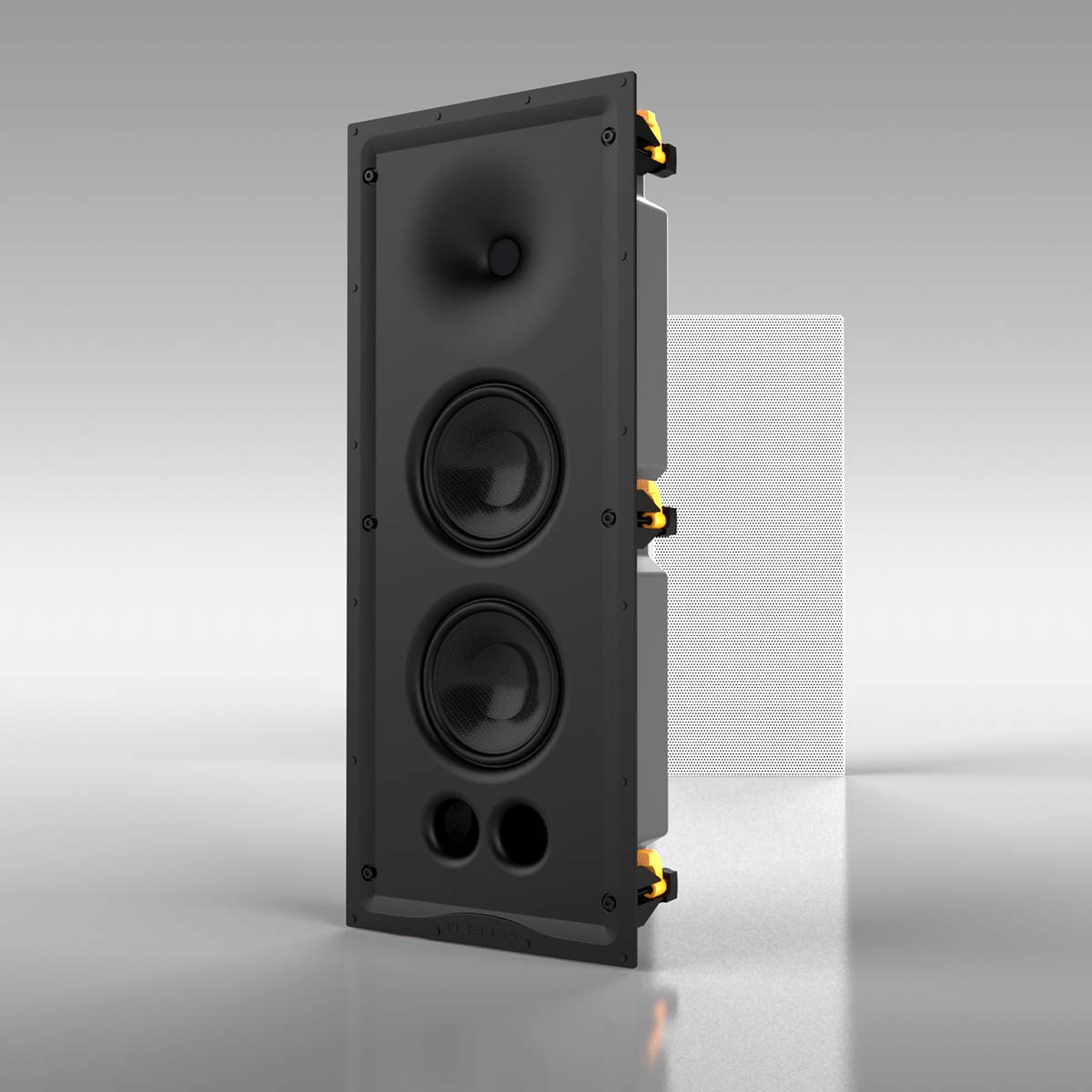

Dual 5" High Output In-Wall Loudspeaker
Item #iw25

Theory iw25

Dual 5" High Output In-Wall Loudspeaker
$1,095.00
Starting at $61/mo or 0% APR with . Check your purchasing power
Call To Purchase

Overview

In-Wall sb25

The iw25 fully-enclosed in-wall loudspeaker is the remarkable sb25 model, with a mechanical enclosure to adapt it to in-wall mounting. All of the sb25’s performance attributes remain: robust, wide-bandwidth and dynamic sound with uncanny accuracy and naturalness. The ability of the iw25 to fill large spaces with full-bodied, thrilling sound is shocking. Finally big sound in background and foreground applications does not have ugly, or even visible!

The iw25 in-wall loudspeaker can be operated at low-Z (4-ohms impedance) or by employing its included internal power transformer at hi-Z (70V/100V) at 60W, 30W, 15W and 7.5W.

Like its sister product, the sb25, the iw25 discreet in-wall loudspeaker will have you rethinking how you deploy audio in your premium system designs.

Details & Specs

Model Theory iw25
Description High-Output Weather Resistant In-Wall Loudspeaker
Operation Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
4-ohms or 70V/100V Operation, Selectable
DSP Requirements Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers 2 x 5" Theory Carbon Fiber Low Frequency Drivers
1 x 1.4" Theory Advanced Polymer High Frequency Compression Driver
Enclosure Molded ABS Frame with Powder Coated Steel Integral Back Can
Terminals Euroblock Connector with Parallel Output
Outdoor Capability Indoor and Outdoor Use (when used with matching iw25 all-weather grille)
Mounting Points 6 x Retractable Dog Ears
Bandwidth 51Hz -23kHz, -6db
46Hz - 24kHz, -10dB
Coverage 125 Degrees Conical (-6dB @ 10kHz)
160 Degrees Conical (-12dB @ 9.8kHz)
Sensitivity 94dB-108dB SPL/2.83V/1m
Power Handling 200W (AES)
400W (Continuous)
800W (Peak)
Minimum Recommended Power 50W rms
Maximum Output 117dB SPL / 1m (based on AES power rating)
123dB SPL / 1m (peak)
Nominal Impedance 4-ohms; Hi-Z (70V/100V) Selectable
Transformer Taps 60W, 30W, 15W, (7.5W, 70V)
Colors White Perforated Metal Grille
Dimensions Speaker: 23.5" H x 9.63" W x 3.4" D (597mm H x 246mm W x 86mm W)
Grille: 23.63” H x 9.5” W (600mm H x 241mm W)
Cutout: 8.75” W x 22.625” H (222mm W x 575mm H)
Total Installed Depth 3.4" (86mm)
Maximum Wall Thickness 1.5" (38mm)
Net Weight 15 lbs. (6.8 kg)
Included Accessories White Rectangular Indoor Grille
Cutout Template
Optional Accessories White Paintable Rectangular Indoor Grille
White Paintable Rectangular All-Weather Grille (coming soon)
