Item #ic6

Theory ic6

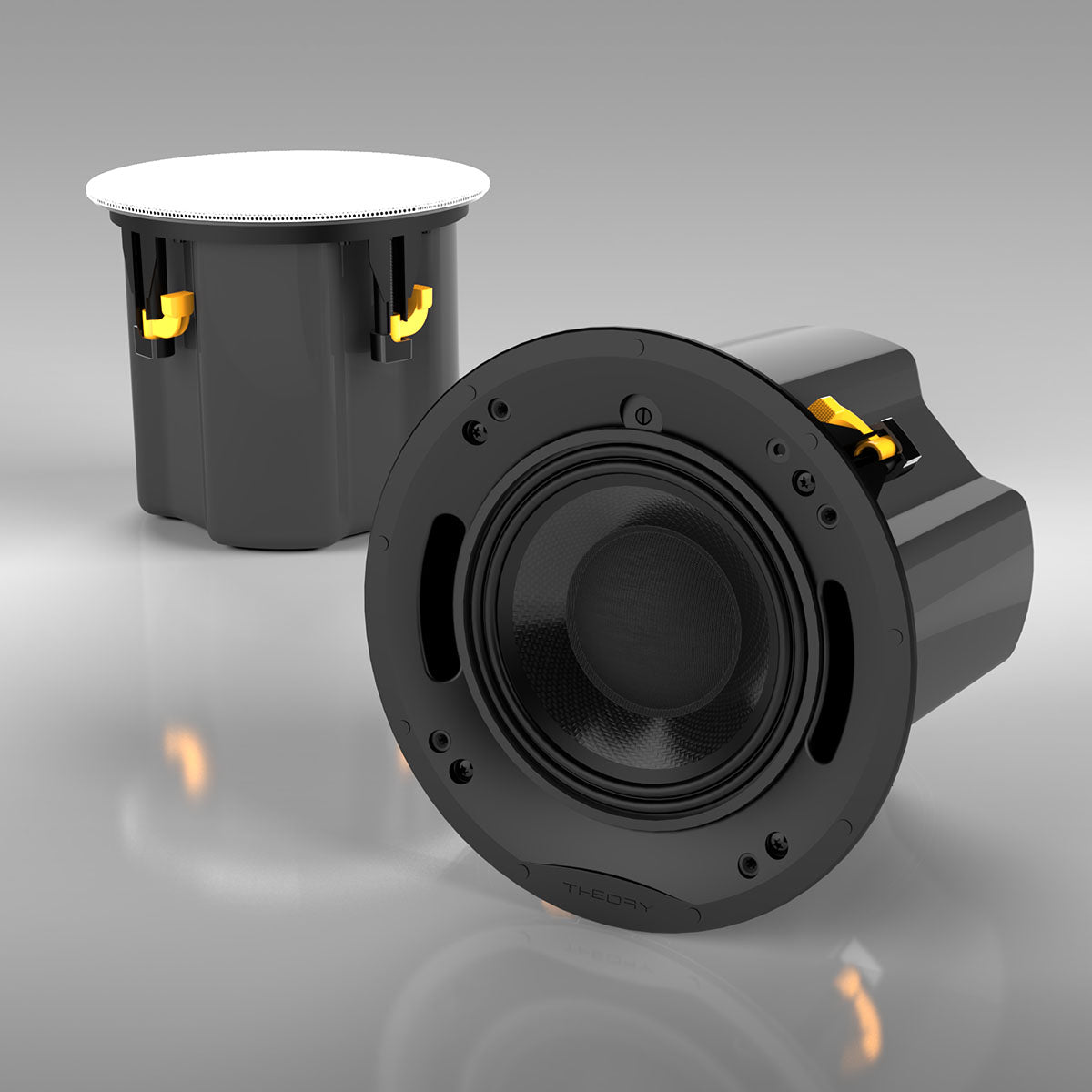

6.5" High Output In-Ceiling Loudspeaker
Item #ic6

Theory ic6

6.5" High Output In-Ceiling Loudspeaker
$695.00
Call To Purchase

Overview

Change Your Expectations

The Theory ic6 high-output in-ceiling loudspeaker will change your expectations of small-format, high-efficiency in-ceiling loudspeakers. Via careful processing and computer-optimized tuned ports, the ic6 delivers exceptional low-frequency bandwidth, punch and resolution. Even when used in foreground music applications - no subwoofer is necessary.

But that’s not all. The ic6 offers extremely wide dispersion to highest frequencies (refer to the ic6 Pendant measurements for data), so the coverage area is massive, even when installed in low ceilings.

This is the highest performance 6” ceiling speaker available.

16-ohm and 70V/100V operation.

Details & Specs

Model Theory ic6
Description 6.5” High-output Weather Resistant In-Ceiling Loudspeaker System
Operation Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
16-ohms or 70V/100V Operation, Selectable
DSP Requirements Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers 1 x 6.5" THEORY Coaxial Driver
6.5” Carbon Fiber Low Frequency Driver
1.4" THEORY AdvancedPoly Compression Driver
Enclosure Molded ABS Frame with Powder Coated Steel Integral Back Can
Terminals Euroblock Connector with Parallel Output
Outdoor Capability Indoor and Outdoor Use (when used with optional ic6 all-weather grille)
Mounting Points 4 x Retractable Dog Ears
Bandwidth 68Hz -23kHz, -6dB
58Hz - 25kHz, -10dB
Coverage 125 Degrees Conical (-6dB @ 10kHz)
172 Degrees Conical (-12dB @ 9.8kHz)
Sensitivity 92dB (LF); 106dB (HF) SPL/2.83V/1m
Power Handling 100W (AES)
200W (Continuous)
400W (Peak)
Minimum Recommended Power 50W rms
Maximum Output 112dB SPL / 1m (based on AES power rating)
118dB SPL / 1m (peak)
Nominal Impedance 16-ohms; Hi-Z (70V/100V) Selectable
Transformer Taps 60W, 30W, 15W, (7.5W, 70V)
Colors White Perforated Paintable Metal Grille
Dimensions Speaker: 9.2" DIAMETER (234mm) x 8.6" D (218mm)
Round Grille: 9.4” DIAMETER (239mm) x 0.16” D (4mm)
Square Grille: 9.4” SQ. (239mm) x 0.16” D (4mm)
Cutout: 8-9/16” DIAMETER (217mm)
Total Installed Depth 8.5" (216mm)
Maximum Wall Thickness 1.5" (38mm)
Net Weight 12.5 lbs. (5.67kg)
Included Accessories White Paintable Round Indoor Grille
White Paintable Square Indoor Grille
Cutout Template
Optional Accessories Pre-construction Bracket
Ceiling Tile Bridge
Pendant Housing - Matte White
Pendant Housing - Matte Black
White Paintable All-Weather Grille
Safety Certifications UL-2043, CAN/ULC S142
Safe for use in air handling spaces
