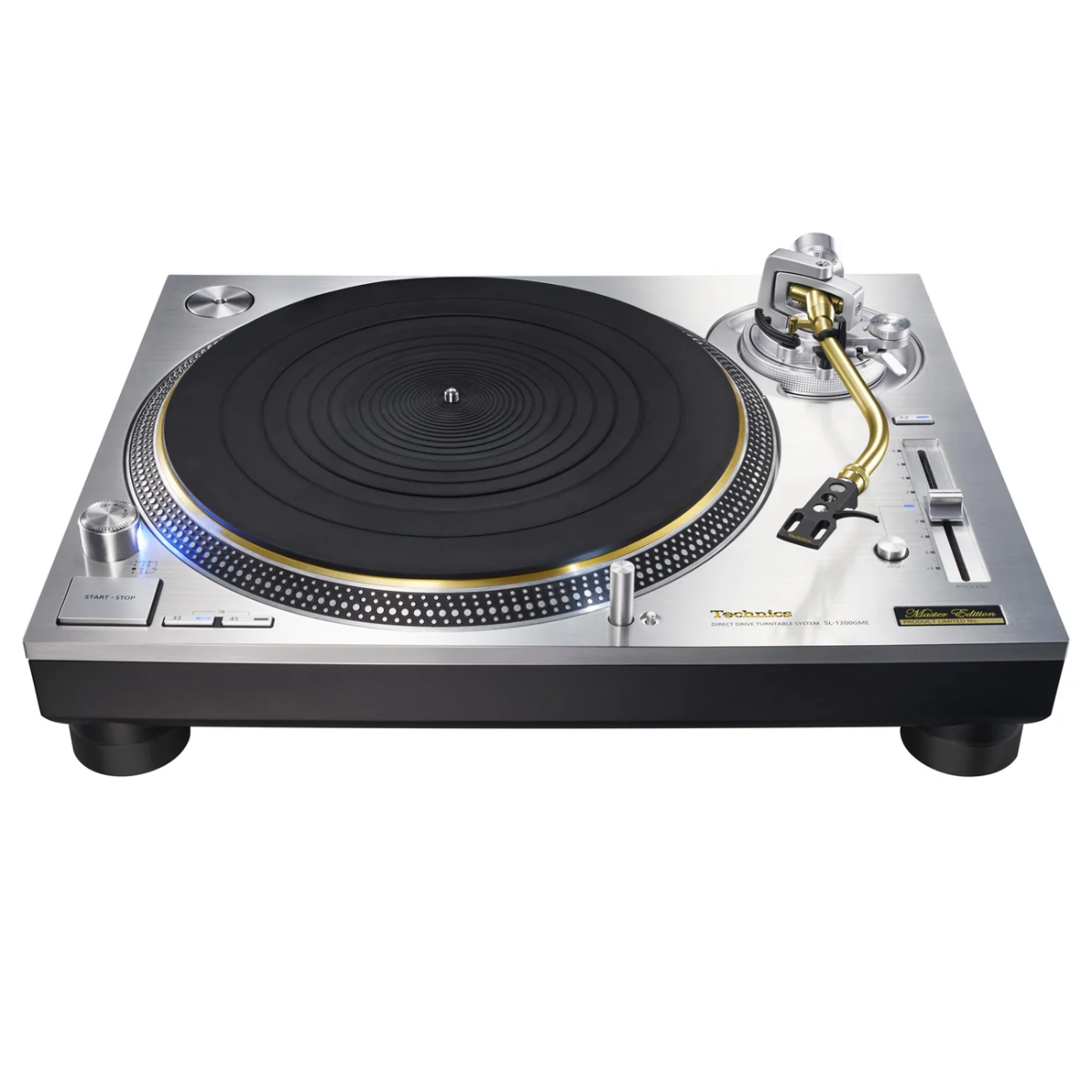

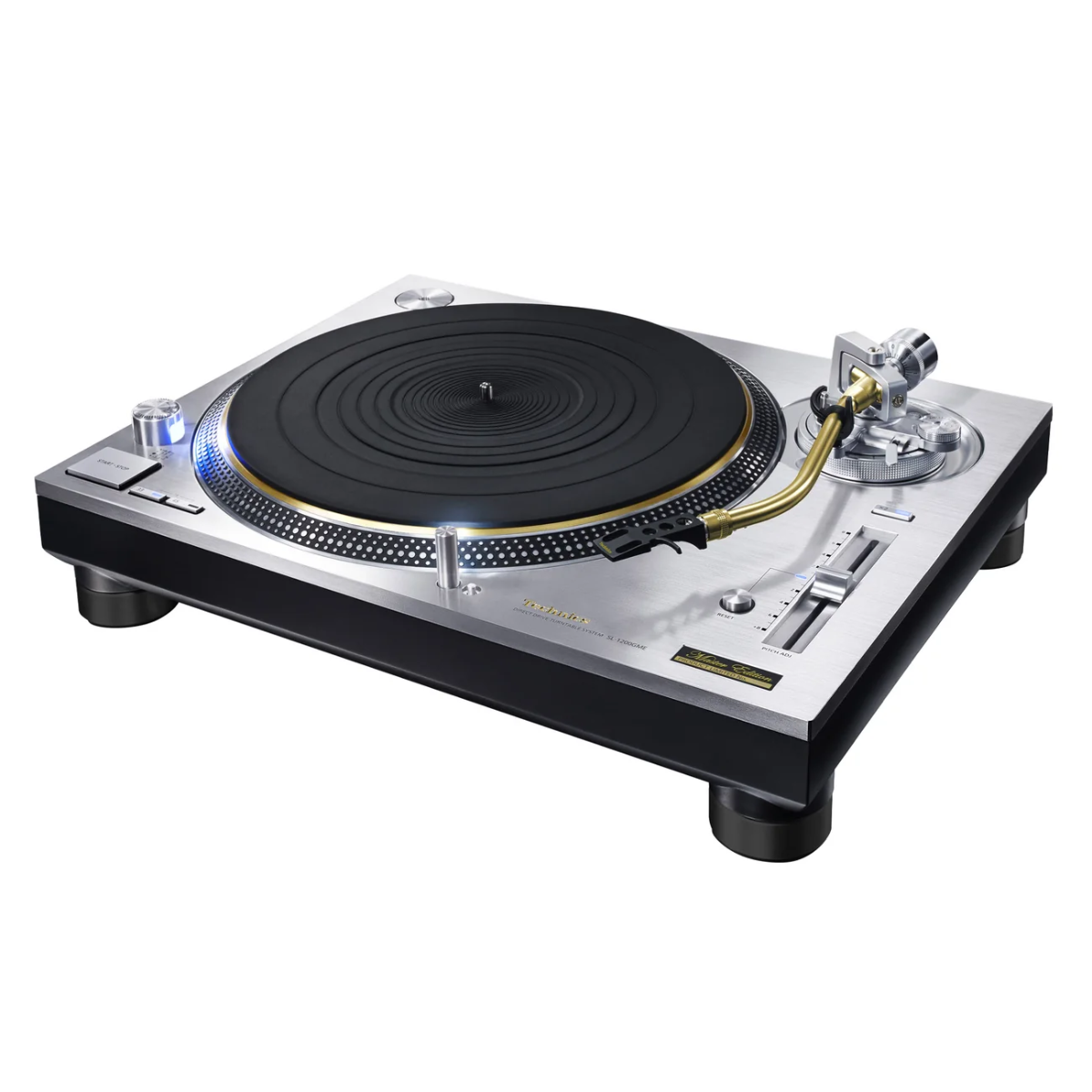

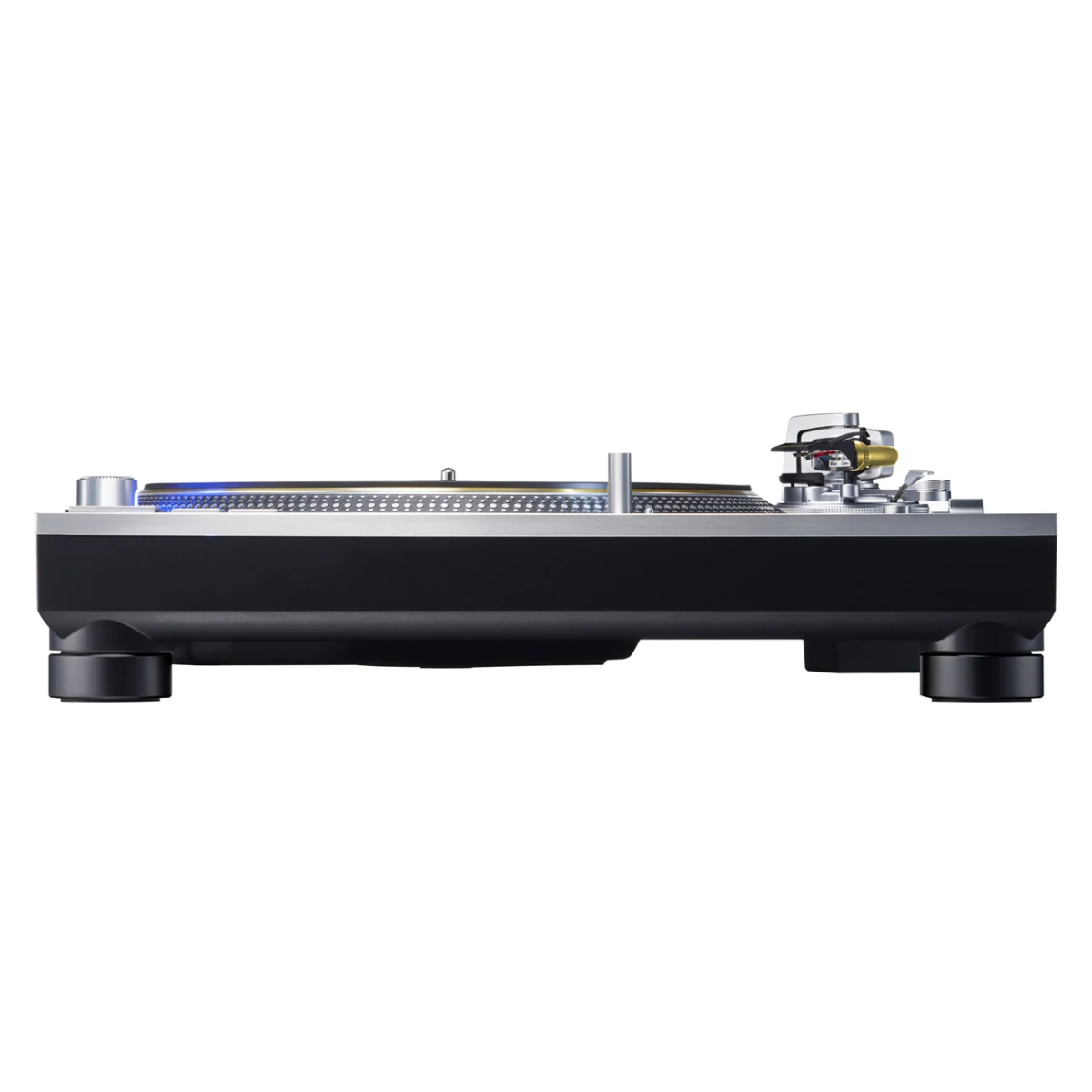

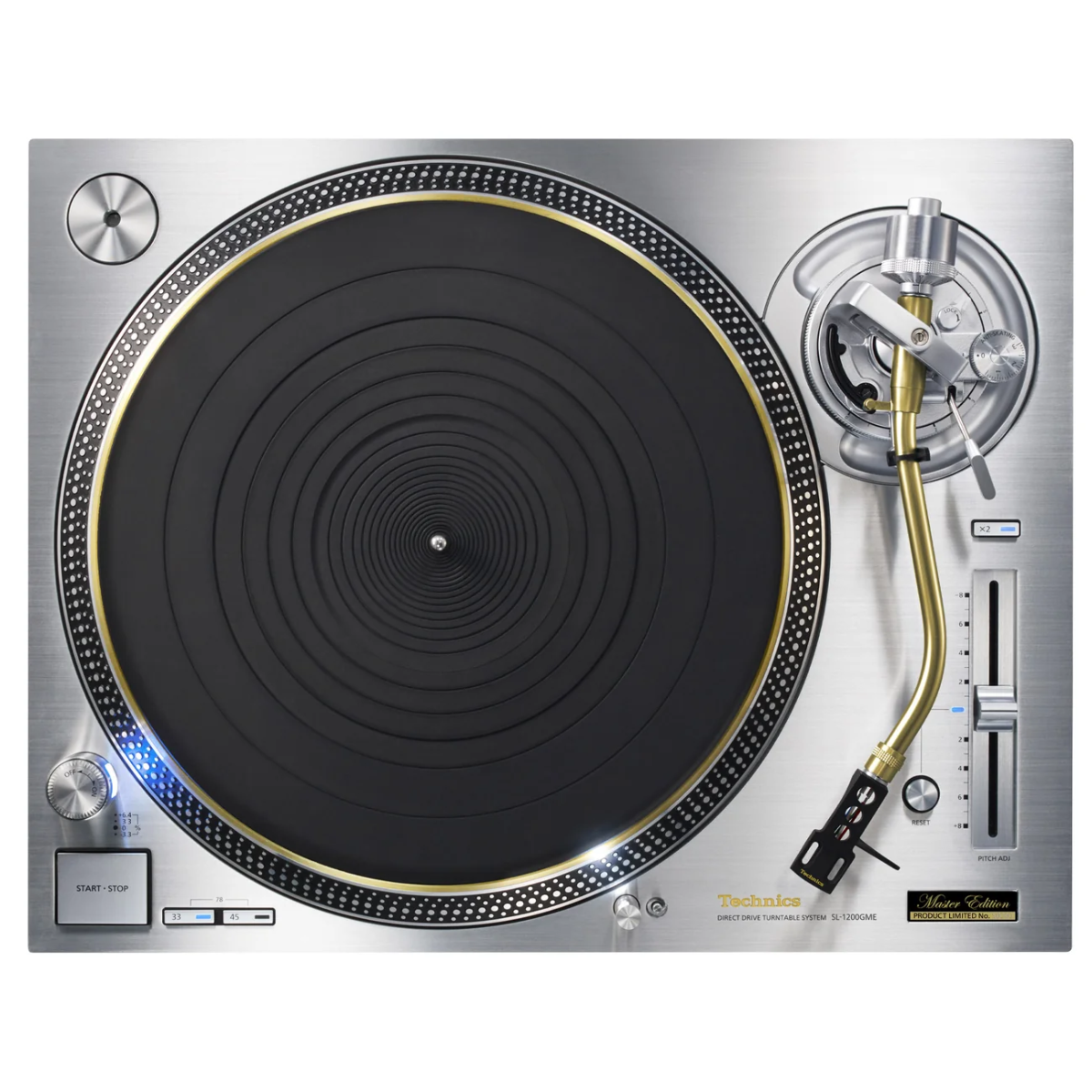

Technics SL-1200GME

Master Edition Manual Direct Drive Turntable

Technics SL-1200GME

Master Edition Manual Direct Drive Turntable
$6,599.99
Select Color:


Overview

Featuring a twin rotor coreless direct drive motor and a four layer anti vibration cabinet, this 18kg turntable ensures ultra smooth playback. Gold accents and a gold magnesium tonearm make it an exceptional center piece for any audiophile sound system setup.

The Technics SL 1200GME Master Edition manual direct drive turntables feature a precision motor drive and a very rigid, vibration dampening construction. The coreless twin rotor motor has no cogging and produces 0.32 Nm of starting torque to get up to 33 1/3 rpm in 0.7 seconds. The available speeds are 33 1/3, 45 and 78 rpm. The motor control is via a Delta Sigma Drive which works by moving the PWM carrier frequency above 20kHz to reduce the micro vibrations and acoustic noise of operation. The power supply is a low noise, low voltage layout.

Structural stability is derived from a four layer cabinet (topping aluminium die cast, BMC and heavyweight rubber) with a 10mm thick brushed aluminium top panel. The 3.6kg 332mm platter is a three layer construction (brass and aluminium die cast) with rear dampening rubber. Each platter is individually factory balanced using high precision gear. Zinc insulators filled with αGEL absorb the incoming shelf movement and the unit sits on an 18kg chassis which is designed to isolate the critical playback components in any high end system.

A gold painted magnesium tonearm providing lightweight tracking with high initial motion sensitivity via gimbal suspension bearings. 230mm effective length, 15mm overhang and adjustable height (0 to 6mm). Audio via standard PHONO pin jacks with a separate earth. Limited edition with gold painted logo and serial plate. Fully compatible with custom builds and AV solutions.

Details & Specs

Model SL-1200GME Master Edition
Turntable Section
Drive Method Direct Drive
Motor Brushless DC motor
Turntable Speeds 33-1/3, 45 and 78 rpm (78 rpm setting operates at 78.26 rpm)
Starting Torque 0.32 N·m (3.3 kgf·cm)
Build-Up Characteristics 0.7 seconds from standstill to 33-1/3 rpm
Braking System Electronic brake
Wow and Flutter 0.025% W.R.M.S.
Turntable Platter Combined brass and aluminium die-cast construction
Platter Diameter 332 mm
Platter Weight Approx. 3.6 kg (including rubber sheet)
Tonearm Section
Type Static balance
Effective Length 230 mm
Overhang 15 mm
Tracking Error Angle Within 2° 32' at the outer groove of a 30 cm (12") record; within 0° 32' at the inner groove of a 30 cm (12") record
Offset Angle 22°
Arm Height Adjustment Range 0–6 mm
Stylus Pressure Adjustment Range 0–4 g (direct reading)
Headshell Weight Approx. 7.6 g
Applicable Cartridge Weight Range (Without Auxiliary Weight) 5.6–12.0 g; 14.3–20.7 g (including headshell)
Applicable Cartridge Weight Range (With Small Auxiliary Weight) 10.0–16.4 g; 18.7–25.1 g (including headshell)
Applicable Cartridge Weight Range (With Large Auxiliary Weight) 14.3–19.8 g; 23.0–28.5 g (including headshell)
Cartridge Mounting Dimension 12.7 mm (1/2") interval
Headshell Terminal Lug 1.2 mm diameter, 4-pin terminal lug
Terminals
Audio Output PHONO (pin jack) × 1
Earth Terminal × 1
General
Power Supply AC 220–240 V, 50/60 Hz
Power Consumption 11 W (Power On); 0.3 W (Power Off)
Dimensions (W × H × D) 453 × 173 × 372 mm
Weight Approx. 18.0 kg
Operating Temperature Range 0°C to +40°C
Operating Humidity Range 35%–80% RH (no condensation)
Accessories Turntable, turntable sheet, dust cover, EP record adaptor, balance weight, auxiliary weight, headshell, overhang gauge, cartridge screw set, cartridge spacer, PHONO cable, PHONO earth lead, AC power supply cord, turntable screw set, owner's manual
