T+A MP 200 G3

Multi-Source Streamer and CD-Player

T+A MP 200 G3

Multi-Source Streamer and CD-Player
$6,590.00
Select Color:


Overview

The MP 200 G3 was developed with the design requirement of combining compact dimensions with a wide range of sources. From Bluetooth and CD to the very latest streaming and radio reproduction, the unit is able to exploit all sources to their fullest potential. The MP 200 G3 can handle not only FM, FM-HD and DAB+ reproduction, it also offers equally convenient streaming from mobile devices and local network memory devices. External digital sources benefit equally from its outstanding signal processing capabilities.

Although the MP 200 G3 works with any D/A converter, its overall design was developed to provide a special synergy when used with the Series 200 converters - the DAC 200 and HA 200: the T+A SYS Link exchanges control data, routes audio signals along the optimum path, and allows the MP 200 G3 to become the command centre of a complete system when the T+A MusicNavigator app is used.

Audiophile Streaming Architecture G3 & Bluetooth

T+A's third-generation Audiophile Streaming Architecture creates a seamless audiophile connection between the Series 200 and the digital world. During its development, focus was placed not only on maximizing sonic potential but also on expanding the diversity of sources. The Streaming Generation 3 network boards process incoming signals via WLAN and LAN, enabling HV series streamers to access streaming services like Deezer, Qobuz, and Tidal, as well as play local network files up to 192/24 (HD), and even streams from mobile devices through Connect or AirPlay services in audiophile quality.

In addition to its convenient Connect features, each streaming-capable HV device also offers the ability to play uncompressed FLAC files via aptX HD Bluetooth technology. A true milestone in T+A’s history is the ability of the ASA G3 to natively stream DSD files directly from the network for the first time. To ensure the highest possible playback quality, this stream is delivered to the T+A True 1-Bit DAC, which processes DSD files in their native bitstream without any quality loss. In this way, a wide array of easily accessible sources is paired with the exceptional sound quality that has always been the hallmark of T+A.

Thanks to the aptX HD technology employed in the MP 200 G3, mobile data transmission no longer represents a barrier to high sound quality: in spite of the limited bandwidth of Bluetooth, the system can even cope with uncompressed Flac files.

Digital Inputs

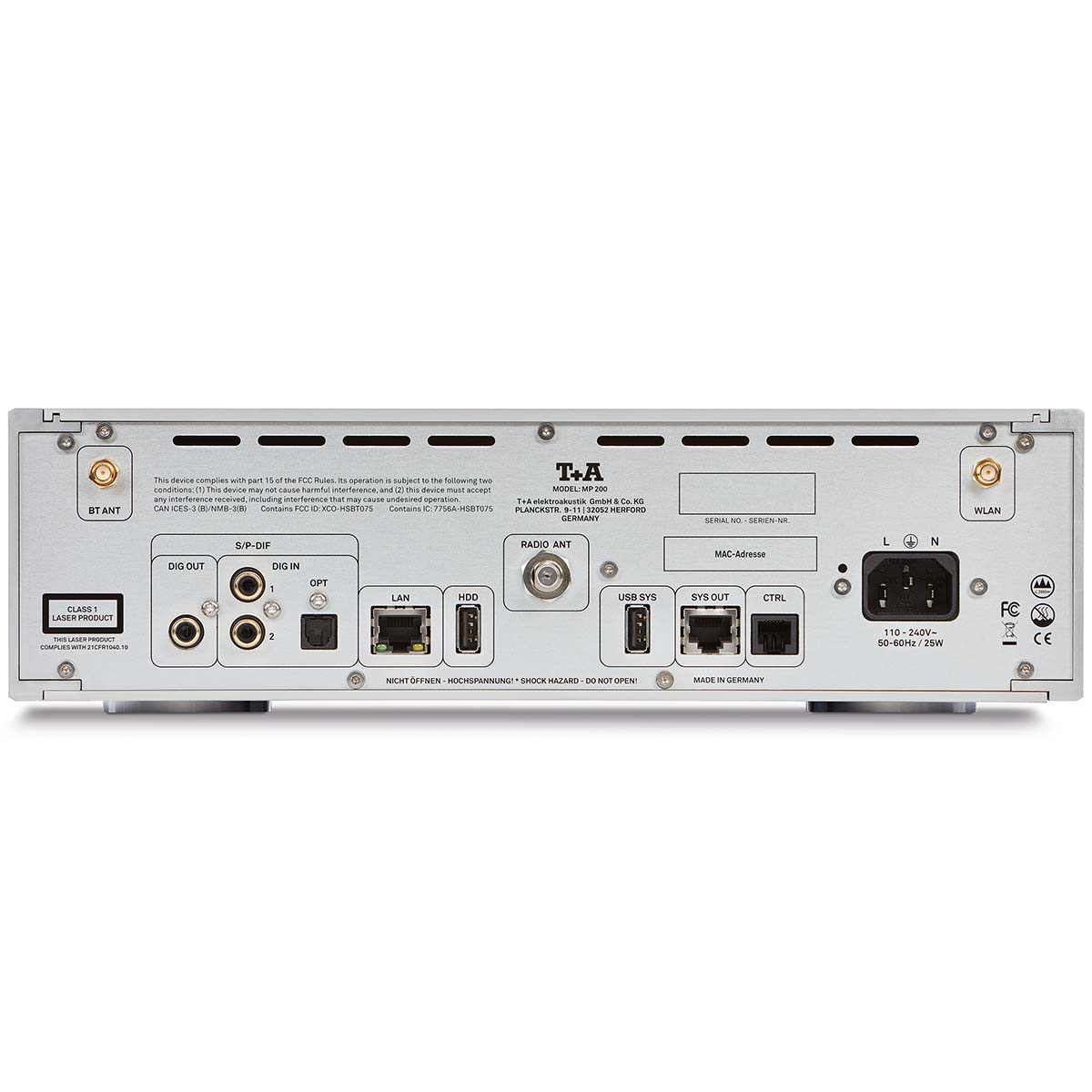

The MP 200 G3’s digital connecting board features two digital S/P DIF inputs and one optical input, which enable any external source to be connected - including set-top boxes, disc drives and memory devices. A supplementary S/P DIF output is also available. Signal transfer and processing are carried out at HD-quality.

Control System

The App control system provides full control of every aspect of the MP 200 G3, including access to streaming services and radio stations, as well as adjusting the smallest details of each device connected to the system. The MP 200 G3 and the T+A MusicNavigator App - developed in Herford, Germany - deliver a convenient and complete method of control using any iOS or Android device.

The front panels of the Series 200 devices were designed to be ergonomically efficient, with an intelligent combination of direct-access buttons and a jog dial (rotary push-dial).

Radio & CD

In addition to Internet radio access, which is an integral part of the MP 200 G3’s streaming client, the device provides three additional forms of radio access: FM, FM-HD and DAB+. The unit’s high sensitivity to incoming signals is in part responsible for its superlative sound quality, but the digital intermediate frequency, demodulation and stereo decoder output stages employed also play an important role. It is only the intelligent combination of all these qualities which makes the most classical of all signal sources sound so outstanding, whether using cable or an aerial.

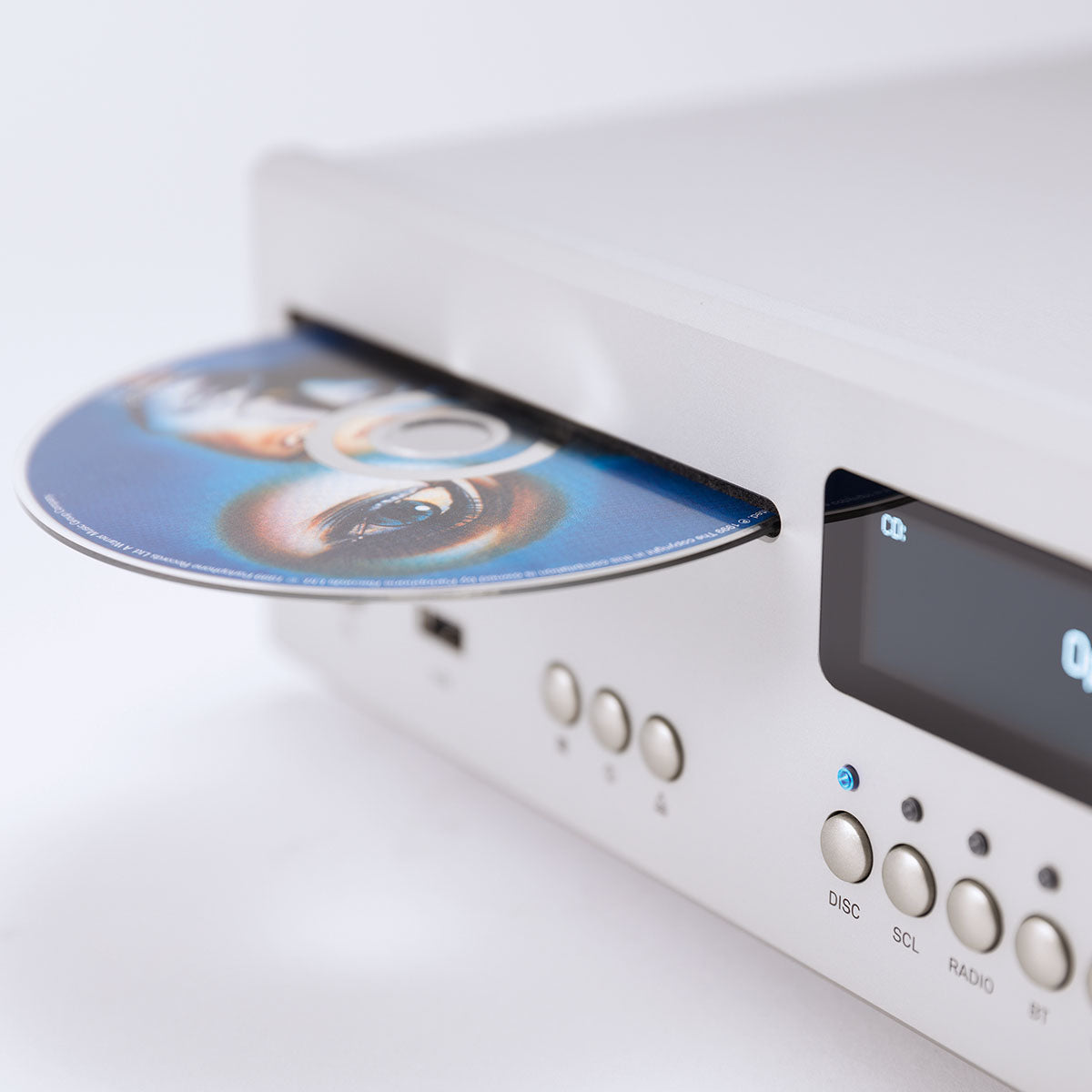

Although digital streaming content has now gained a dominant position in the audio world, T+A continue to work constantly on further developing their CD mechanisms: this is the only way to maintain a position where they can give customers the unrestricted freedom to select their preferred music sources. The size of the MP 200 G3’s integral slot mechanism was developed specifically to suit the space available in the MP 200 G3, where it fits seamlessly into the case. With its short access times and excellent error correction system - the result of further development - it plays back disc content with virtually zero delay once the CD is inserted, and operates completely without reproduction errors.

Details & Specs

Model T+A MP 200 GE
CD PLAYER
Formats CD/DA, CD-R, CD-RW, CD-text
Frequency response and dynamnic range 2 Hz – 20 kHz / 100 dB
STREAMING CLIENT
Formats / Standards MP3, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV, M4A (AAC/ALAC), DFF, DSF
Data rates PCM 32...384 kHz, 16/24 Bit; MP3 bis 320 kBit, constant and variable data rate
DSD64, DSD128, DSD256
Music services Airable radio and podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, highresaudio, Tidal connect, Spotify connect, Apple AirPlay2, Plays with Audirvana, Roon*
*Currently not yet Roon certified
Features Gapless Playback for MP3, WAV, FLAC, T+A Control App für iOS and Android
Network LAN: Gigabit Ethernet
WLAN: IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO
2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)
Channel 1 – Channel 13
North America FCC, Japan MIC, Europe ETSI
20MHz bandwidth
5.180-5.825 GHz (5GHz UNII-1/2/3 Band, 24 Channels)
North America (IC and FCC):
5.180-5.600 GHz, 5.650-5.825 GHz
Europe, Japan (ETSI and MIC):
5.180-5.700 GHz
max gain in 2.4GHz band: 3.2dBi
max gain in 5 GHz band: 4.25dBi
up to 17dBm (at antenna terminal)
FM TUNER
Frequency range FM Radio 87.5 – 108 MHz (Europe / US); 76 – 90 MHz (Japanese version)
Sensitivity Mono (26dB S/N) 0,9 µV, Stereo (46 dB S/N) 40 µV
Overload margin 103 dB µV
Stereo channel separation 50 dB
RDS Functions Station name, radio text
DAB Tuner
Reception standard DAB, DAB+
Freqency band 168 – 240 MHz (Band III)
Overload margin 103 dB µV
Sensitivity (BER = 10 – 4) 2.5 µV
Bluetooth
Supported audio formats aptX HD, MP3, AAC, SBC
Freqency band 2,4 GHz: 2042Mhz ... 2480Mhz Max. transmission power <10 dBm (EIRP)
RC protocol AVRCP
INPUTS
SP/DIF (16-24bit): 2x coax (192kHz), 1x TOS-Link (96kHz)
OUTPUTS
Digital output coax (IEC 60958), SYS-LINK and USB-SYS output
MAINS / ACCESSORIES / DIMENSIONS
Mains 220 – 240 V, 50 – 60 Hz, 25 Watts
Normal operation (max.) 25 Watts
Standby (ECO) < 0.5 Watts
Automatic power down After 90 Minutues without music signal
Dimensions (H × W× D) 4" x 12.6" x 13.4" (10 × 32 × 34 cm)
Accessories Remote control handset FM200, Mains cord, USB-SYS-cable and RJ-45 SYS-Link-cable for connection of a DAC 200 or HA 200, WLAN and Bluetooth antenna
Weight 9.7 lbs (4.4 kg)
Finishes Alu silver anodized (43), Alu schwarz anodized (42)
Technical modifications reserved
