Rotel RMB-1585 MKII

5-Channel Home Theater Amplifier - Black

Rotel RMB-1585 MKII

5-Channel Home Theater Amplifier - Black
$4,299.00
Select Color Options:

Contact Us

Overview

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems.

Watch our Comparison
The High Notes
Class A/B Performance

Class A/B Performance

These amplifiers are designed using Rotel’s years of experience in Class A/B amplifiers to give you peak performance with the power reserves needed for high-output home theater applications.
Thermostat Controlled Fans

Thermostat Controlled Fans

4 actively controlled cooling fan systems are in each amplifier that provides cooling to allow these amplifiers to be rack-mounted while operating within specified temperatures.
Bi-Amp Configuration

Bi-Amp Configuration

The RMB-1585 MKII offers the ability to use this 5-channel amplifier in a 3-channel configuration dedicating 4 channels to bi-amplify your main left and right speakers.

The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.

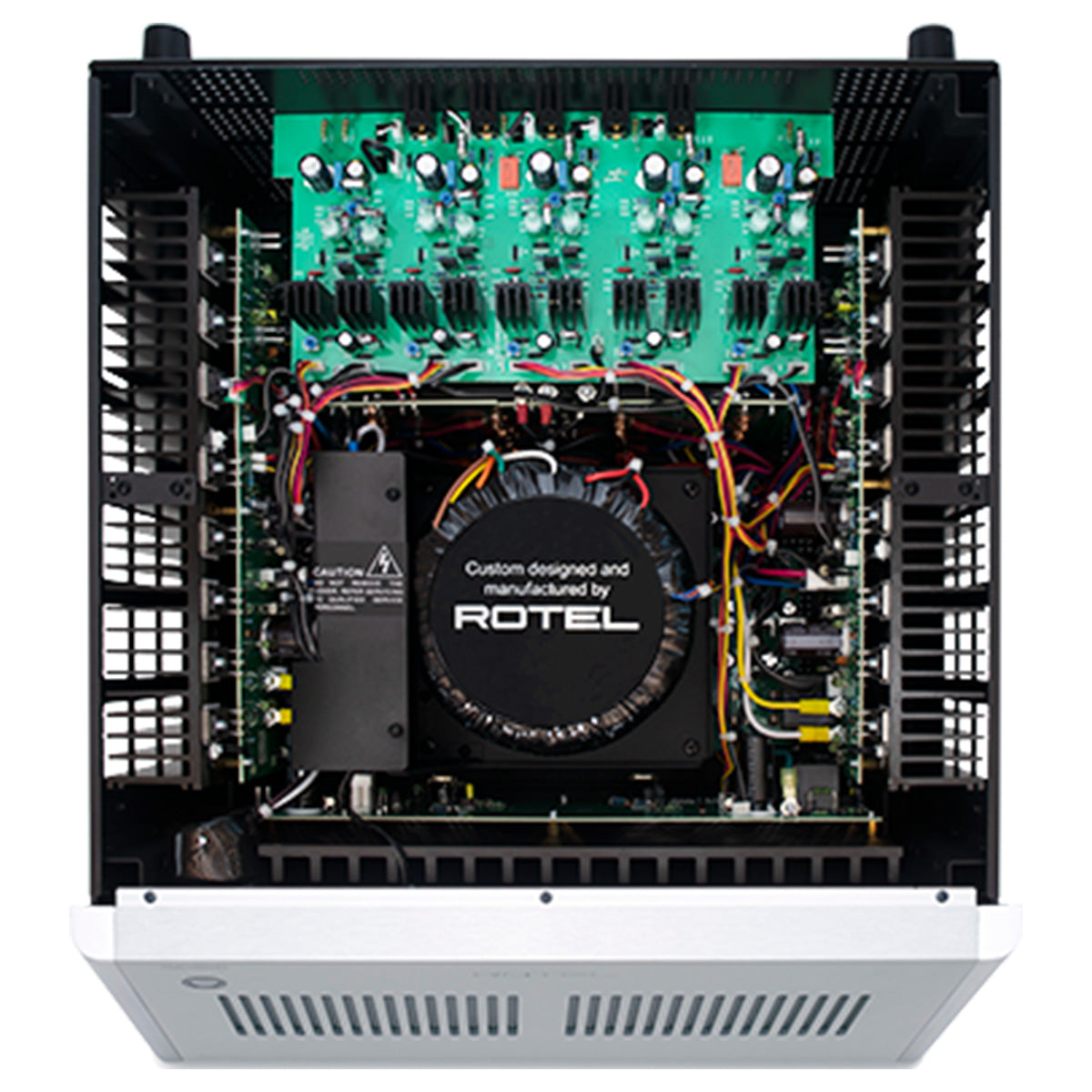

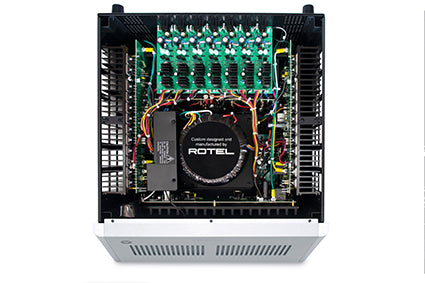

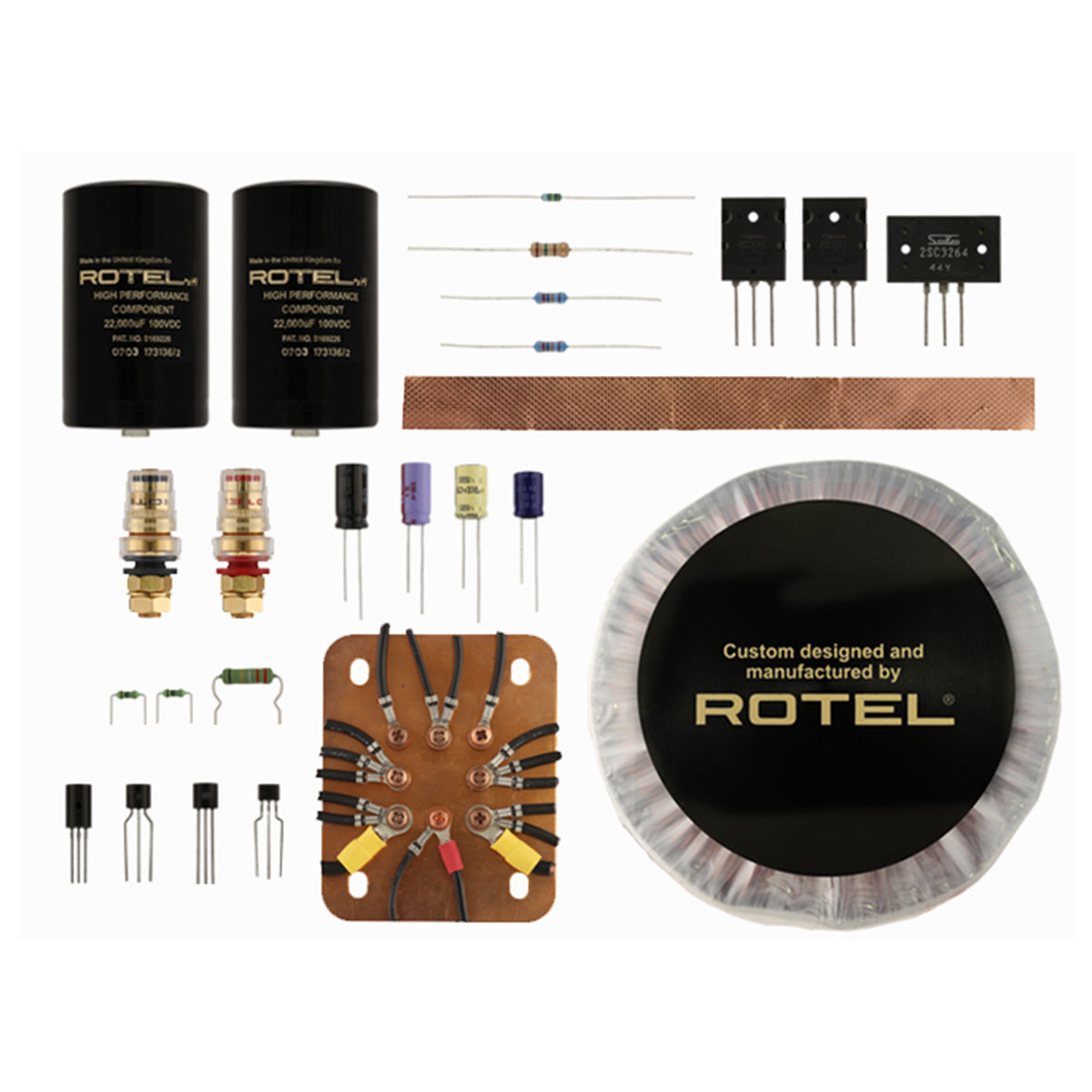

Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

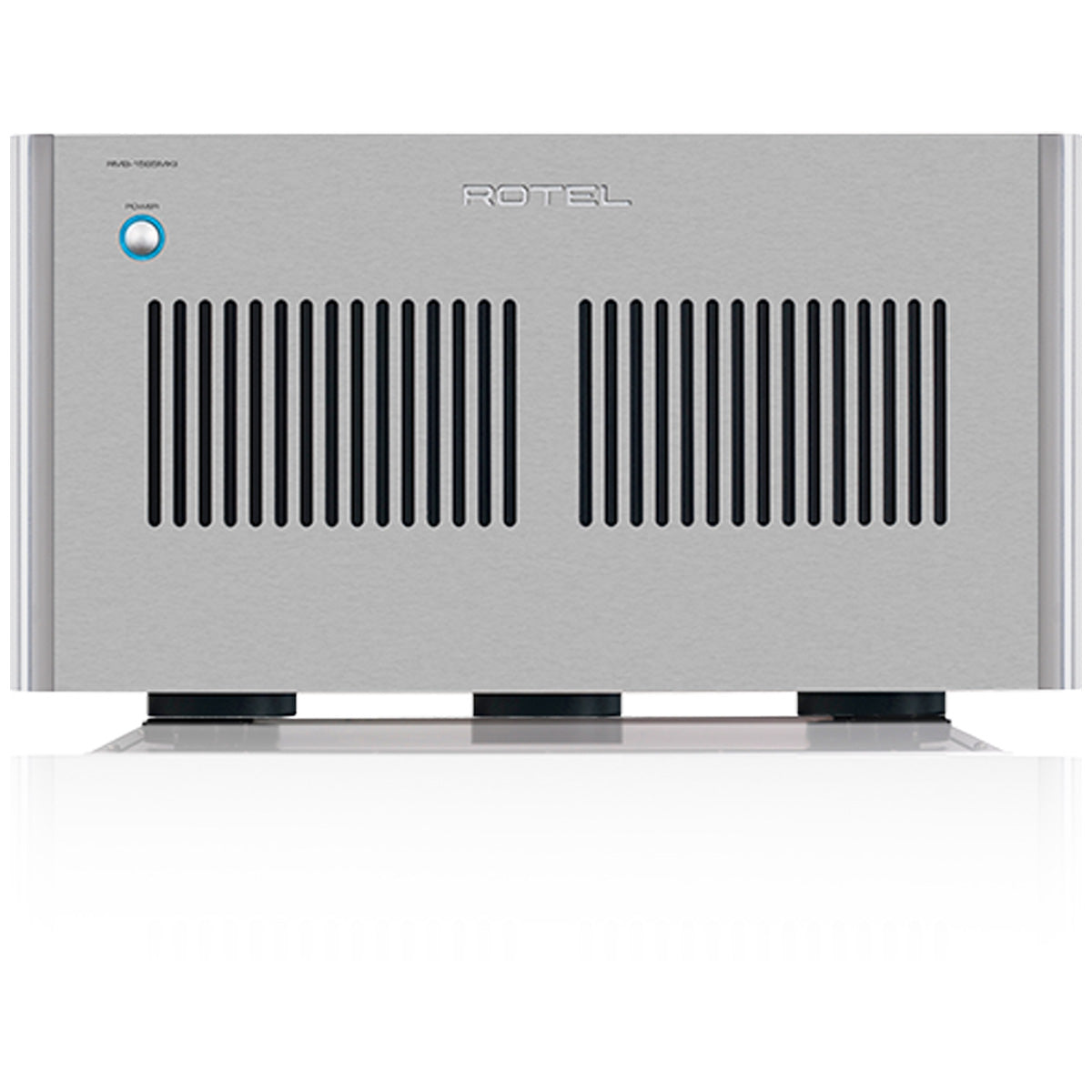

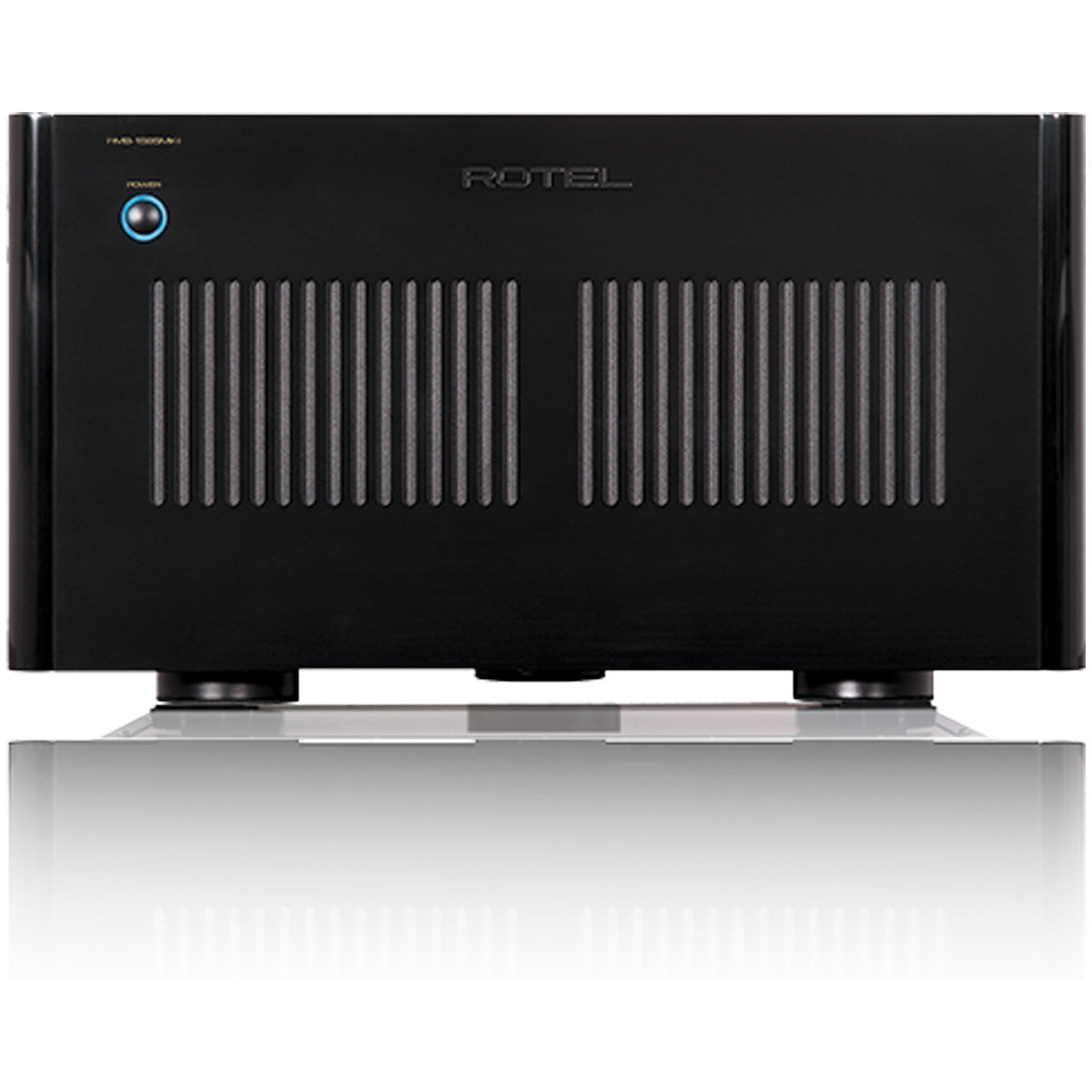

The RMB-1585MKII is available in both black and silver colors.

Details & Specs

  • DIMENSIONS (W × H × D) - 431 × 237 × 456mm / 17" × 9.4" × 18"
  • FRONT PANEL HEIGHT - 5U / 221mm (8.75")
  • POWER REQUIREMENTS - 120V, 60Hz
  • POWER CONSUMPTION - 1200W
  • NET WEIGHT - 37.4kg (82lbs.)
  • BTU RATING (4Ω, 1/8th power) - 3317 BTU/h
  • POWER OUTPUT210W/Ch (5 channels driven, 8Ω)340W/Ch (5 channels driven, 4Ω)440W/Ch (2 channels driven, 4Ω)
  • TOTAL HARMONIC DISTORTION (THD)<0.03%
  • FREQUENCY RESPONSE10Hz - 100kHz, +0.1, -0.3dB
  • SIGNAL TO NOISE RATIO (A Weighting)120dB
  • GAIN 26.9dB
