Rotel A10 MKII

Integrated Amplifier with MM Phono Input & Class AB Amplification

Rotel A10 MKII

Integrated Amplifier with MM Phono Input & Class AB Amplification
$599.99
Select Color Options:

Contact Us

Overview

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed with a massive Rotel-built toroidal transformer, the A10MKII delivers 50 Watts per channel of Class A/B power into 8 ohms featuring three RCA inputs and a Moving Magnet Phono stage for vinyl lovers.

Power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The multi-tap transformer delivers isolated power to the low-voltage sensitive circuits and the high current amplifier output transistors further isolating the signal paths reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. A 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

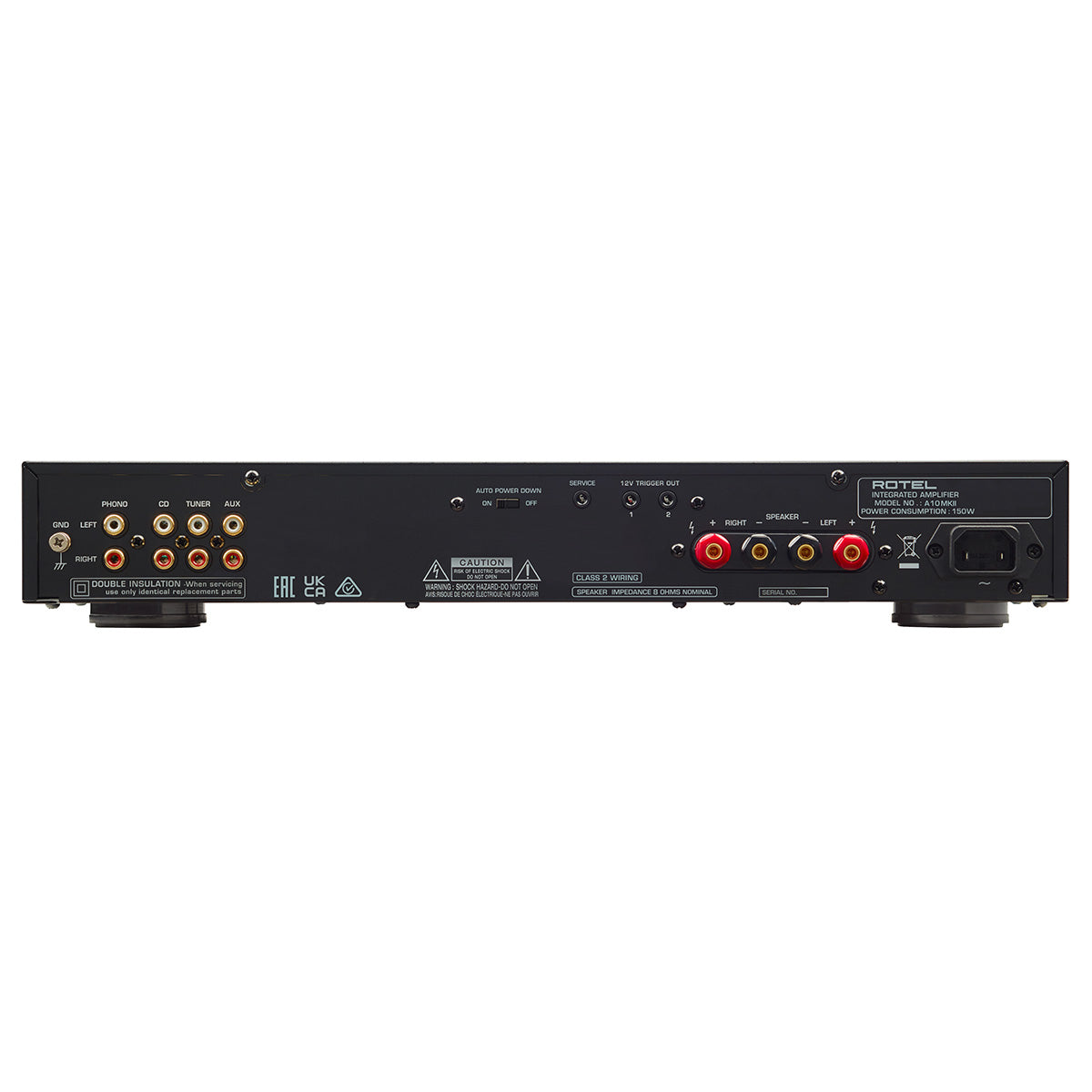

User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and auto power off functions ensure compatibility with any installation.

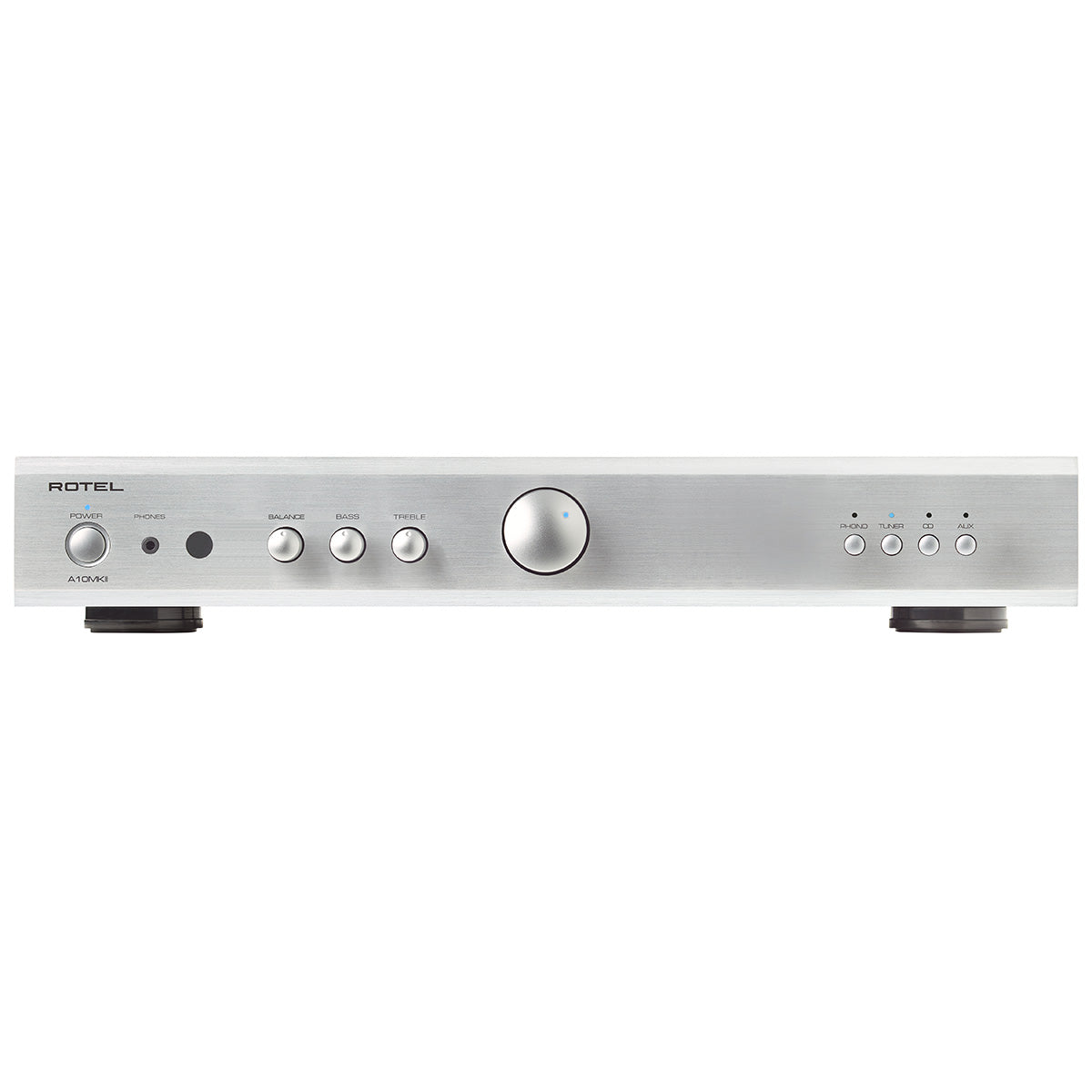

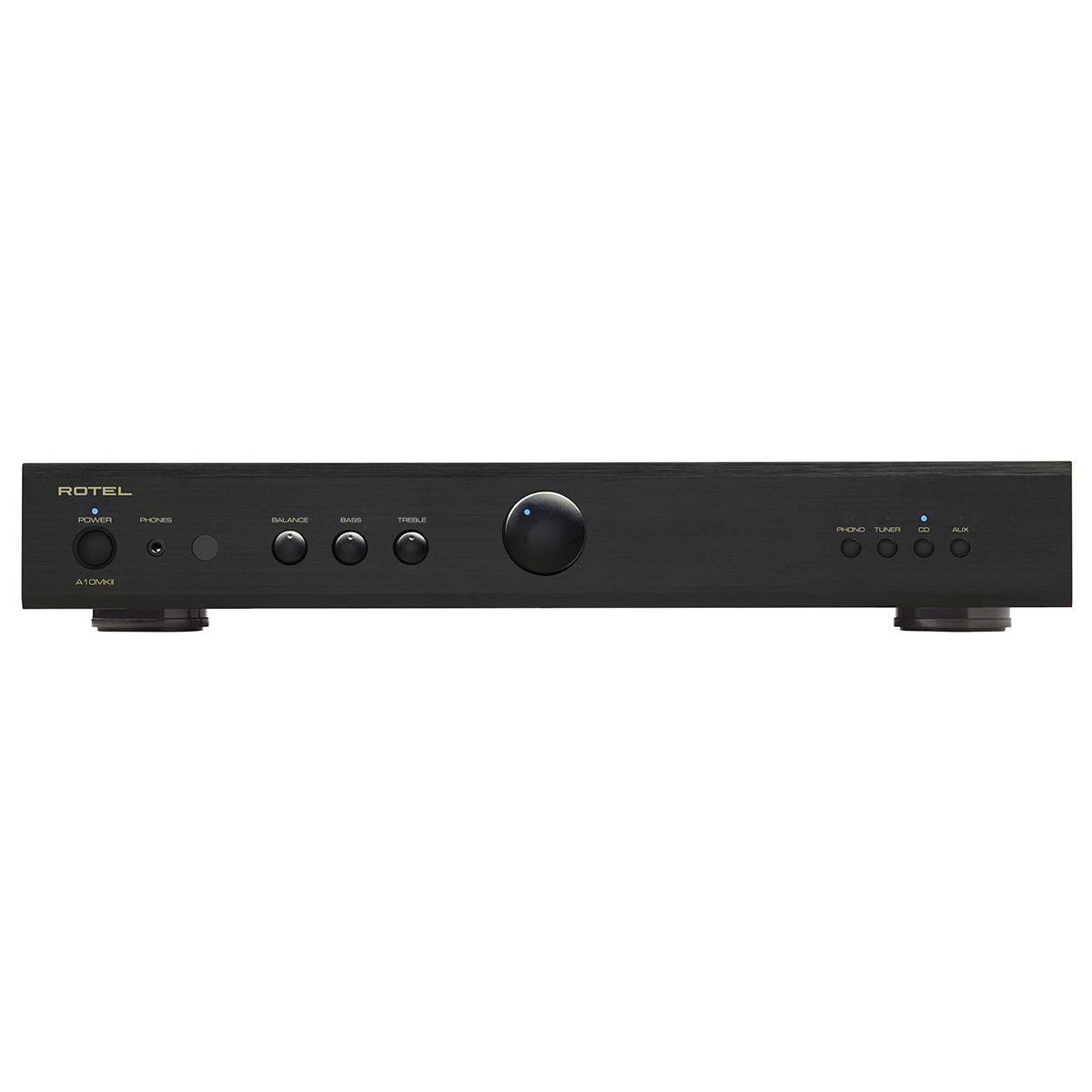

The A10MKII is available in both black and silver colors.

Key Features

  • 2 x 50 Watts of robust Class AB power, 8 Ohms
  • Moving Magnet Phono Stage input for turntable connection
  • 3 RCA analog inputs
  • Includes Remote Control
  • High current power supply

Details & Specs

Model A10 MKII
Power Output 50 Watts / ch (8 Ohms)
Total Harmonic Distortion < 0.03%
Intermodulation Distortion (60Hz: 7k Hz, 4:1) < 0.03%
Frequency Response Phono Input: 20 Hz - 20k Hz, -0.5 dB, +0.3 dB
Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0.05 dB
Damping Factor (20-20kHz, 8 Ohms) 120
Input Sensitivity/Impedance Phono Input: 1.5 mV / 43k Ohms
Line Level Inputs: 120 mV / 45k Ohms
Input Overload Phono Input: 50 mV
Line Level Inputs: 4 V
Tone Controls - Bass/Treble ± 6 dB at 100 Hz / 10k Hz
Signal to Noise Ratio (IHF "A" Weighted) Phono Input: 85 dB
Line Level Inputs: 90 dB
Power Requirements 120 V, 60 Hz
Power Consumption 150 Watts
Standby Power Consumption < 0.5 Watts
BTU (4 Ohms, 1/8 Power) 450 BTU/h
Dimensions (WxHxD) 17” x 2-7/8” x 13-5/8”
Front Panel Height 2-3/8”
Weight (net) 14.5 lbs
Finish Black
Silver
