Item #W553L

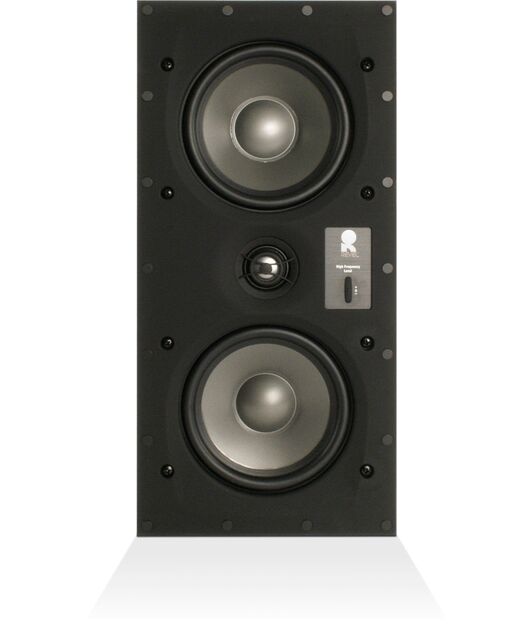

Revel W553L

Speciality In-Wall Speaker
Item #W553L

Revel W553L

Speciality In-Wall Speaker
$495.00
More on the way! Order now to reserve risk free.

Overview

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
  • Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

Details & Specs

Specifications

  • LCR Suitable for Vertical or Horizontal Orientation
  • 2 x 5-1/4" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers
  • 1” Aluminum-Dome Tweeters with Waveguide
  • Sensitivity: 90.5dB @ 2.83V, 1m
  • Recommended Amplifier Power Range: 10W – 150W
  • Mounting Depth: 2.9" (16.3cm)
  • Weight: 6.6 lb (3.0kg) / Shipping Weight: 7.6 lb (3.5kg)
  • Grille Finished Dimensions (H x W): 15.1" x 7.4" (18.8cm x 7.8cm)
  • Cutout Dimensions (H x W): 14.1" x 6.4" (35.9cm x 16.3cm)
  • C-2 Installation Mechanism
  • Compatible with Wall Material Thickness Range: 0.5" – 2.0"  (1.3cm – 2.5cm)
  • Preconstruction Bracket and Fire-Rated Back-Box Accessories Available
