Item #1090000076

Paradigm CI Elite E3 LCR V2

In-Wall LCR Speaker
Item #1090000076

Paradigm CI Elite E3 LCR V2

In-Wall LCR Speaker
$2,499.99
More on the way! Order now to reserve risk free.

Overview

The Paradigm CI Elite is the custom installer’s performance-oriented solution. The CI Elite series is Made in Canada and has all the technology advantages of Paradigm's CI PRO Series, but they didn’t stop there. It’s packed full of features that make a difference, and it doesn’t get much sweeter than this when looking for the ultimate sound performance.

Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens

AL-MAC is Paradigm's unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

Aluminum Magnesium (AL-MAG) Cones

Similar to the goals Paradigm had in mind when developing the AL-MAC tweeter, AL-MAG was conceived to bring the same elevated level of performance to the area where your ears are the most sensitive. In addition, AL-MAG combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.

Advanced Shock-Mount System

This system mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Oversized, 1.5” High-Power Handling Voice Coil

Paradigm CI Elite's motor structure dramatically increases maximum output level and reduces power compression.

Patented† Active Ridge Technology (ART) Surrounds

Made in-house and over-moulded directly onto each cone, ART surrounds achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Advanced Features for a Solid and Secure Installation

  • FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.
  • Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)
  • Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)
  • Pocketed screw holes help to hold the drill steady, making installation a snap.
  • Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.
  • Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

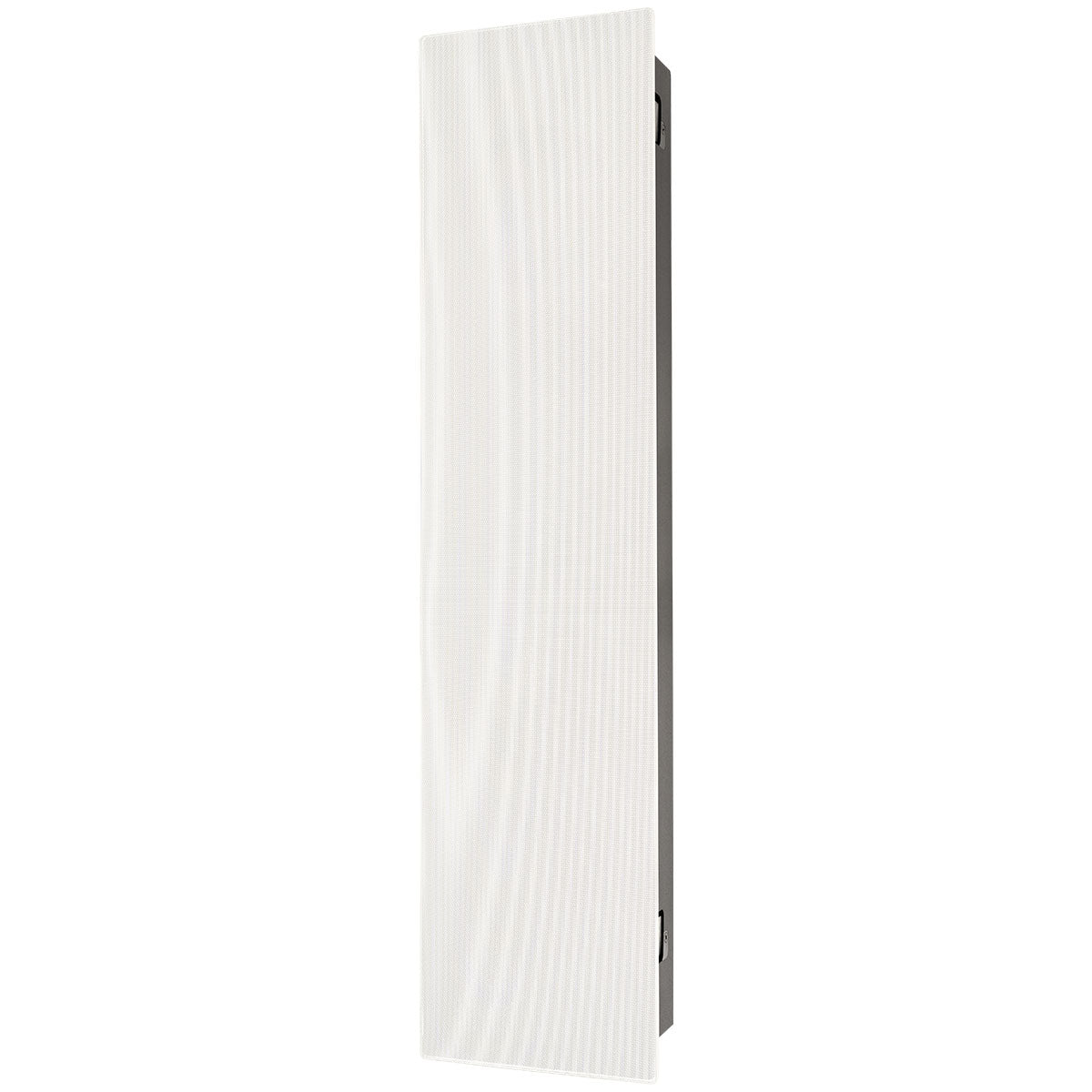

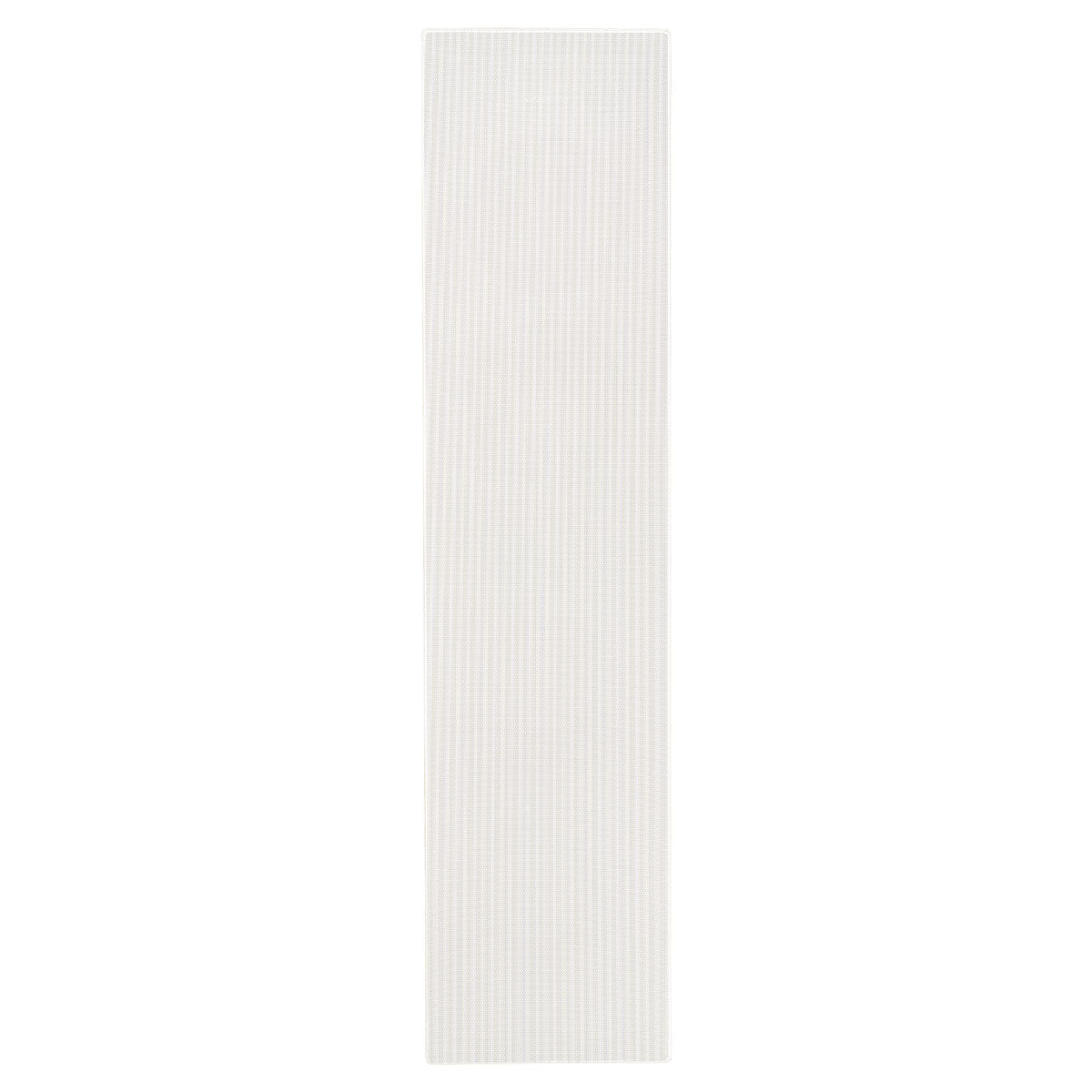

  • Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.
  • Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Details & Specs

Model Paradigm CI Elite E3 LCR v2
Design 3-driver, dual passive radiators, 2-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT System, Machined Aluminum Baffle
Crossover 3rd-order electro-acoustic at 2.3 kHz
High Frequency Driver 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens and Reduced Edge Diffraction (RED) Technology
Frequency Response On-Axis ±3 dB from 93 Hz - 22 kHz
Frequency Response 30° Off-Axis ±3 dB from 93 Hz - 19 kHz
Mid/Bass Frequency Driver Two 5.5” (13.9cm) Aluminum Magnesium (AL-MAG) Cones with overmolded Active Ridge Technology (ART) surround, Advanced Shock-Mount System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
Sensitivity Room / Anechoic 92 dB / 89 dB
Low Frequency Extension 57 Hz
Suitable Amplifier Power Range 15-200 W
Maximum Input Power 130 W
Impedance Compatible with 8 ohms
Passive Radiators Two 5.5” (13.9cm) Aluminum Magnesium (AL-MAG) Cones with overmolded Active Ridge Technology (ART) surround, Advanced Shock-Mount System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
Cut-Out Dimensions 31”x 6-5/8” (78.8cm x 16.0cm)
Minimum Mounting Depth
(Depth required is the distance between 1/2" drywall, or similar material)
3-7/8” (9.8cm)
Dimensions
(h x w x d, including grille)
32” x 7-5/8” x 4-1/8” (81.4cm x 19.5cm x 10.5cm)
Weight 23.0 lbs (10.4 kg)
Finishes White, paintable grille, black speaker
