Item #DCR+XM2

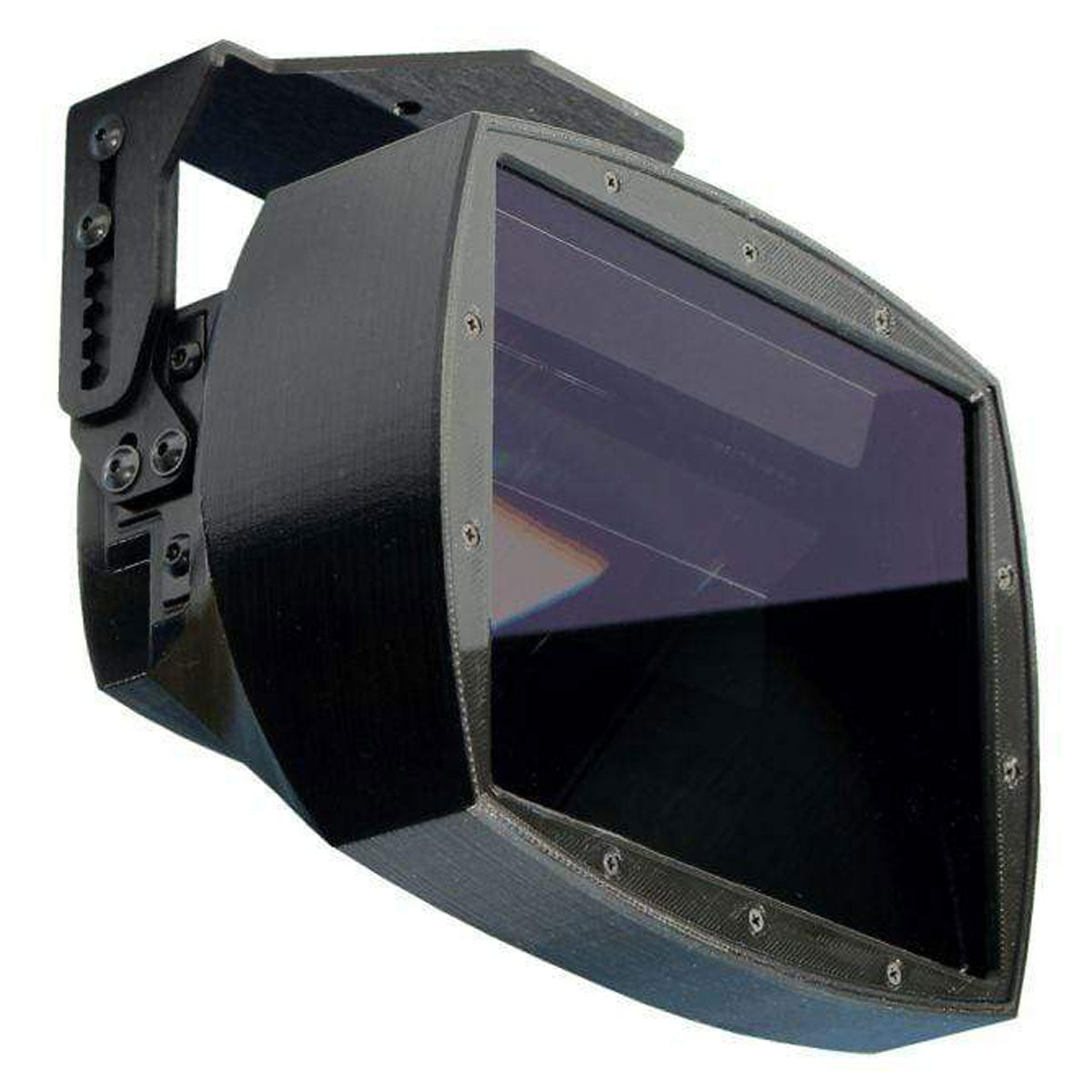

Panamorph DCR+XM2

Cinema Format Projector Conversion Lens System
Item #DCR+XM2

Panamorph DCR+XM2

Cinema Format Projector Conversion Lens System
$8,995.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

Panamorph's flagship lens model for native 17:9 projectors showing Digital Cinema Resolution (DCR) format up to true 8K – large enough to work with many future 17:9 home theater projectors.*

* future compatibility of the lens and attachment system is not guaranteed but the large lens aperture will likely pass future projector beams.

Exceed commercial cinema quality by engaging the internal anamorphic modes of today’s 4K projectors to add 2.6 million more pixels of clarity and 38% more brightness when showing movies and streaming content in the cinema format. Delivering the pinnacle of home theater performance from the most recognized and most recommended anamorphic lens brand used in close to 10,000 of the highest end home theaters throughout the world. Winner of the CEPro Product of Year for both 2019 (Paladin DCR Lens) and 2020 (DCR Direct Attach Lens).

Details & Specs

Model DCR + XM2
Sony Compatibility VPL-VW295ES
VPL-VW325ES
VPL-VW695ES
VPL-VW715ES
VPL-VW270ES
VPL-VW290ES
VPL-VW570ES
VPL-VW590ES
VPL-VW885ES
VPL-VW915ES
VPL-VW760ES
VPL-VW790ES
VPL-VW995ES
VPL-VW1025ES
VPL-VW870ES
VPL-VW890ES
VPL-VW5000ES
VPL-GTZ380
JVC Compatibility DLA-RS1000
DLA-RS2000
DLA-NX5
DLA-NX7
DLA-NP5
DLA-NZ7
DLA-RS3000
DLA-NZ8
DLA-NX9
DLA-NZ9
DLA-RS4500
DLA-Z1
Epson Compatibility ProCinema LS12000
6050UB
16:9 Content Compatibility Supports multiple projector modes for displaying 16:9 content including classic and full cinema modes without moving the lens
Attachment Included XM2 plate system installed either above projector (ceiling mount) or below projector (shelf mount)
Minimum Throw Ratio 1.4:1 (throw distance divided by 2.4:1 screen width) with edge distortion of approx. 0.006 x screen width (less with higher throw ratio)
Recommended Screen Format Flat, 2.4:1 format with at least 1.5″ border (lens can adjust for older 2.35:1 screens)
Recommended Projector Position Horizontally centered on-screen +/- 6″. Vertically positioned from 15% below to 30% above top of screen (ideally at screen top)
Dimensions (w/o Bracket) 6.5″ W x 5.7″ H x 4.13″ D
165 x 145 x 105 mm
Weight (w/o Bracket) 4 lbs
