Item #TXNR5100

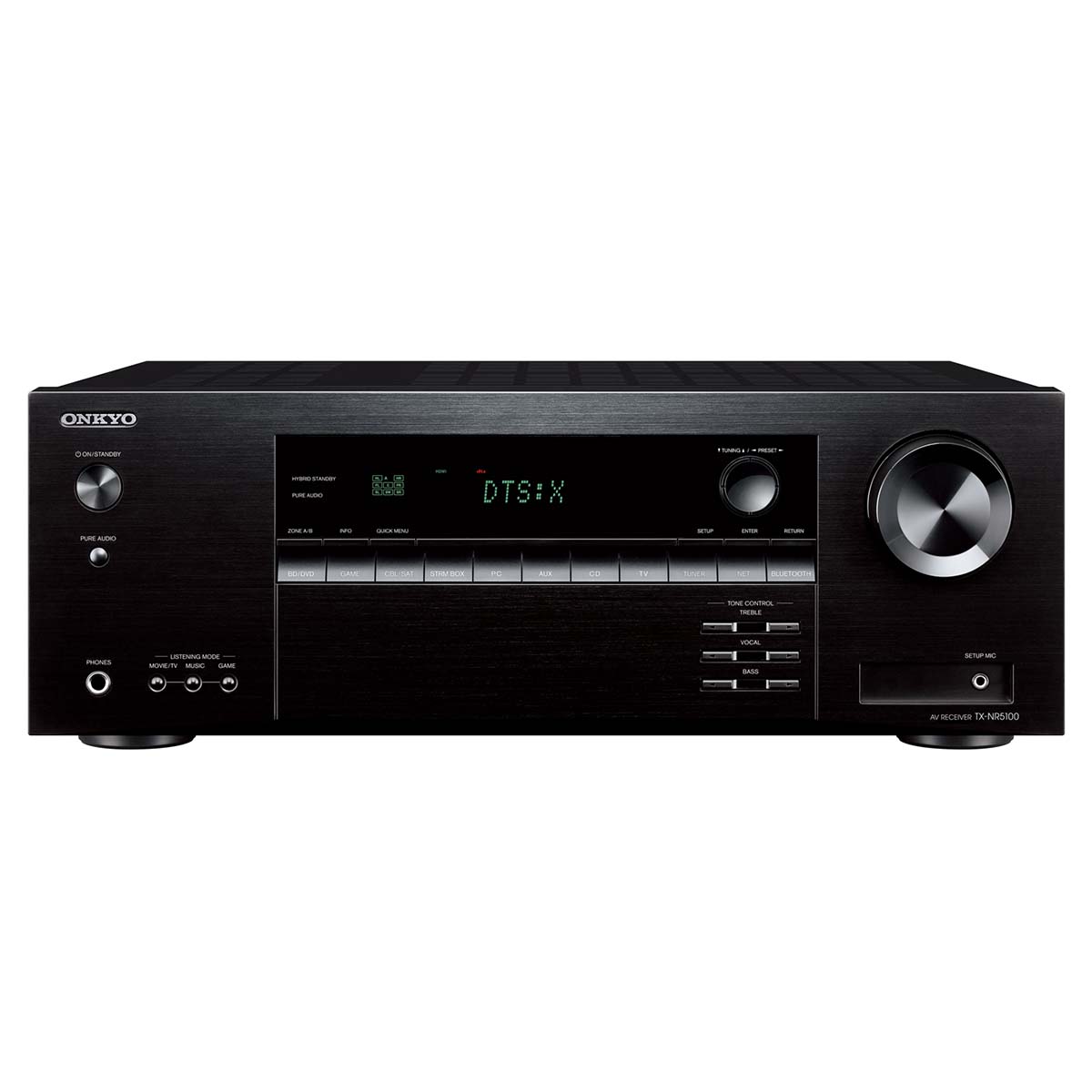

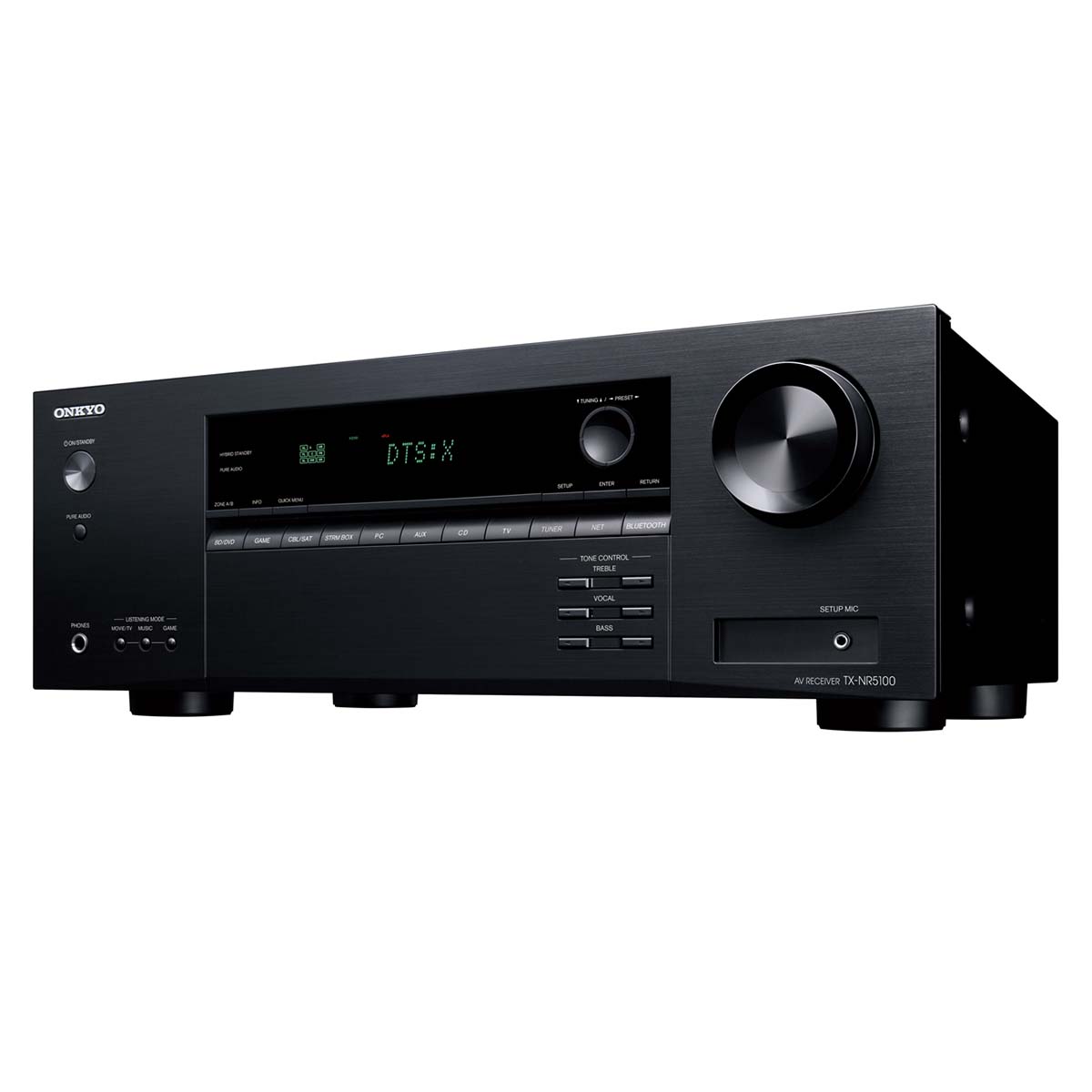

Onkyo TX-NR5100

7.2 Channel Network Home Theater Receiver
Item #TXNR5100

Onkyo TX-NR5100

7.2 Channel Network Home Theater Receiver
$599.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

The Onkyo TX-NR5100 7.2-Channel 8K AV Receiver is an affordable and versatile home theater centerpiece tailored to deliver a best-in-class entertainment experience for your movies, music, and next-gen gaming systems. Onkyo's SMART AV Receiver™ combines the latest in HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for an unparalleled home theater experience.

Features

  • Ready for 8K/4K entertainment
  • Enhanced Gaming: Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion – VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.
  • Immersive Sound from your TV Apps: eARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos®, DTS-HD Master Audio™, DTS: X®, Dolby® TrueHD. Stream your favorite music: Use Works with Sonos 1, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music, Pandora®, TIDAL, Deezer, or TuneIn streaming services
  • Voice Control: Work with your digital assistant in any room with easy Google and Amazon Alexa SMART home ecosystem integrations Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon Tested device, you can have the confidence that you will enjoy the best possible experience with it
  • 165 watts x 7 channels (6 ohms, 1 kHz, 10% THD, 1-ch driven)
  • 5.2.2-channel Dolby Atmos®
  • Dolby Atmos Height Virtualizer and DTS Virtual: X™ 3D sound virtualization technologies
  • Stream over 5 GHz/2.4 GHz dual-band Wi-Fi®
  • Send or receive audio via Bluetooth® wireless technology
  • Apple AirPlay 2
  • Music made easy with Chromecast built-in

Cue and control music with Hey Google, Alexa, or Siri; or hear what’s playing through the AVR on wireless headphones with top-notch Bluetooth® with aptX HD transmission technology. The options are virtually limitless.

Details & Specs

Amplifier

  • Power output (All channels):
    • 165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
    • 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
  • Dynamic power:
    • 160W (3 ohms, Front)
    • 125W (4 ohms, Front)
    • 85W (8 ohms, Front)
  • THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz)
  • Input sensitivity and impedance: 200mVrms/32k-ohms (Line)
  • Rated RCA output level and impedance: 1Vrms 200m Vrms/2.2k-ohms(Zone B PreLine-out)
  • Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Tone control:
    • ±10 dB, 20 Hz (Bass)
    • ±10 dB, 20 kHz (Treble)
  • Signal-to-noise ratio: 106 dB (Line, IHF-A)
  • Speaker impedance: 4–16 ohms

Tuner

  • FM: 87.5 MHz–107.9 MHz
  • AM: 530 kHz–1,710 kHz
  • FM/AM preset memory: 40 stations

General

  • Power supply: AC 120 V~, 60 Hz
  • Power consumption (operating): 490 W
  • Power consumption (idle): 45 W
  • Power consumption (standby): 0.1 W
  • Dimensions (W x H x D): 17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm)
  • Weight: 18.5 lbs. (8.4 kg)
  • Accessories included: Indoor FM antenna, AM loop antenna, Speaker setup microphone, Quick Start Guide, Remote control, Two AAA (R03) batteries
