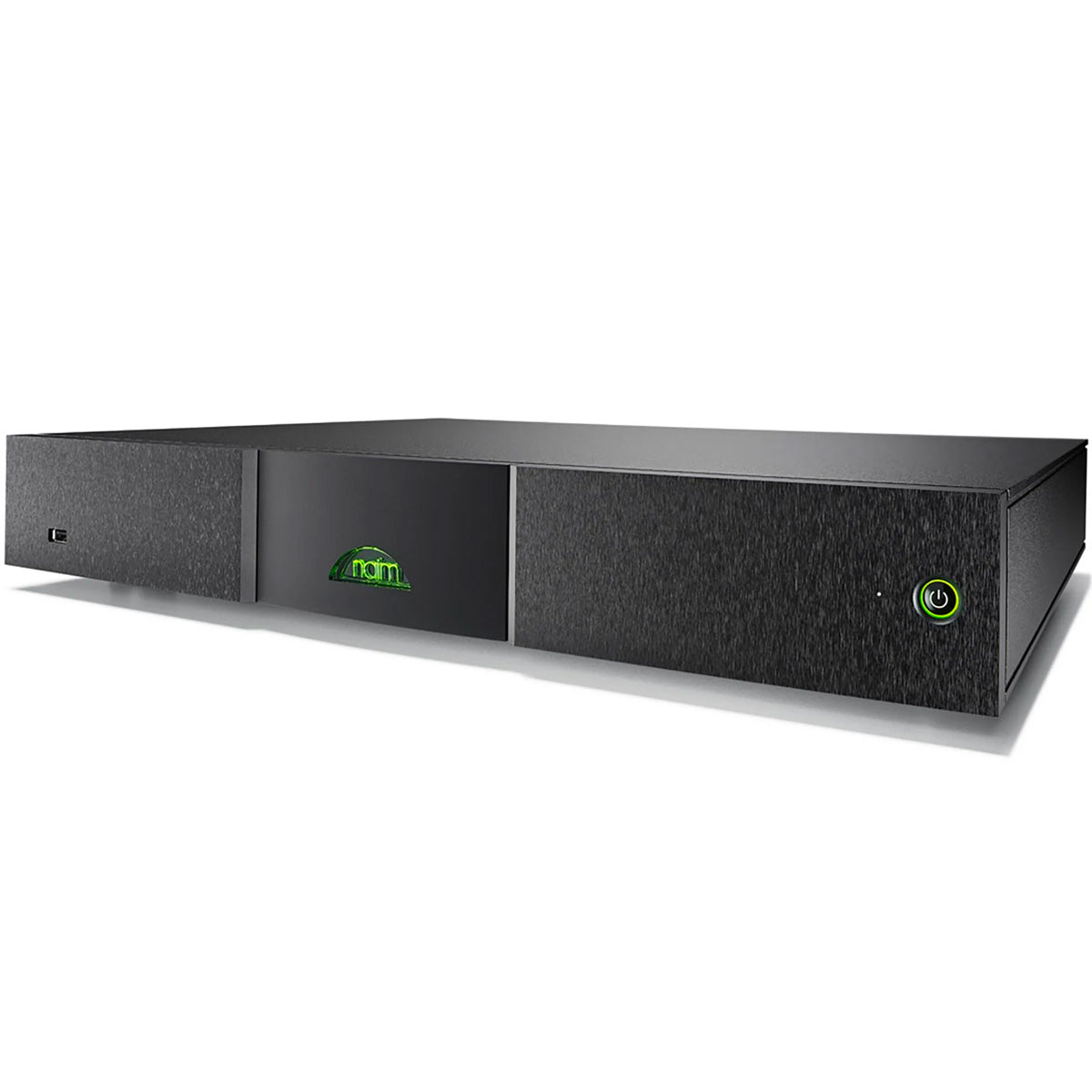

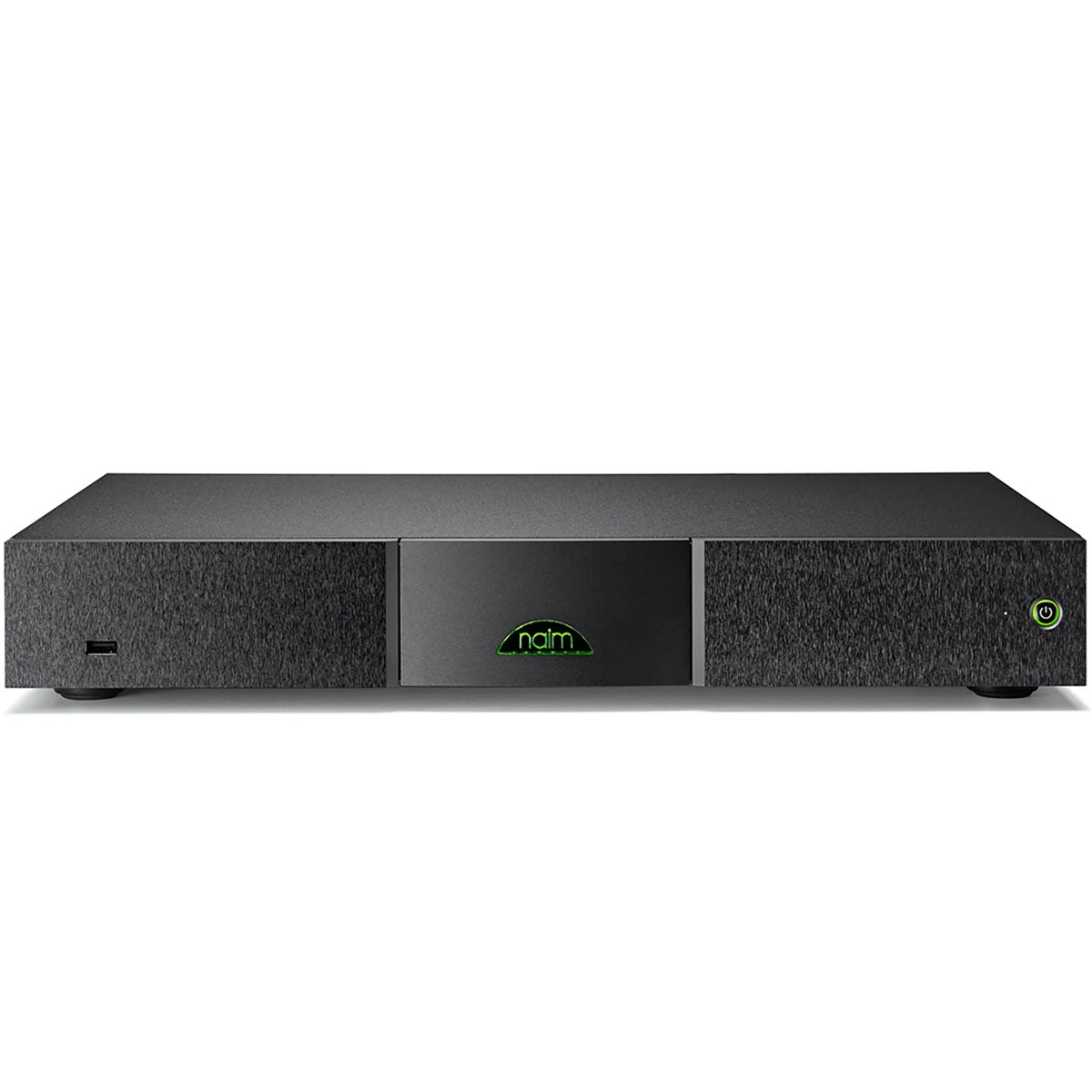

Naim ND5 XS 2

Network Music Streamer with WiFi, AirPlay 2, Chromecast, & Bluetooth

Naim ND5 XS 2

Network Music Streamer with WiFi, AirPlay 2, Chromecast, & Bluetooth
$3,999.00
Special Order
Contact Us

Overview

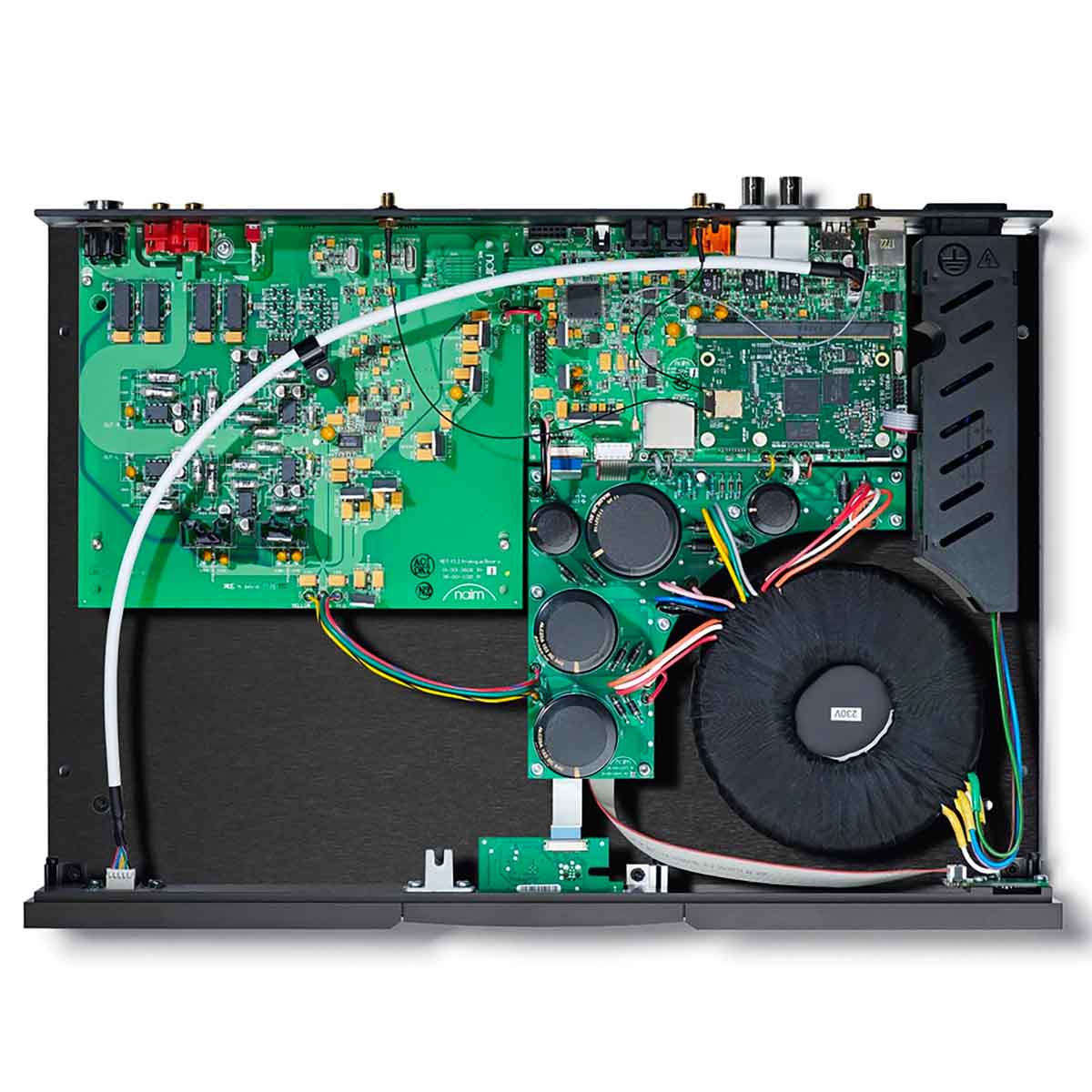

Carefully selected and matched parts, an oversized toroidal transformer, decoupled PCB boards: the ND5 XS 2 benefits from classic Naim engineering and fastidious attention to detail to ensure that it delivers natural, engaging sound quality from all sources.

The ND5 XS 2 uses Naim's innovative new streaming platform with an expanded feature set. High-res UPnP streaming, AirPlay, AirPlay 2, Chromecast built-in, Bluetooth (apt X HD), Spotify Connect, TIDAL, Qobuz, Roon compatibility, internet radio, and multiroom streaming – alongside digital and USB inputs for conventional connections – make this versatile player the ideal partner for one of their integrated amplifiers.

Technology & Craft

The streaming section of the ND5 XS 2 uses the latest Naim network card featuring low-noise, high-speed low-voltage differential signaling (LVDS) to route the digital audio signal. The higher speed is capable of decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. Rather than the source acting as the digital timing master, the new streaming board turns things around and allows the DAC clock to control the flow of audio data. The data is integer-over-sampled in a SHARC DSP to an incredible 40-bit accuracy before it’s fed to the PCM1791A Burr-Brown digital-to-analog converter.

Developing a new streaming platform was one of the biggest projects Naim has ever taken on. Naim engineers across all disciplines – electronic, industrial, acoustic, and mechanical – worked for three years to create a system that could make the most of online services such as TIDAL and Spotify while adding future-proof flexibility through Chromecast built-in. Supporting faster data rates with dual-band Wi-Fi and the latest 802.11ac protocol, this robust platform was designed for the highest performance on every level.

Features

  • UPnP-enabled to allow streaming of audio files at up to 32bit/384kHz resolution from Naim Audio hard disk servers, network-attached storage (NAS) devices, or any home computer
  • Supports a broad range of music formats: WAV, FLAC, DSD, Apple Lossless, AIFF, AAC, Windows Media-formatted files, M4A, and MP3. Gapless playback on all file formats
  • Two 24bit/192kHz capable digital inputs (S/PDIF) and two optical inputs to support optimum connection to external sources
  • Built-in Chromecast allows you to stream from hundreds of supported smartphone or tablet apps (192kHz)
  • Apple AirPlay - stream music from your iOS device or from iTunes and Apple Music
  • Spotify Connect built-in to stream millions of songs from the world’s most popular streaming service
  • Native support for Qobuz with true high-res streaming up to 24-bit/192kHz quality
  • Native support for TIDAL streaming service
  • Front-panel USB port for replay of MP3 player and USB-stored audio (1.6A charge)
  • vTuner 5* full-service internet radio
  • Multiroom & Party Mode compatible
  • iOS and Android Naim Audio app for intuitive control
  • Bluetooth connectivity with aptX codec for quality audio playback
  • Thanks to RC5 system integration, you can control compatible amplifiers that are connected to your network player directly from the Naim app on a phone or tablet
  • Roon ready - turning your music collection into a beautifully laid out catalog

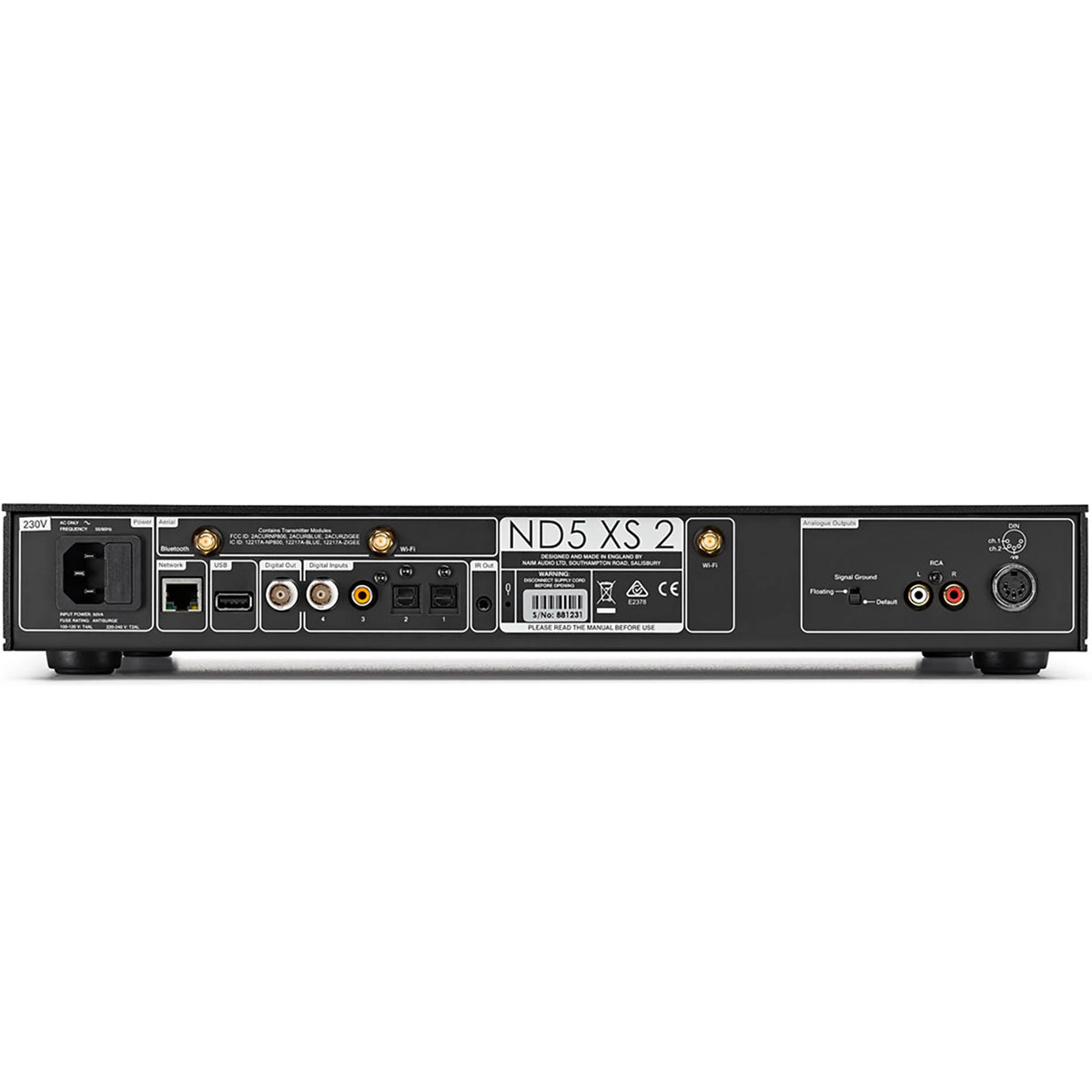

Details & Specs

Model ND5 XS 2
Audio Inputs
Streaming Chromecast built-in
Apple AirPlay
TIDAL
Spotify Connect
Bluetooth (AptX HD)
Internet Radio
UPnP (hi-res streaming)
Roon Ready
USB 2 x USB Type A socket (front and rear - 1.6A charge)
Digital (S/PDIF) 2 x optical TOSLink (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit/192kHz, DoP 64Fs
Analog Outputs
Analog 1 x RCA pair
1 x 5-pin DIN
Connectivity
Multiroom Party Mode Streaming: Sync up to six Naim products and control via the Naim app
Updates Update your system wirelessly via the Naim app
Network Ethernet (10/100Mbps)
WiFi (802.11 b/g/n/ac with external antenna)
Formats
Internet Radio Formats Windows Media-formatted content
MP3
ACC
OGG Vorbis streams and MMS
Internet Radio Provider vTuner premium 5*
Audio Formats Digital - 1 x coaxial BNC
WAV - up to 32bits/384kHz
FLAC and AIFF - up to 24bit/384kHz
ALAC (Apple Lossless) - up to 24bit/384kHz
MP3 - up to 48kHz, 320kbit (16 bit)
AAC - up to 48kHz, 320kbit (16 bit)
OGG and WMA - up to 48kHz (16 bit)
DSD - 64 and 128Fs
M4A - up to 48kHz, 320kbit (16 bit)
Note: Gapless playback supported on all formats.
Physical
Finishes Brushed and anodized aluminum
Weight 6.6kg
Power
Mains Supply 100V, 115V or 230V; 50 or 60Hz
Power Consumption Typical use: 11W
Network standby mode: <2W
Deep sleep: <0.5W
Ripping and Storage
Storage 2 x USB Type A socket (front and rear - 1.6A charge)
User Control
App Control Naim App for iOS and Android
What's In The Box 5-pin DIN interconnect cable
BNC to RCA adaptor
Wi-Fi (x2) and Bluetooth antenna
Cleaning cloth
Quick start guide
