Item #M23

NAD M 23

Master Series Stereo Power Amplifier
Item #M23

NAD M 23

Master Series Stereo Power Amplifier
$3,749.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

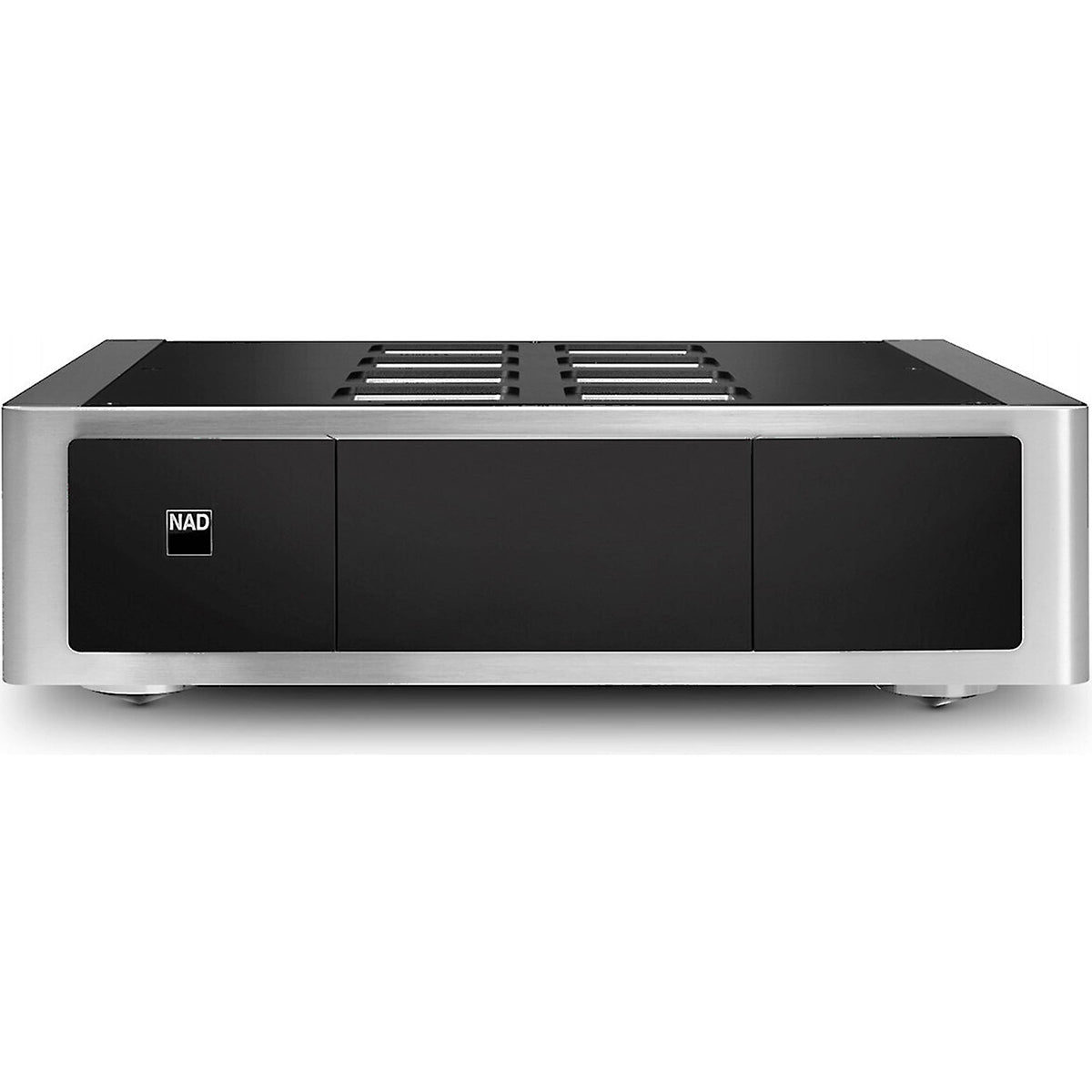

The NAD Masters M23 HybridDigital Stereo Power Amplifier features Eigentakt™ amplifier technology, a once-in-a-decade innovation that virtually eliminates harmonic and intermodulation distortion; and delivers wide, flat frequency response regardless of the loudspeaker load. The result is transparent, detailed sound with pinpoint stereo imaging, at all listening levels and with all types of program material – even during complex musical passages. Conservatively rated at 2x200W continuous into 8 ohms and 2x380W into 4 ohms, the M23 can deliver live performance levels through any loudspeaker

A NEWER, PURER SOUND

Continuing NAD’s long tradition of identifying and developing cutting-edge amplification technology, the M23 Stereo Power Amplifier employs Eigentakt™ class-D amplifier modules manufactured by NAD under license from Purifi. Harmonic and IM distortion are almost immeasurable at all frequencies and output levels. Noise is inaudible, for a black background and outstanding micro-detail. Output impedance is extremely low, which translates to iron-clad control of any loudspeaker load. Amazingly powerful and transparent, the M23 can deliver 2x260W of dynamic power into 8 ohms and 2x520W into 4 ohms.

IN A CLASS OF ITS OWN

The ideal amplifier will combine vanishingly low distortion, ultra-high damping factor, and rock-solid stability with any loudspeaker. There are many amplifiers that perform well in one or two of these areas but fall short in others. Purifi’s ground-breaking Eigentakt™ technology and NAD’s proven switch-mode power supplies enable the M23 to excel in all these areas – without the excess weight and cost of the old-fashioned linear power supplies and class-AB output stages used with traditional amplifiers. In all these areas, Eigentakt™ outperforms previous class-D implementations by a significant margin.

FLEXIBILITY

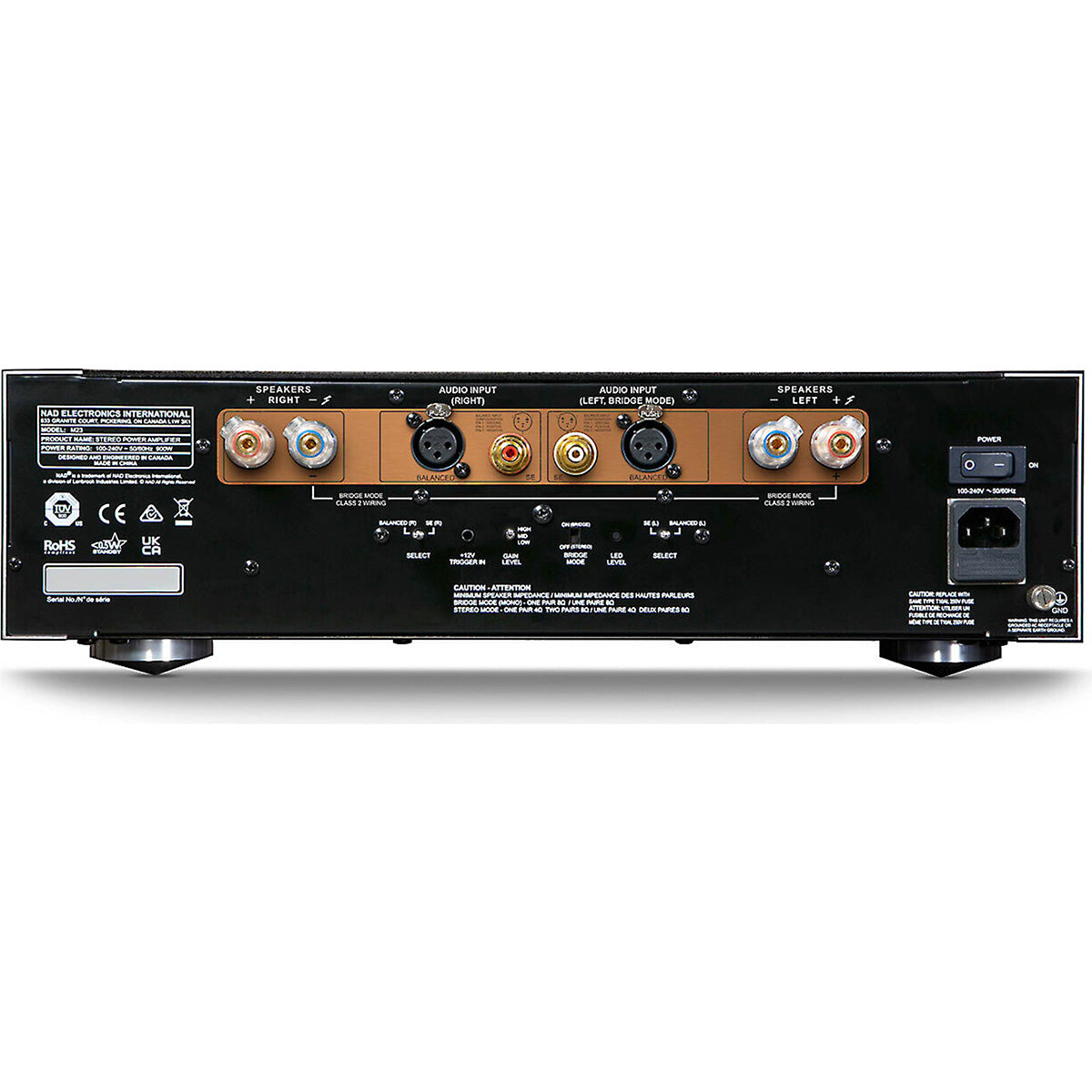

Equipped with single-ended RCA and balanced XLR auto-sensing inputs, three-position gain-control switch, and 12V trigger input, the NAD Masters M23 Stereo Power Amplifier can easily be integrated into a high-performance separates system. The M23 can operate in bridged mode, delivering 700W continuous power into 8 ohms. Two M23 amplifiers operating in bridged mode can be paired together, or listeners can combine the M23 with NAD’s awardwinning Masters M33 BluOS Streaming Amplifier, both operating in bridged mode, to configure a staggeringly powerful system with 700Wpc continuous output.

PRACTICAL ELEGANCE

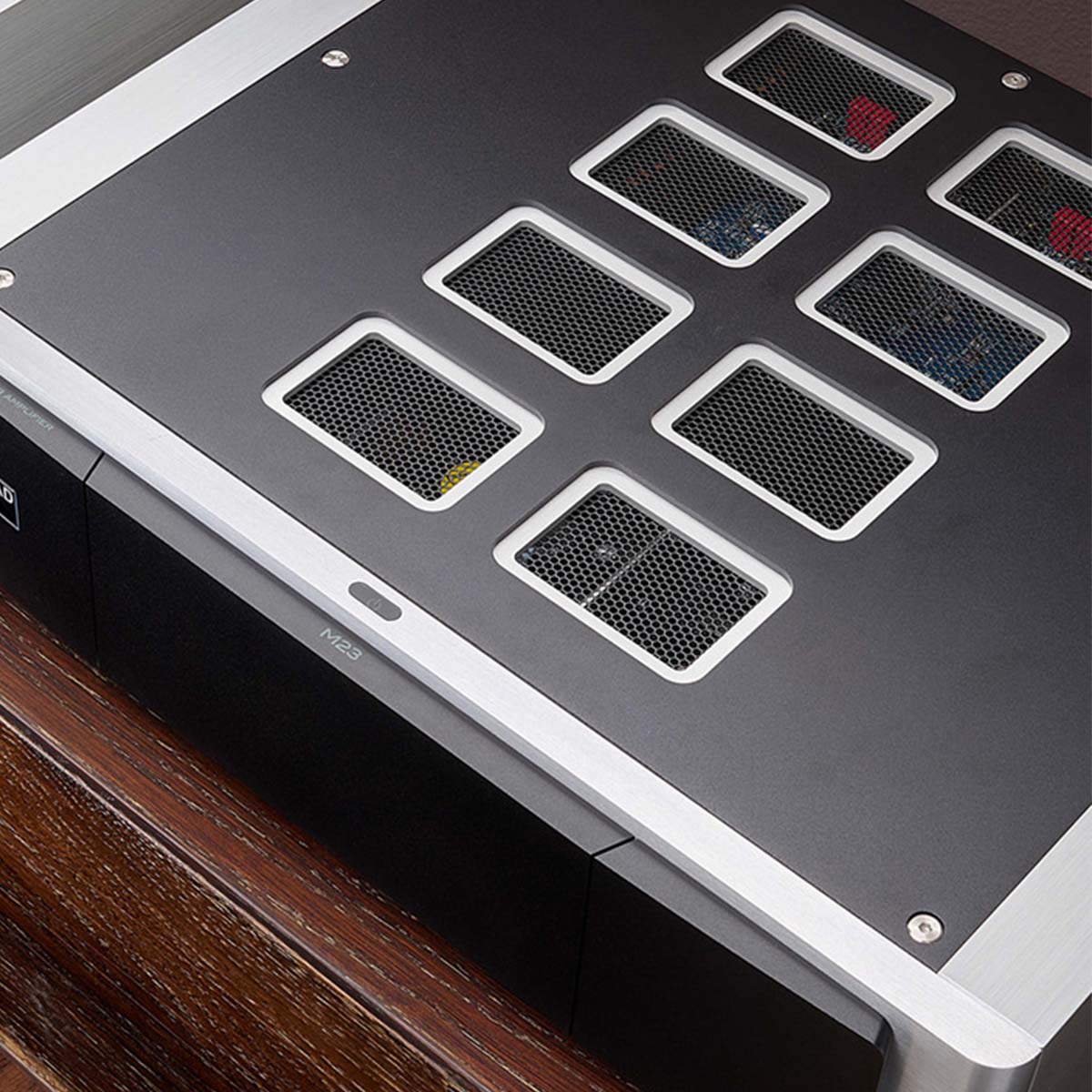

With its elegant all-alloy casework, the M23 Stereo Power Amplifier has the quality of construction for which NAD’s Masters Series is renowned. Rigid panels and magnetic iso-point feet provide a rock-solid foundation for the M23’s multi-layer circuit boards and intricate internal construction. The result is an amplifier that is as pleasing to the eye as it is thrilling to the ears. Offering a unique combination of features, performance, and value, the M23 represents the new benchmark for the stereo power amplifier.

Details & Specs

ANAlog audio input/speaker out

Input impedance (R and C)

  • Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF

Frequency response (1W into 8 Ohms)

  • ±0.06dB (20-20kHz)

Rated output power into 8 Ohms and 4 ohms(Stereo mode)

  • >200W into 8 Ohm, >380W into 4 Ohm

Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated
THD, both channels driven)

  • >700W into 8 Ohm

THD (20 Hz – 20 kHz)

  • <0.00069% (XLR), <0.0013% (RCA)

Signal-to-Noise Ratio

  • >101.7 dB (1W into 8 Ohm)
  • >127 dB (200W into 8 Ohm)

Clipping power (Stereo mode, at 1 kHz 0.1 % THD)

  • >210 W (0.1 % THD 1 kHz 8 ohms)

Clipping power (Bridge mode, at 1 kHz 0.1 % THD)

  • > 770W

IHF dynamic power (Stereo mode, at 1 kHz)

  • 8 ohms: 260 W
  • 4 ohms: 520 W

IHF dynamic power (Bridge mode, at 1 kHz)

  • 1017W

Peak output current

  • >25 A (in 1 ohm, 1 ms)

Damping factor

  • >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)

Frequency response

  • ±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz

Channel separation

  • High gain RCA: >97dB, Low gain XLR: >115dB (1kHz)
  • High gain RCA: >75dB, Low gain XLR: >96dB (10kHz)

Stereo Mode input sensitivity (for 200 W in 8 ohms)

  • Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain)

Stereo Mode Gain

  • 19dB (low), 23.9dB (mid), 29.2 (high)

Bridge Mode Gain

  • 25.1dB (low), 30dB (mid), 35.2 (high)

Standby Power

  • <0.5W
