Item #CC165

Monitor Audio C165

Series 100 In-Ceiling Speaker
Item #CC165

Monitor Audio C165

Series 100 In-Ceiling Speaker
$275.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

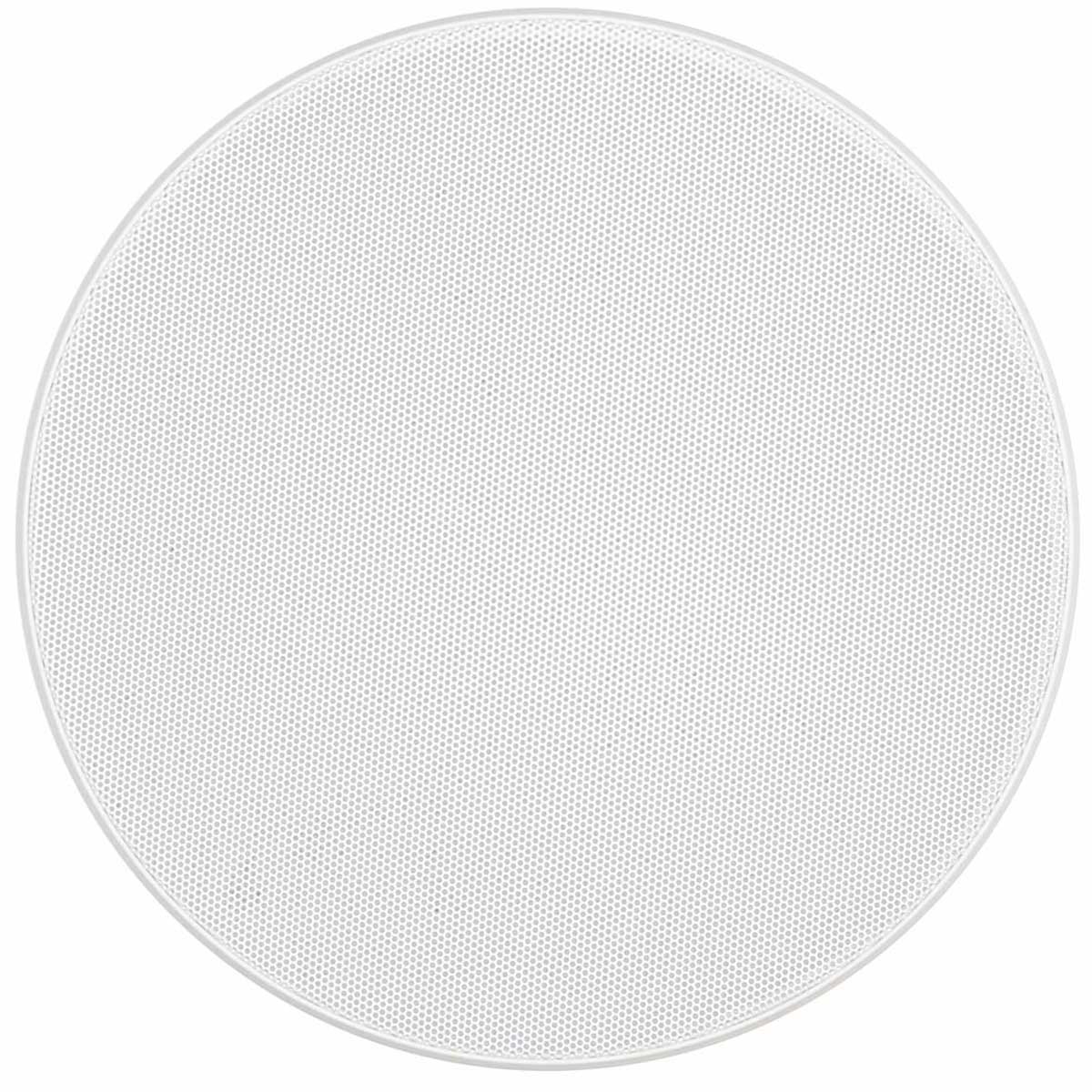

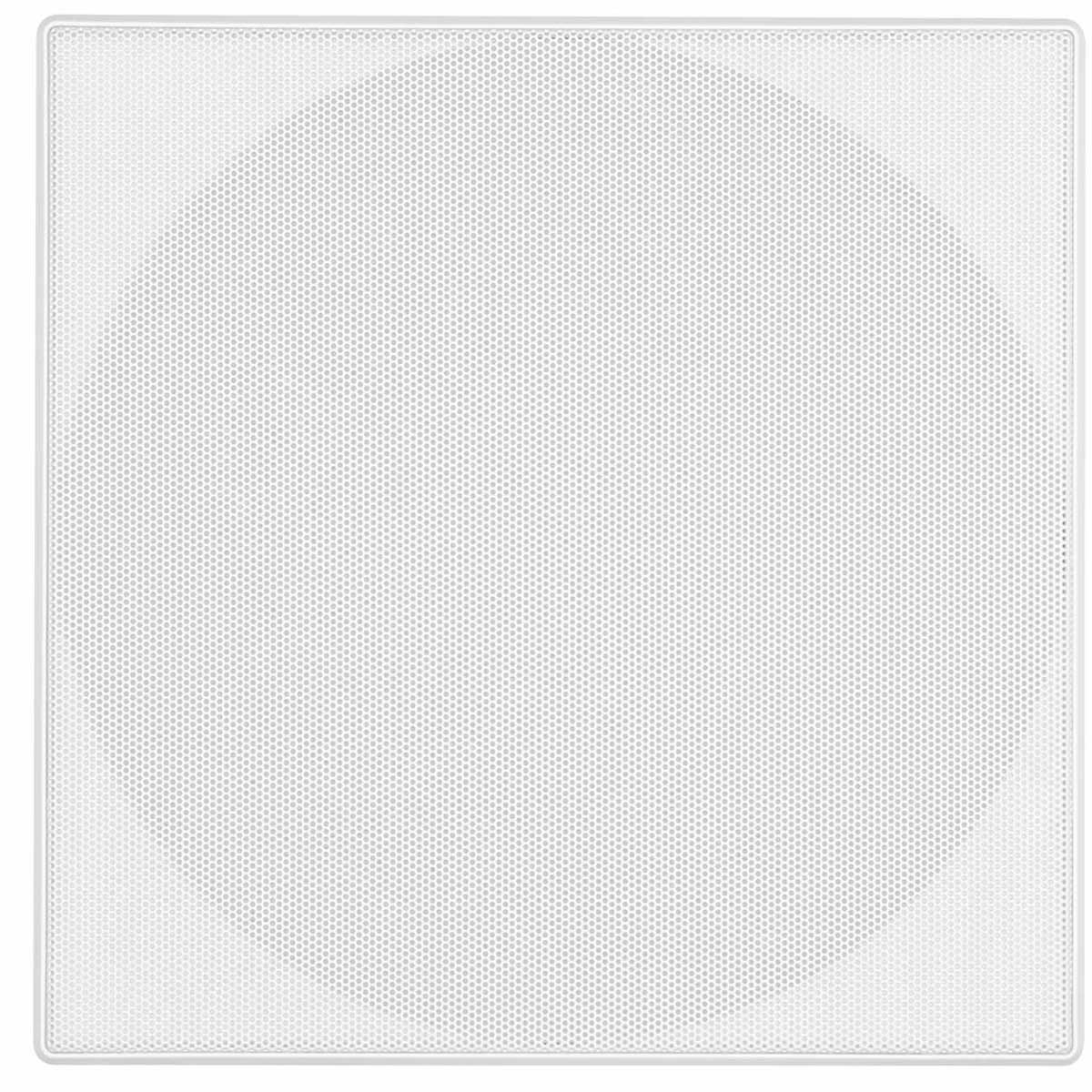

Optional square or premium grille can be used with this model.

Details & Specs

  • Frequency Response - 60 Hz – 25 kHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 88.5 dB
  • Maximum SPL - 107.4 dBA
  • Power Handling (RMS) - 65 W
  • Recommended Amplifier Requirements - 20 – 65 W
  • Drive Unit Complement -
    • 6 1/2" MMP II cone bass driver
    • 1" C-CAM pivoting Gold Dome tweeter
  • Adjustment Controls - HF Level Switch (+3 dB / 0 dB / -3 dB)
  • Overall Diameter (Including Grille) - 250 mm (913/16")
  • Overall Depth (Including Grille) - 120 mm (43/4")
  • Mounting Depth - 116 mm (49/16")
  • Cut-Out Hole Diameter - 211 mm (81/4")
  • Optional Square Grille - Outer Dimensions 249 x 249 mm (93/16")
  • Fixing Type - 3 position Tri-Grip dog fixings
  • Construction Material - Mineral filled ABS, RoHS compliant
  • Weight - 1.92 kg (4 lb 4 oz)
  • Pre-Construction Bracket - CB6 Pre-Construction Bracket (Purple)
  • Back Box - CCBOX-R / CMBOX-R
