Item #MC8207

McIntosh MC8207

7-Channel Solid State Amplifier
Item #MC8207

McIntosh MC8207

7-Channel Solid State Amplifier
$7,000.00
Available In-Store

Overview

At 200 Watts per channel, the 7-channel MC8207 home theater amplifier is perfectly capable of powering all the speakers in a 7.1 channel home theater to McIntosh’s legendary standards. It features LED power output indicators instead of the traditional blue meters. These indicators will display the amplifier’s power output just as the blue meters do but in a more understated way – making the MC8207 a perfect choice for darkened home theaters where the screen is the focal point. In addition to 7.1 theater systems, it can also be used in 5.1 home theaters with 2 channels used to power a second zone in stereo mode.

Key Features

  • 200 Watts x 7 Channels
  • Designed for home theaters
  • LED power output indicators

THE ULTIMATE IN HOME ENTERTAINMENT

The McIntosh exclusive Dynamic Power Manager (DPM) technology enables the MC8207 to deliver its full power into both 4 and 8 Ohm speakers, meaning it’s compatible with a wide variety of home theater speakers – unlike many other high current amplifiers. Just like our other home theater amplifiers, the MC8207 does not need cooling fans, eliminating fan noise that can interfere with the delicate nuances of a movie’s soundtrack. Power Guard will prevent potential speaker damage caused by clipping and over-driving of the amplifier. Short-circuit protection is provided by Sentry Monitor that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal.

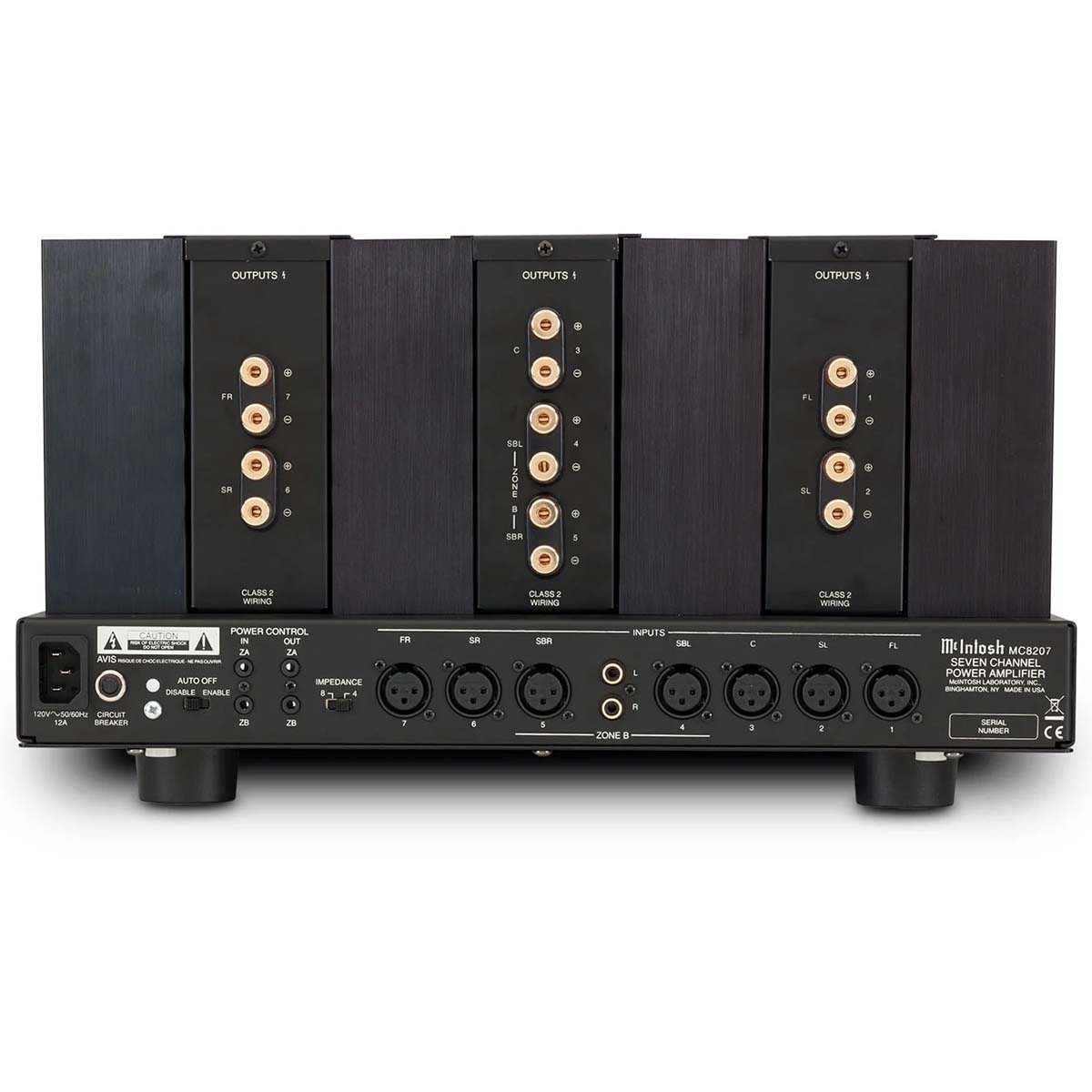

For the utmost in sound quality, inputs for balanced audio cables are included for all 7 channels. When used in a dual zone configuration, for your convenience there are also unbalanced inputs for the two channels used in the secondary zone.

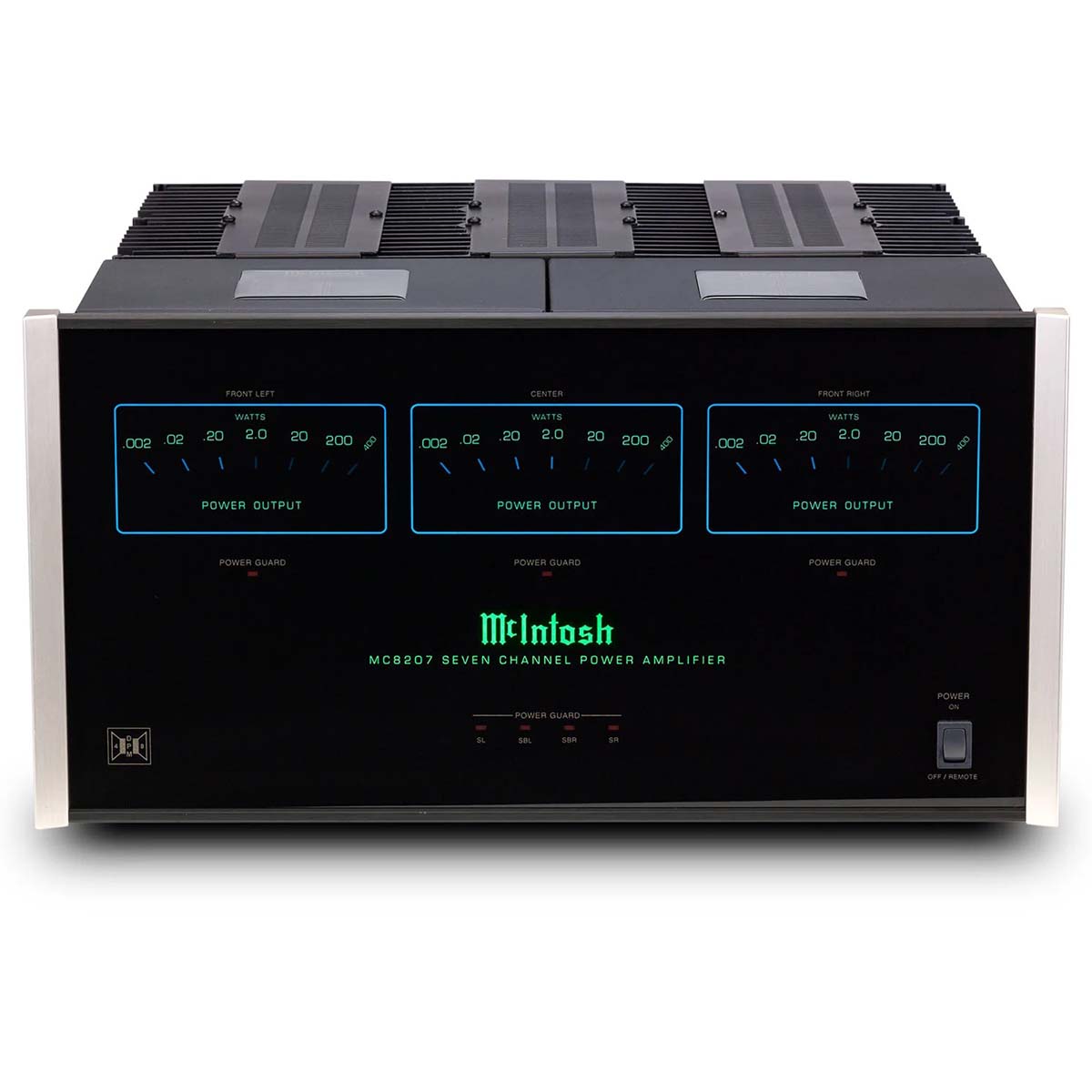

The classic black glass front panel and custom machined brushed aluminum end caps make the MC8207 a welcome addition to any home theater. Combine it with a home theater processor for the ultimate in home entertainment.

Details & Specs

Model McIntosh MC8207
ELECTRONIC SPECIFICATIONS
FTC Power Output Rating 200 W
Power Output per Channel 200 W into 4 or 8 ohms
Number of Channels 7 (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
Total Harmonic Distortion 0.005%
S/N below rated output 112dB
Dynamic Headroom 1.7dB
Damping Factor >140
Rated Power Band 20Hz to 20kHz
Frequency Response +0, -0.25dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz
CONTROL
Remote Power Control Yes, 7 or 5 + 2 Channel
Multi-Channel DB25 Cable N/A
GENERAL SPECIFICATIONS
Circuit Configuration Push-Pull Complementary
Circuit Design Solid State
Mono Bridge No
Mono Parallel No
Output Type Direct Coupled with Dynamic Power Manager
Meters Yes, new style LED
Meter Light Switch No
Balanced Input Yes
Front Panel Glas
Illumination LED Fiber Optic
Chassis Style Inverted
CONNECTIVITY
Speaker Binding Post Type Yes
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D) 17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
Unit Weight 83 lbs (37.6 kg)
Shipping Weight 116 lbs (52.6 kg)
