MartinLogan Motion XT C100

High-Performance Folded Motion Center Channel Speaker

MartinLogan Motion XT C100

High-Performance Folded Motion Center Channel Speaker
$1,499.99
Select Color Options:

Contact Us

Overview

Upgrade your surround sound system with MartinLogan’s C100 center channel — the perfect complement to any Motion XT or Motion based setup. The latest Gen2 Folded Motion XT Tweeter with advanced Motion waveguide technology provides exceptional dialogue clarity and consistency for all listeners. The “anti-lobing” crossover design enhances accuracy and the “flippable” cabinet design allows for a slight angle, making it ideal for low-mounted shelves or TV stands.
The High Notes

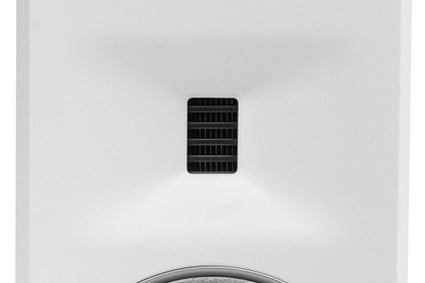

Larger Gen 2 Folded Motion Tweeter with Improved Dispersion

Larger Gen 2 Folded Motion Tweeter with Improved Dispersion

The completely redone Gen 2 Folded Motion XT tweeter is even faster and lower in distortion than ever before. With over twice the surface area of the Motion tweeter, the XT version is even more transparent. The new waveguide improves dispersion to fill up your room with that famous MartinLogan clarity.

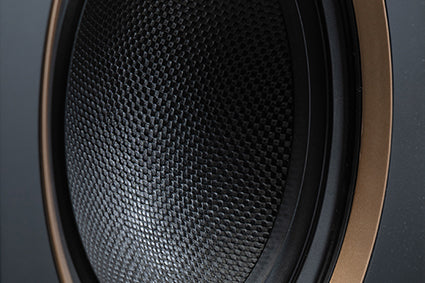

Fantastic New Kevlar & Nomex Driver Design

Fantastic New Kevlar & Nomex Driver Design

The combination Kevlar and Nomex driver to our ears sounds fantastic. When you couple the subtle midrange nuances it allows you to hear with the extremely transparent folded motion XT tweeter, you can tell MartinLogan got close to the sound of their true electrostatics with these new models
High Sensitivity for All the Dialog Nuances

High Sensitivity for All the Dialog Nuances

When you combine the high sensitivity with the improved drivers, you will hear far more sublte inflections in performers voices making it sound like they are in front of you speaking

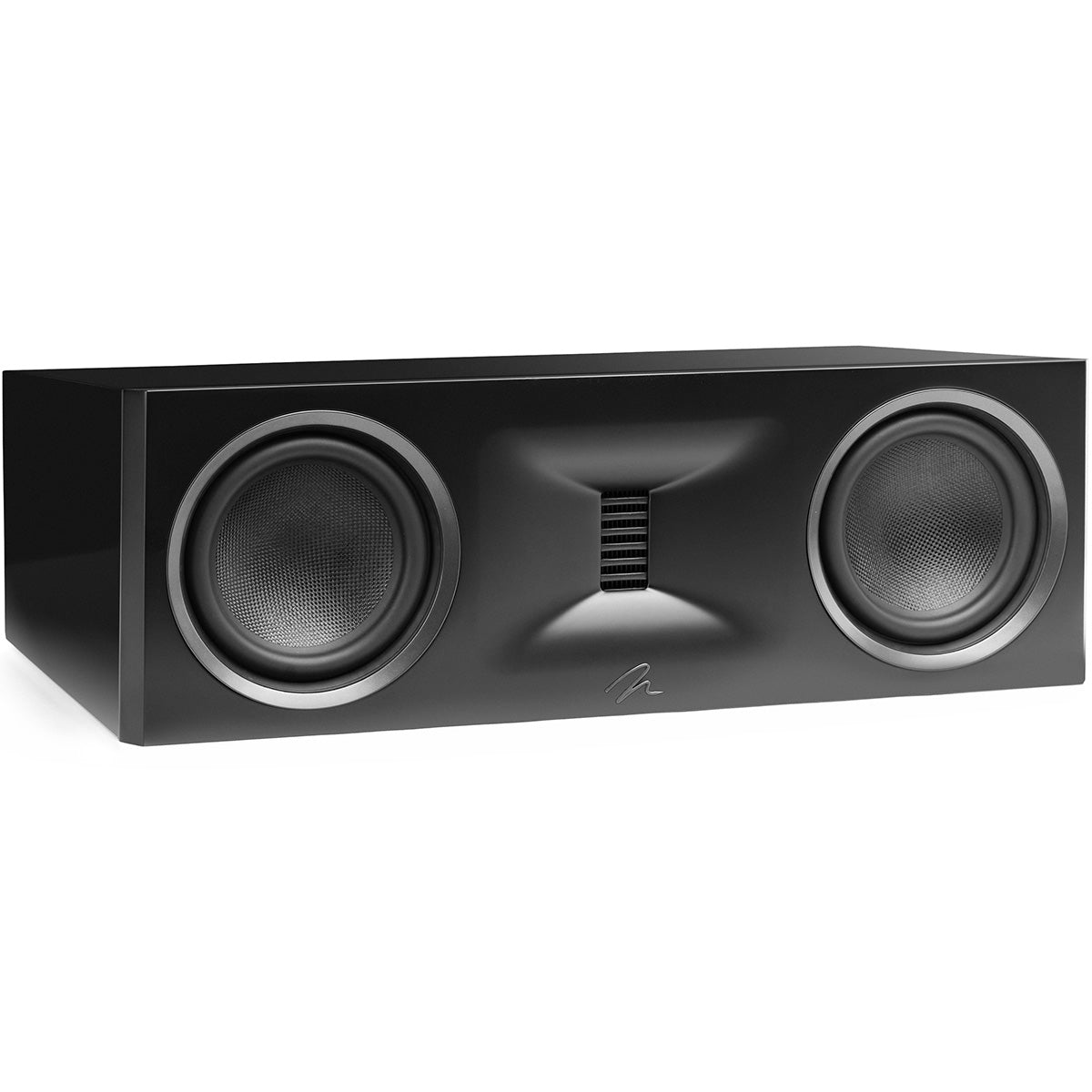

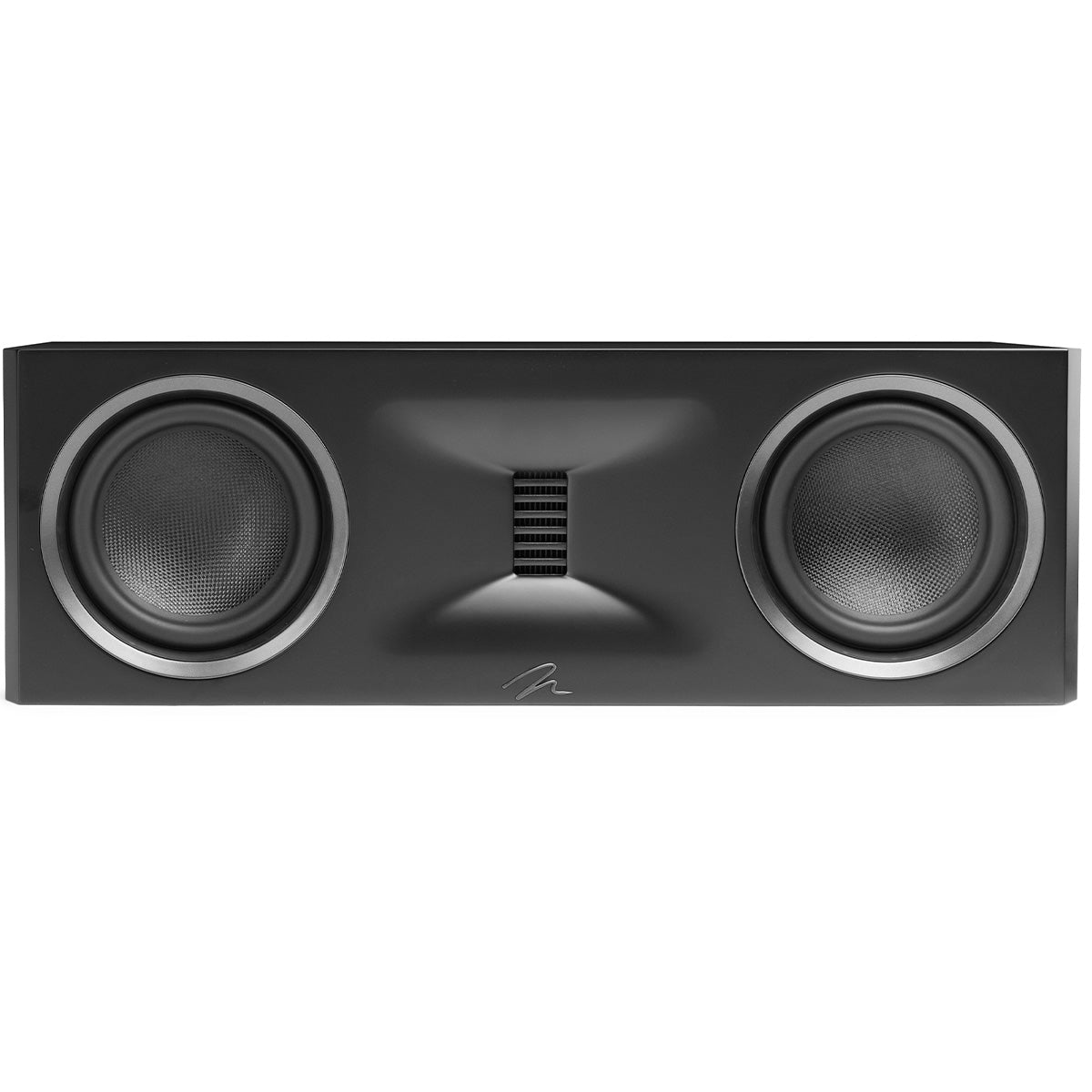

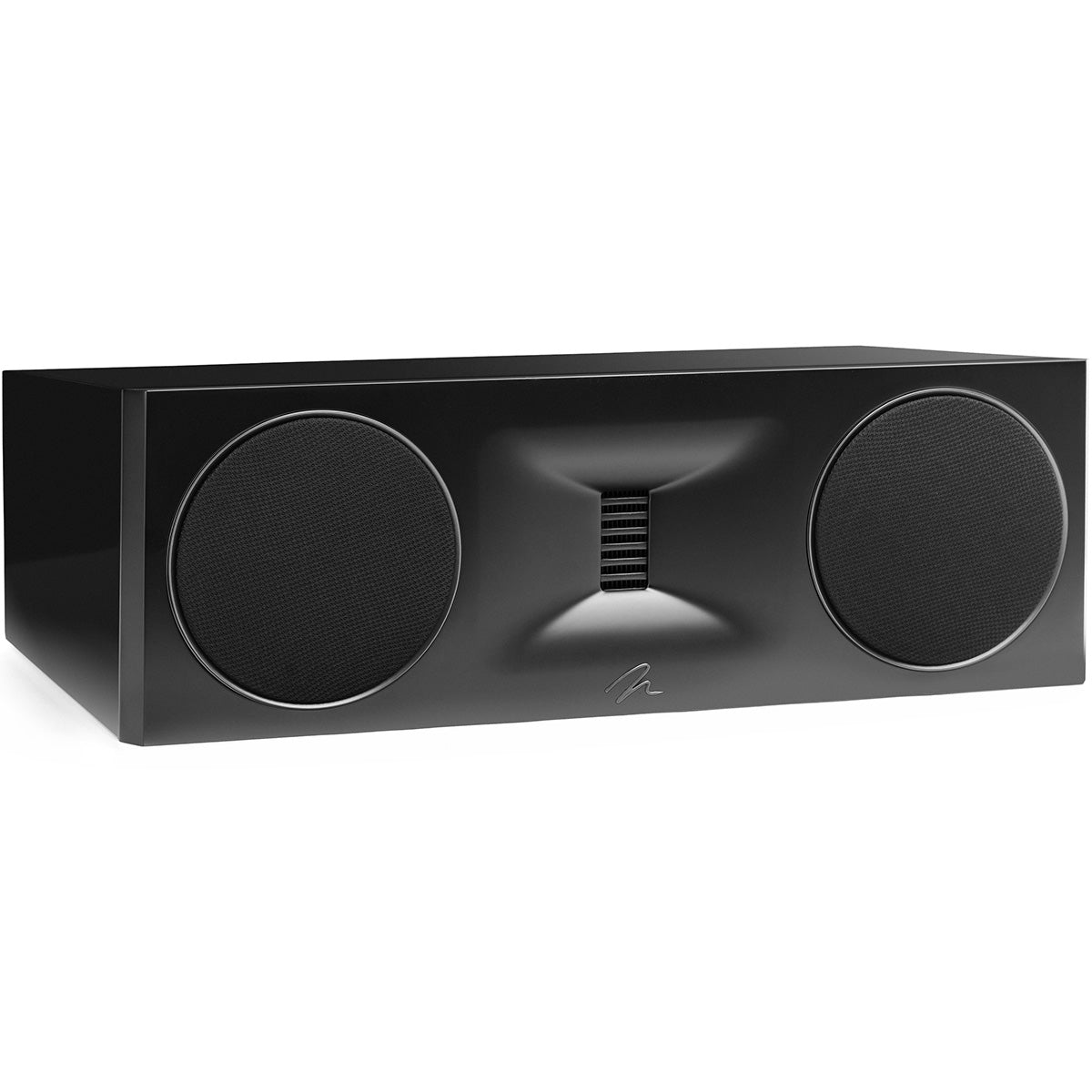

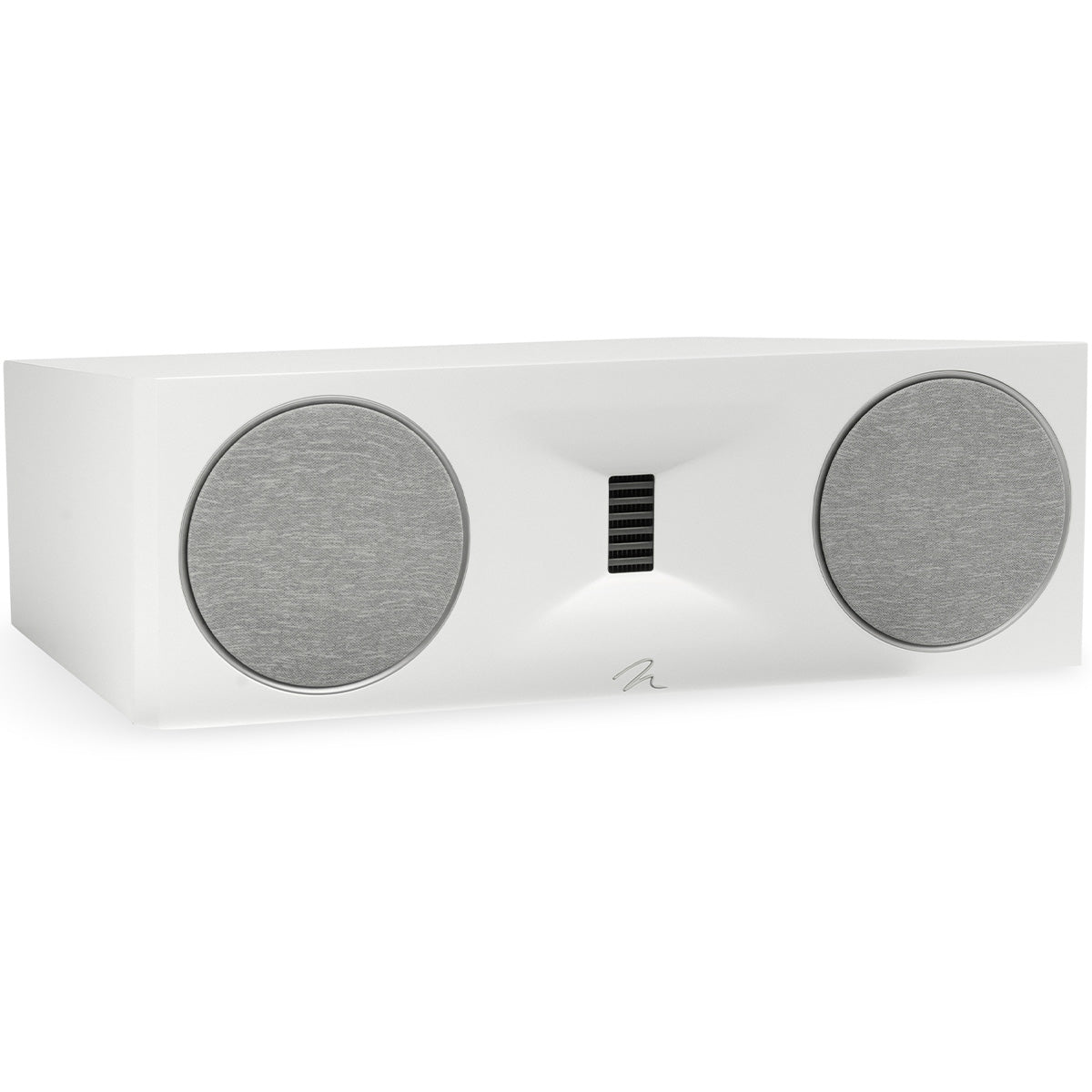

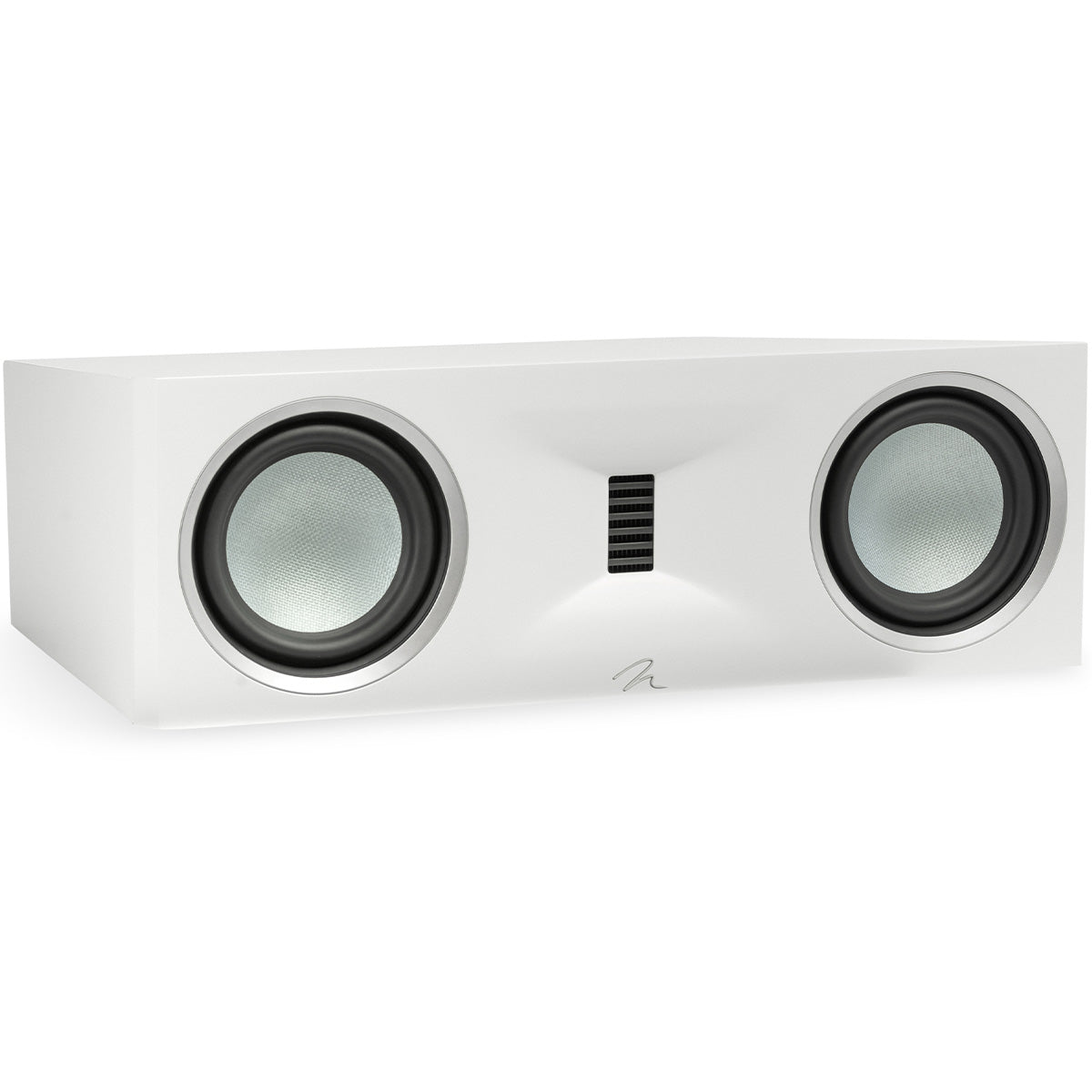

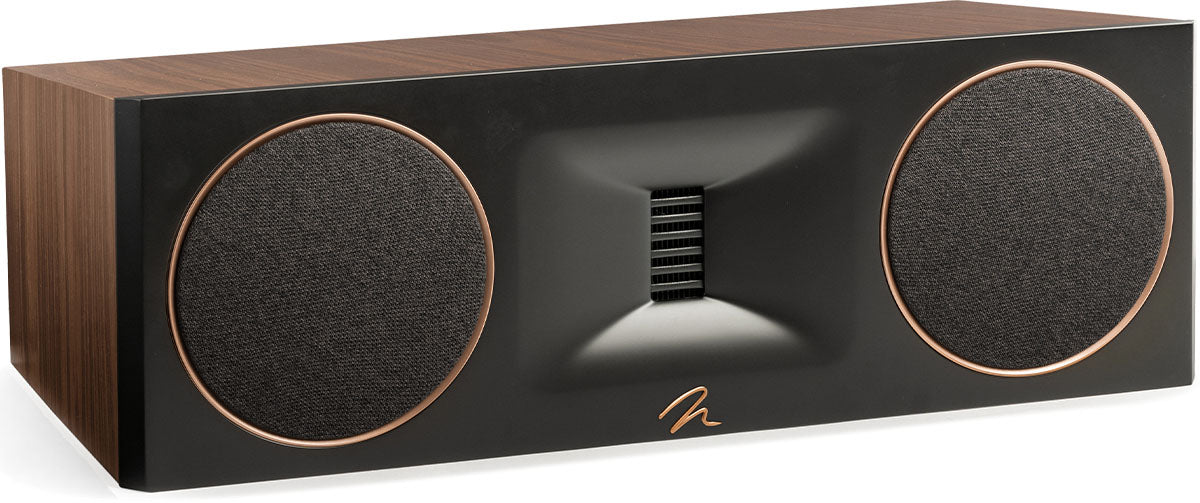

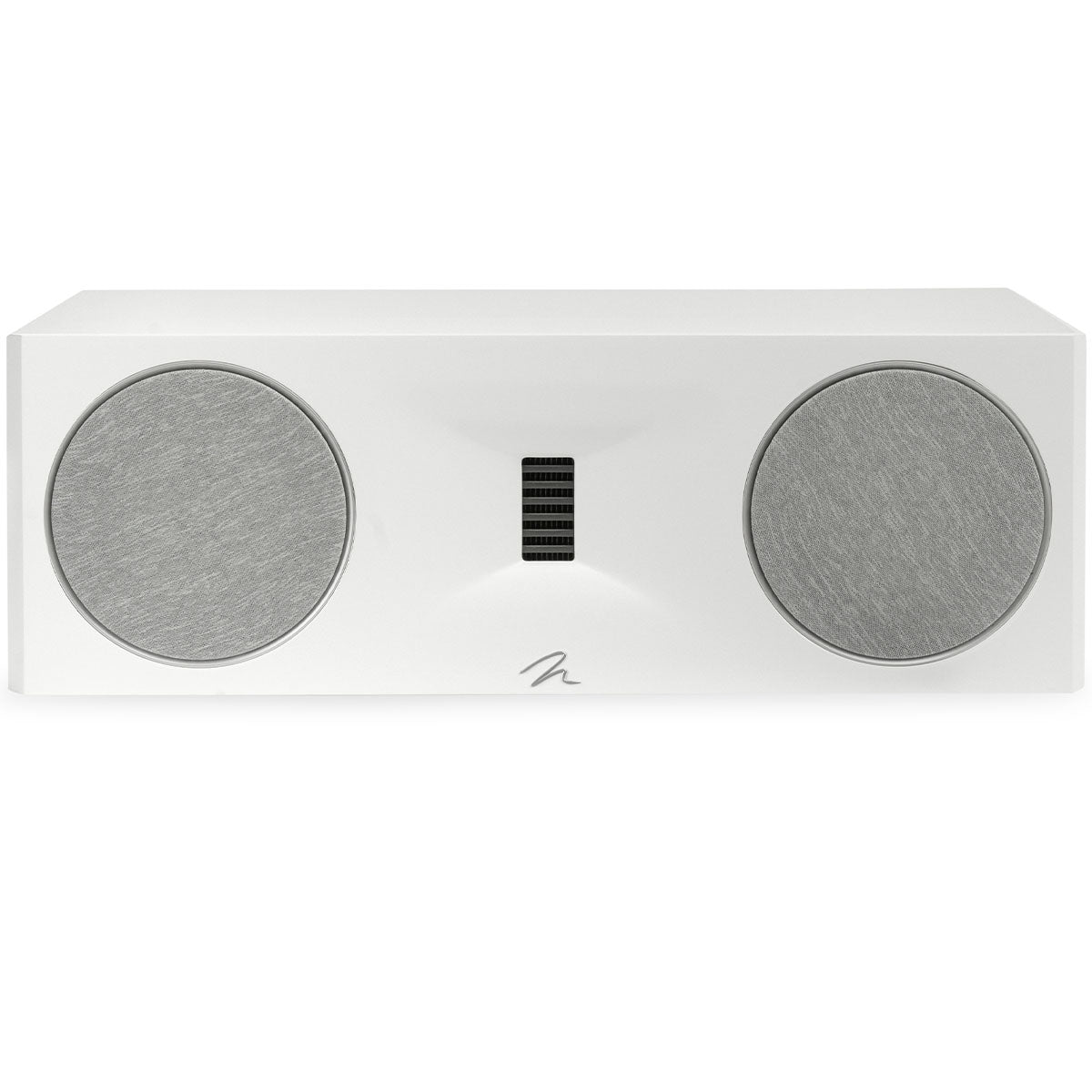

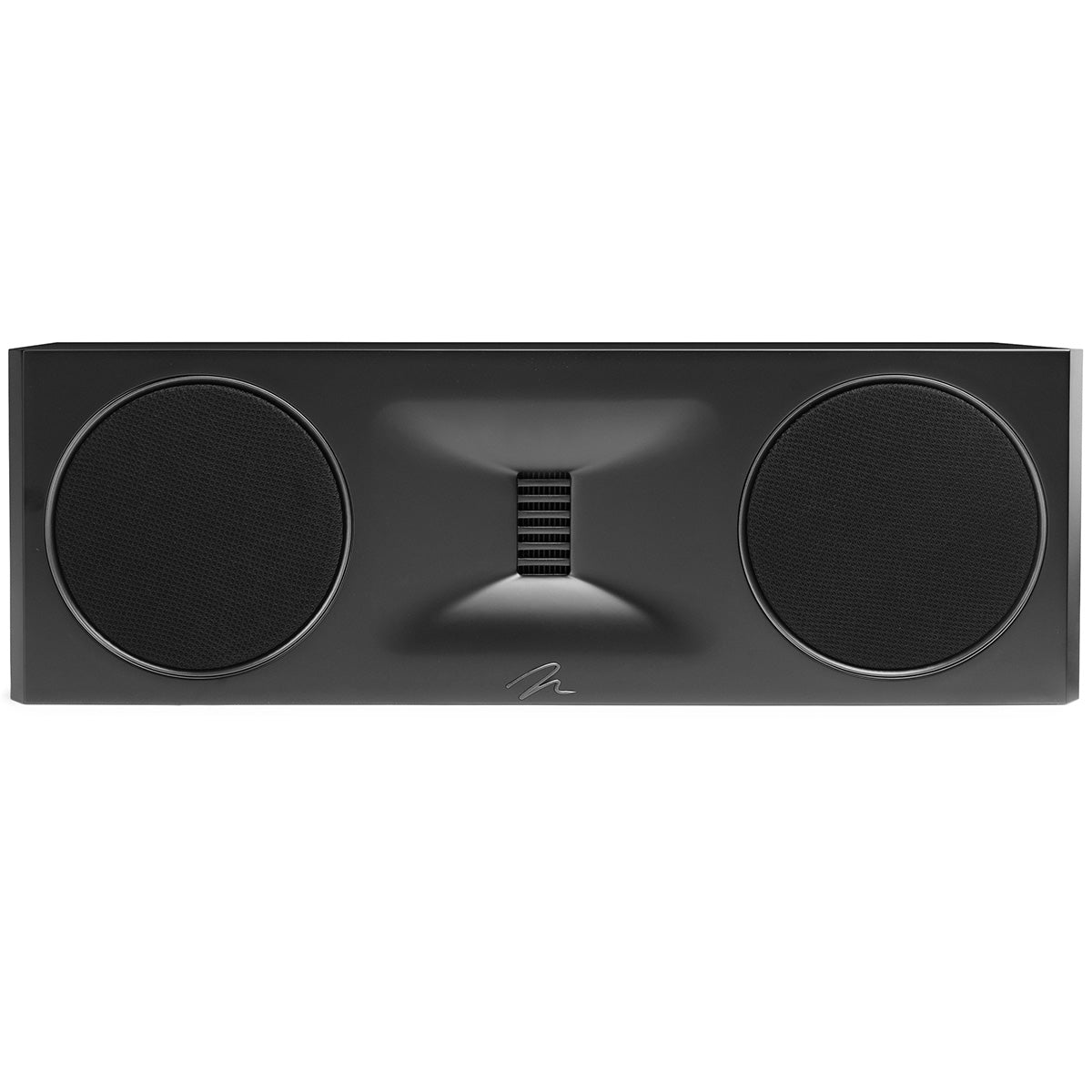

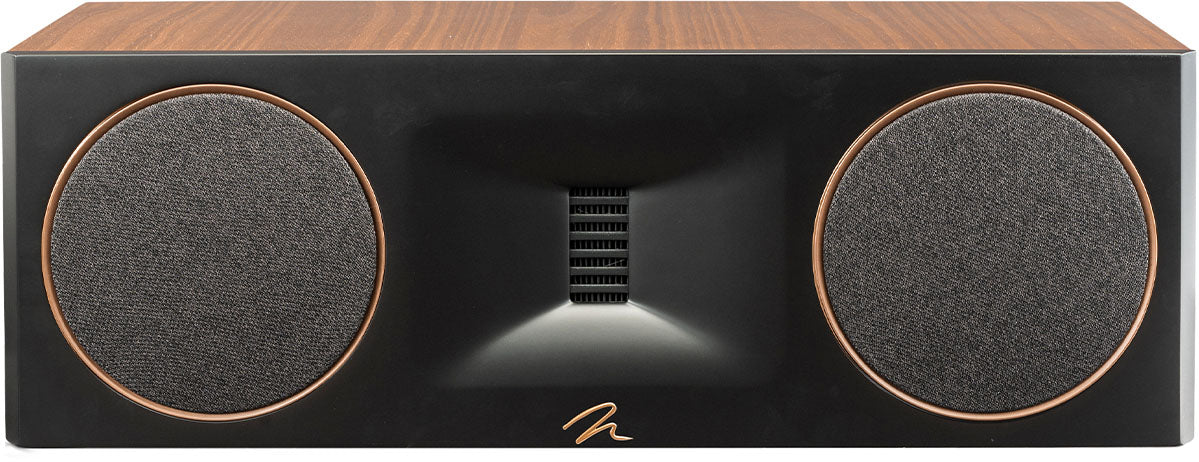

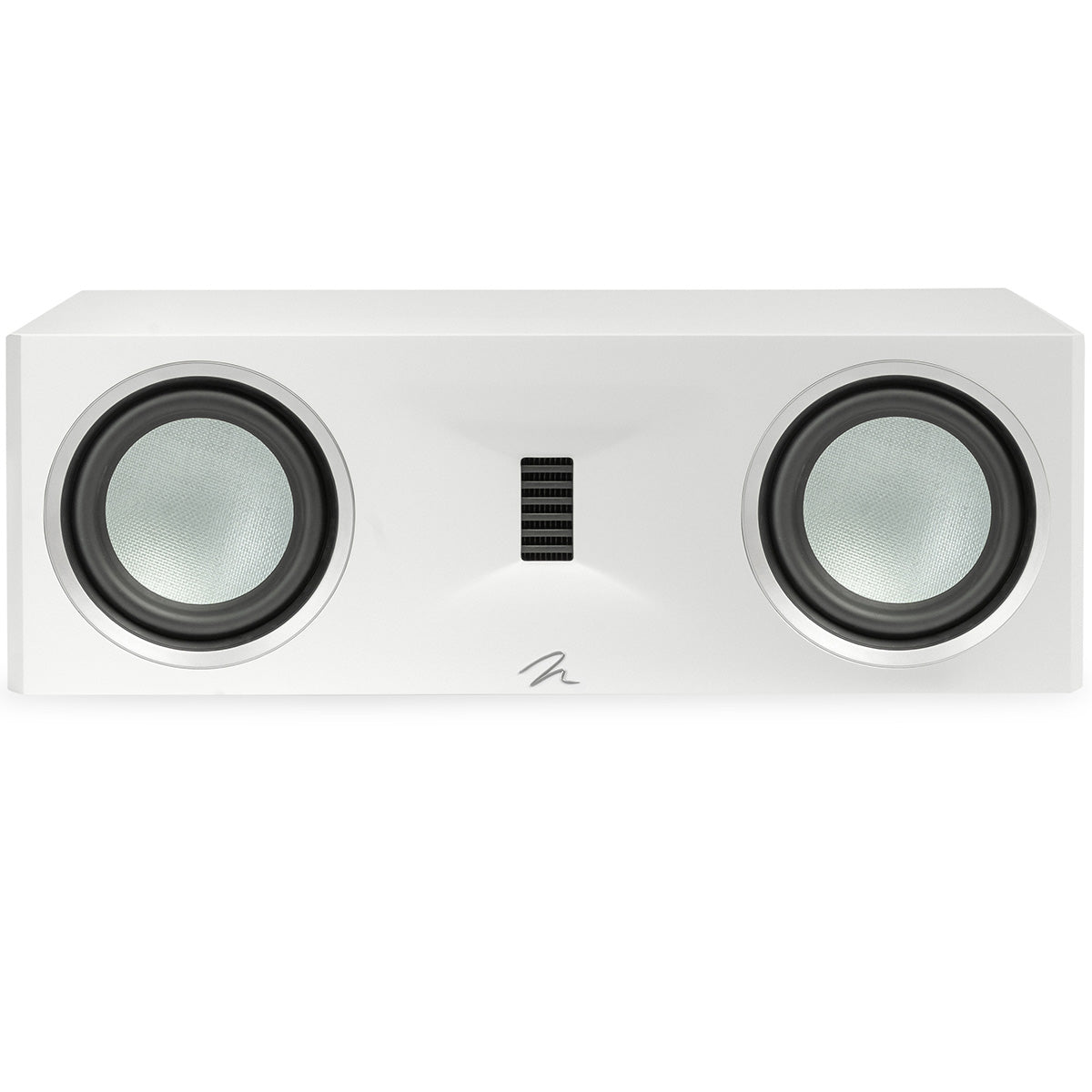

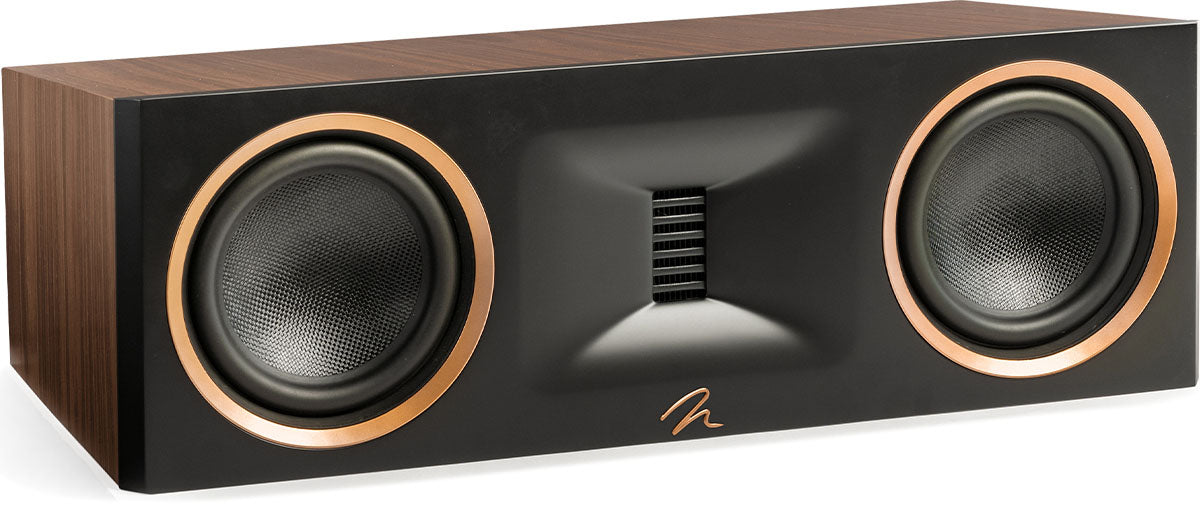

Motion XT C100 Center Channel Speaker

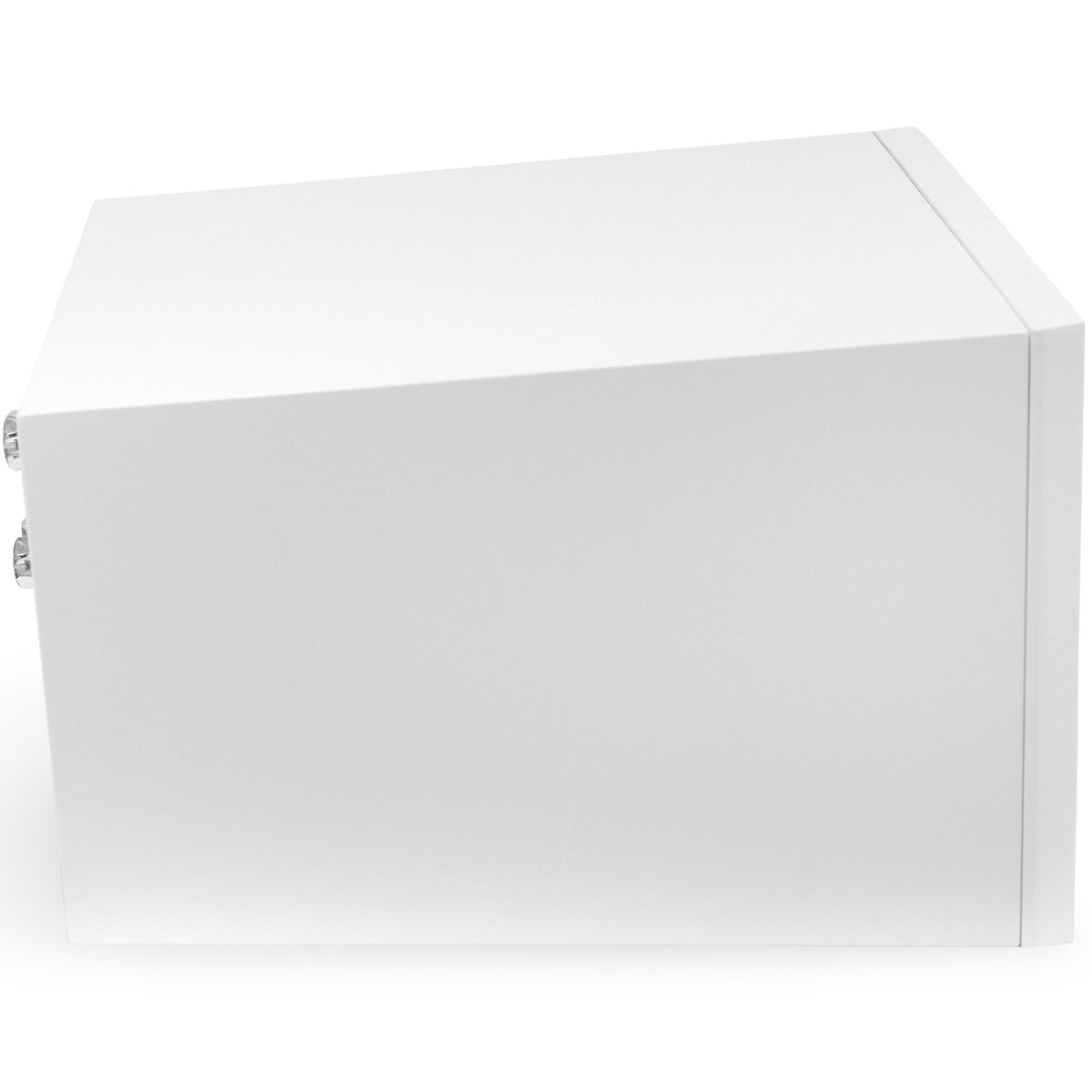

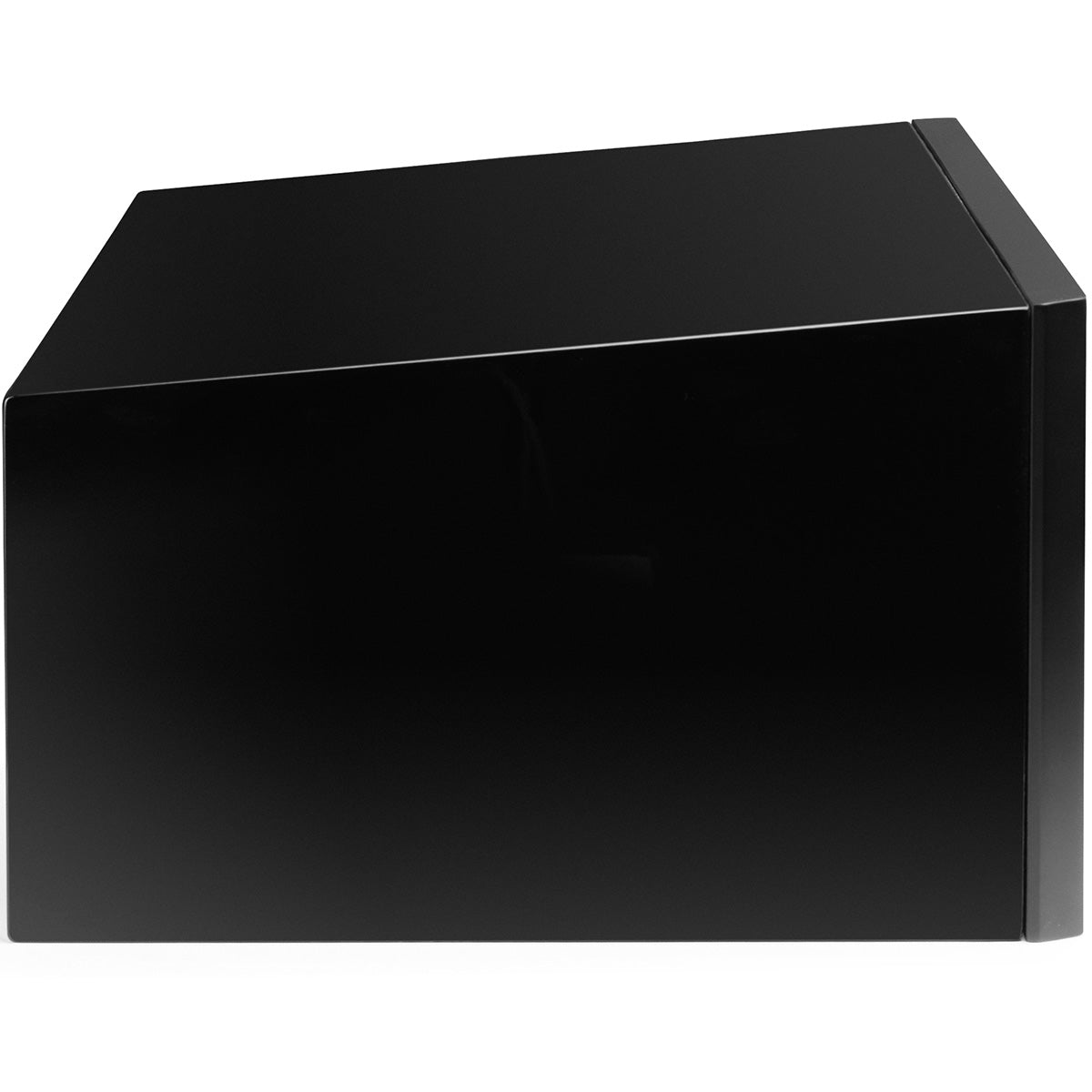

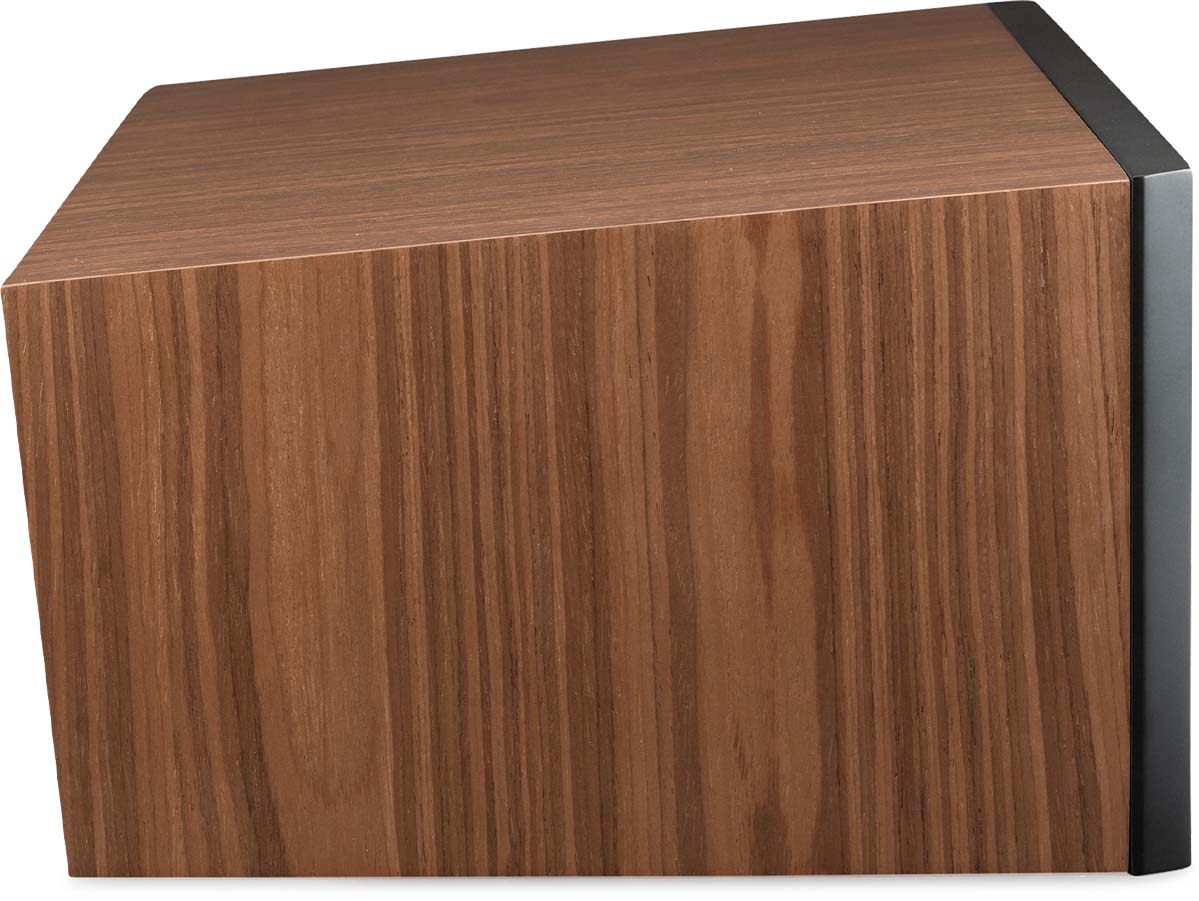

The XT C100 center channel speaker with its 2.5 way anti-lobing design using the same Nomex Reinforced Kevlar driver as the others was equally as good as the XT bookshelf. It has the same cabinet design as the other offering two positions. The new XT tweeter with this midrange driver gives this center channel speaker the ability to let you hear deep into the performer's emotions. We also love how sensitive it is, which makes it very dynamic.

Details & Specs

The Motion Series is inspired by the performance of our ultra-high-end electrostatic loudspeakers and is perfect for music or home cinema lovers. Discover confident floor-standing speakers and gutsy compact bookshelf models with timbre-matched centers, all featuring MartinLogan's latest Gen2 Folded Motion tweeter and backed by high-performance Woven Fiberglass Midrange Drivers and hand-built crossovers. They reveal a richly detailed audio experience at an unrivalled price.

Gen2 Folded Motion Tweeter:

The latest thin-film Gen2 FMT offers effortless performance unmatched by conventional technologies. Utilizing a lightweight material with more surface area, the FMT brings the audience's favorite content to life with the highest levels of detail and accuracy.

Controlled Dispersion:

Room acoustics are vital, as everything in the listening room impacts speaker performance. MartinLogan minimizes these harmful effects by focusing the sound into the listening area, increasing flexibility, clarity, and placement options, regardless of the room's design.

Woven Fiberglass Midrange:

The lightweight and strong Woven Fiberglass midrange in the Motion Series is perfectly suited for keeping pace with Motion's Gen2 FMT, providing crystal clear dialogue, vocals, and lifelike instrumentals. Seamlessly blends with Motion CI products to make creating custom solutions easy.

F.A.S.T. Foot (Tower Models):

Tower models feature tool-less height adjustability utilizing rubber feet or spikes, allowing the user to level the speaker for maximum stability on any floor perfectly. Built-in anti-vibration properties lower distortion by reducing 'judders' between the speaker and the floor, leaving nothing but pure sound.

Enhanced Cabinet Bracing:

The latest Motion Series cabinetry is our quietest design yet, maximizing the performance of the proprietary audio technologies.

Single Cannon Bass Ports (Tower Models):

The bottom-mounted "Single Cannon" bass port provides deeper, cleaner, and more powerful bass across a wider range of placement options.

Floor Bounce Compensation (Tower Models):

Bringing studio reference sound to reality with precision woofer placement and crossover tuning, MartinLogan engineers have designed their tower models to produce a more natural and full sound by taking advantage of a constant found in all listening rooms; the floor!

McCracken-Vojtko Crossovers:

The culmination of combining extensive anechoic measurements, proprietary modeling software, in-room measurements, and multiple blind listening tests with the low distortion philosophy of MartinLogan's signature Vojtko Crossover. Through this process, each speaker was refined to achieve the best real-world performance.

F200 F100 C100 B100
Application Floorstanding Floorstanding Center Channel Bookshelf
Frequency Response 27 Hz - 25k Hz 31 Hz - 25 kHz 42 Hz - 25 kHz 45 Hz - 25 kHz
Folded Motion® Waveguide Enhanced Tweeter Dispersion (VxH) 45° x 90° 45° x 90° 45° x 90° 45° x 90°
Sensitivity (2.83 volts/meter) 92 dB 92 dB 93 dB 93 dB
Impedance 4 ohms 4 ohms 5 ohms 4 ohms
Compatible with 4, 6, or 8 Ohm rated amplifiers
Crossover Frequency 300Hz, 2600Hz (3-way) 280 Hz, 2600 Hz (3-way) 1,300 Hz, 2,500 Hz (2.5-way) 2,600 Hz (2-way)
High Frequency Driver 1.25” x 2.4” (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT® Tweeter with 12.4 in² (79.8 cm²) diaphragm 1.25” x 2.4” (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT® Tweeter with 12.4 in² (79.8 cm²) diaphragm 1.25” x 2.4” (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT® Tweeter with 12.4 in² (79.8 cm²) diaphragm 1.25” x 2.4” (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT® Tweeter with 12.4 in² (79.8 cm²) diaphragm
Mid Frequency Driver 6.5” (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction. 6.5” (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction. 2x 6.5” (16.5cm) Nomex Reinforced Kevlar® cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design. 6.5” (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Unibody cone construction.
Low Frequency Drivers 3x 8” (20.3cm)aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction 3x 6.5” (16.5cm)aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

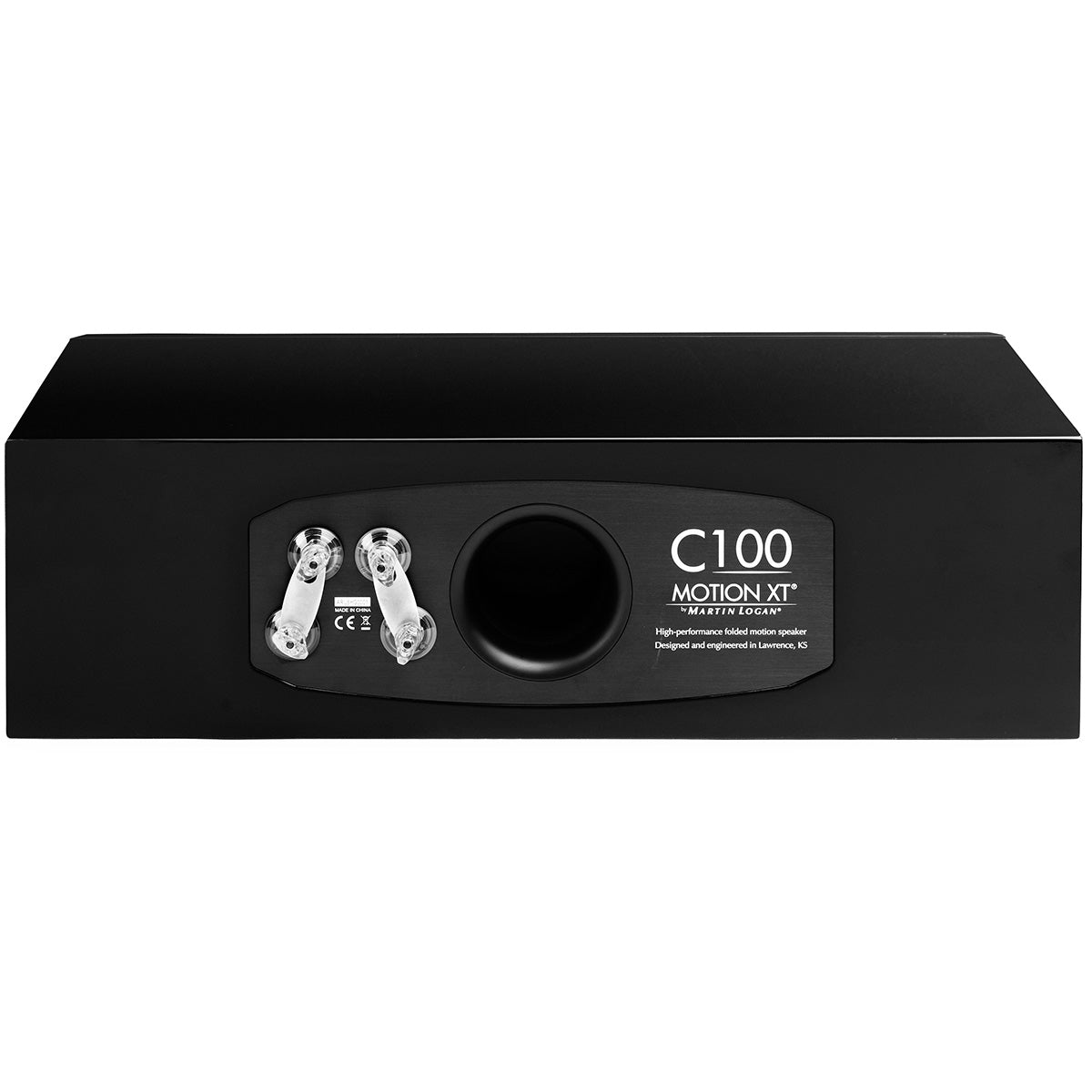

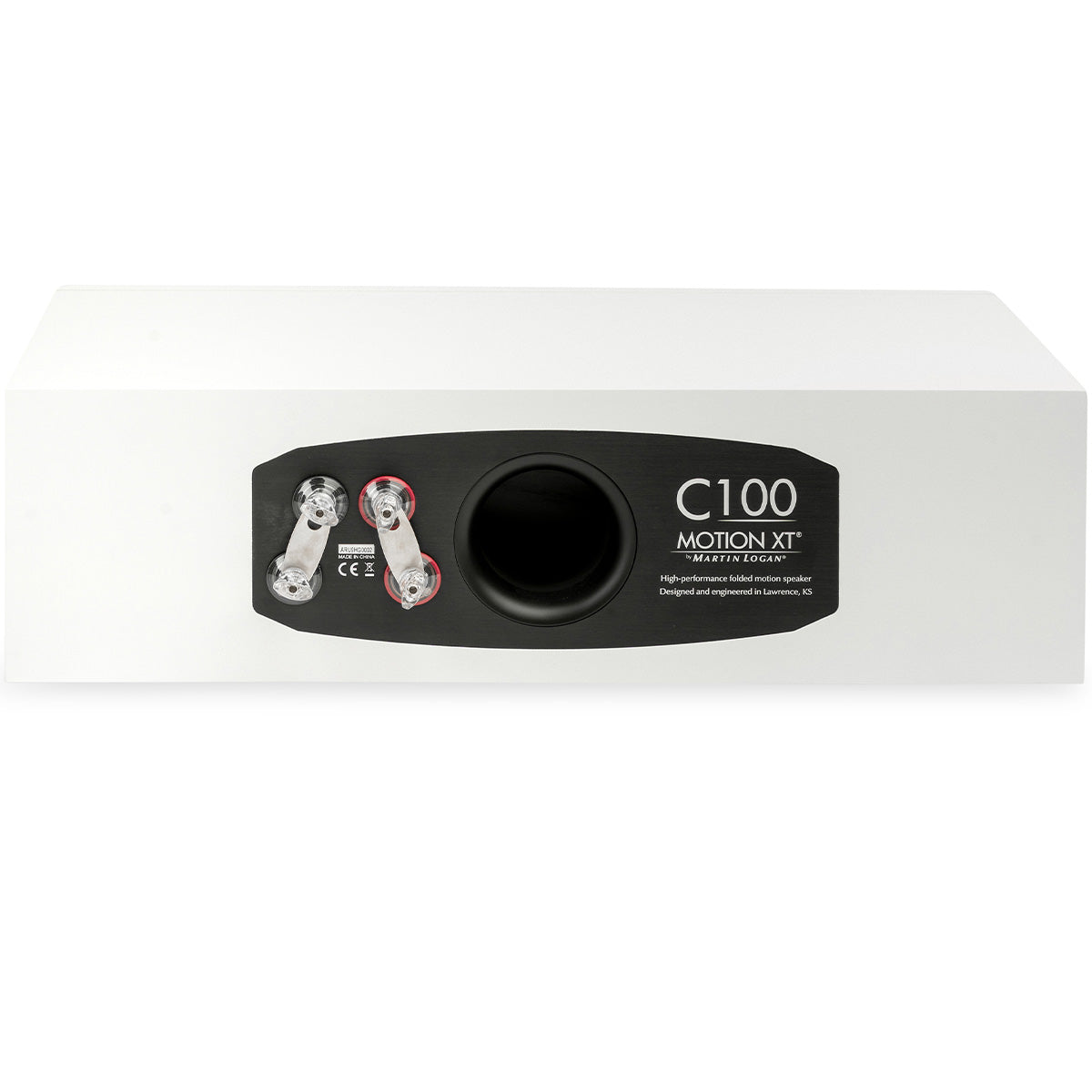

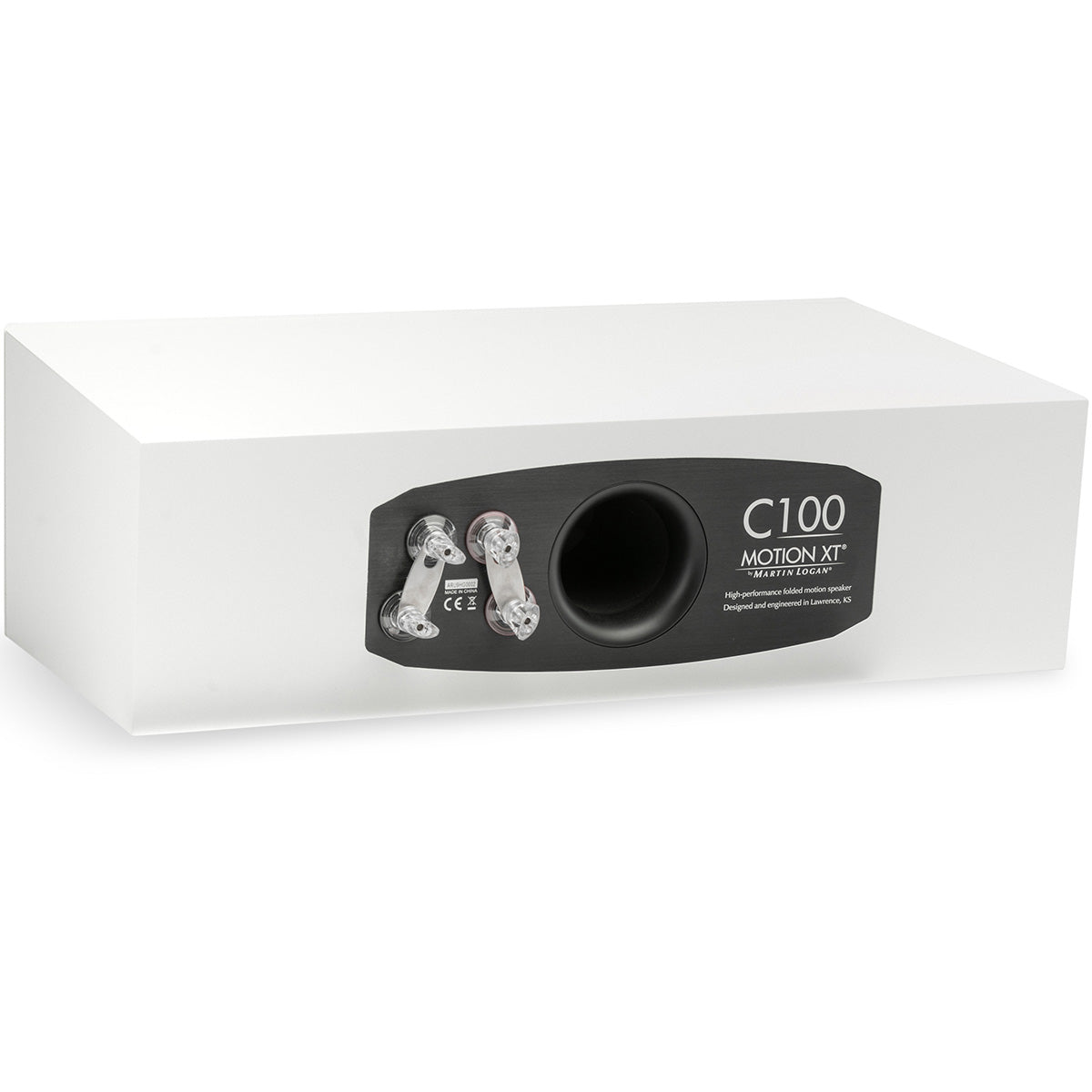

Cabinet Bottom Ported Bottom Ported Rear Ported Rear Ported
Recommended Amp Power 20 - 600 watts 20 - 450 watts 20 - 300 watts 20 - 250 watts

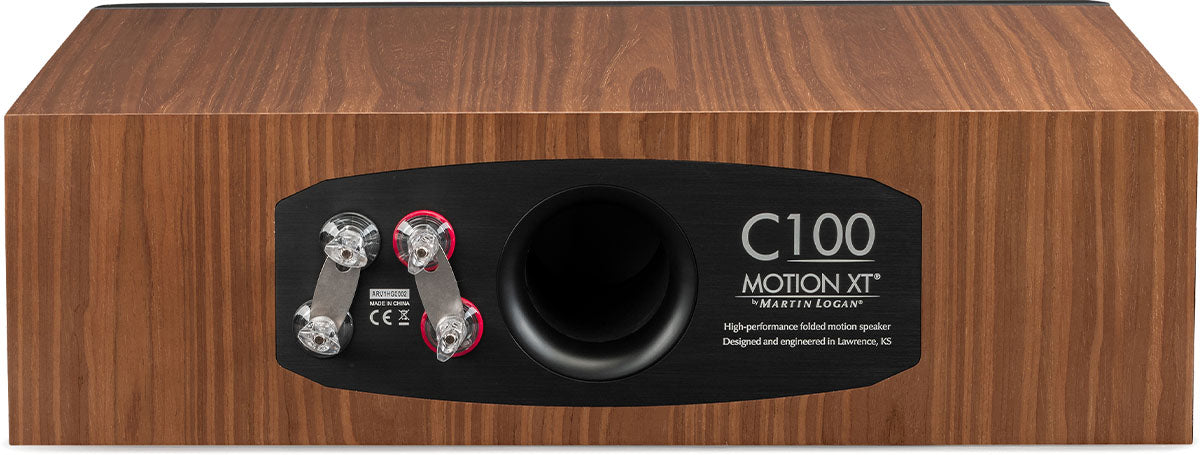

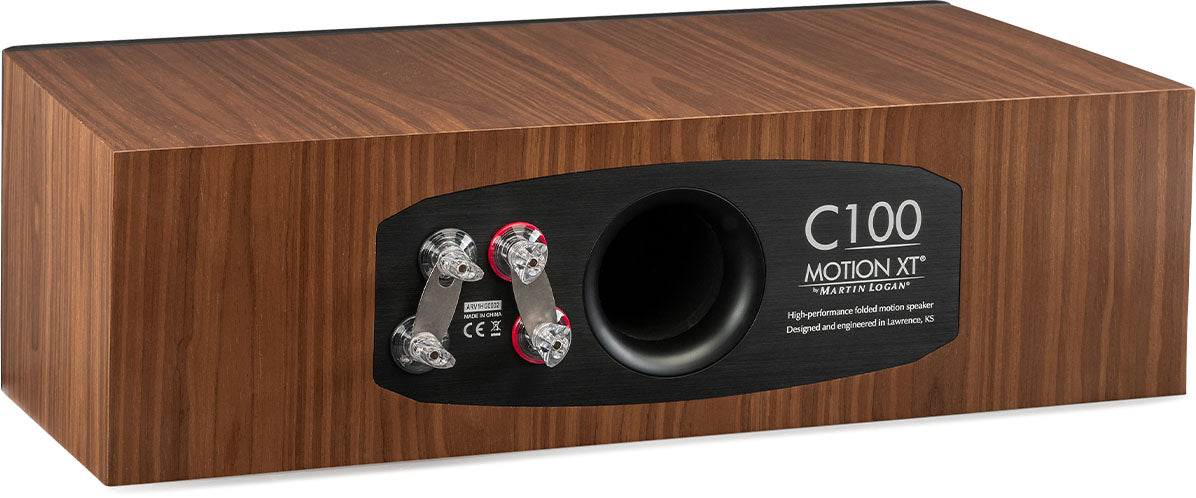

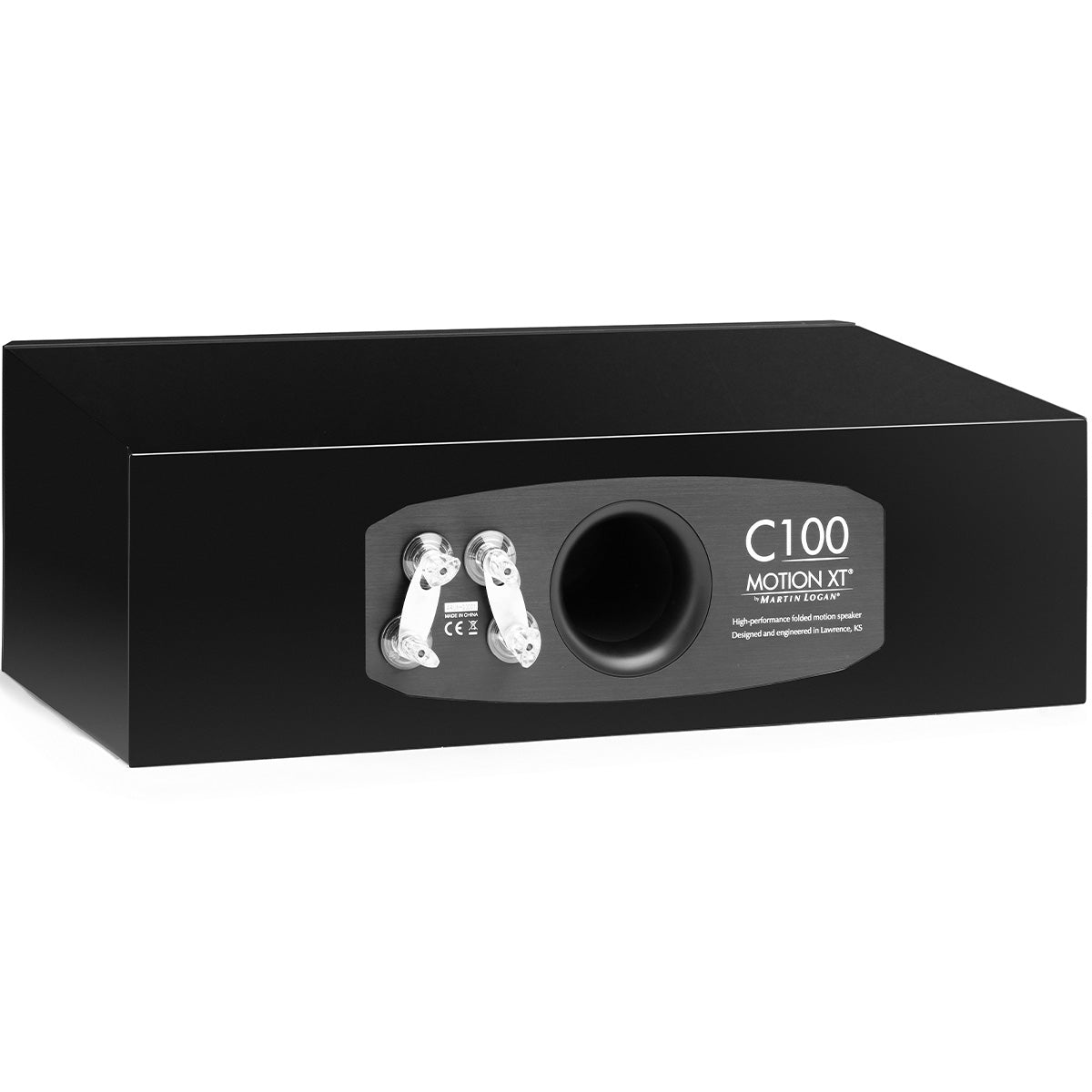

Binding Post Inputs Custom bi-amp/bi-wire capable 5-way binding posts Custom bi-amp/bi-wire capable 5-way binding posts Custom bi-amp/bi-wire capable 5-way binding posts Custom bi-amp/bi-wire capable 5-way binding posts
Weight 86lbs / 39kg 76lbs / 34.5kg 34lbs / 15.4kg 20.5lbs / 9.3kg
Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts 50-3/4" x 13-3/4" x 16-1/2" 14.6cm x 34.9cm x 41.9cm 47-3/4” x 12-1/2” x 15” 121.3cm x 31.75cm x 38.1cm 8” x 24” x 14-1/2” 20.3cm x 61cm x 36.8cm 14-1/2” x 8” x 12-1/2” 36.8cm x 20.3cm x 31.8cm
Finish Gloss Black, Walnut, and Satin White Gloss Black, Walnut, and Satin White Gloss Black, Walnut, and Satin White Gloss Black, Walnut, and Satin White
