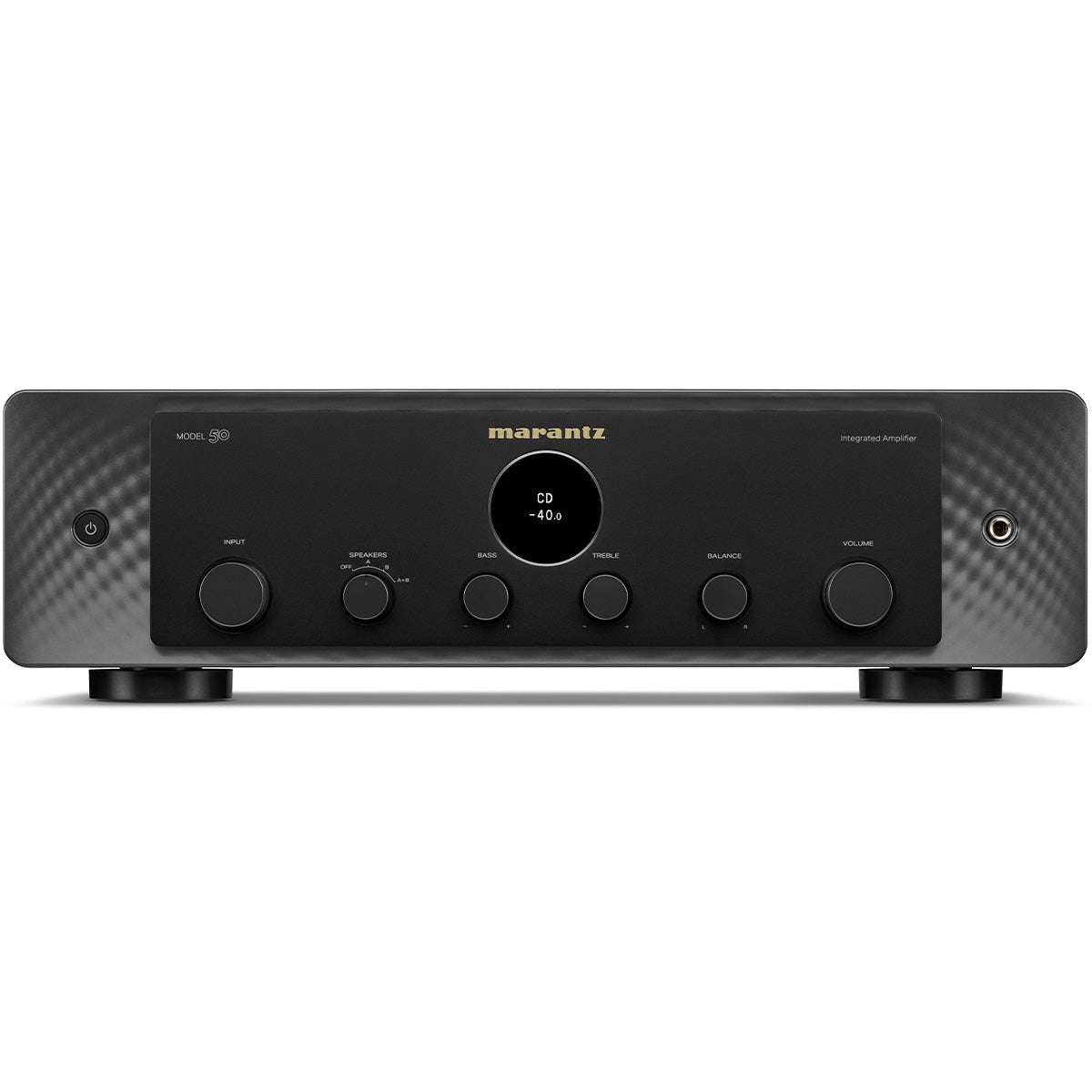

Marantz Model 50

Pure Analog Stereo Integrated Amplifier

Marantz Model 50

Pure Analog Stereo Integrated Amplifier
$1,800.00
Select Color Options:

Contact Us

Overview

Striking a perfect balance between power and elegance, the Marantz Model 50 is the ideal integrated amplifier to reveal the warmth, spaciousness, detail, and richness of each recording.

Watch our Comparison
The High Notes

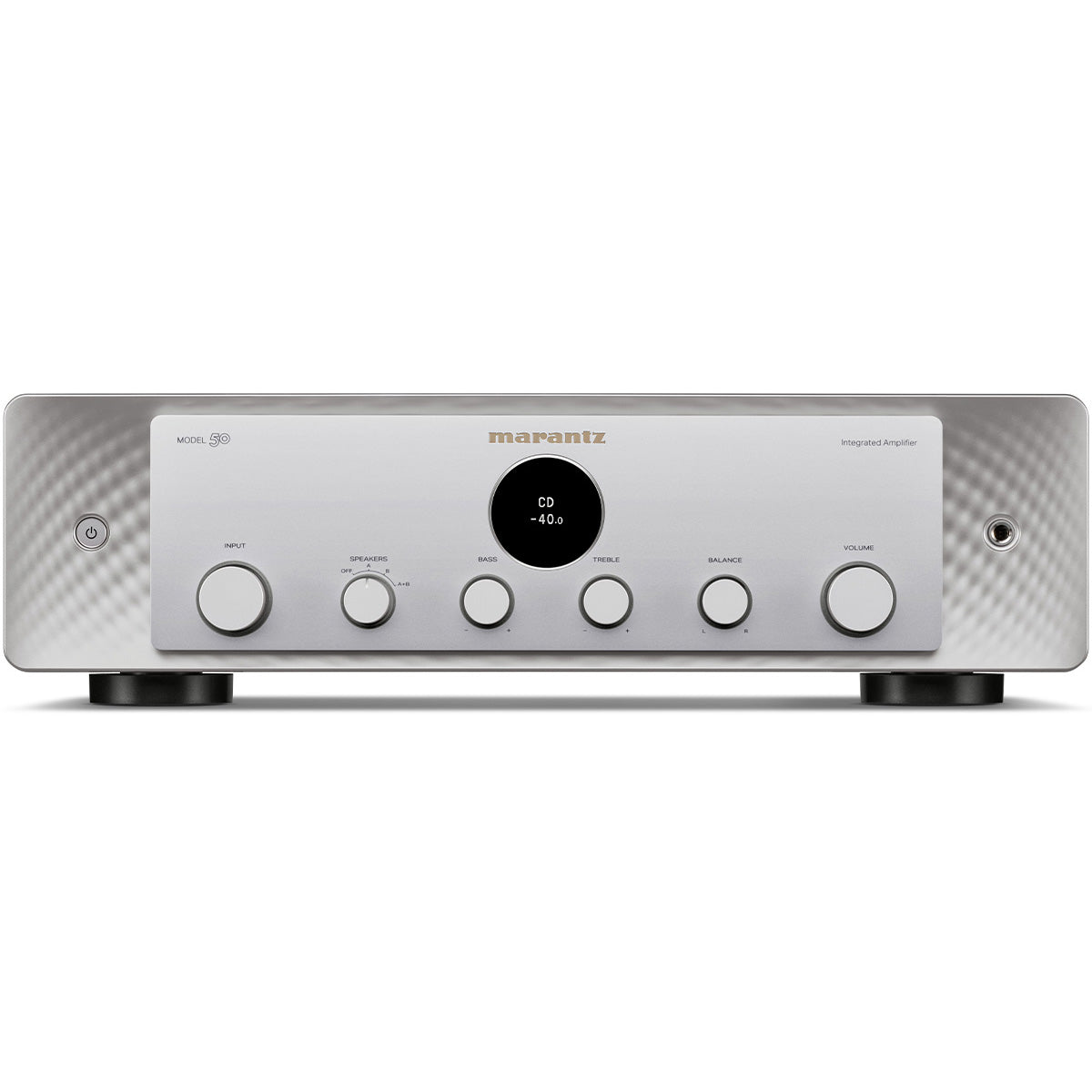

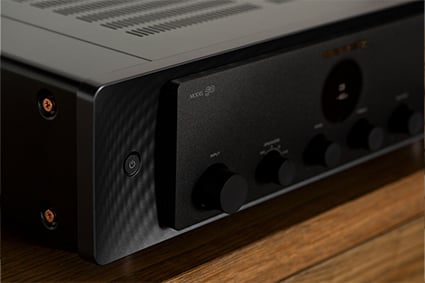

Timeless Design

Timeless Design

The Marantz Model 50 has an appearance that harkens back to the Marantz of the 1960s, which we just love. It is a pleasure to use with controls that feel great to the touch.

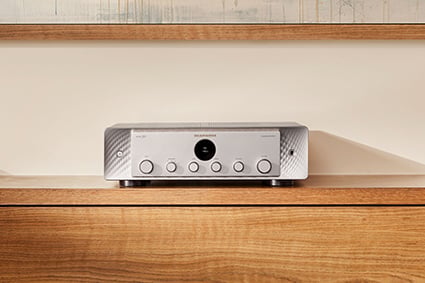

Modern Features Meet Classic Marantz

Modern Features Meet Classic Marantz

Marantz has a sound music lovers have coveted for decades and the Model 50 carries on that tradition. Hand-built in Japan, it gives you everything input-wise for both a modern and retro system. From streaming to vinyl to your TV, or even a tape deck, it's onboard.

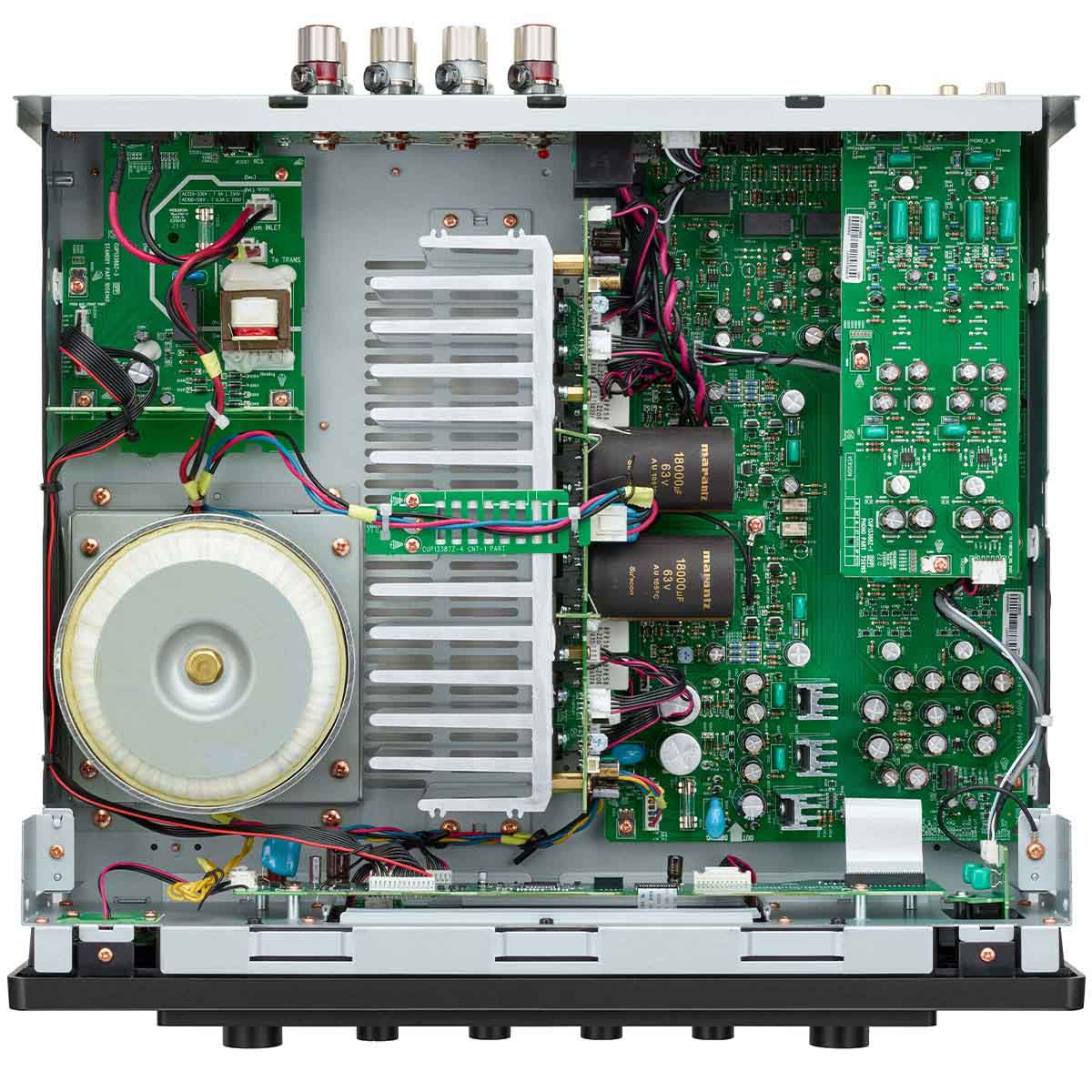

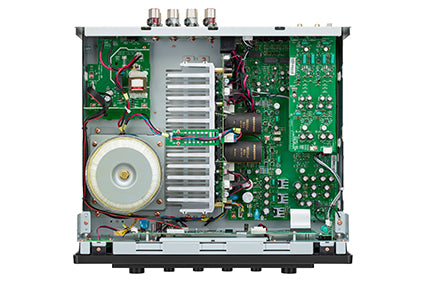

Impressive Build Quality

Impressive Build Quality

We were very impressed when we pulled the cover off at how much you get for what the Model 50 costs and how well it is put together. The beauty on the outside continues on the inside.

Striking a perfect balance between power and elegance, the Marantz Model 50 is the ideal integrated amplifier to reveal the warmth, spaciousness, detail, and richness of each recording.

Details & Specs

Key Features

  • No digital audio circuitry simplifies use and reduces audible interference.
  • 70 watts per channel and Current Feedback Class A/B amplification maximizes speaker capability.

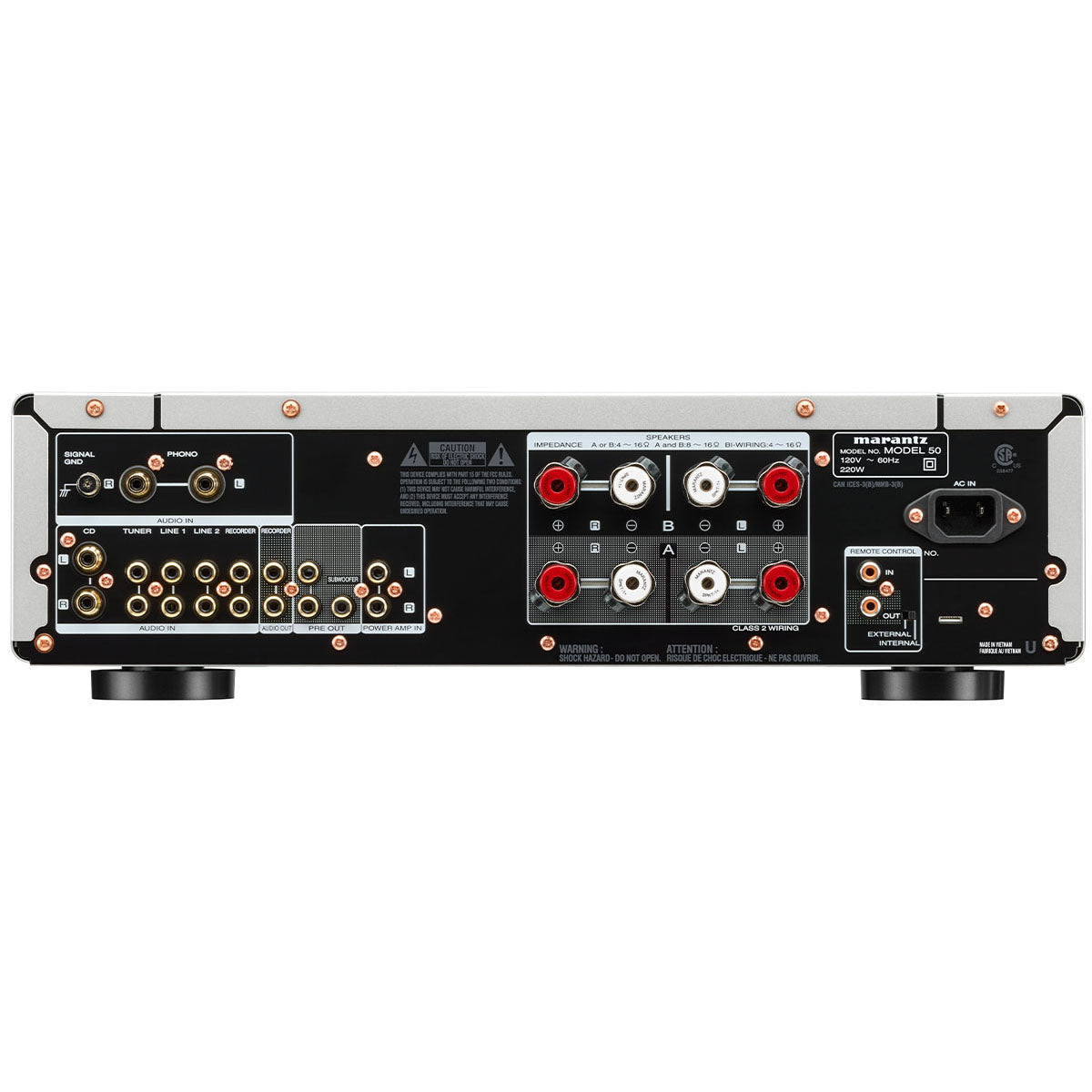

  • A full suite of inputs and outputs for your sources, subwoofer, and even an extra power amplifier.
  • Unique HDAM SA-3 discrete amplifier circuitry outperforms ICs used in competing amplifiers.
  • Hear details in your vinyl records like never before using the Marantz Musical Phono EQ gain stage.
  • Iconic Marantz porthole display is used for setup and to easily see your volume level.
  • Meticulously crafted and robustly built, MODEL 50 design and style matches the most musical sound.
Model Model 50
Channels 2
Current Feedback Topology Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium No / Yes / No
Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
HDAM version SA2, SA3
Power Transformer: Toroidal / El Yes / No
High Grade Audio Components Yes
Customized Components Yes
Symmetric PCB Layout Yes
Aluminium extrusion heat sink Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

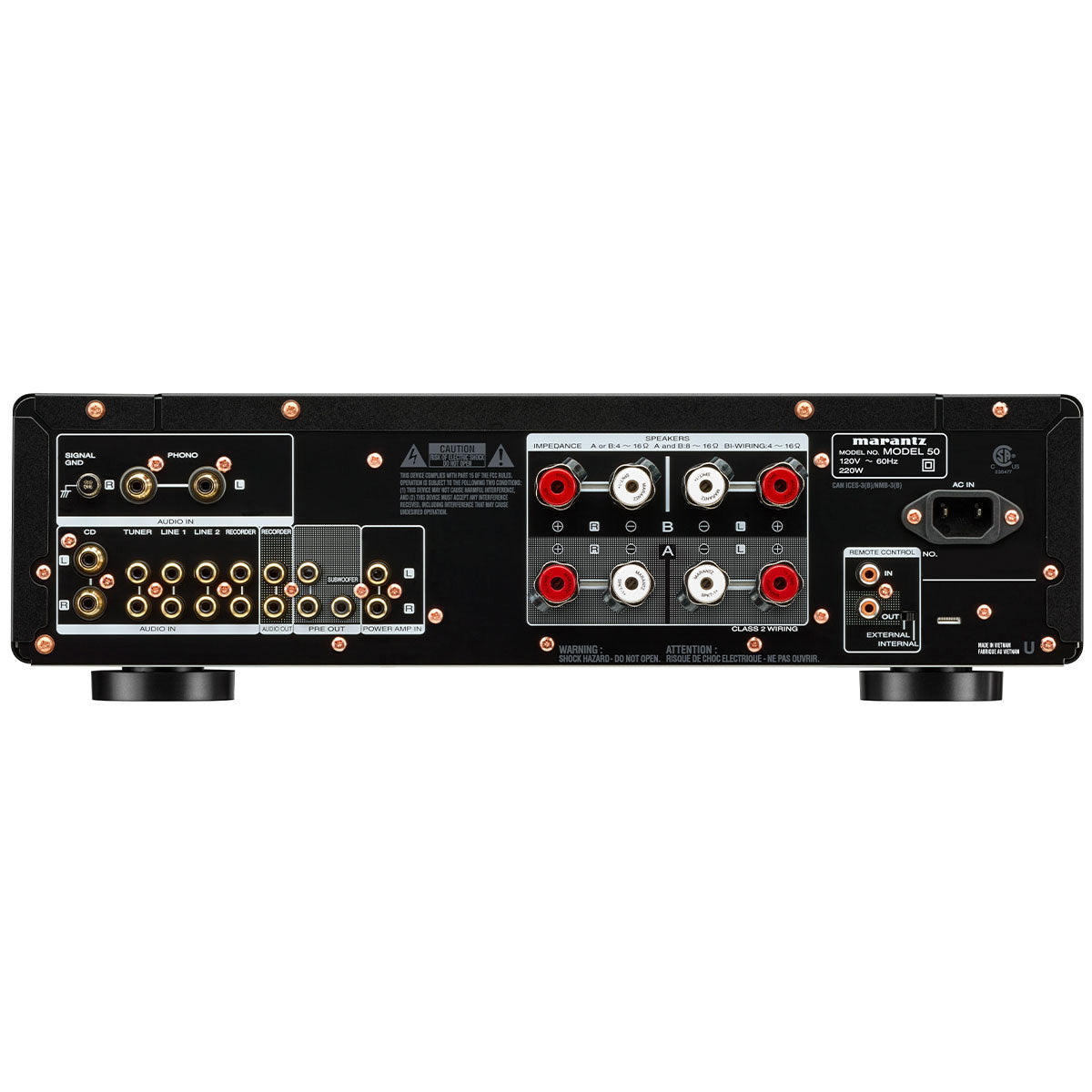

Audio Inputs 6
Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
Phono Input: MM / MC Yes / No
Audio Outputs 1
Balanced In / Out No / No
Pre-out / Main-in Yes + subwoofer / No
Power Amp Direct In Yes
Gold-Plated Cinch Yes
Speaker A / B Yes
Speaker Terminals Marantz SPKT-1+
Number of terminals 4
D-Bus Yes
Headphone Out Yes
Linear Drive Power Supply Yes
Linear volume control Yes
Schottky diodes Yes
Input buffer amp (all inputs / CD only) No / Yes
Solid Heat Sinks Yes
System block shielding: Copper / metal / none No / No / Yes
Double Layer Bottom Plate Triple
Low Noise OLED display Yes
Source Direct Yes
Power Amp direct Yes
Power Output (8 / 4 Ω RMS) 70W / 100W
Frequency Response 5 Hz–10 kHz
Total Harmonic Distortion 0.02 %
Damping Factor 100
Input Sensitivity: MM 1.4mV / 47 kΩ
Signal to Noise Ratio: MM/MC 87 dB / No
Input Sensitivity: High level 185 mV / 16 kΩ
Signal to Noise Ratio: High level 116 dB (2V input)
Input Sensitivity: Power Amp Direct In 1.5V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct In 125 dB
Treble Control ± 10 dB at 15 kHz
Bass Control ± 10 dB at 50 Hz
Available colors Black, Silver-Gold
Metal Front Panel Yes
Power Consumption 220W
Standby Consumption 0.3W
Auto Power off Yes
Detachable Power Cable Yes

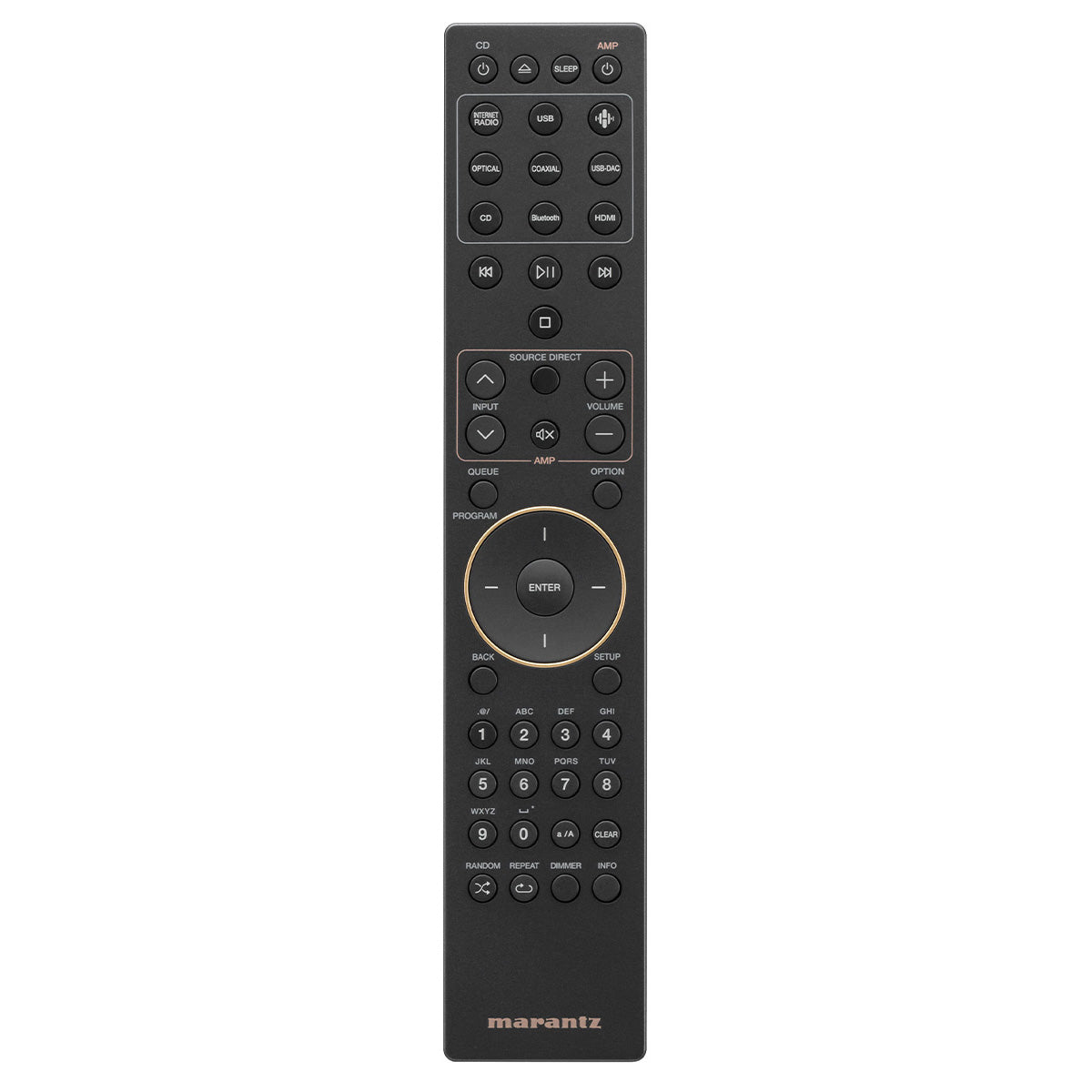

Remote Control RC003PMND
System Remote Function Yes
Maximum Dimensions (W × D × H) 442 × 431 × 130 mm
Weight 14.2 kg
Carton Maximum Dimensions (W × D × H) 527 × 517 × 255 mm
Carton Weight (incl. product) 17.5 kg

Design and specifications are subject to change by Marantz without notice.
