Item #JBLSMA8300AM

JBL Synthesis SMA-8300

8-Channel Power Amplifier
Item #JBLSMA8300AM

JBL Synthesis SMA-8300

8-Channel Power Amplifier
$5,999.00
Now Available For Pre-Order

Overview

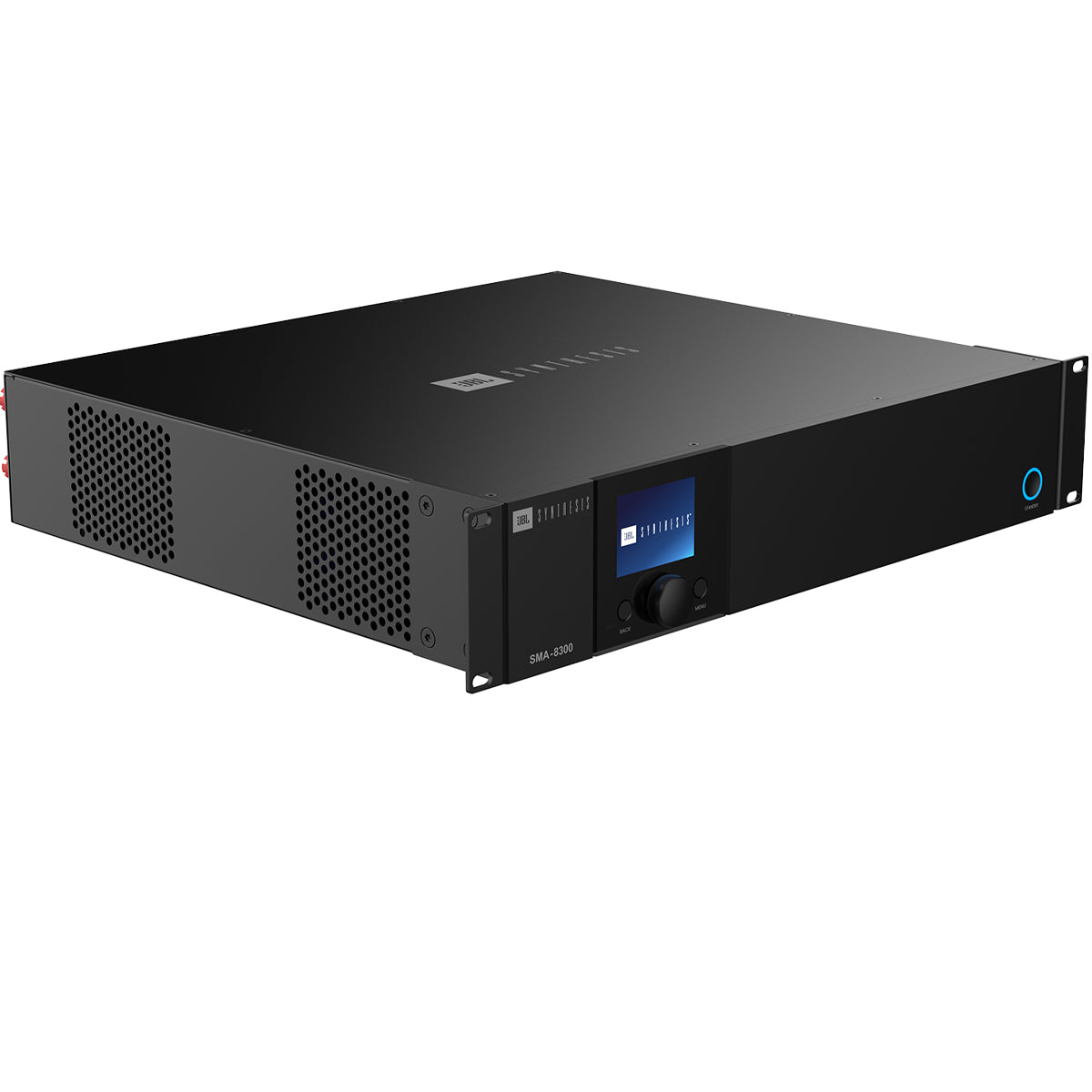

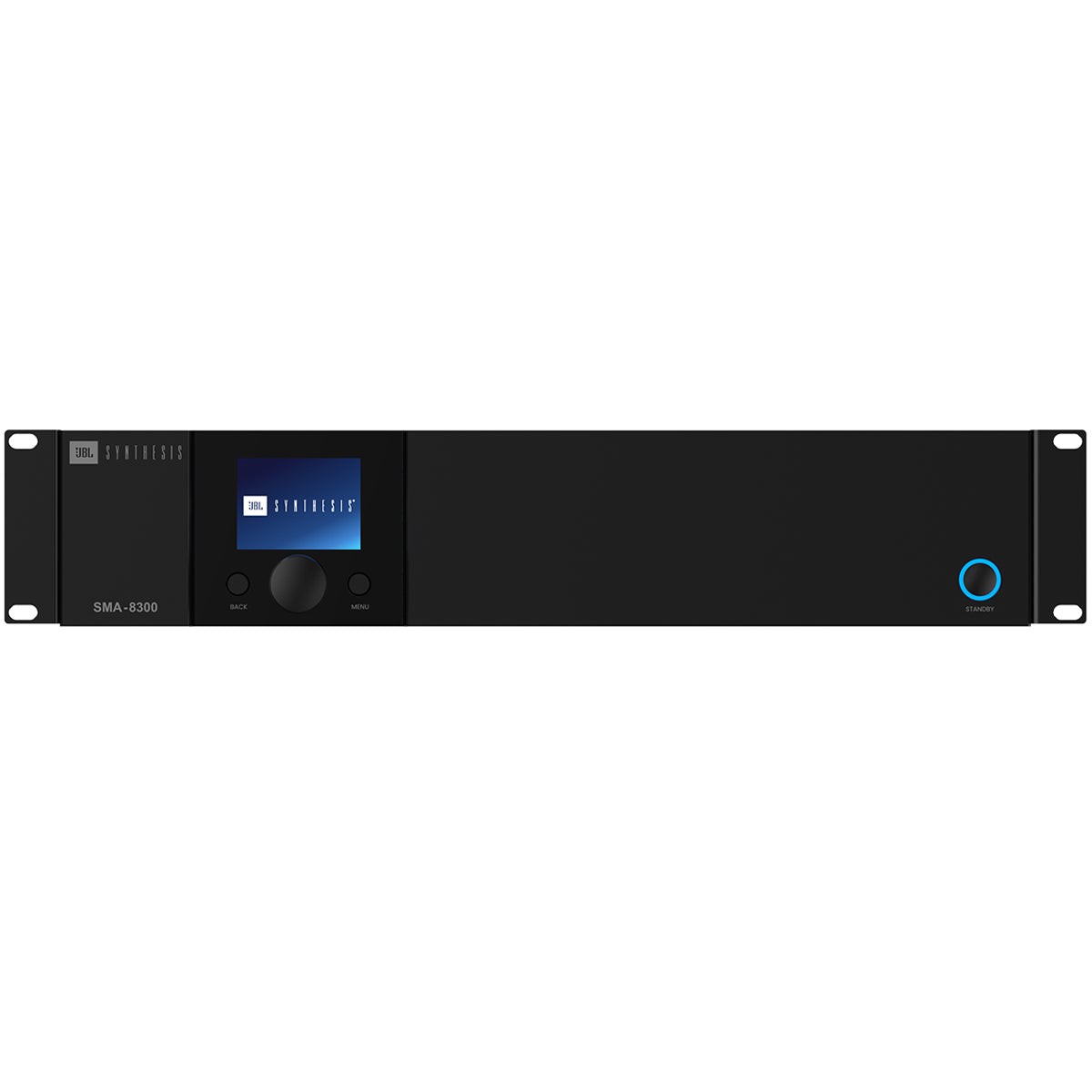

The SMA-8300 is a versatile 8-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 300W into 8 ohms and adjacent channel pairs can be bridged to deliver 600W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power LCR, surround, height channel loudspeakers as well as subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.

The SMA-4750 and SMA-8300 are state-of-the-art Class D multichannel DSP amplifiers that cater to both high-power and high-channel count systems. With advanced features like bridgeable channels, full input and output Hi-Resolution DSP suite, and DANTE / AES67 digital audio networking, these amplifiers are ideal for powering large LCR, surround, and height channel loudspeakers, as well as subwoofers in JBL Synthesis immersive audio systems.

Both models feature a compact, stackable design with quiet side-to-side ventilation, making them perfect for custom installations. They are equipped with a comprehensive DSP suite including EQ, Delay, and Limiters, providing ultimate control and customization for audiophiles and professional installers alike.

Details & Specs

Model SMA-8300

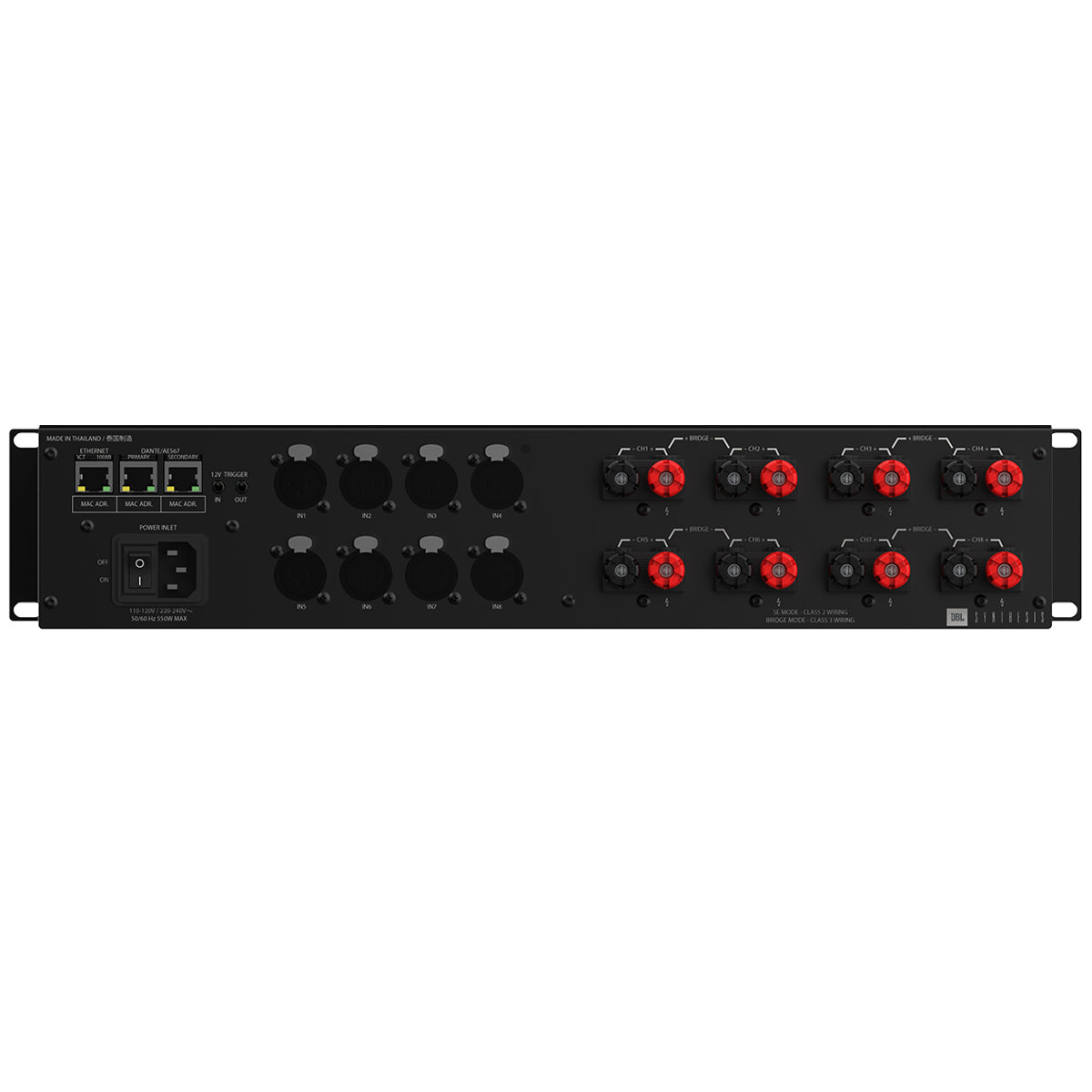

Analog audio input 8x XLR (Balanced)
Digital audio input (Dante/AES67) 2x RJ45
Speaker output Binding Posts, accommodates 10AWG wire, spade, and banana termination
12VDC trigger control 1x 3.5mm (in), 1x 3.5mm (out)
Network/Monitoring/Control 1x RJ45
Power Standard IEC
Power (2 channels driven, <0.5% THD), Rated Power (8Ω) 300W
Power (2 channels driven, <0.5% THD), Rated Power (4Ω) 600W
Power (2 channels driven, <0.5% THD), Rated Power (8Ω Bridged, one zone driven) 1,200W
Digital signal processing 96kHz, 32-bit floating point
Frequency response (4Ω, 20Hz – 20kHz) ±0.5dB
Total harmonic distortion (at full rated power, from 20Hz – 20kHz) 0.35%
Analog input signal to noise ratio (ref. Rated power, ‘a’-wtd.) >105dB
Analog input signal to noise ratio (ref. Rated power, 20Hz – 20kHz) >99dB
Damping factor (20Hz to 100Hz) >1000
Input impedance (nominally balanced, nominally unbalanced) 70 kΩ balanced, 35 kΩ unblanced
Maximum input level (low amp gain mode) +21dBU
Load impedance stereo/dual mode 2Ω –16Ω load
Impedance bridge mono 4Ω – 16Ω
Maximum fan noise (REF. dB SPL @ 1M) 51dBA
Power supply 100 – 220V ±10%, 50/60Hz
Dimensions incl. rack ears, connectors, controls (H x W x D) 3.5 x 19.0 x 17.0 in (88.9 x 482.6 x 432.6 mm)
Dimensions excl. rack ears, connectors, controls (H x W x D) 3.5 x 17.0 x 15.7 in (88.9 x 431.8 x 400.0 mm)
Net Weight 23.1 lb (10.5 kg)
