Item #JBLSCL4

JBL Synthesis SCL-4

2-Way 7" In-Wall Speaker
Item #JBLSCL4

JBL Synthesis SCL-4

2-Way 7" In-Wall Speaker
$3,300.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

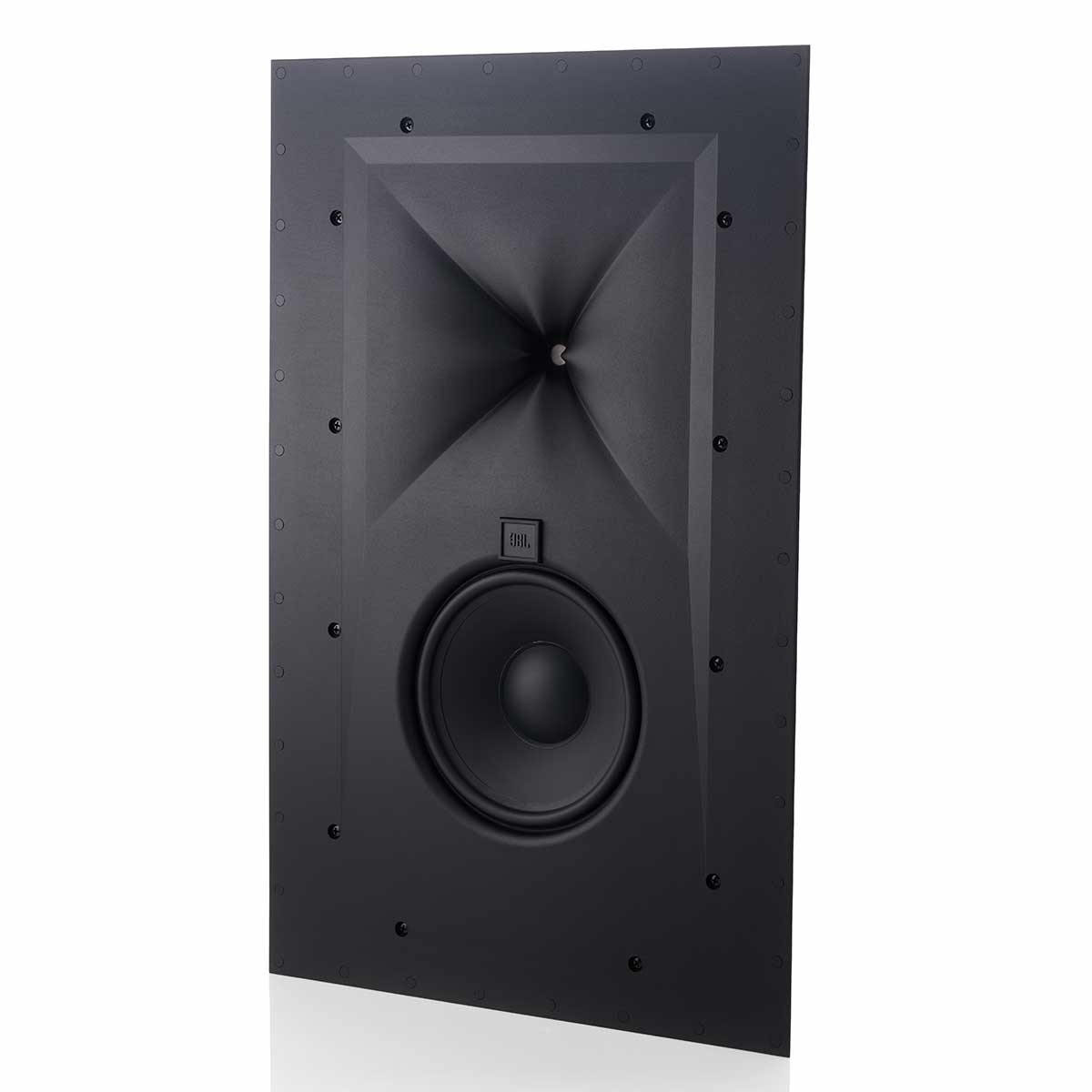

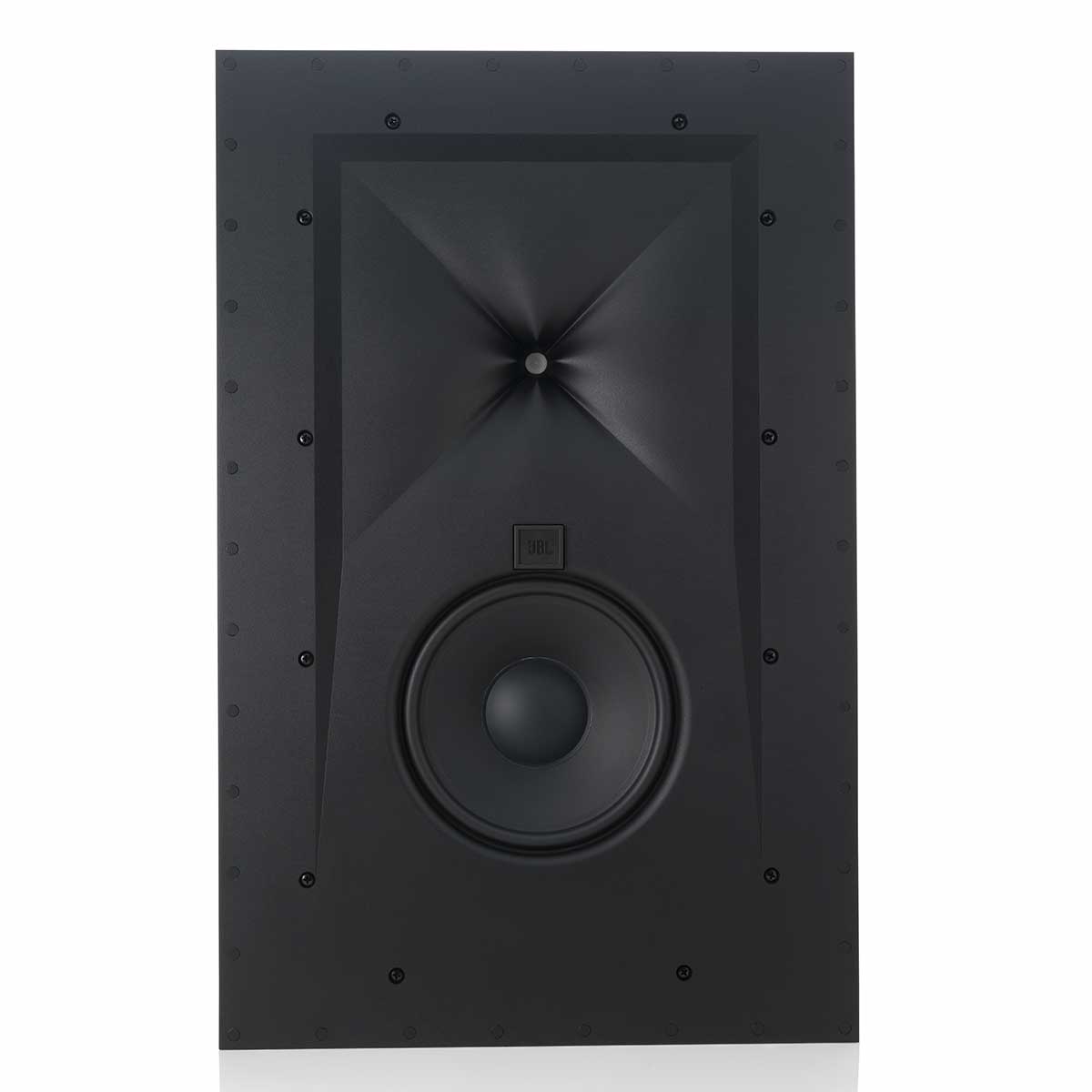

The JBL brand has become synonymous with the cinema experience. The SCL-4 continues this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The 7" cast-frame aluminum-cone woofer is ideal for in-wall or ceiling mounts.

Sold individually.

The JBL brand has become synonymous with the cinema experience. The SCL-4 continues this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The 7" cast-frame aluminum-cone woofer is ideal for in-wall or ceiling mounts. Utilizing the D2-derived 1-inch / 25mm annular ring Teonex® diaphragm compression driver with advanced HDI geometry horn, the SCL-4 provides extraordinary performance in a very small package.

Features

  • 7” (180mm) cast-frame, advanced aluminum matrix cone woofer with large ferrite low-distortion motor structure
  • D2-derived 1" (25mm) 2409H annular ring diaphragm Teonex® compression driver
  • Patented High-Definition Imaging (HDI™) technology provides elevated performance in combination with patented D2-Series compression driver
  • Design can be installed in any orientation, for maximum installation flexibility
  • Ideal for LCR or surround channel use

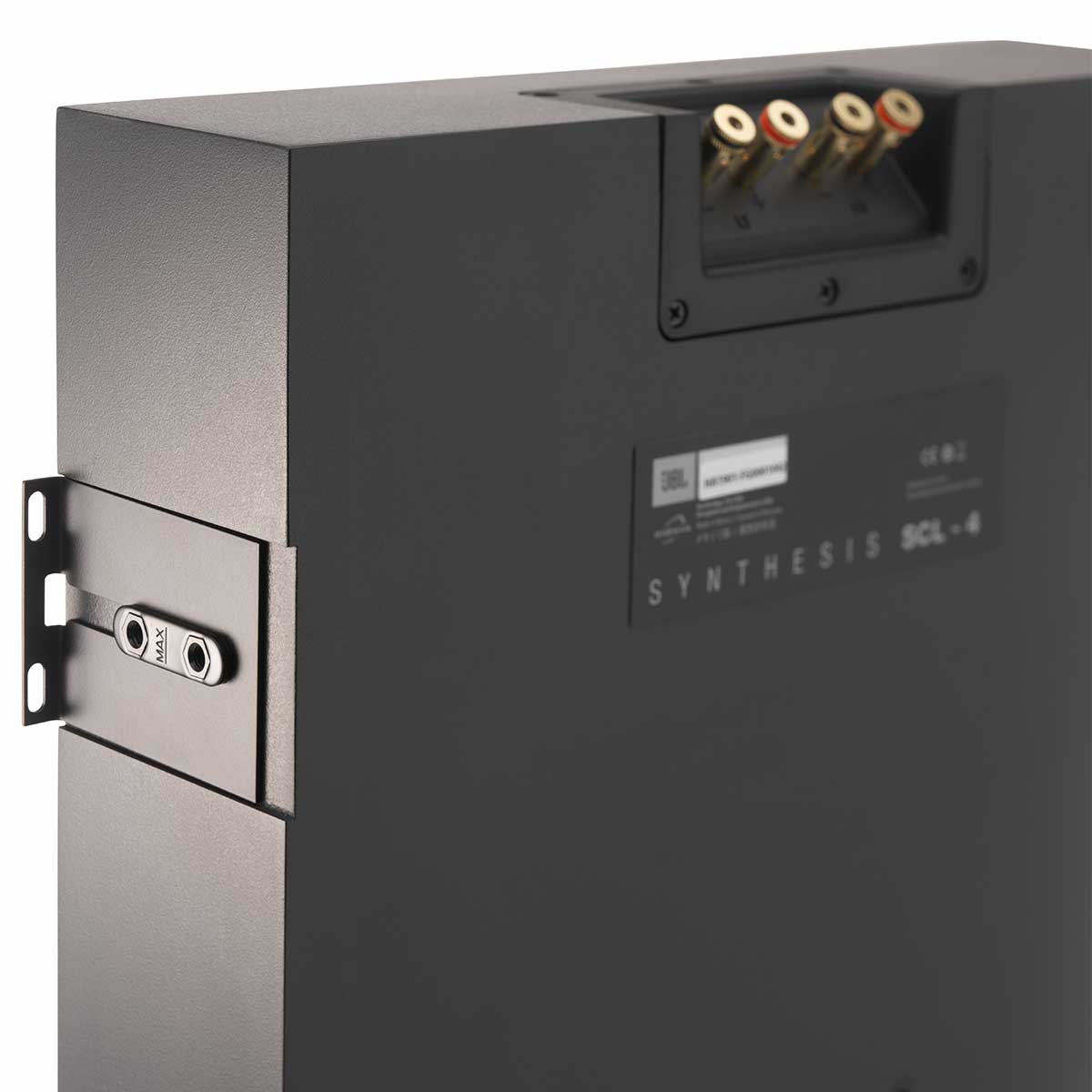

  • Patent Pending extended range L-Bracket mounting system

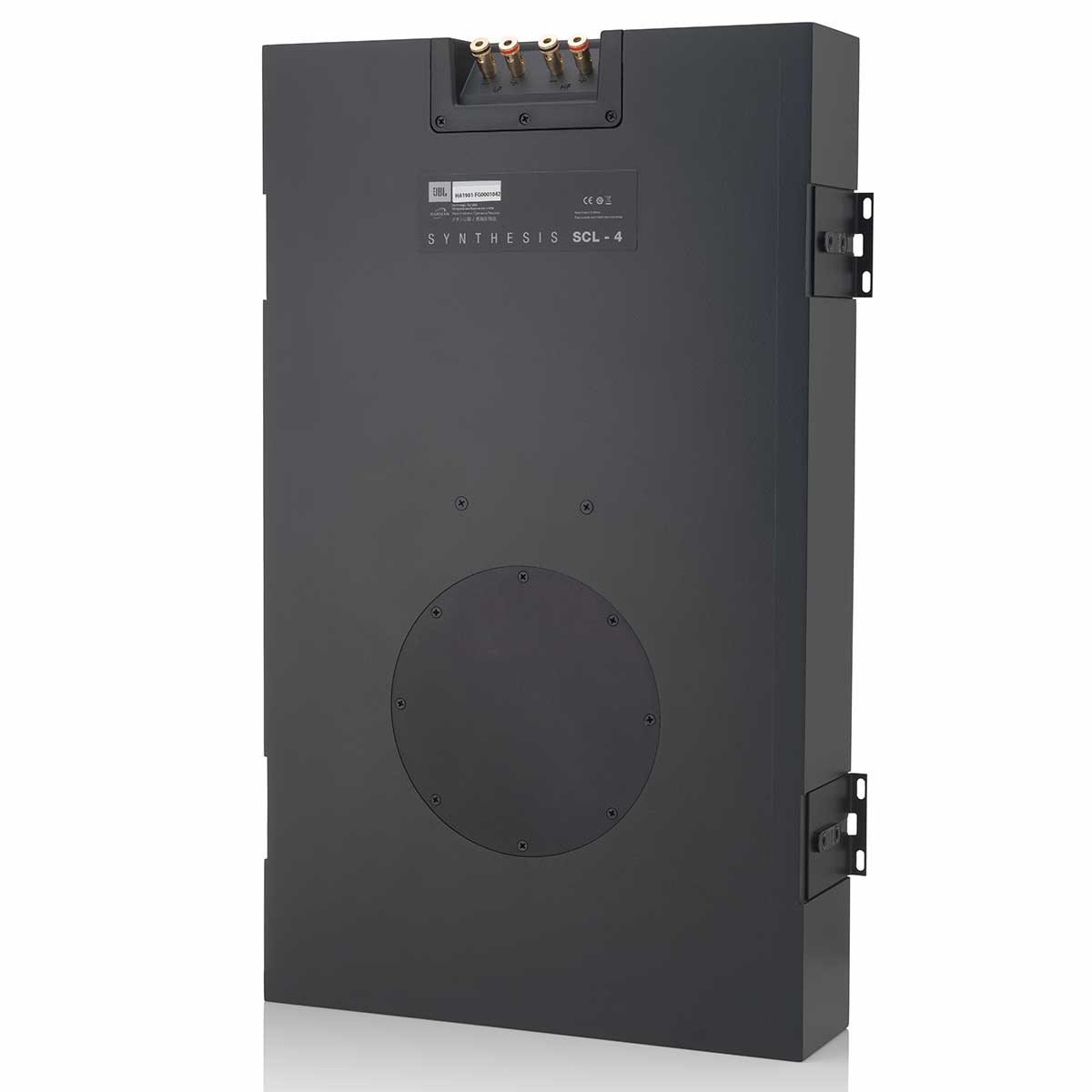

  • Low resonance, well-damped MDF wood rear enclosure
  • High-performance passive network utilizing all air-core inductors, polypropylene capacitors

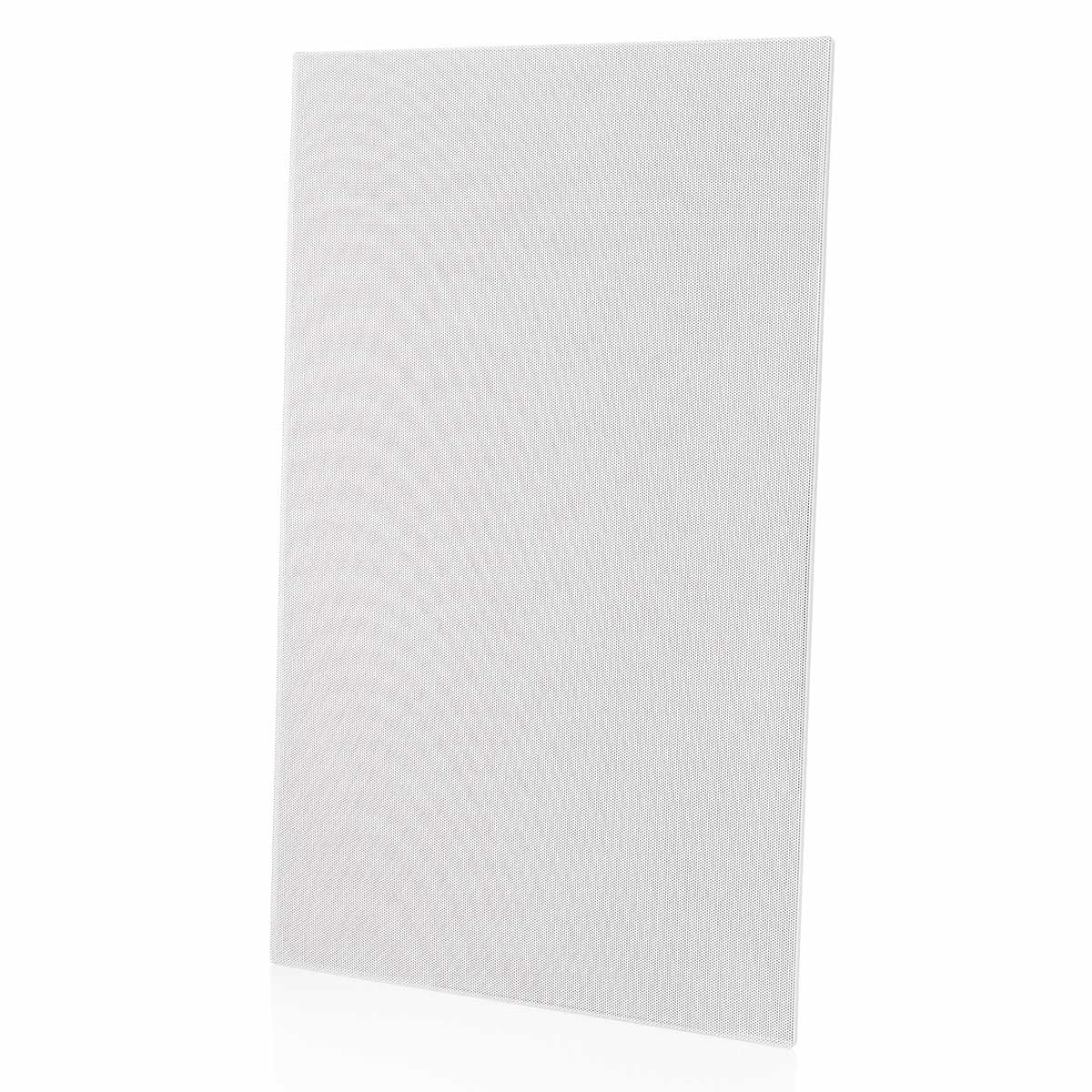

  • Zero-bezel, magnetically-attached grille
  • Dual binding post inputs for bi-wire or bi-amplified connections

Details & Specs

General Specifications

  • Speaker Type - Two-way In-Wall Loudspeaker
  • Low-Frequency Transducer - 7” (180mm) cast-frame, advanced aluminum matrix cone woofer
  • Mid/High-Frequency Transducer - D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver
  • Maximum Recommended Amplifier Power - 200 watts RMS
  • Frequency Response (-6dB on-axis) - 45 Hz – 33KHz
  • Coverage area (-6dB @ 20 KHz) - 100 x 100 deg, (-6dB @ 10 KHz) 120 x 120 deg (Hor x Vert)
  • Sensitivity (2.83V@1m) - 91dB
  • Nominal Impedance - 6 Ohm
  • Crossover Frequencies - 1.3 KHz
  • Enclosure type - Sealed In-Wall Mount with included back box
  • Inputs - Dual Gold-plated Five-way Binding Posts
  • Dimensions (H x W x D) - 25" x 16.1" x 3.7" (636mm x 409mm x 93mm)
  • Weight - 27.6 lb (12.51 kg)

Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Batman
Not cheap, but outstanding.

This replaced a center channel that sounded good in the main listening position, but was lacking the same clarity in the seats further to the sides and in the second row. The SCL-4 has an incredible coverage area and sounds nearly identical in every seat in my room and beyond.( 22 ft wide, 5 seats wide in both rows)
Highly recommended.
