Item #JBLSCL2

JBL Synthesis SCL-2

2.5-Way 8" In-Wall Speaker
Item #JBLSCL2

JBL Synthesis SCL-2

2.5-Way 8" In-Wall Speaker
$6,600.00
In Stock: Delivers in 7-10 Days
Contact Us

Overview

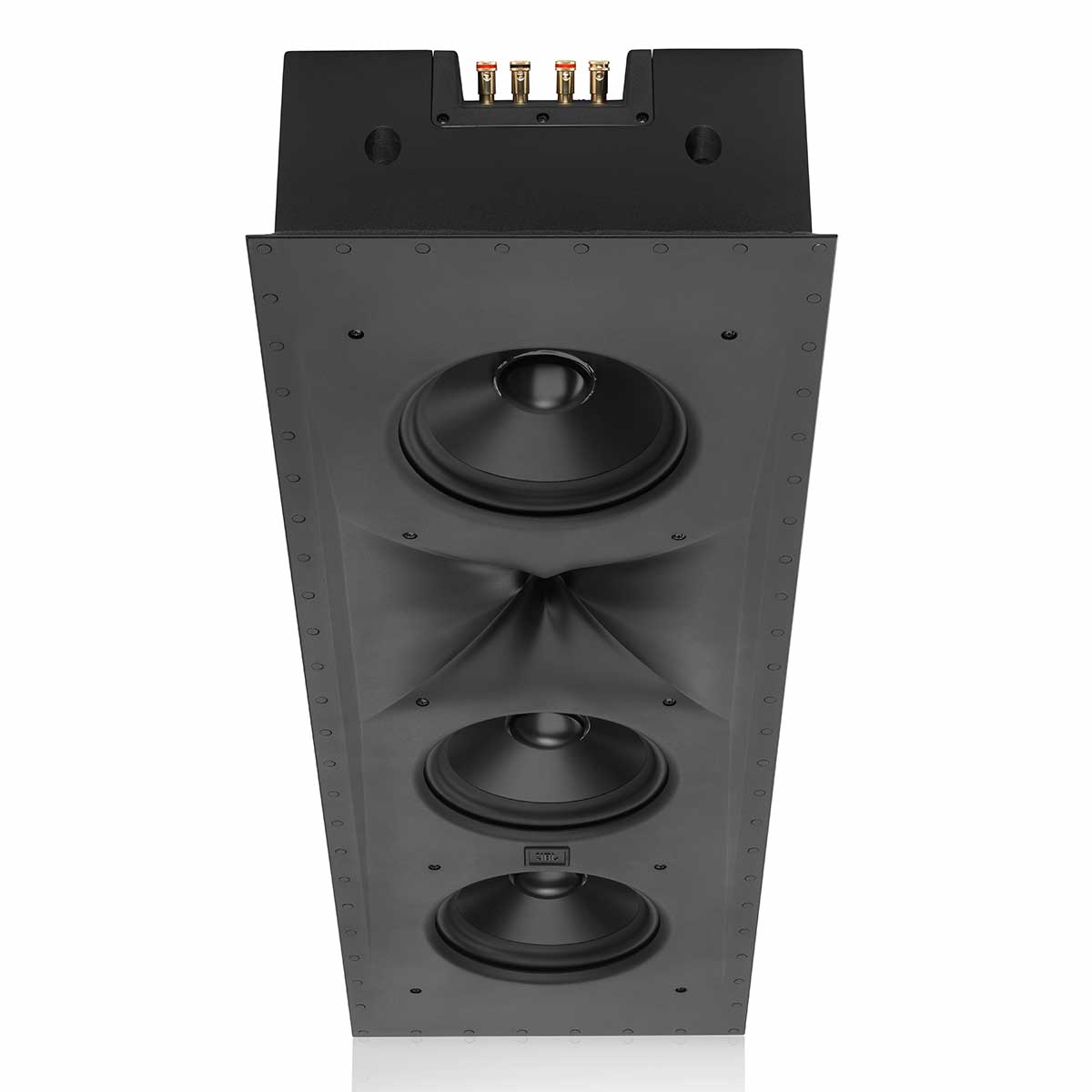

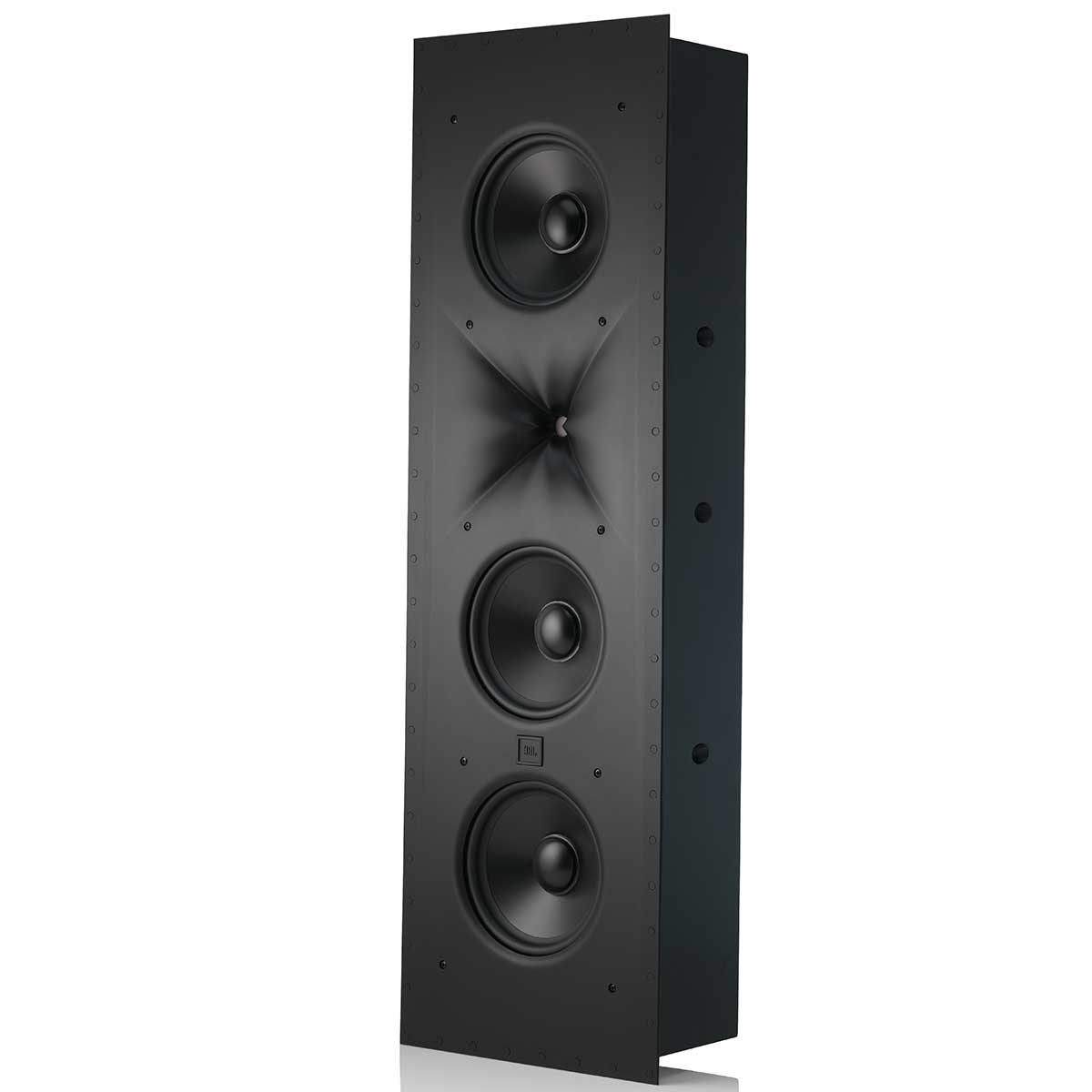

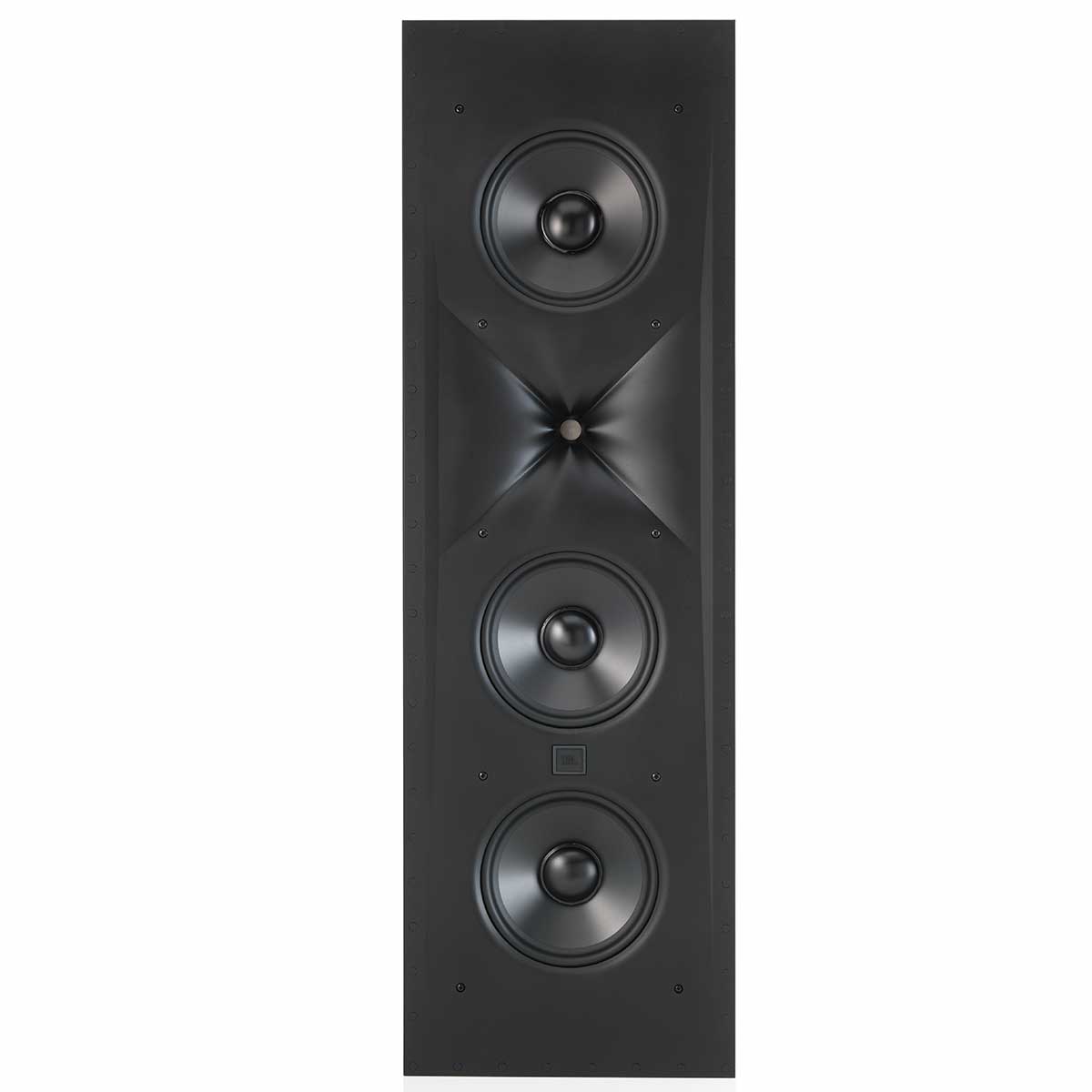

Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.

Sold individually.

Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.

The loudspeaker’s 5.8-inch (147mm)-deep enclosure fits standard wall construction applications and features a Sonoglass™ precision-molded baffle assembly with integrated HDI waveguide/horn, and a zero-bezel, magnetically-attached grille. This enclosure can be oriented with the horn closer to the top or bottom, or on its side for center channel or reduced height applications. SCL-2 systems can be mixed and matched with other SCL speakers or any JBL Synthesis loudspeakers.

Designed to provide ultimate performance and the highest levels of dynamics from any in-wall loudspeaker, the SCL-2 can discretely integrate into any environment and décor. They can also be installed in a traditional application behind acoustic fabric or woven/perforated video screens without installing the grilles. They feature a discrete matte black baffle, HDI waveguide, and transducers, with a paintable white grille. The SCL-2 is the perfect solution for in-wall LCR or surround channel applications as part of a JBL Synthesis home theater.

Highlights:

  • 2½-way, triple 8-inch/200mm driver configuration – ideal for wall mount 5.8-inch/147mm deep, rectangular footprint enclosure

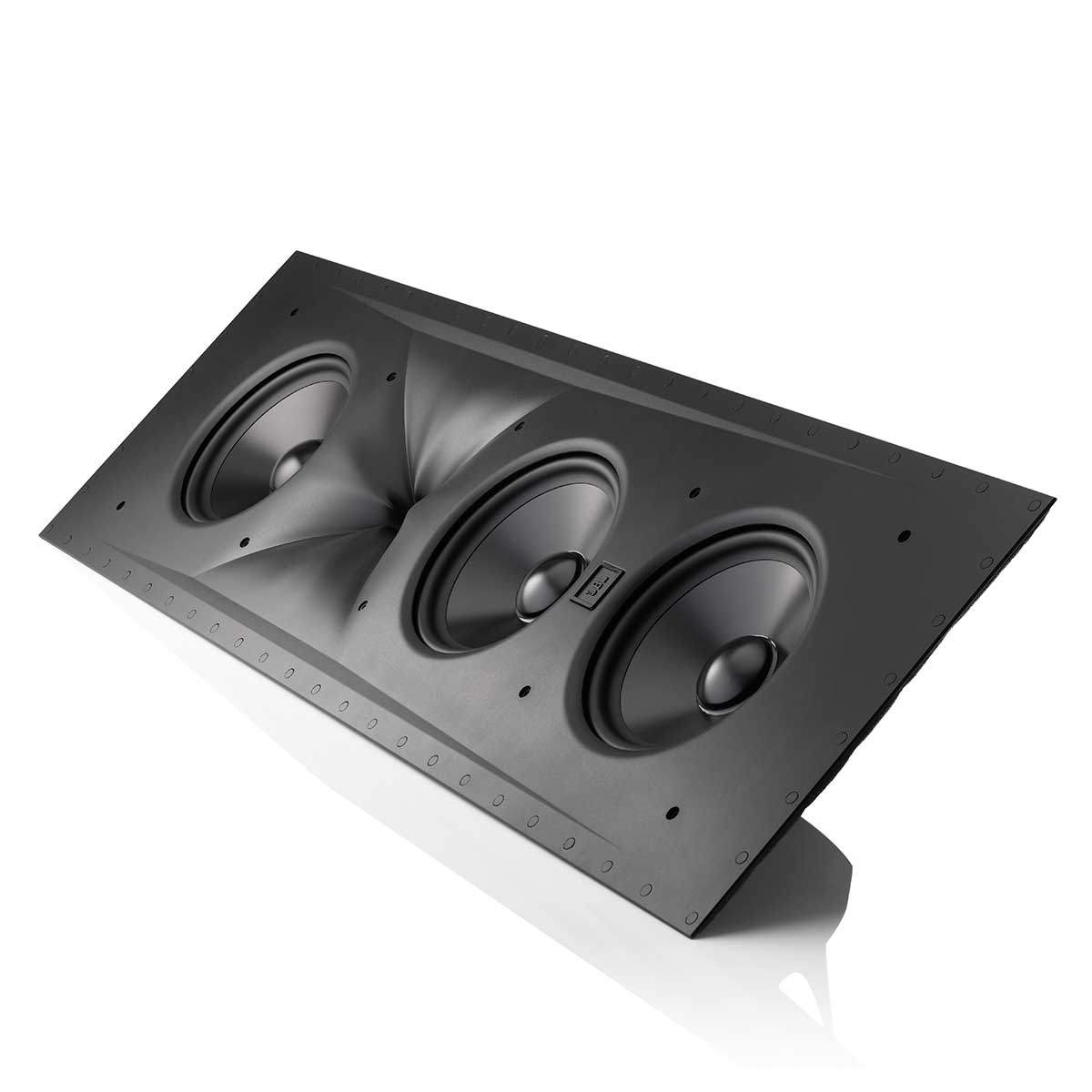

  • Can be mounted vertically or horizontally for maximum application flexibility and performance
  • Computer-optimized HDI Constant Directivity Horn with very smooth and predictable off-axis behavior over a wide coverage area
  • D2415K, 1.5-inch/38mm annular ring Teonex® diaphragm compression driver with advanced HDI geometry horn
  • Powerful cast-frame, Advanced Aluminum Matrix cone woofers with low-distortion neodymium motor structures
  • Sonoglass® baffle with integrated HDI waveguide for maximum strength and high internal damping

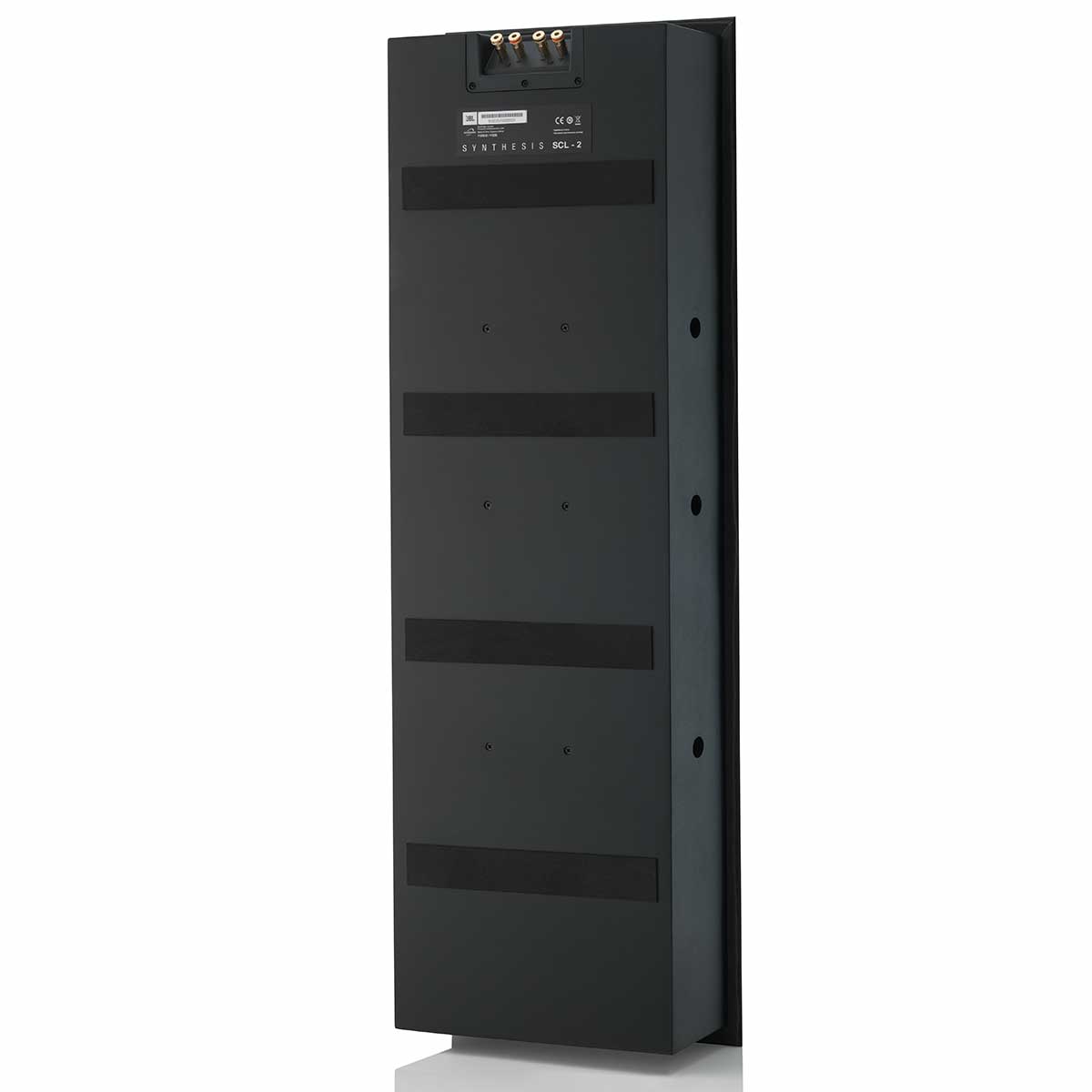

  • Solid MDF enclosure installs behind drywall and provides optimized acoustic performance and enhanced acoustic isolation from the wall
  • Rubber isolation mounts attach the cabinet to wall studs, ensuring a firm yet isolated mounting

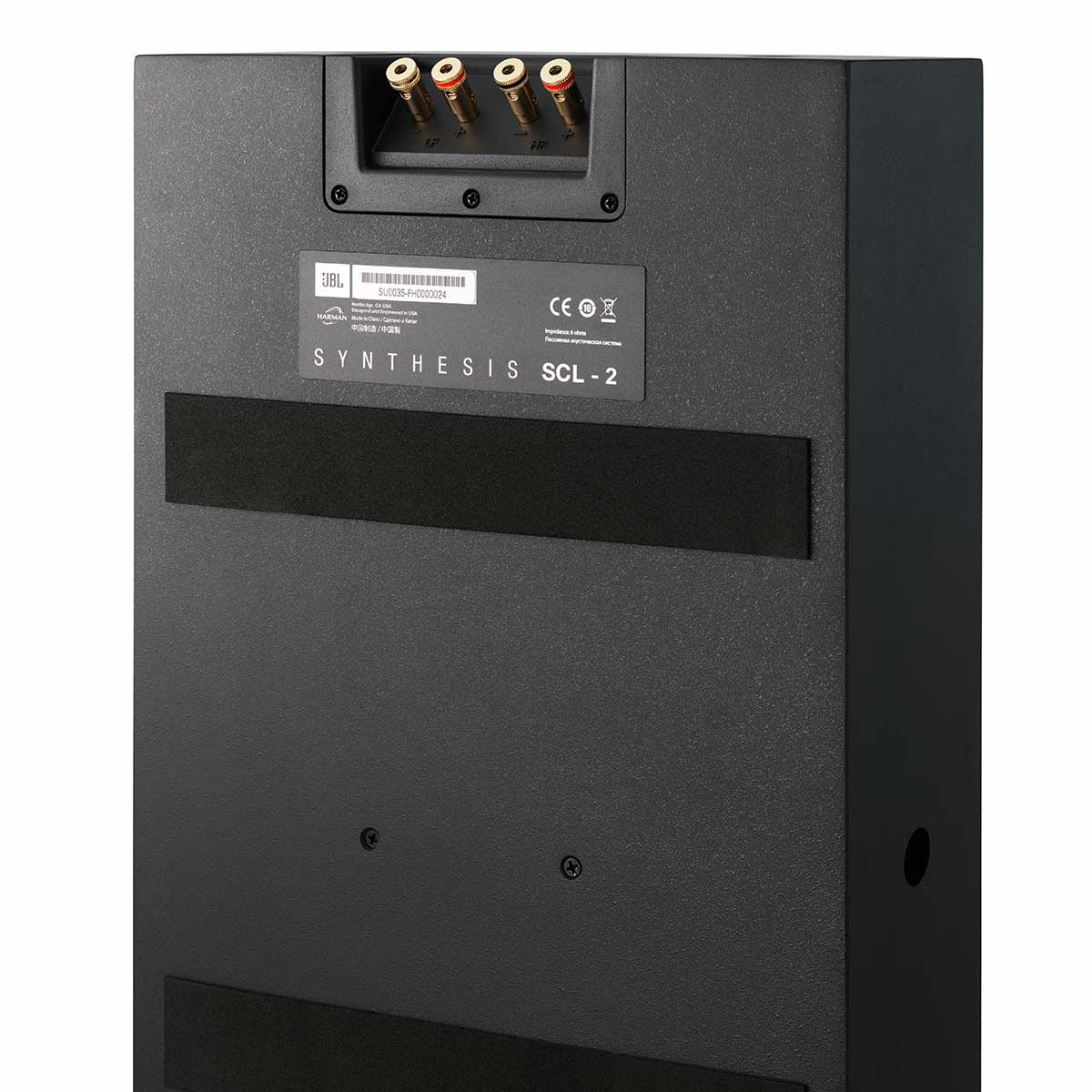

  • Bi-Wire and Bi-Amp capable network using gold-plated binding posts on the rear enclosure, and an easy Molex® baffle to network connection

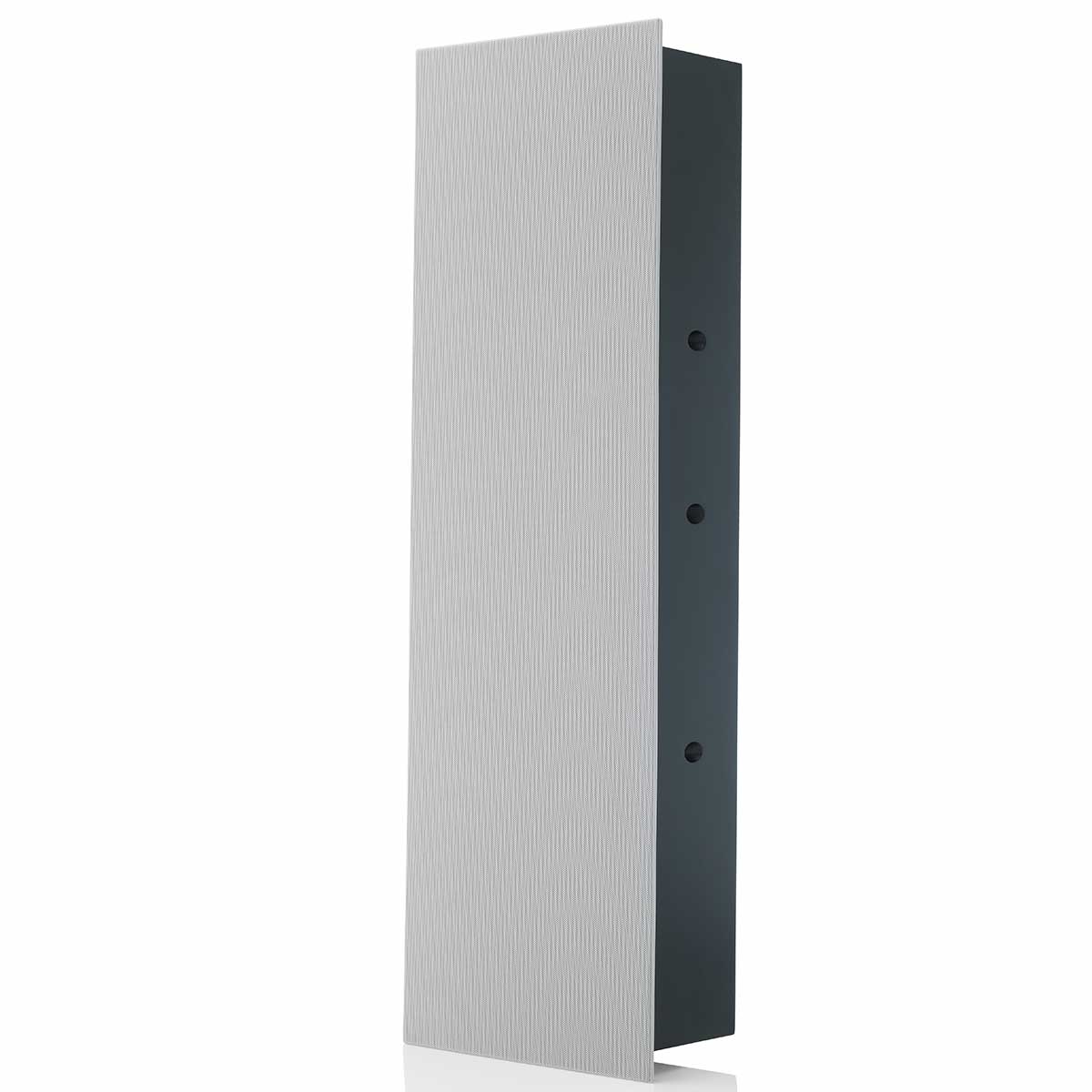

  • Zero-bezel, magnetically-attached grille can be painted to match décor

Details & Specs

General Specifications

  • Speaker type - 2½-way in-wall loudspeaker
  • Low-frequency transducer - Three 8” (200mm) cast-frame, Advanced Aluminum Matrix cone woofers
  • Mid/High-frequency transducer - D2415K, 1.5” (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
  • Maximum recommended power - 445 Watts RMS (CEA-426B specification, calculated onto the SCL-2 rated load impedance)
  • Frequency response (-6 dB on-axis) - 57 Hz – 25 kHz
  • Coverage area (-6dB@20kHz) - 80 x 70 Degrees (Hor x Vert)
  • Coverage area (-6dB@10kHz) - 100 x 100 Degrees (Hor x Vert)
  • Sensitivity (2.83V@1m) - 92dB
  • Nominal Impedance - 6 Ohm
  • Crossover frequencies - 225Hz; 1.3kHz
  • Enclosure type - Sealed in-wall mount with included back box
  • Inputs - Dual gold-plated binding posts
  • Finished grille dimensions (H x W) - 40.25” x 12.84” (1022.4mm x 326mm)
  • Final cutout dimensions with backbox (H x W) - 38.5” x 11.75” (977.9mm x 298.5mm)
  • Mounting depth with backbox - 5.8” (147mm)
  • Weight - 53.5 lb (24.3 kg)
  • Finishes - Matte Black with white paintable grille
