JBL Stage XD-5

5.25" Outdoor Speaker IP67 Rated - Pair

JBL Stage XD-5

5.25" Outdoor Speaker IP67 Rated - Pair
$450.00
Select Color Options:

Contact Us

Overview

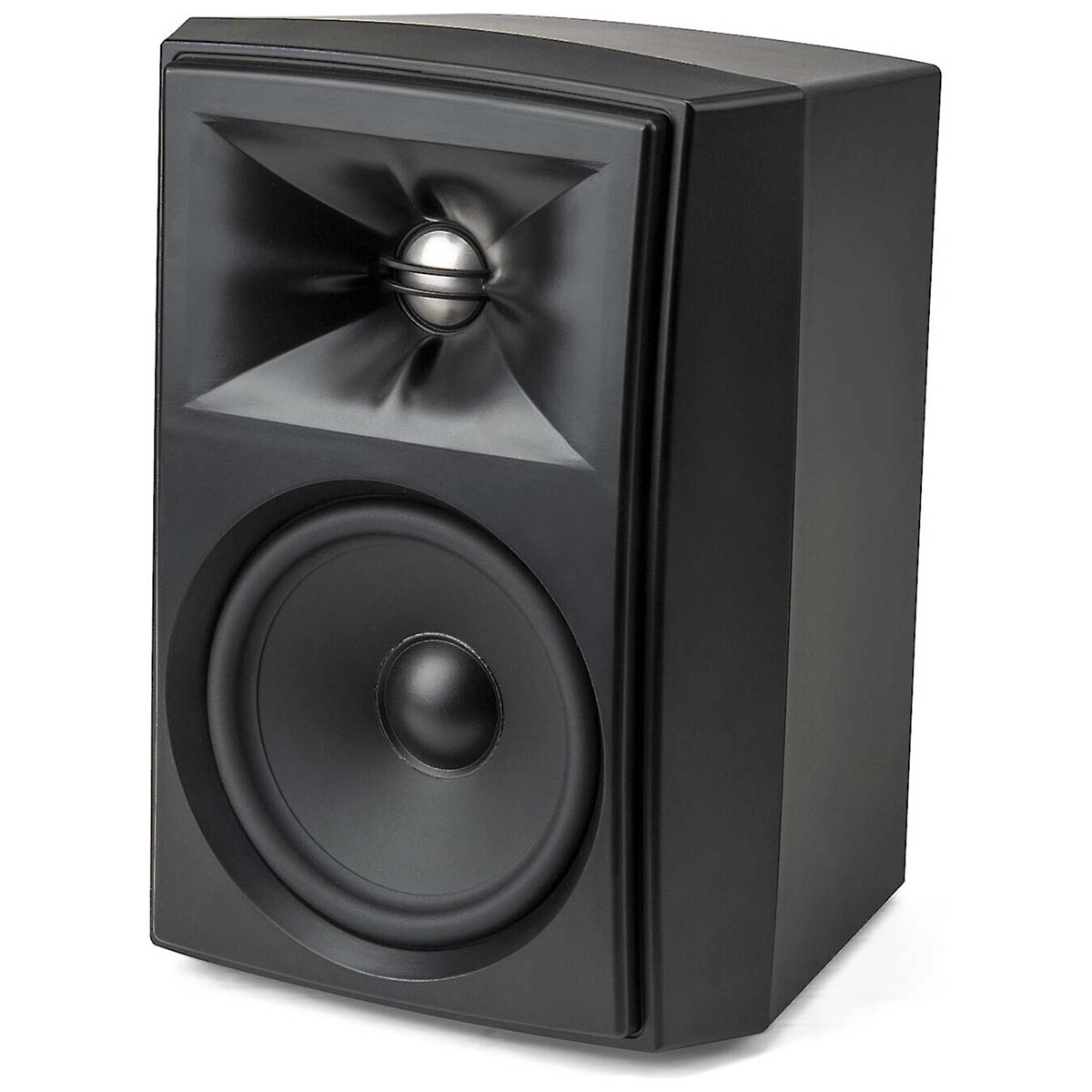

Featuring a 5.25" (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDI) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

Key Features

  • P67 Waterproof rating provides protection from the harshest of outdoor conditions
  • High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

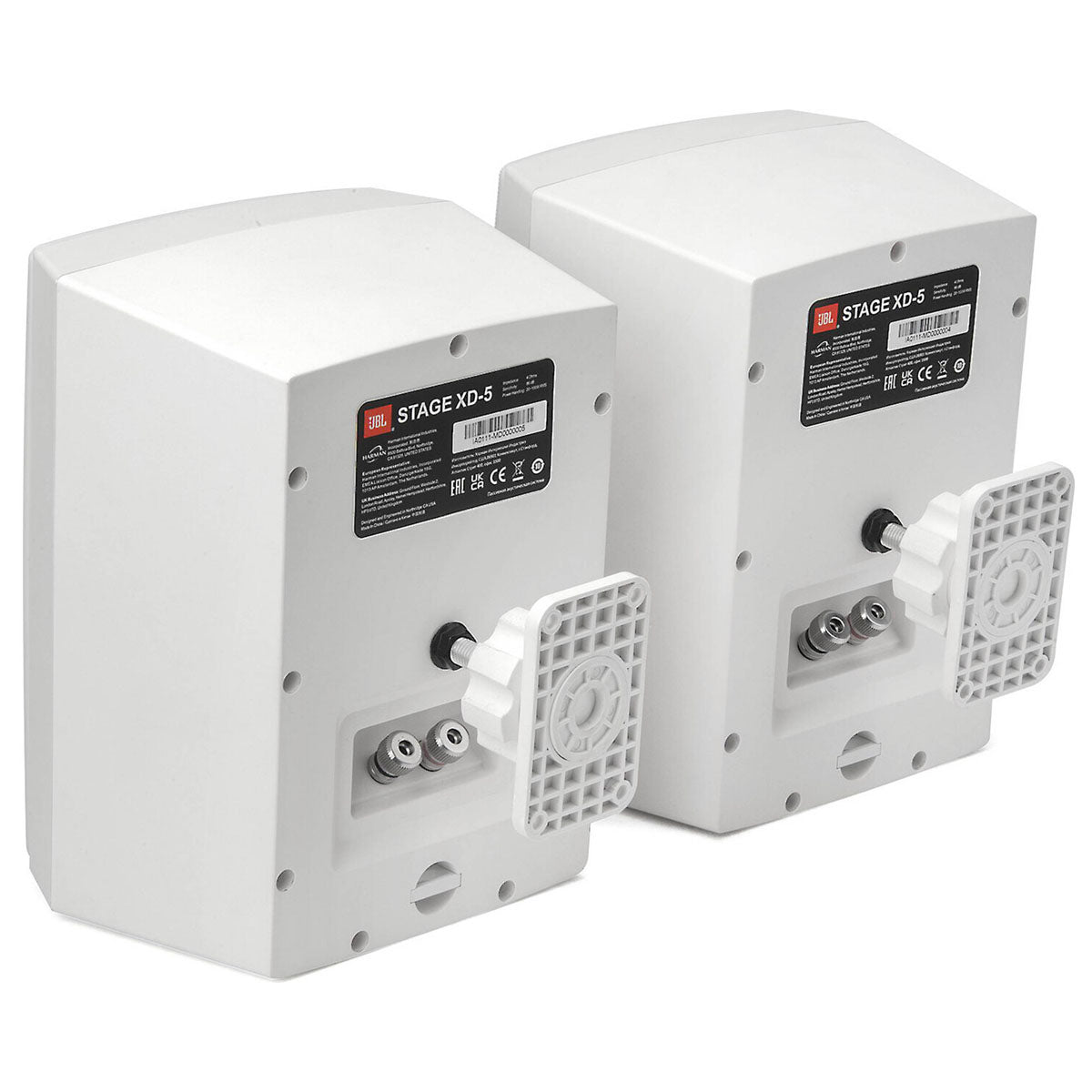

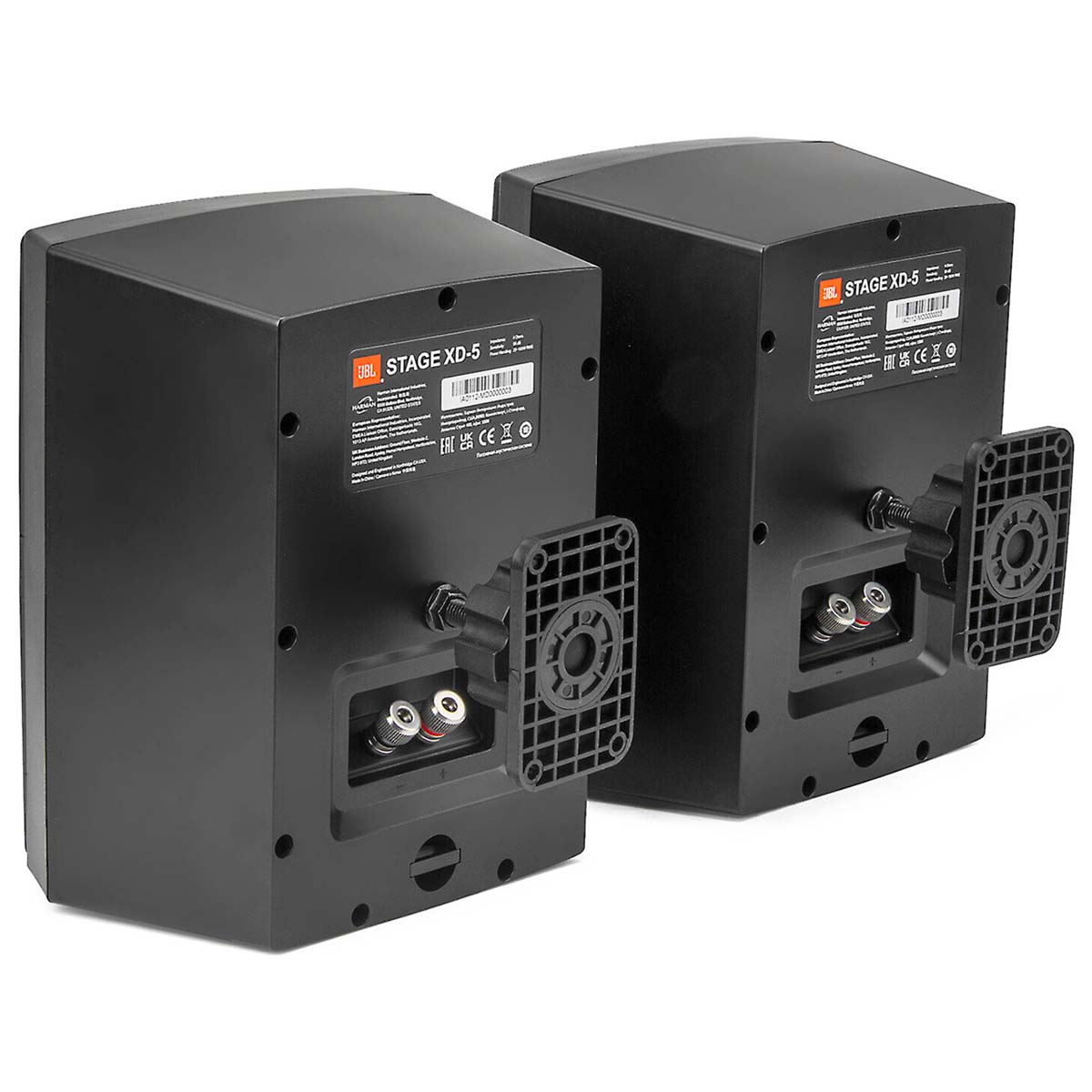

  • Included wall-mount bracket allows for easy installation and angle adjustment

Details & Specs

Model Stage XD-5
Product Type 2-way 5.25" (130mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating IP67
High Frequency Transducer 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer 5.25" (130mm) Polypropylene Cone Woofer
Nominal Impedance 6 ohms
Sensitivity (2.83V@1m) 86dB
Recommended Amplifier Power 20-100W RMS
Frequency Response (-6dB On-Axis) 75Hz-25kHz
Crossover Frequency 2500K
Operating Temperature -31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD) 9.9in (250.0mm) x 7.0in (179mm) X 6.4in (162mm)
Product Weight 2.3lbs (5kg)
Wall Mount Extension 2.8in (71mm)
