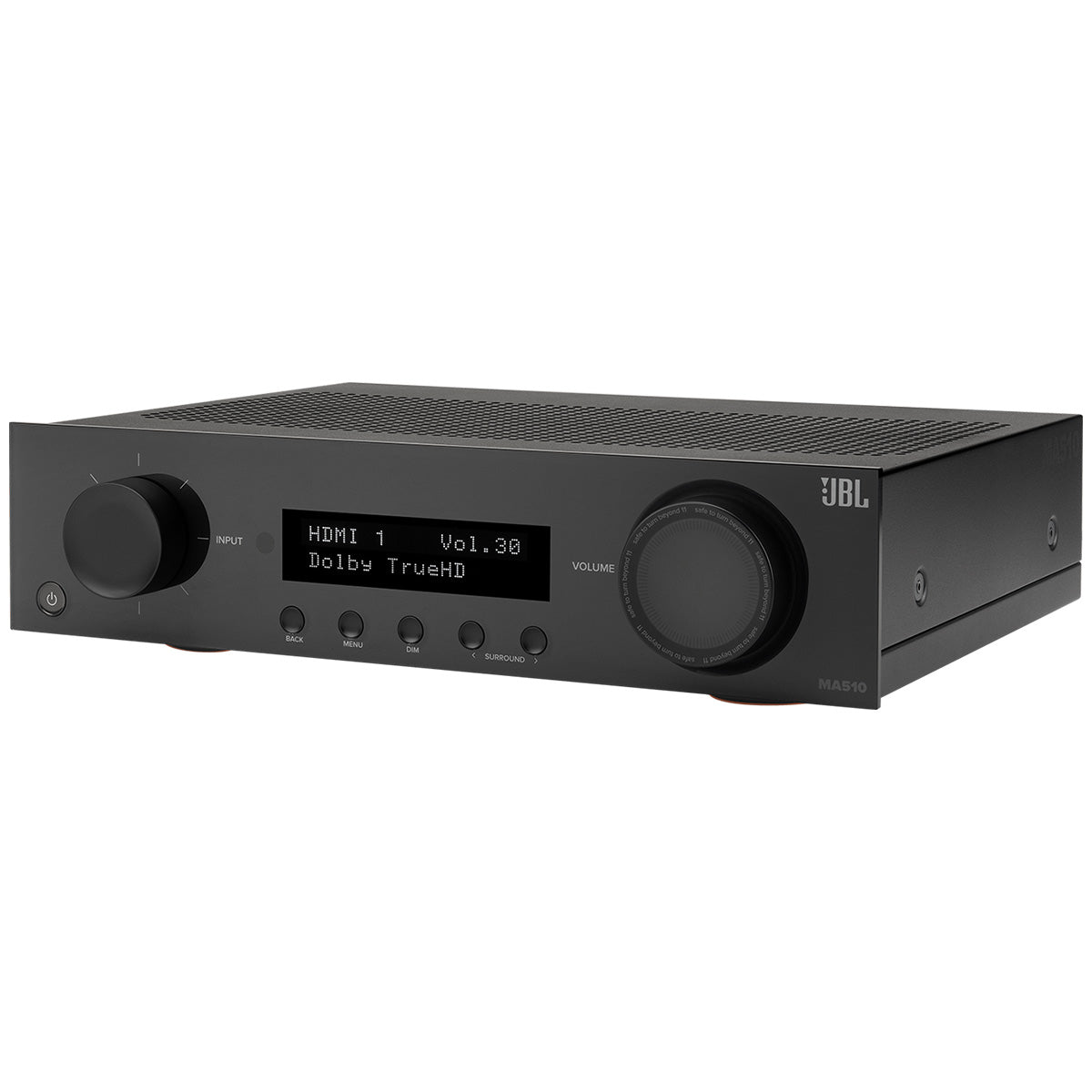

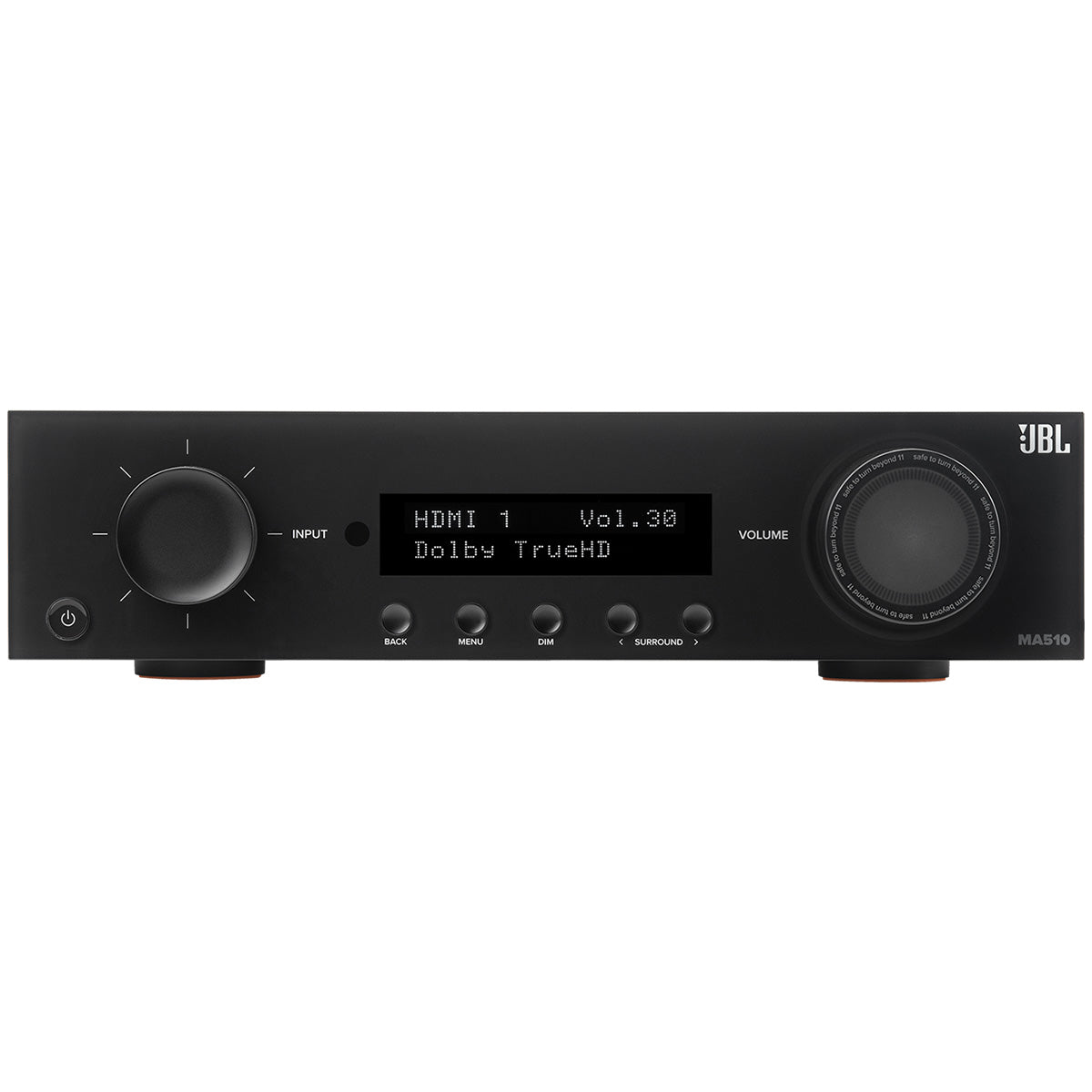

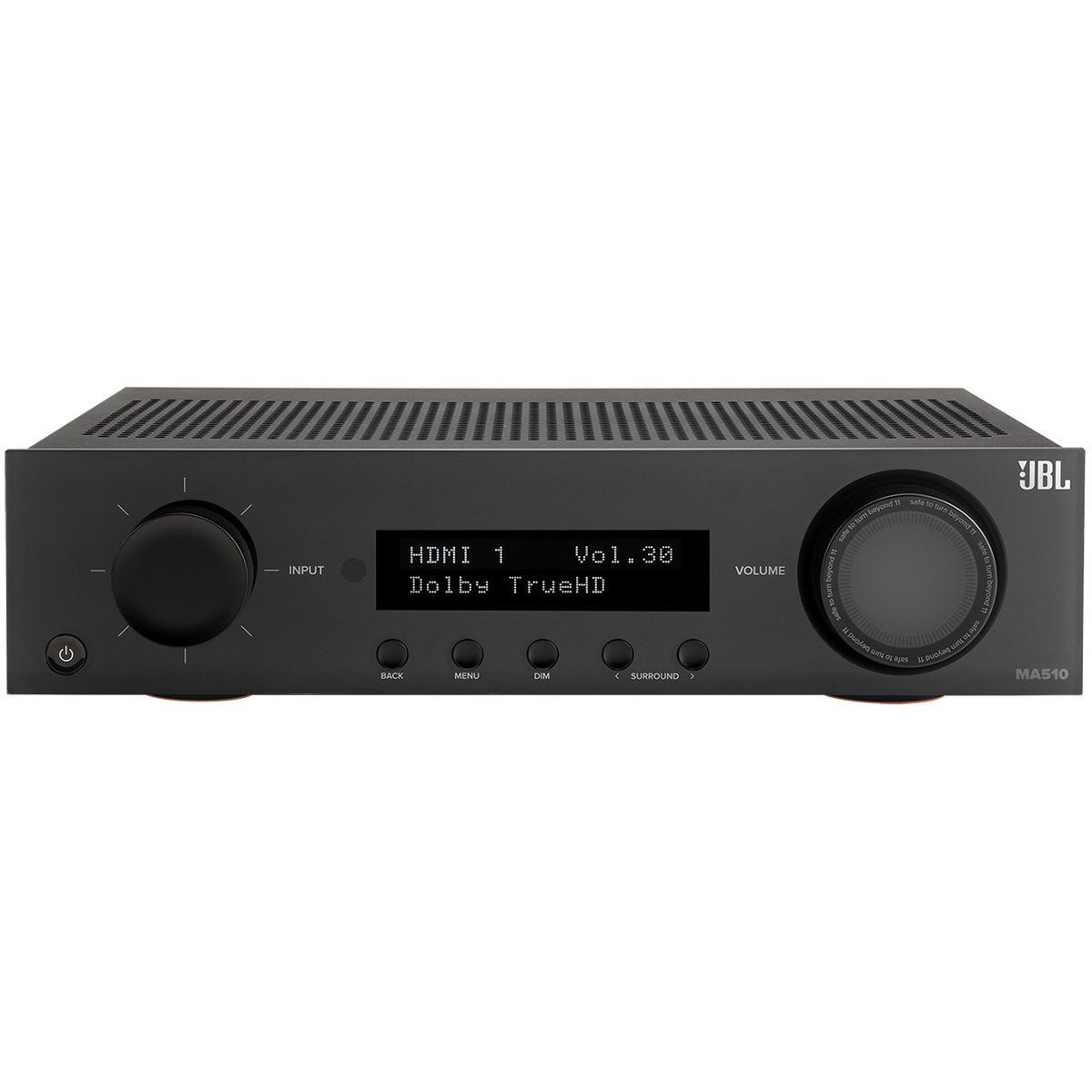

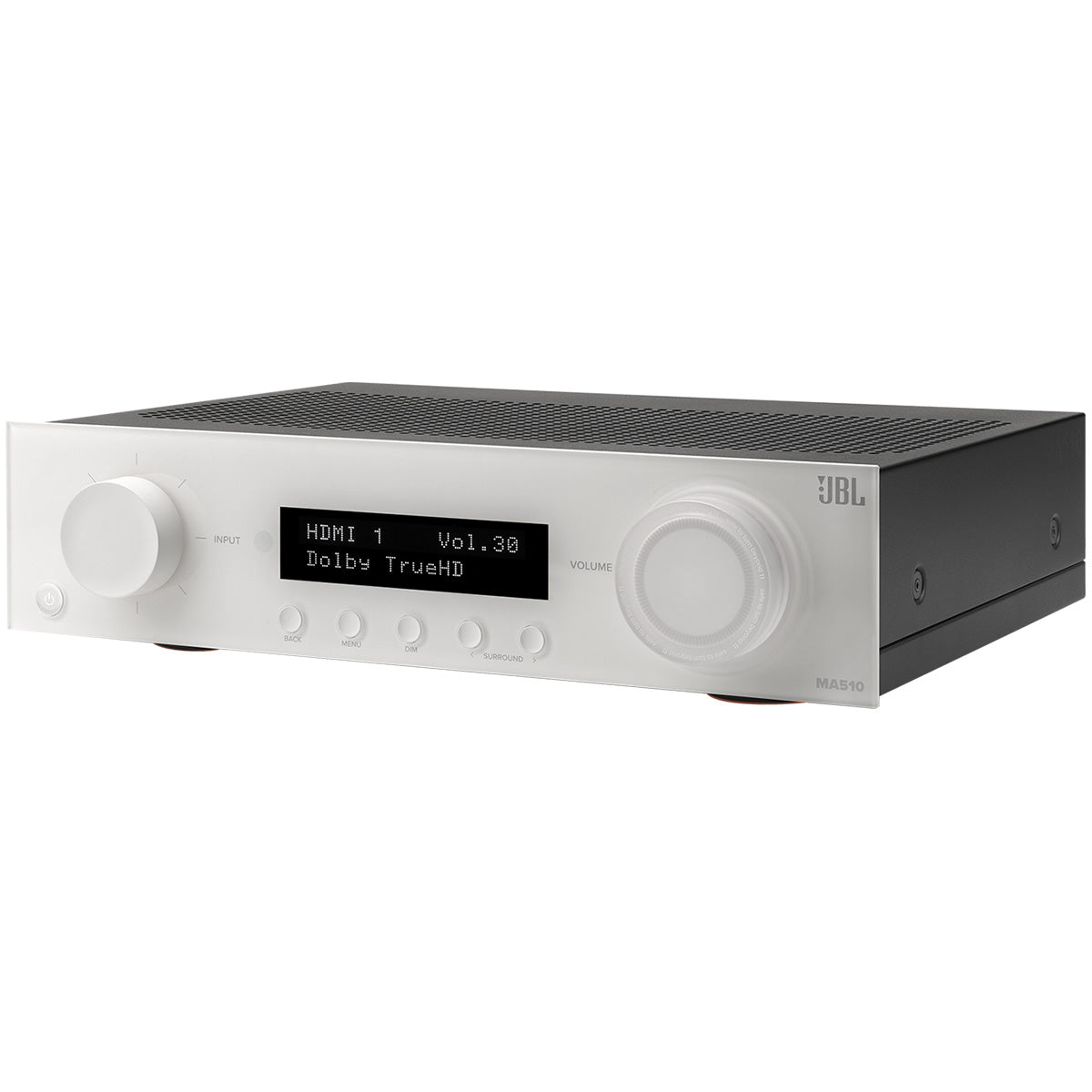

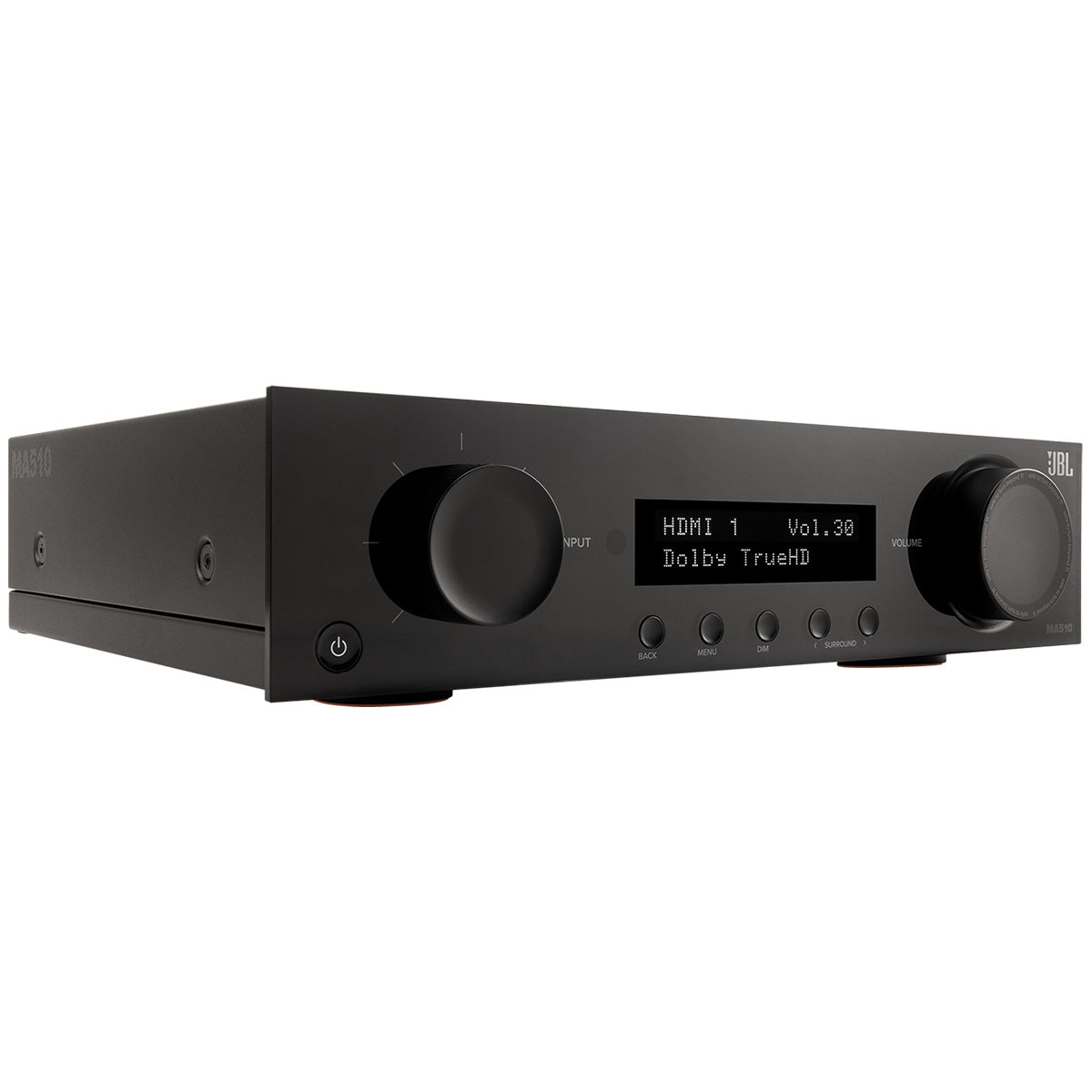

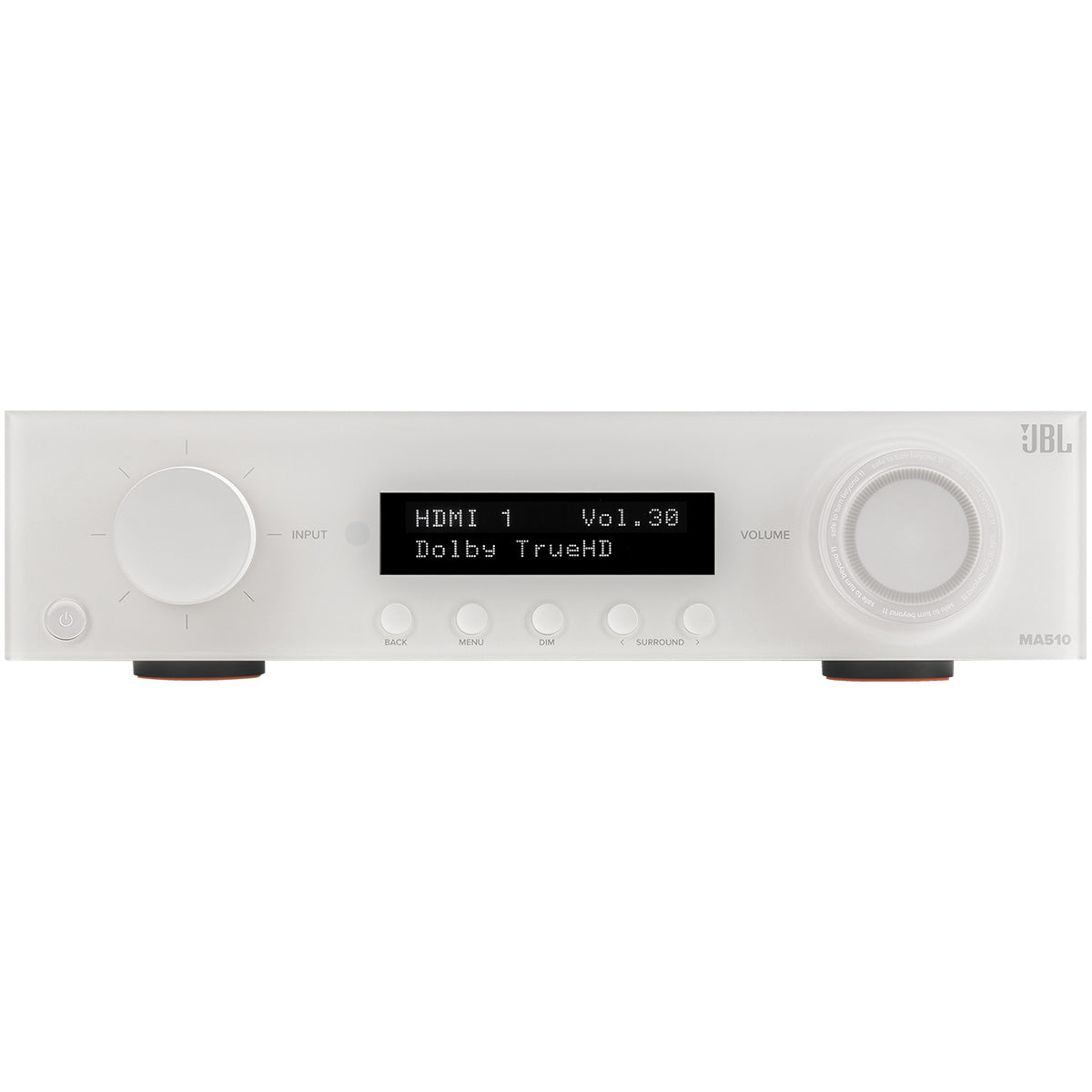

JBL MA510

5.2-Channel 8K AV Receiver 75W

JBL MA510

5.2-Channel 8K AV Receiver 75W
$599.95

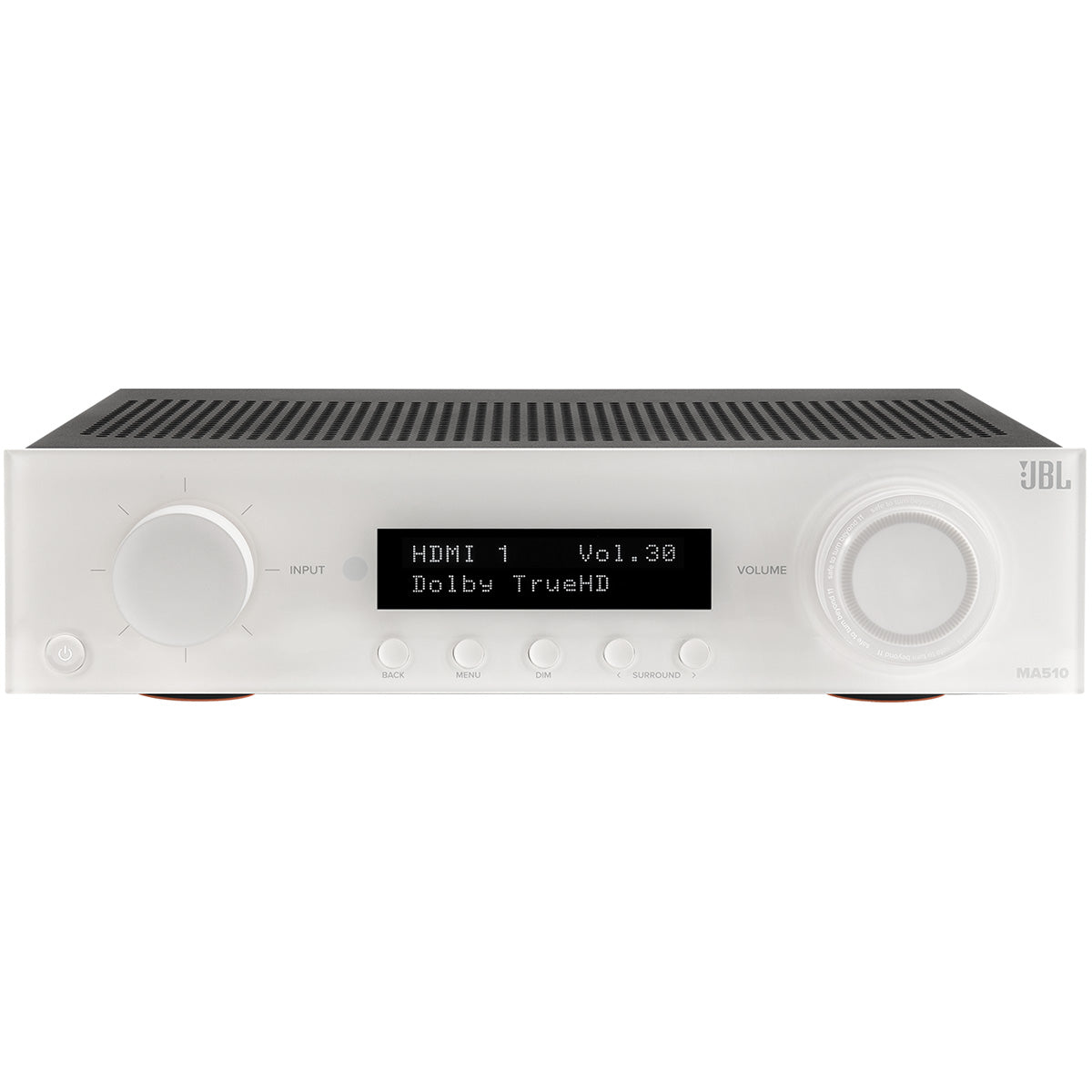

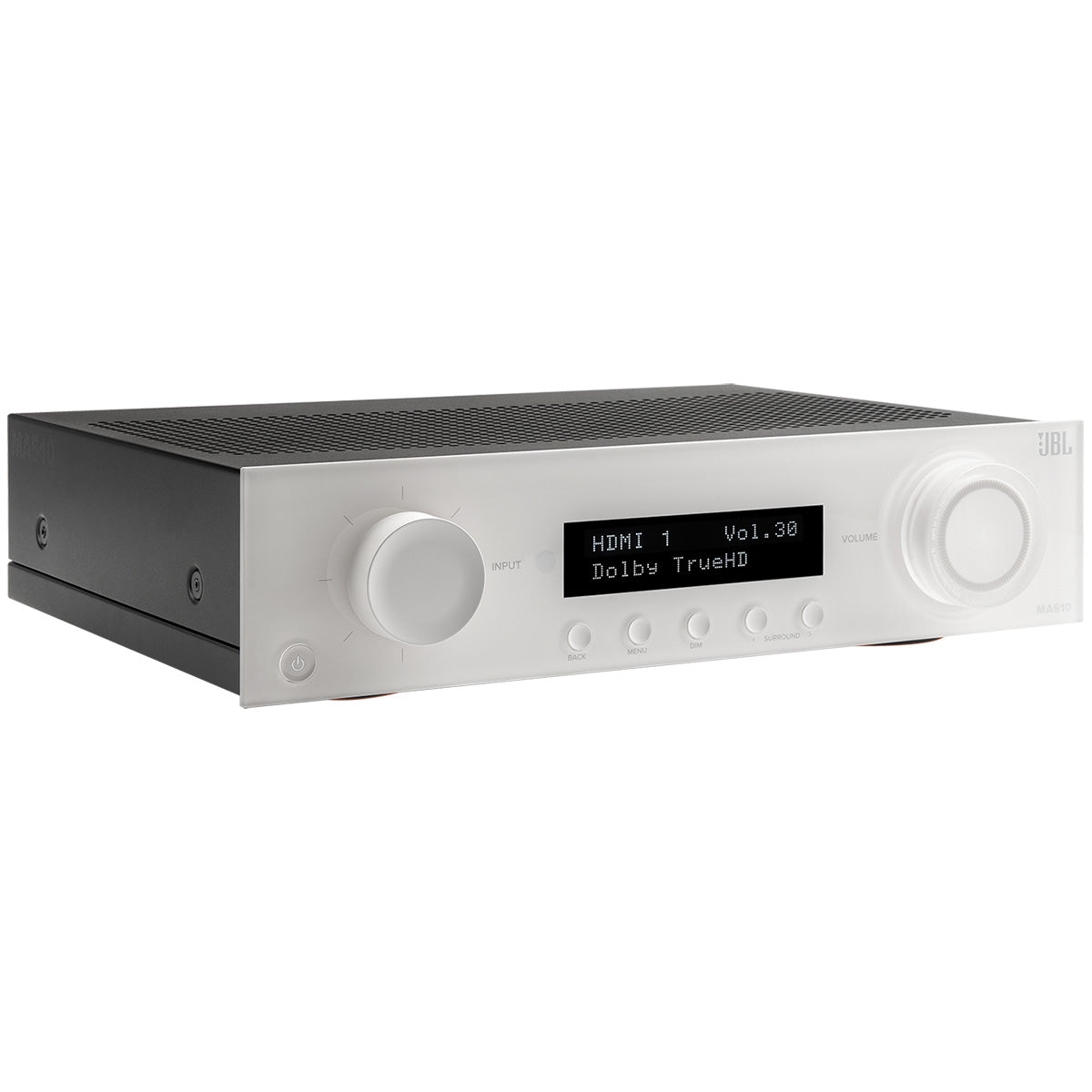

Select Color Options:

Contact Us

Overview

The JBL MA510 AV Receiver delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

Watch our Comparison

Spectacular audio and video performance

5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.

Intutive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.

High-performance immersive surround sound

Native 5-channel decoding of Dolby and DTS formats.

Bring both music and movies to life with true high fidelity

Designed with a passion for music and movies, bringing both to life with true high fidelity.

Bluetooth and network streaming

Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).

On-screen setup and operation

On-screen display for easy system setup and operation (via HDMI).

Powerful amplification

Five channels of low noise Class D amplification for real world power to all channels.

EZ Set EQ

EZ Set EQ provides easy-to-use room equalization for optimized sound quality.

Details & Specs

Model JBL MA510
Video Features HDMI eARC
HDMI Audio Return Channel
4x 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Audio Features MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps
WMA: up to 48 kHz / 192kbps
ALAC: up to 192 kHz / 24-bit
FLAC: up to 192 kHz / 24-bit
PCM / WAV / AIFF: up to 192 kHz / 24-bit
Pure Direct
EZ Set EQ
Digital signal processing: up to 24-bit/192kHz
Audio Specifications 5.2 Channels
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 75 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 100 W RMS

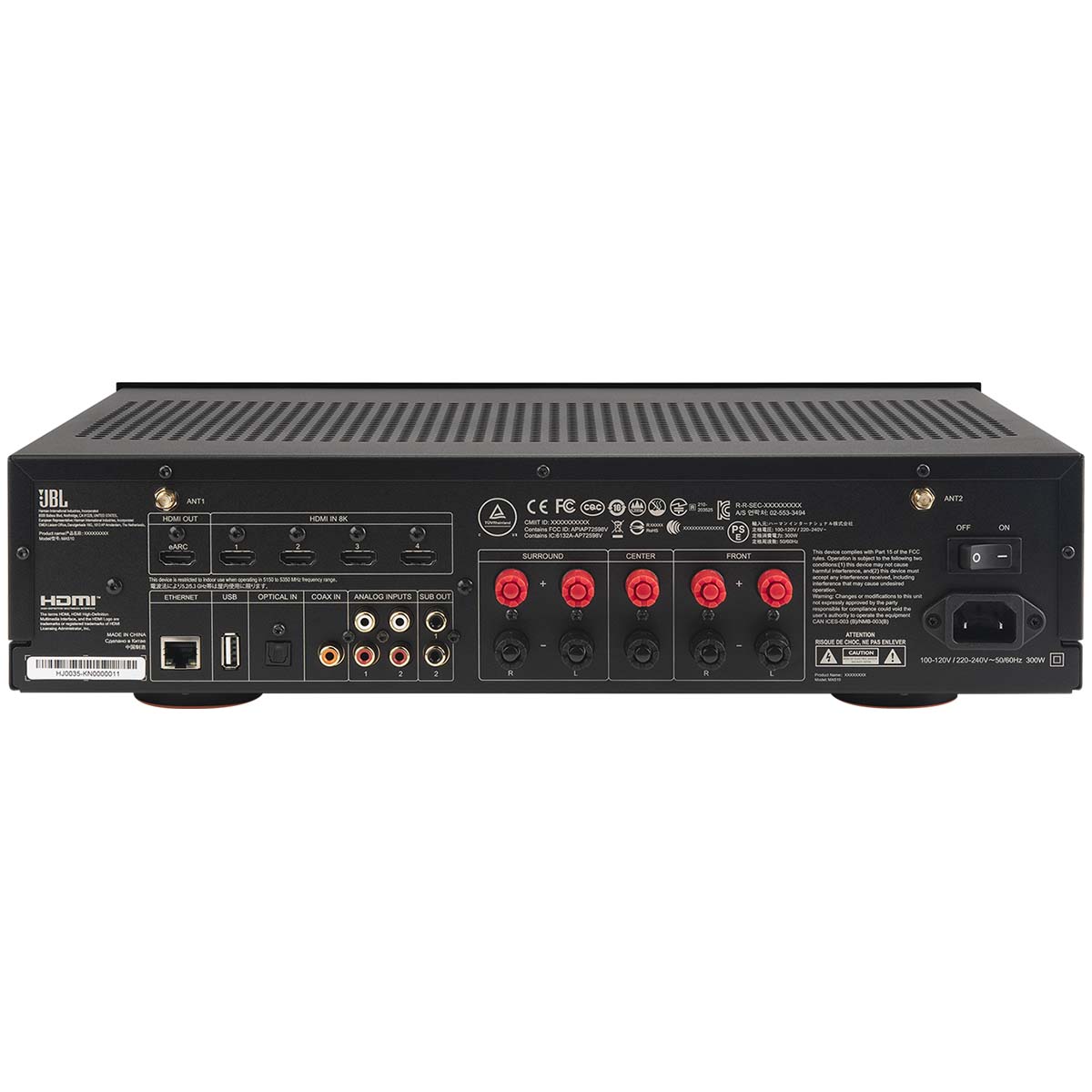

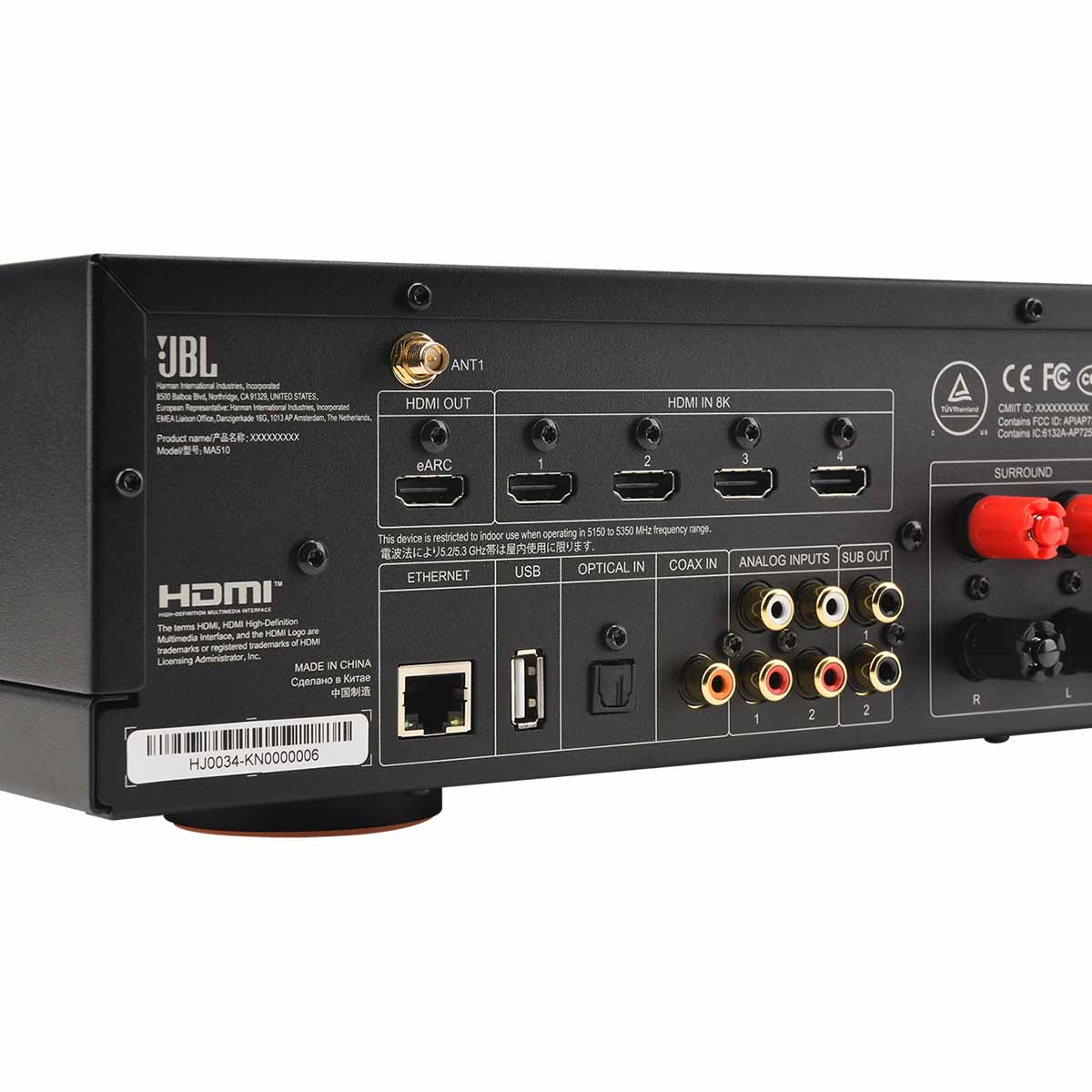

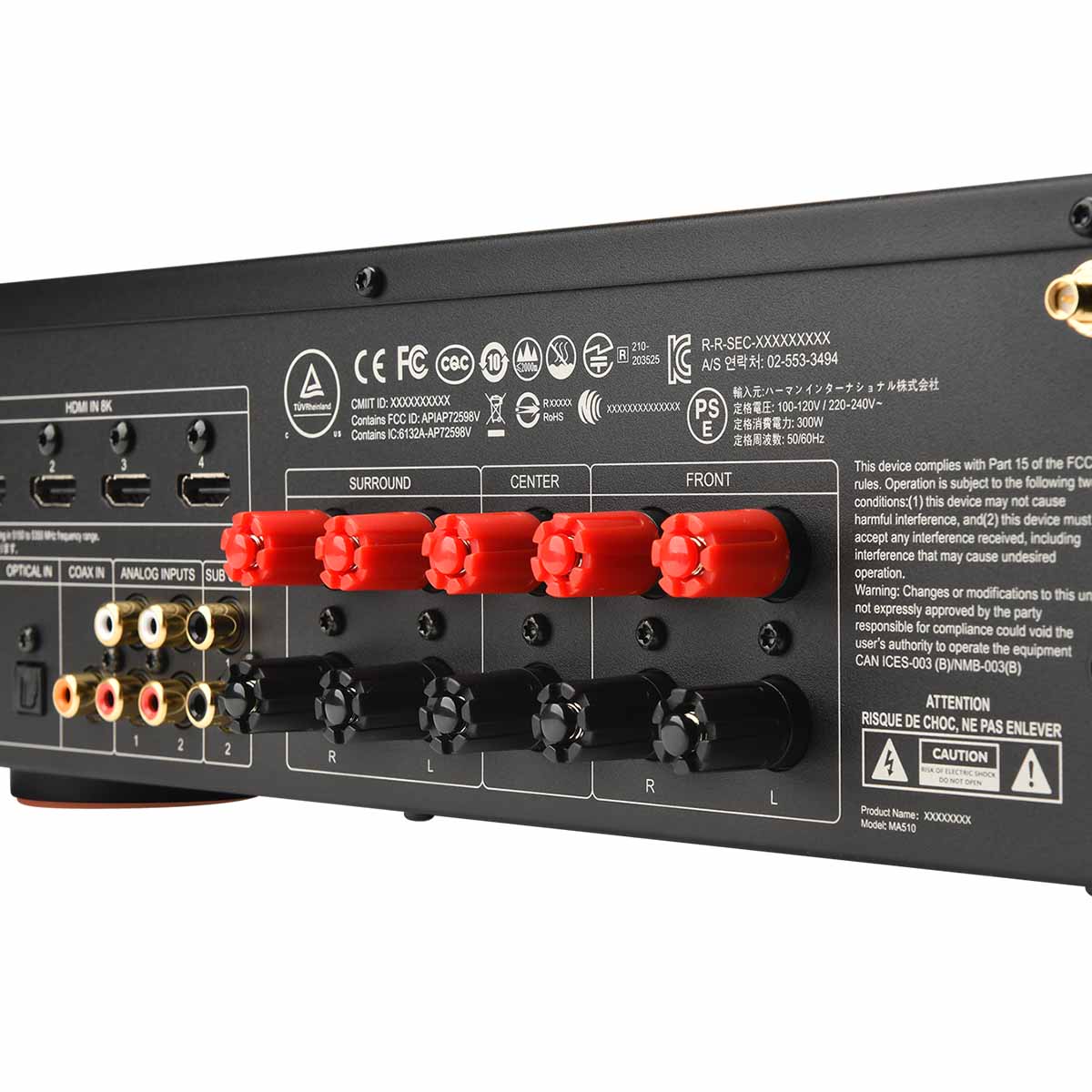

Control and Connection Specifications HDMI Input/Output: 4 / 1
2.4/5GHz WiFi
v4.1 Low-Energy Bluetooth Receiver
Digital Audio Inputs: 1 Coax, 1 Optical
Stereo analog inputs: 2 single-ended RCA
Pre-Out (single ended RCA): Subwoofer 1, Subwoofer 2
Ethernet: RJ45 Gigabit, WiFi Onboard
Dimensions incl. feet and speaker terminals (H x W x D) 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight 12lb (5.4kg)

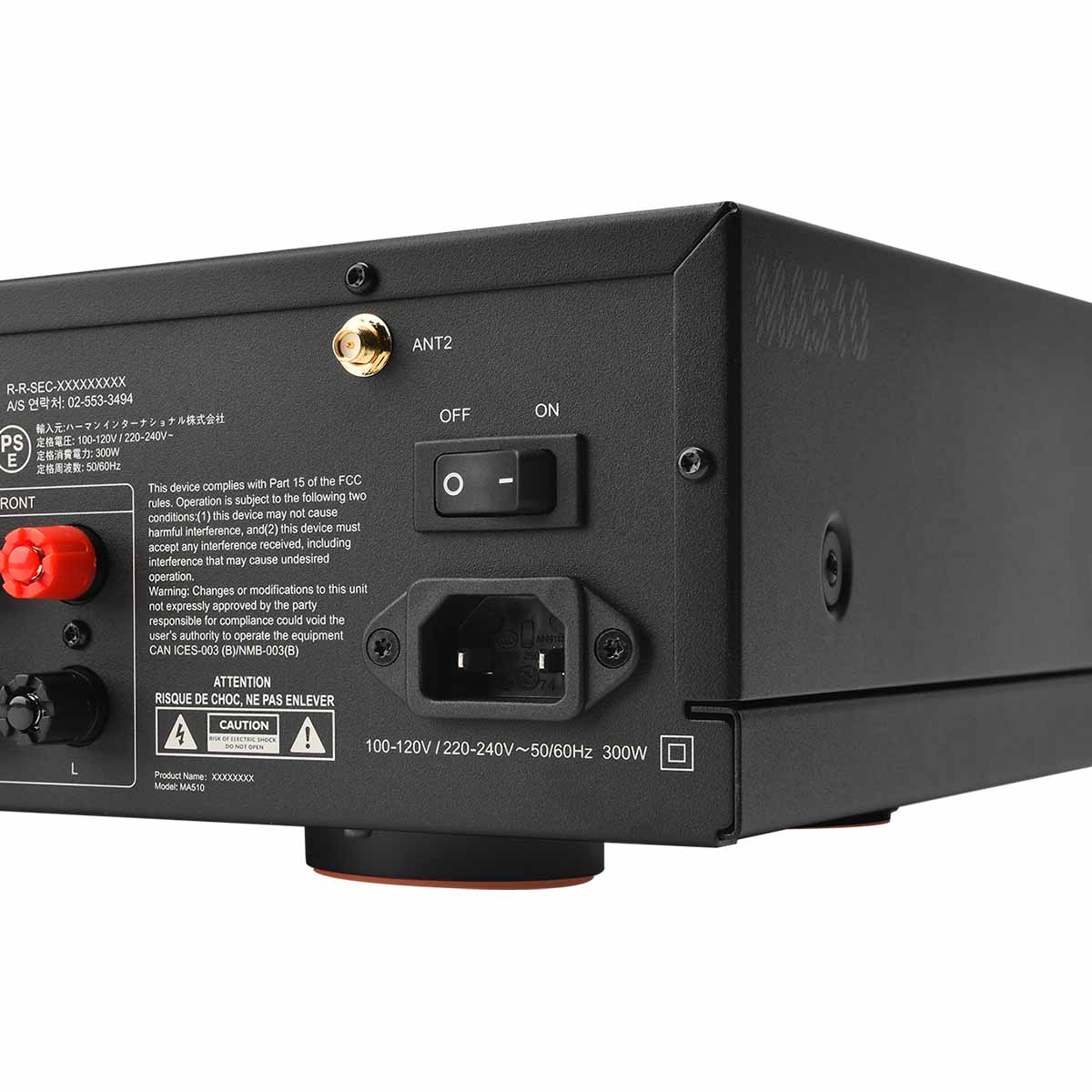

Mains voltage 110 – 240V, 50–60Hz
Max. power consumption 300W
Standby power consumption <0.5W
