Item #SA4-D-US-LA

JBL DSi 2.0 SA4-D

4-Channel Home Theater Power Amplifier
Item #SA4-D-US-LA

JBL DSi 2.0 SA4-D

4-Channel Home Theater Power Amplifier
$2,500.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

The DSi 2.0 amplifier family, JBL’s first line of dedicated cinema amplifiers, builds on Crown DSi Digital Screen Array amplifier technology and best-in-class DSP from Crown’s flagship CDi DriveCore Series to deliver potent, efficient amplification and top-notch processing for JBL’s entire range of cinema loudspeakers. Cinema managers and integrators looking to maximize their power investment and future-proof their systems can count on JBL DSi 2.0 Series to deliver robust, reliable performance in an ultra-efficient package.

The DSi 2.0 amplifier family, JBL’s first line of dedicated cinema amplifiers, builds on Crown DSI Digital Screen Array amplifier technology, integrating best-in-class DSP from Crown’s flagship CDi DriveCore series to deliver potent, cost-effective amplification for JBL’s entire range of cinema loudspeakers. Choose from three power configurations, available in analog and analog-plus-digital “D” versions featuring Dante/AES67 connectivity.

Deploy systems faster and easier while streamlining hardware needs: DSi 2.0 amplifiers are designed to meet power requirements of JBL cinema speakers, for a single JBL cinema solution. D-models interface with Dolby Atmos directly, without the need for additional processing hardware. JBL Cinema Speaker presets simplify configuration, optimize playback audio and protect against equipment damage. All DSi 2.0 amps feature SNMP connectivity for networked audio distribution, immersive installations and direct interfacing with third-party theater-management and cinema-control systems.

Models supply 4 channels of amplification with bridgeable outputs in a single 2RU footprint, and can power up to four JBL surround speakers with a single amp channel in high-power-density 2Ω mode. All DSi 2.0 series amps incorporate best-in-class, 32-bit/96kHz floating-point DSP and Crown DriveCore technology, which replaces hundreds of internal components with a single processing chip for superior power density, stability and audio fidelity.

Cinema managers and integrators looking to maximize their power investment and future-proof their systems can count on the JBL DSi 2.0 series to deliver robust, reliable amplification in an efficient, cost-effective package.

Details & Specs

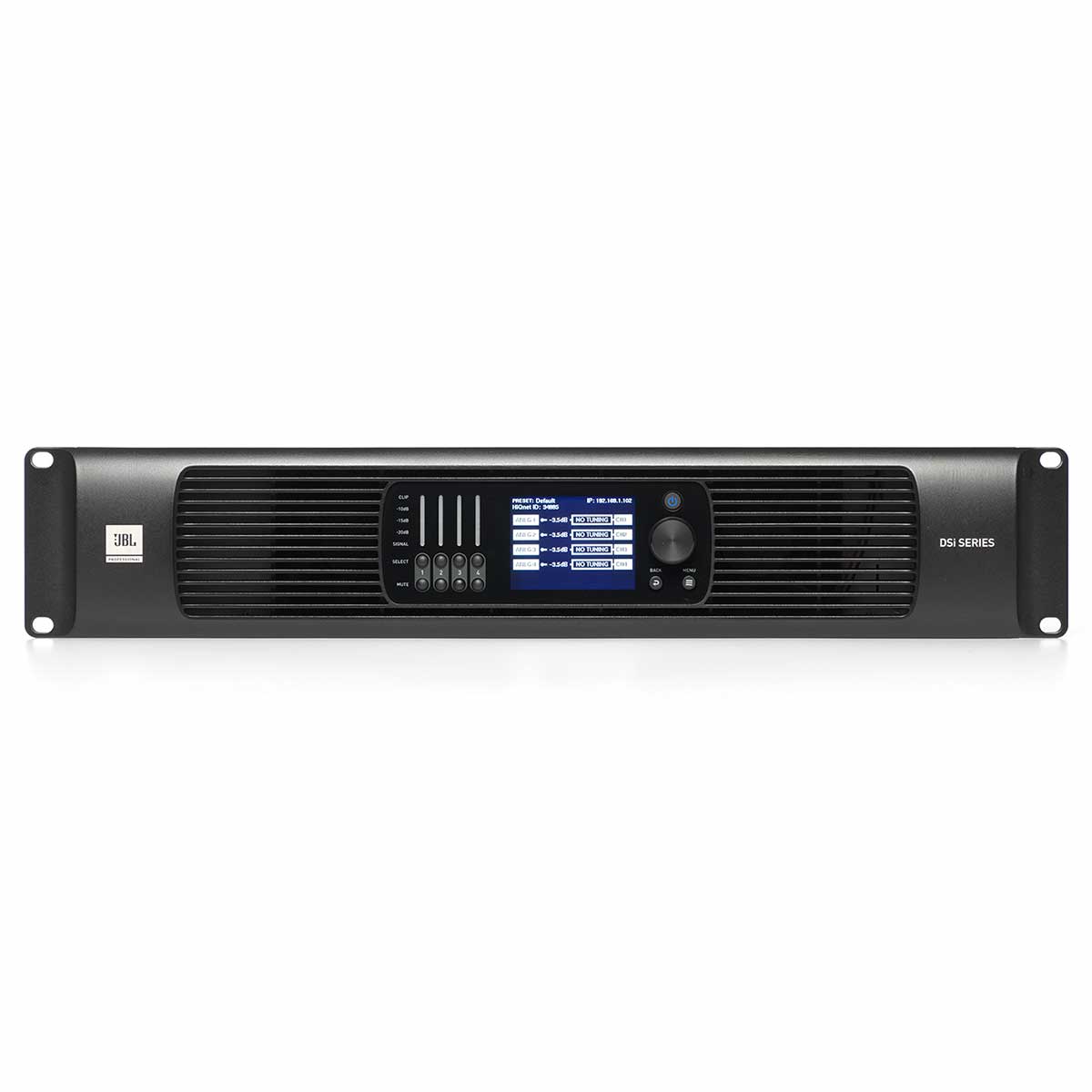

User Interface

  • Front-panel Interface - Mute and Configuration With Encoder
  • Front-panel Display - LCD Display and Signal LED's (Input/output)
  • Channels - 4

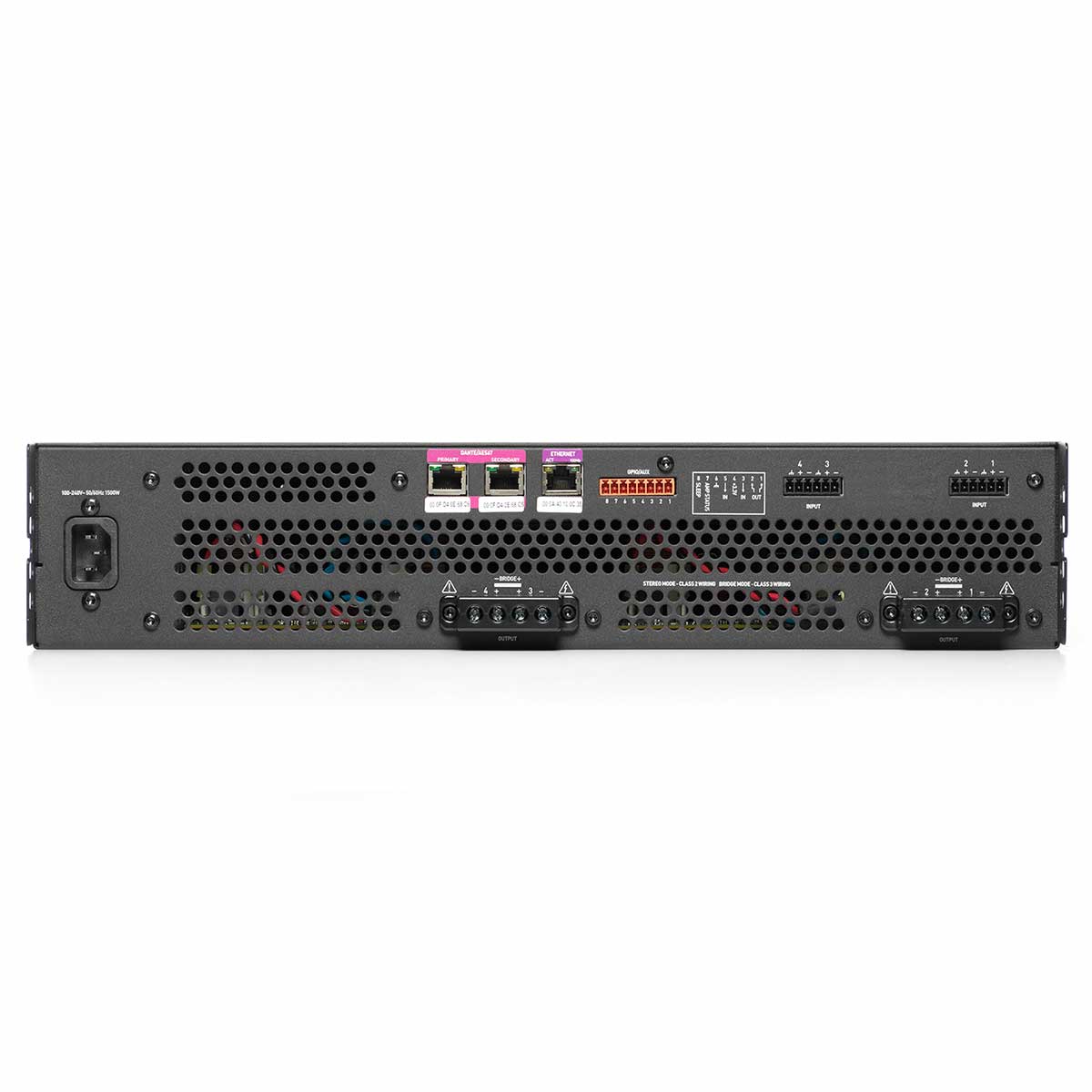

Connectors

  • Analog Audio Input - Block Connector
  • Digital Audio Input (Dante/aes67) - 2x Rj-45
  • Speaker Output - Barrier Terminal Block, Accommodates 10awg Wire
  • Network/monitoring/control - Rj-45
  • Gpio/aux - 2in/2out Block Connector
  • Power - Standard IEC

Power (1khz, 20ms Burst, 2 Channels Driven, 0.5% THD Max)

  • Rated Power (8Ω) - 350w X 4
  • Rated Power (4Ω) - 700w X 4
  • Rated Power (2Ω) - 1,050w X 4
  • Rated Power (8Ω Bridged) - 1,300w X 2
  • Rated Power (4Ω Bridged) - 2,200w X 2

Performance

  • Digital Signal Processing - 96khz, 32-bit Floating Point
  • Voltage Gain (at 4,10,16dBu Sensitivity; 4/8Ω) - 32.5/26.5/20.5dB
  • Frequency Response (4Ω, 20hz – 20khz) - ±0.5dB
  • Total Harmonic Distortion (at Full Rated Power, From 20hz – 20khz) - 0.35%
  • Analog Input Signal to Noise Ratio (Ref. Rated Power, ‘A’-WTD.) - >106dB
  • Analog Input Signal to Noise Ratio (Ref. Rated Power, 20hz – 20khz) - >100dB
  • Intermodulation Distortion (60hz and 7khz at 4 -1, From - 30dB to Full Rated Power) - ≤0.35%
  • Damping Factor (20hz to 100hz) - >1000
  • Crosstalk (Below Rated Power, 20hz – 1khz) - >80dB
  • Common Mode Rejection (20hz – 1khz, Typical) - >70dB
  • DC Output Offset (With Inputs Shorted) - ±10mv
  • Input Impedance (Nominally Balanced, Nominally Unbalanced) - 70 KΩ Balanced, 35 KΩ Unblanced
  • Maximum Input Level (Low Amp Gain Mode) - +21dBu
  • Load Impedance Stereo/dual Mode - 2Ω –16Ω
  • Load Impedance Bridge Mono - 4Ω – 16Ω
  • Maximum Fan Noise (Ref. dB Spl @ 1m) - 51dBa
  • Electrical Power Supply - 100 – 220v ±10%, 50/60hz
  • Sleep - Gpio/aux Connector

Physical

  • Dimensions (D X W X H) - 17.21 X 18.98 X 3.46 in (437.2 X 482 X 88 mm)
  • Net Weight - 23.15 lb (10.5 kg)
