Item #DMP-A6

EverSolo DMP-A6 Network Streamer & DAC

Network Streamer & DAC
Item #DMP-A6

EverSolo DMP-A6 Network Streamer & DAC

Network Streamer & DAC
Was $899.00 $769.00
Save $130
Out of Stock
Contact Us

Overview

Following years of development, DMP-A6 marks the beginning of a new streaming era. An all-in-one player with quad-core processor tailored for lossless music playback. Everything here has been designed for superior audio performance. Dual high-resolution DACs. Fully balanced circuitry. Rich digital inputs and outputs.  It all comes packaged in a stunning aluminum design with large 6-inch touchscreen, convenient app control, local music management, and access to a wide variety of streaming platforms.

Watch our Comparison

Streaming Services at Your Fingertips

The DMP-A6 directly incorporates popular music services like Tidal, Qobuz, Amazon Music, and more. You can also take advantage of numerous high-quality online music services through their third-party apps, including Spotify and Apple Music. Navigate it all directly via DMP-A6's touchscreen, or use the EverSolo app.

Network Streaming

Roon Ready, Spotify Connect, Tidal Connect, DLNA, and AirPlay are supported by the DMP-A6. High quality music can be streamed from devices on your network, make it simpler to enjoy online music services and easier to playback your favourite songs at home.

Local Library Playback

Eversolo Music Library provides excellent local music playback performance, while also greatly improving your file management. It can add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE files, and more; songs are automatically displayed in categories based on genres, albums, artists and sample rates. This makes it easier than ever to searching through your music library.

Multiple Network Protocols

DMP-A6 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same network. Even high data rate DSD512 master files can be played without stuttering, provided your network is stable and up to the task.

Add Your Own Hard Drive

A M.2 NVME 3.0 2280 SSD (solid state drive) slot is built in to allow installation of a solid state drive. The maximum storage is 4TB. Faster, stable, and without noise, this adds flexibility should you be interested in high-quality local music playback.

Media Management System

The DMP-A6 offers a robust media management system that enables editing operations for local hard drive and network storage devices. Copying, pasting, cutting, and deleting are all possible without having to use your computer. The USB OT port can be configured as USB OTG, making it easy to connect a PC to DMP-A6 via USB cable for local file copying and management. Internal SMB sharing functionality allows you to share media files from a connected mobile device or internal SSD to other media playback devices on your network. This effectively means the DMP-A6 itself can be used as a network storage drive, in addition to being used for playback.

CD Playback and Ripping

The DMP-A6 allows for CD playback by connecting a compatible external USB optical disc drive. The built-in CD Rip app adopts a data validation mechanism and error correction function to save audio data from CD lossless. The application's algorithm intelligently matches CD album and song names (officially released CDs are required), lossless rips tracks, and automatically generates album and artist info.

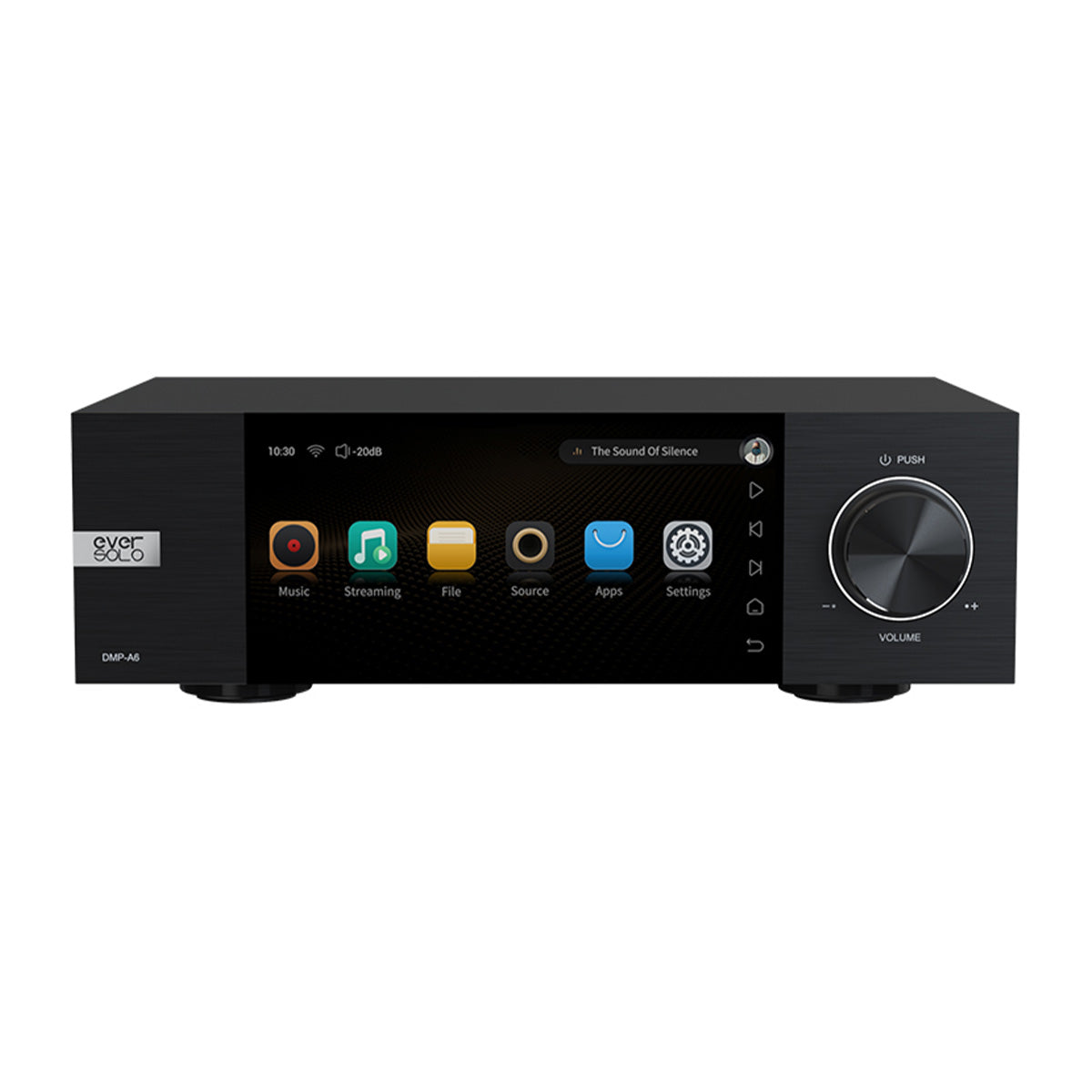

Large LCD Touchscreen

Equipped with a large 6" LCD high-definition touchscreen, DMP-A6 is a powerful streaming but remains intuitive to use. Thanks to an exquisite user interface, as well as on-screen touch controls for system settings, local music library management, and third-party app access, it's as smooth and easy to use as your smartphone.

Smart Control App

Android, iPhone, and iPad control apps have been developed for the DMP-A6. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. If you're far away from the DMP-A6, there's no worry — just use the app and its mirroring function to control the streamer using the interface you already know.

VU Meters

Don't just hear your music — enjoy it visually, too. Multiple dynamic VU meter designs elevate DMP-A6 even higher, a feature and design polish not often seen at this price point. A wonderful interactive experience is offered with real-time full-format music display, including DSD.

Aluminum Chassis

DMP-A6 is made of aviation-grade CNC aluminum, creating a stable chassis structure. Enjoy a combination of modern visual appearance and classic build quality, with brushed panels and a frosted anodized body.

EOS Audio Engine

EOS (Eversolo Original Sampling-Rate Audio Engine) has been developed by Eversolo engineers, with the goal of outputting the original sampling rate on the Android operating system. DMP-A6's playback completely bypasses typical Android SC restrictions, enabling the direct audio output of third-party apps such as Apple Music.

Master Recording Playback and Decoding

Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel, and MQA.

MQA Full Decoding

DMP-A6 includes MQA (Master Quality Authenticated) technology through USB, Optical, and Coaxial, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Dual ES 9038Q2M DACs

DMP-A6 features two ES9038Q2M DAC chips, with one DAC chip per channel for independent stereo D/A conversion. The design avoids interference between channels effectively, reduces the noise floor to 6dB, and improves signal-to-noise ratio and dynamic range. DSD512, PCM768 @32bit, and MQA hardware decoding are supported.

Ideal Implementation

Just as — if not more — important as the DAC chips is how they've been implemented in a system. Thanks to EverSolo development engineers' rich experience in analog circuit design, DMP-A6 has a professional-grade calibration and circuit design. The total harmonic distortion ratio which has been measured is -120dB (0.00009%), while signal-to-noise ratio and dynamic range are 128dB. These indicators are a core foundation for sound quality.

Abundant Digital Filters

Choose from a variety of digital filter modes in the DAC setting menu to meet different demands and preferences. DMP-A6 features 7 PCM filters and 4 DSD filters from which to select.

Qualcomm QCC5125 Bluetooth Module

In addition to wired inputs, DMP-A6 also features a built-in Bluetooth audio receiver in the form of the Qualcomm QCC5125 module. Thanks to support for the full suite of SBC, AAC, aptX, aptX LL, aptX HD, and LDAC codecs, you'll know you're getting the best possible Bluetooth quality when you pair your mobile phone, tablet, or computer.

XMOS 316 Processor for Format Support

The 3rd generation XMOS 316 has faster speed and better USB bandwidth than previous processors, which ensures lossless transmission for high-definition audio data. The USB output supports DSD512 Native, PCM768@32bit, and MQA full decoding. Optical and Coaxial outputs support DSD64 (DoP) and PCM192@24Bit.

Handpicked Audio Components

The sound quality of DMP-A6 analog outputs is monitoring-grade. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA, and more. The goal is to provide more authentic and pure sound performance.

Low Ripple Power Module

A low-noise regulated power supply module and dedicated ultra low-noise audio filter capacitor are tailored for DMP-A6. It ensures cleaner power, less background noise, and clear musical detail.

Fully Balanced Preamp Circuit

DMP-A6's analog circuit adopts a fully balanced design, from the DAC chip all the way to the XLR and RCA stereo outputs. It provides better noise immunity, improves channel separation by eliminating shared loops, and ensures stronger and more consistent signal quality.

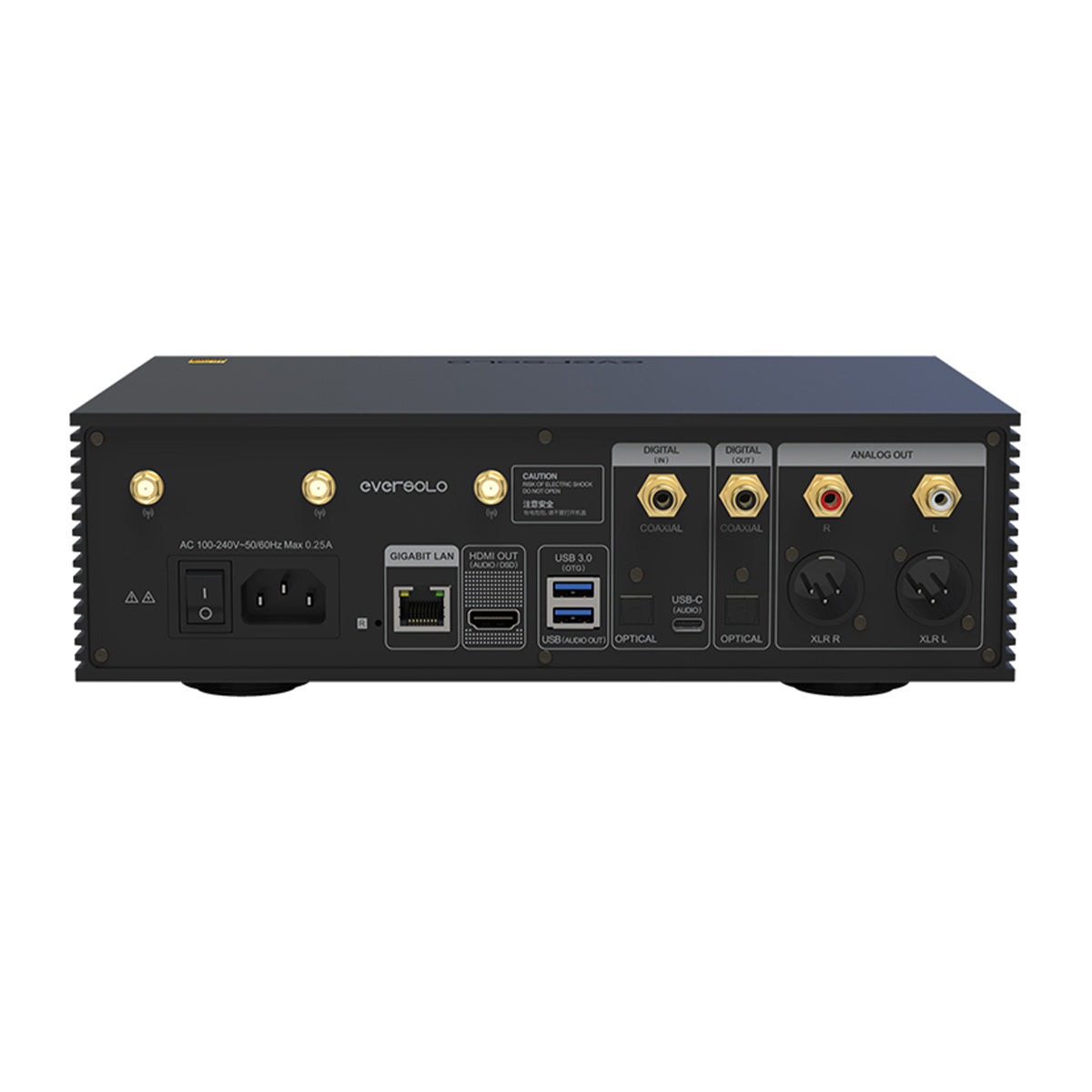

Wide Variety of Inputs and Outputs

XLR and RCA outputs are present to connect with your active speakers or amplifier. Just like that, you're streaming. Thanks to its suite of inputs, DMP-A6 can also be used to connect with various high-end audio devices. As a decoder, DMP-A6 can connect with audio source equipment like computers and mobile devices through Coaxial, Optical, USB Type-C inputs, and wirelessly via Bluetooth.

Details & Specs

Model EVERSOLO DMP-A6
Display 6" LCD touchscreen
Internal Memory 4GDDR4 +32GeMMC
DAC ES 9038Q2M*2
Audio Processor XMOS XU316
Op-amp Chip OPA1642
Power Supply Low noise, high quality switching power supplies
SSD M.2 NVME 3.0 2280 protocol, up to 4TB
USB-A Port USB3.0*2
Ethernet RJ-45(10/100/1000Mbps)
WiFi WiFi 2.4G+5G dual band
Playback and DAC Decoding Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Music Service Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP
Streaming Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect etc.
Bluetooth Audio Input Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-C Audio Input USB Audio Compatibility: Windows (7, 10), Mac, Android, IOS, Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical/Coaxial Audio Input Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
Optical/Coaxial Audio Output Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
HDMI Audio Output DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1)
Control Method Mobile App,Touch screen control
XLR Output Audio Characteristics
  • Output level: 5.2V
  • Frequency response: 20Hz~20KHz(±0. 15dB)
  • Dynamic range: > 128dB
  • SNR: >128dB
  • THD+N: <0.00009%(-120dB) @A-wt
  • Crosstalk: >-125dB
RCA Output Audio Characteristics
  • Output level: 2.6V
  • Frequency response: 20Hz~20KHz (±0. 2dB)
  • Dynamic range: > 124dB
  • SNR: >124dB
  • THD+N: <0.00011%(-119dB)@A-WT
  • Crosstalk: >-124dB
PSU AC 110~240V 50/60Hz
Rated Power 13W
Dimensions L 187mm* W 270mm* H 90mm
Packing List Power cable*1, USB cable*1,Screwdriver*1,user manual*1
