Item #iws12-6-ENC

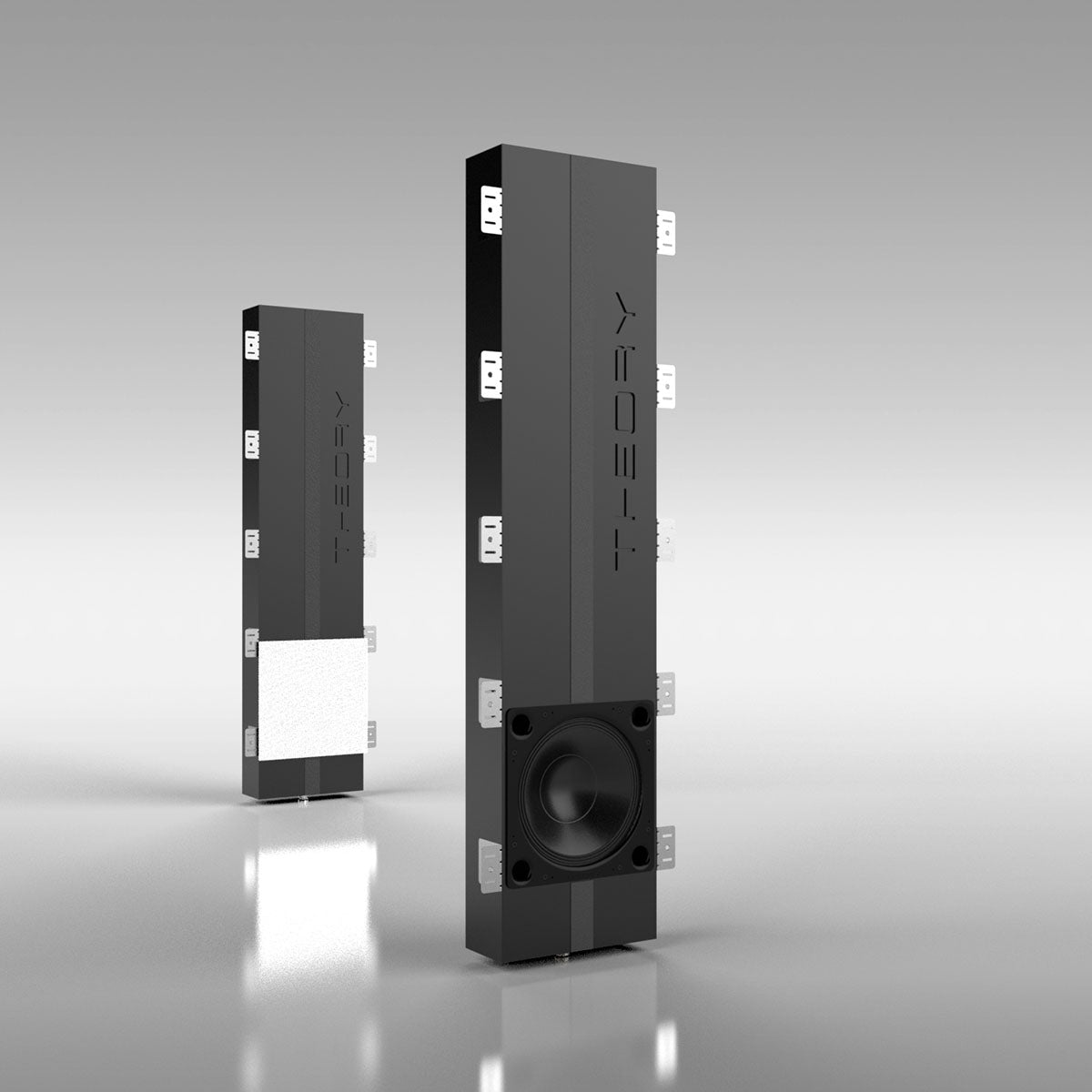

Enclosure for Theory iws12-6 Architectural Subwoofer

Item #iws12-6-ENC

Enclosure for Theory iws12-6 Architectural Subwoofer

$1,150.00
Call To Purchase

Overview

Truly Astonishing

The iws12-6 install subwoofer employs a high-power, 1400W, 4” voice-coil long-throw driver in a 5.5” deep enclosure that can be installed flush into 2” x 6” stud walls, or surface mounted with only 5.5” of total depth. The bass it provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.

iws12-6 enclosure and iws12 speaker assembly are sold separately.

Details & Specs

Model Theory iws12-6
Description 12” High-Output In-Wall Subwoofer for 2" x 6" walls
Operation Passive, Requires 1 Theory ALC Amp channel
DSP Requirements Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers 1 x 12" Theory 1400W 4” Voice Coil Long Throw Woofer
Enclosure Multi Plywood
Terminals Twin Spring-Loaded Push Terminals
Mounting Points Low-Profile Steel Angle Mounting Brackets (10x)
Outdoor Capability Indoor Use Only
Bandwidth 24Hz -125Hz, - 3dB
18Hz, -10dB
Sensitivity 95.5 dB
Power Handling 700W (AES)
1400W (Continual)
2800W (Peak)
Max Output 124 dB SPL / 1m (AES)
127dB SPL / 1m (Continuous)
Nominal Impedance 8-ohms
Colors Black, White Perforated Metal Grille Optional
Dimensions Enclosure Only: 60" H x 14" W x 5.5" D (1524mm H x 356mm W x 140mm D)
Enclosure with Speaker Assembly: 60" H x 14" W x 5.9" D (1524mm H x 356mm W x 150mm D)
Total Installed Depth 5.5" (140mm)
Max. Wall Thickness N/A
Net Weight 49 lbs. (22.2 kg)
Included Accessories Low Profile Angle Mount Brackets for 16" O.C. Studs
Optional Accessories White Paintable Perforated Low-Profile Grille
