Denon PMA-1700NE

Integrated Amplifier with MM & MC Phono Equalizer Amp

Denon PMA-1700NE

Integrated Amplifier with MM & MC Phono Equalizer Amp
$2,099.00
Select Color Options:

Contact Us

Overview

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

The High Notes

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.

High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

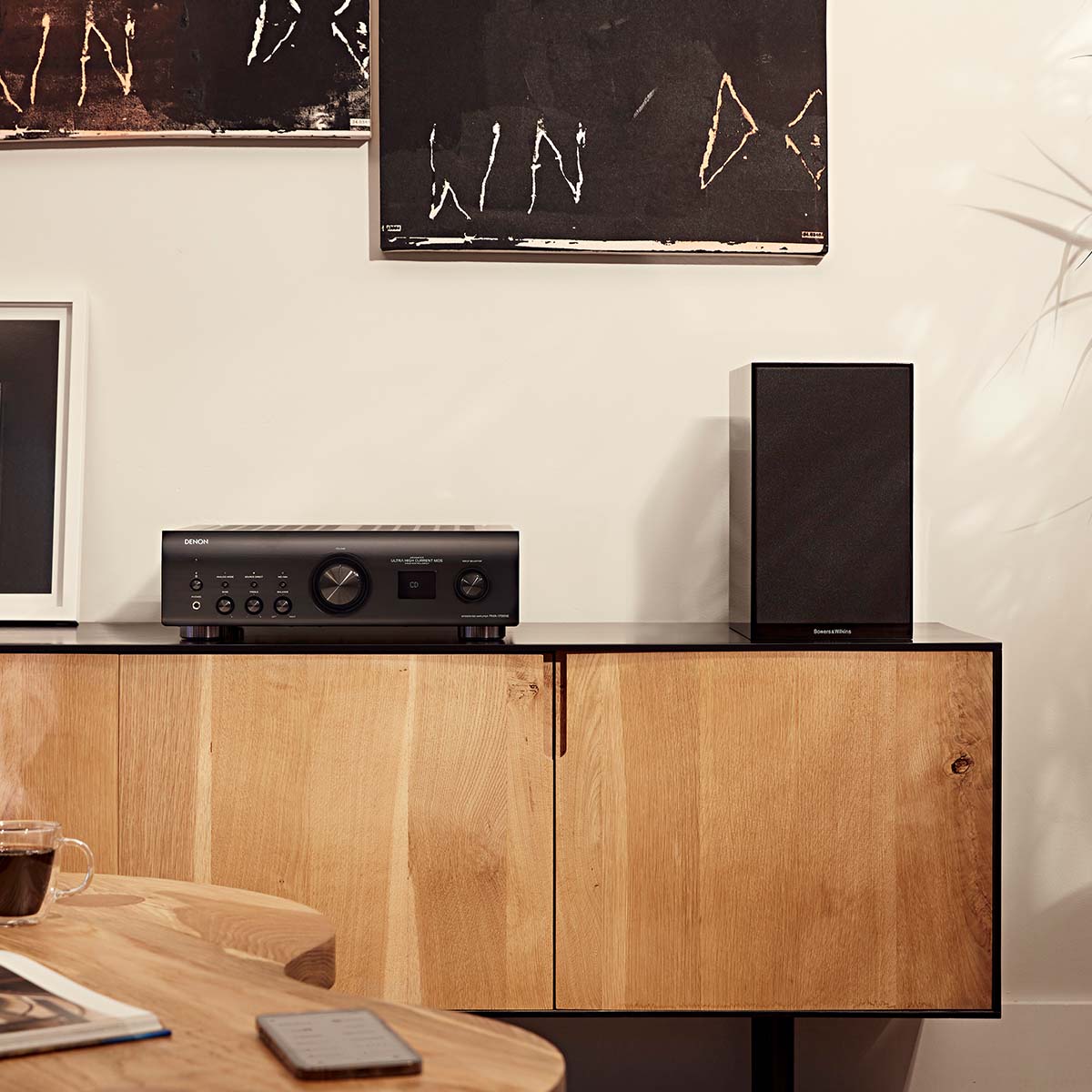

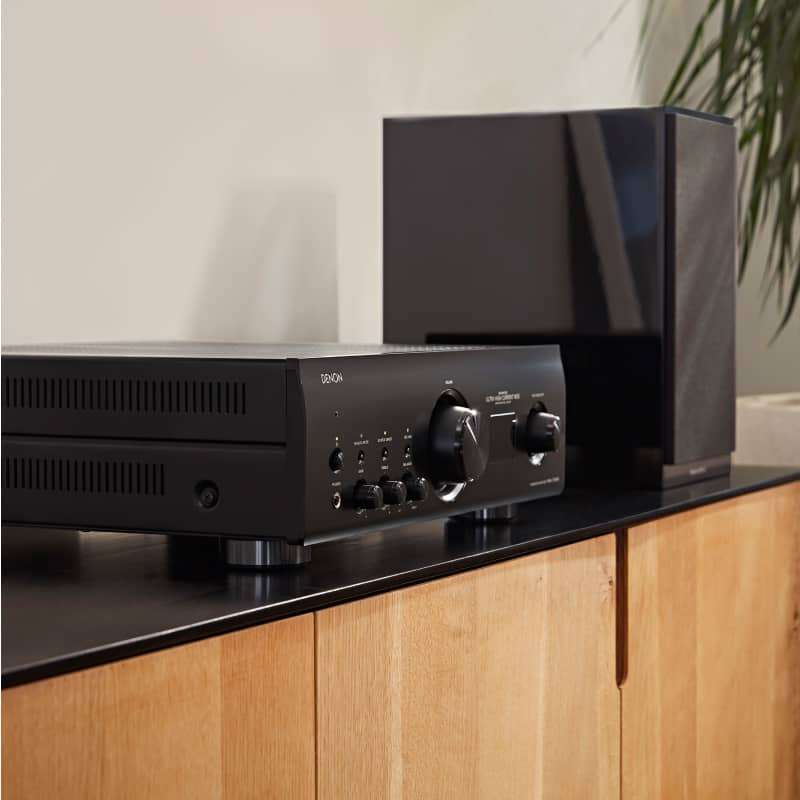

Denon PMA-1700NE sitting on media cabinet beside speakers

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

Internals of Denon PMA-1700NE

USB-DAC

To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

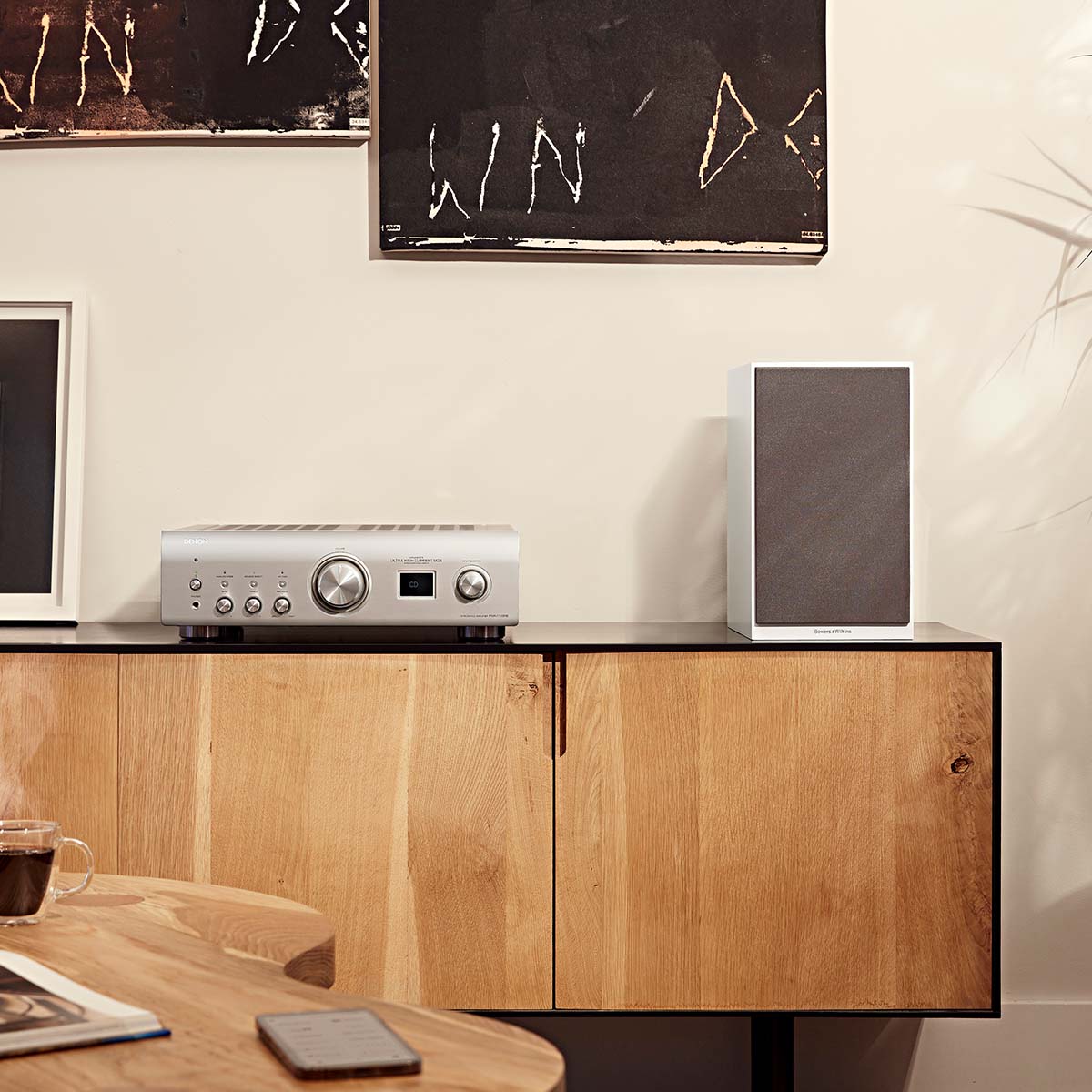

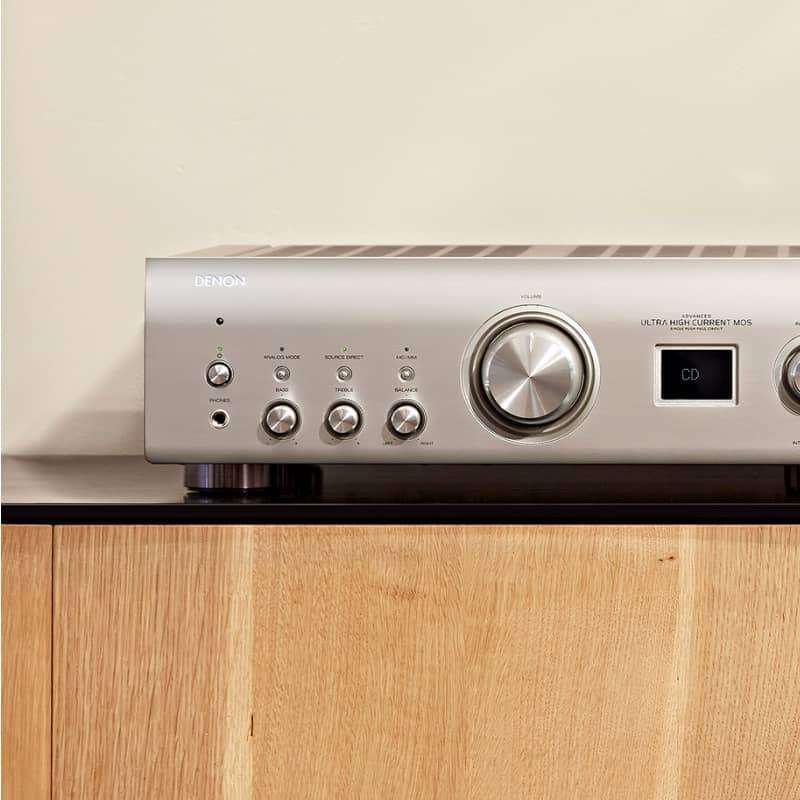

Silver Denon PMA-1700NE sitting on media cabinet

High-precision electrical controls

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.

Black Denon PMA-1700NE sitting on table showing knobs

Details & Specs

General

Unit (W x D x H) 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H) 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight 17.6kg
38.8lb
Packaging Dimensions (W x D x H) 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight 20.4kg
45lb
Carton Color 2 Color
Cushion / Packing 4 Separate / Sheet
Panel Color SP / BK
Front (Center) Panel Aluminum
Side cover SECC with 4 straight emboss
Side screw SP: Nickel / BK: Black
Rear Panel SECC t1.0mm
Chassis Material SECC t1.2mm
Bottom Layer Single
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ Phono Sel knobs Aluminum
Power button Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
Foot ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier Extruded Aluminum

Specifications

Rated Output Power 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off
0.4W TV autoplay on

Connectivity

Phono Input Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
AC Inlet Yes
Wi-Fi No
HEOS No
USB B (USB DAC) 1 (Rear)
Module or Main Device New XMOS
(XU210-256-TQ128 )
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certificaton Yes(Roon Tested)
TBD

Control

Remote Controller System Remote
(w/CD Player Control)
Unit control (Button) Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob) 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language Alphabetical
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes
TV Auto-play (Opt/Coax digital-in detecter) Yes
Last Function Memory Yes
Auto Standby Mode Yes
Owner's Manual Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller Yes
Battery Yes (AAA x2)
Power Cord Yes
