Item #300571-01-00-005

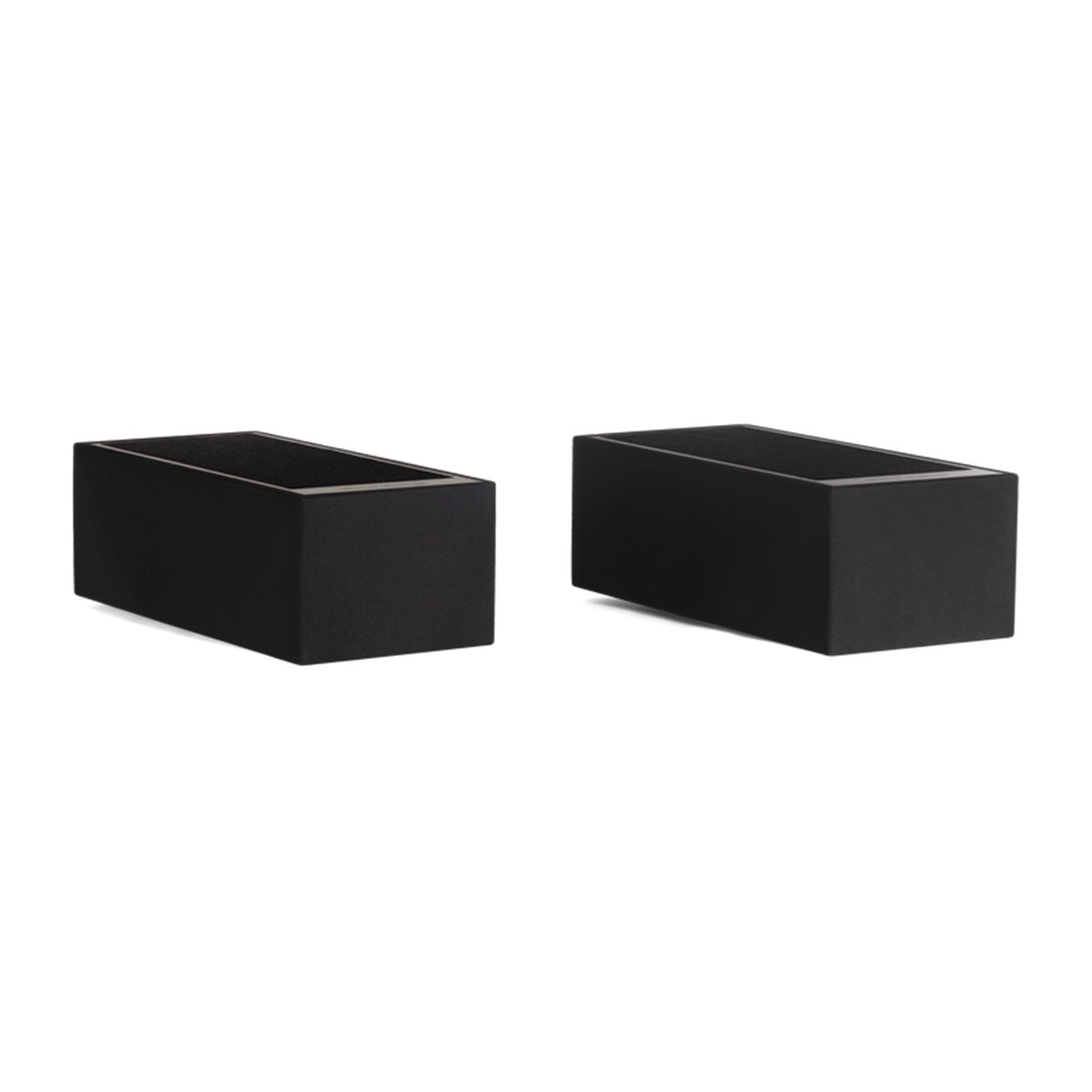

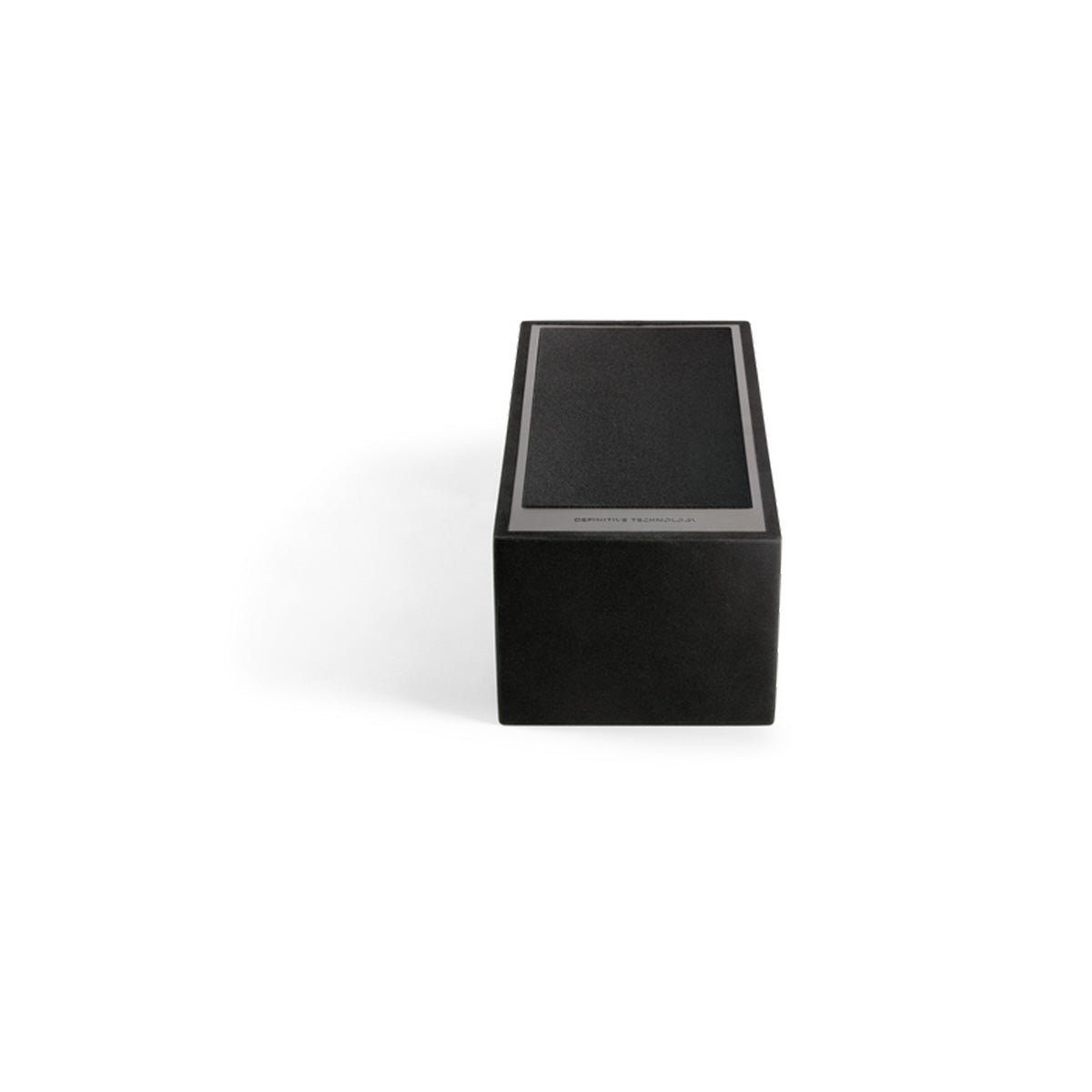

Definitive Technology Dymension DM90

Integrated Height Module for Dymension DM80 and DM70 - Pair
Item #300571-01-00-005

Definitive Technology Dymension DM90

Integrated Height Module for Dymension DM80 and DM70 - Pair
$799.00
Starting at $45/mo or 0% APR with . Check your purchasing power
In Stock: Free 2-Day Shipping

Overview

The Dymension DM90 height module attaches to Dymension DM80 and DM70 bipolar tower speakers to provide overhead sound in immersive Dolby Atmos and DTS:X systems.

Add-On Modules for Dolby Atmos and DTS:X 3D overhead audio

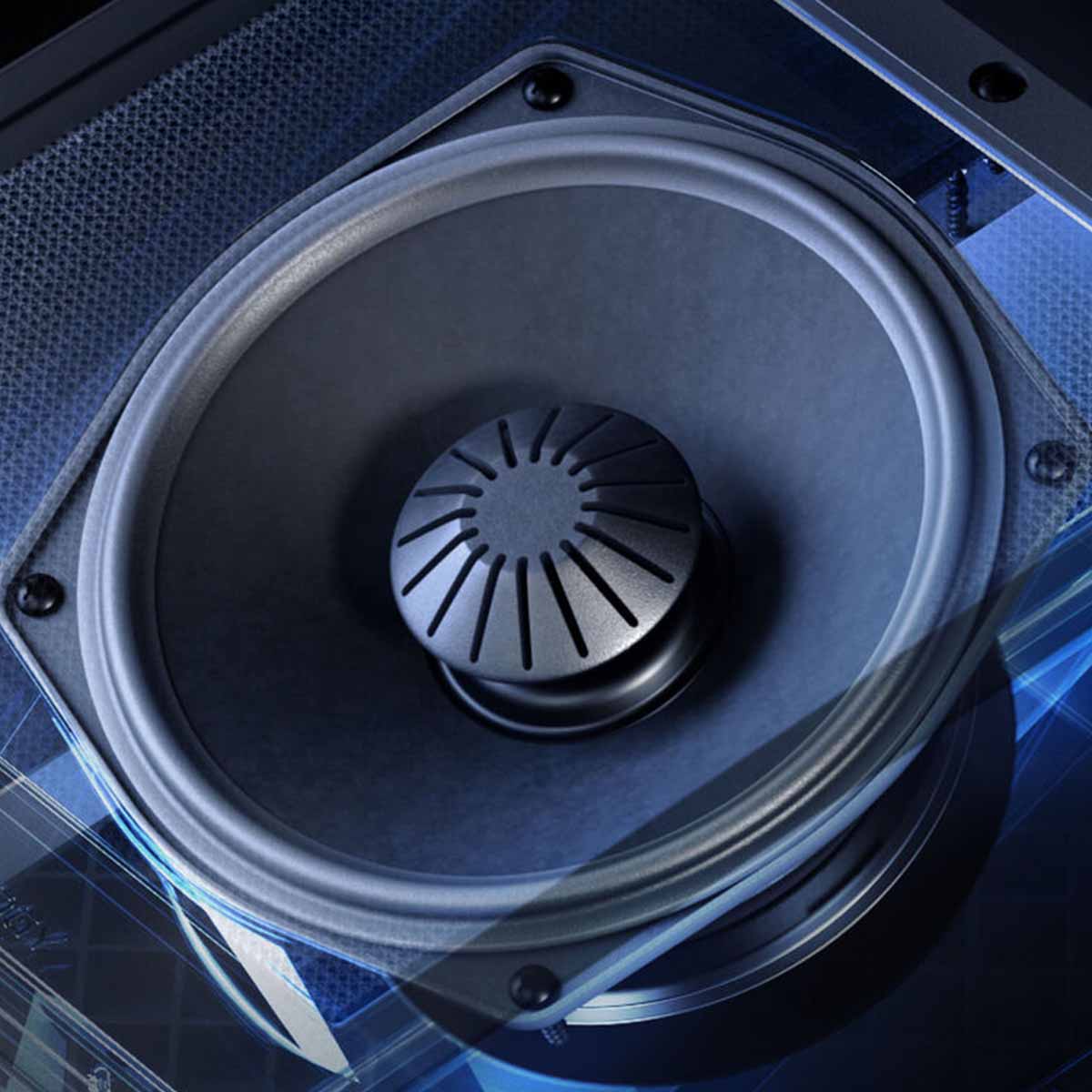

An upward-firing mid/bass woofer and tweeter project sound toward the ceiling where it reflects back to you, providing a sense of height that translates to a more immersive listening experience.

Plug-and-Play Integration for easy, quick, secure installation

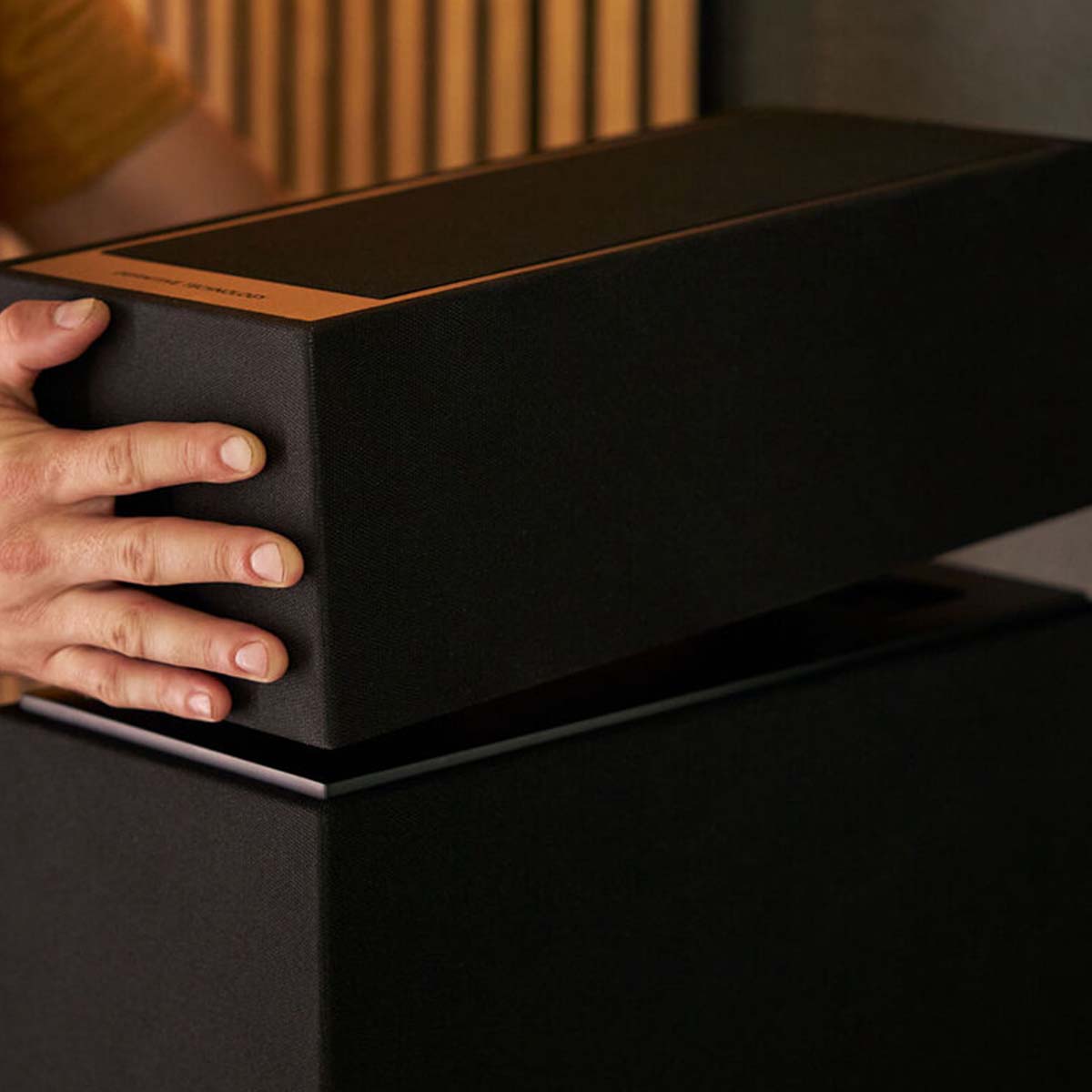

An easy snap-in connection system makes electrical connections and secures the height module to the top of Dymension DM80 or DM70 bipolar tower speakers.

BDSS System and Linear Response Waveguide for smooth midrange and lifelike imaging

Patented Balanced Double Surround System (BDSS) technology improves the midrange and provides a uniform soundstage with seamless bass and mid integration. A Linear Response Waveguide extends and smooths off-axis dispersion for great sound everywhere in the room.

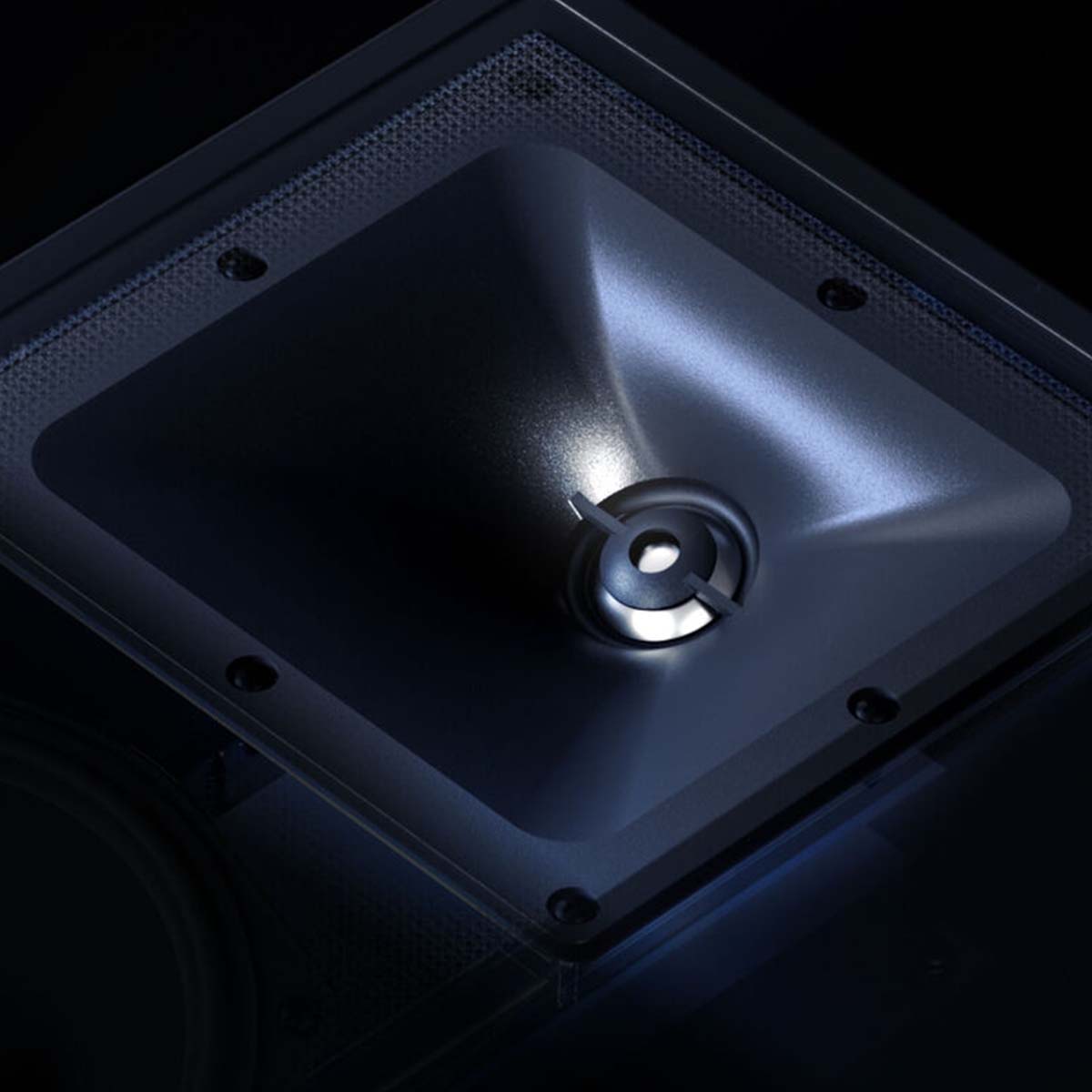

Aluminum Oxide Tweeters for crystal clear highs

New driver designs provide smooth extended response with crisp transients, exceptional definition, and pinpoint-precise imaging, for incredible clarity and lifelike realism.

The Ultimate Atmos Experience for immersive sound that pulls you inside the action

Build a system that brings movie-theater thrills home with stunning sound enveloping you from every angle, transporting you inside every scene and song.

DM90 Integrated Height Module Option for unforgettable Atmos experiences

Available separately, a DM90 Atmos-certified and DTS:X-compatible height module connects to the top of the DM70 or DM80 to extend sound above you for total sonic immersion and hyper-realistic overhead effects.

Timbre-Matched for seamless Definitive Technology sound

Consistent sound across other Definitive Technology series gives you the flexibility to mix and match Dymension and all Definitive Technology in-wall and in-ceiling speakers to design your dream home theater and whole-home system.

Details & Specs

Model Definitive Technology Dymension DM90
Dimensions (H x W x D) 6.0 x 7.3 x 15.3 in. (152 x 185 x 389 mm)
Weight 10.1 lbs (4.6 kg)
Color Black
Grille Material Acoustically transparent black cloth (not removable)
Tweeter (1) 1 in. aluminum oxide domes
Midrange/Midbass (1) 5.25 in. BDSS with Linear Response Waveguide
Frequency Response 81 Hz–30 kHz (-10dB)
130 Hz–27 kHz (-3dB)
Nominal Impedance 4Ω (8Ω compatible)
Sensitivity 90dB (2.83V/1m)
Recommended Amplifier Power Rating 25-100W
Certifications Dolby Atmos
