Item #FP29645

Bowers & Wilkins CCM 684

In-Ceiling Speakers - Pair
Item #FP29645

Bowers & Wilkins CCM 684

In-Ceiling Speakers - Pair
$800.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

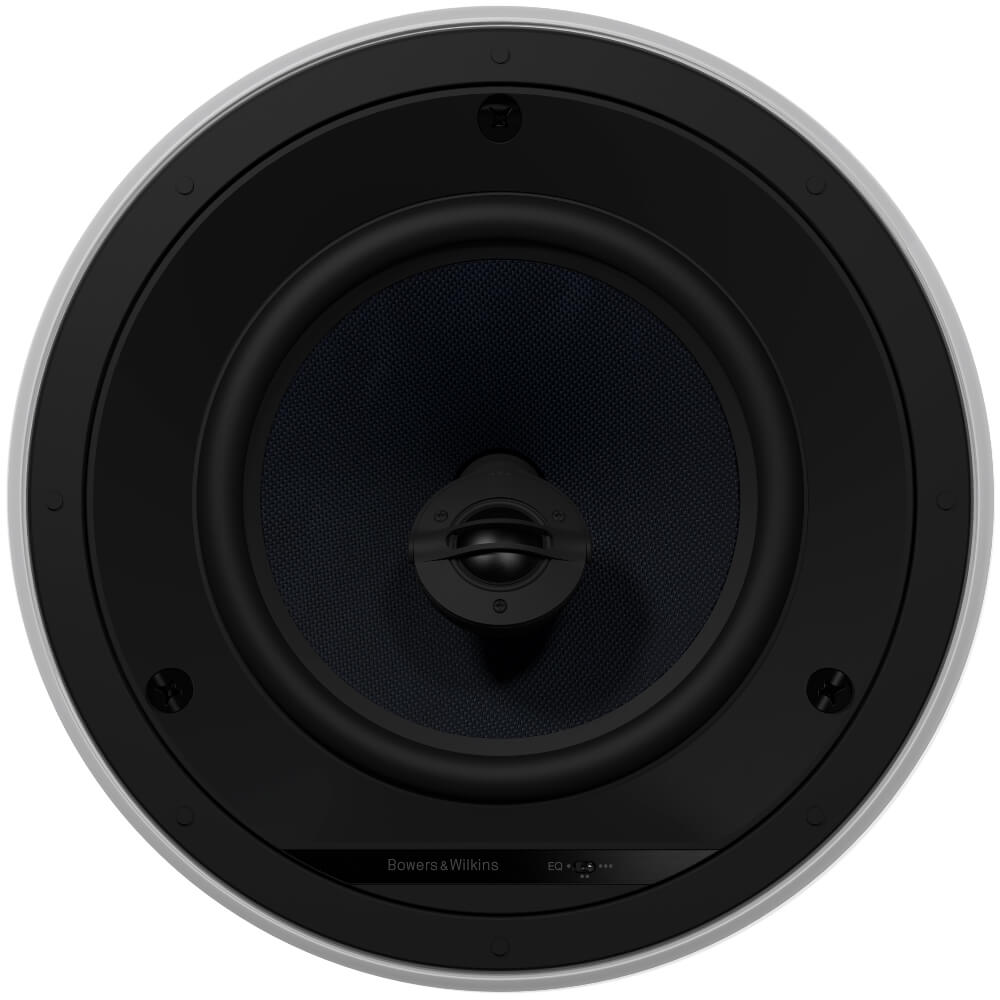

The CCM684 is a high-performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fiber cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs and a plug-and-play functionality it is quick and easy to install.

Details & Specs

Specifications:

  • Description: 2-way in-ceiling system
  • Drive Units
    • 1x ø25mm (1in) soft dome tweeter
    • 1x ø200mm (8in) black glassfibre cone bass/midrange
  • Frequency Range (-6dB): 35Hz - 35kHz
  • Recommended Amp Power: 25 - 130w
  • Sensitivity SPL (2.83V, 1m): 88dB
  • Impedance Nominal (min): 8Ω (4.5Ω)

Approximate Dimensions:

  • Frame Dimensions
    • Frame Diameter: 11.4 "
    • Depth Behind Surface: 5.2 "
  • Cut-out Dimensions
    • Cut-out diameter: 9.8 "
    • Protrusion: 0.2 "
  • Pre-mount Kit: C8
  • Back Box: 6C

Approximate Weight:

  • Shipping: 10 lbs
