Audio Advice Universal Projector Mount

Compatible with Sony, JVC, & Epson Projectors

Audio Advice Universal Projector Mount

Compatible with Sony, JVC, & Epson Projectors
From $294.65
Select Projector Model

Select Color Options:

Contact Us

Overview

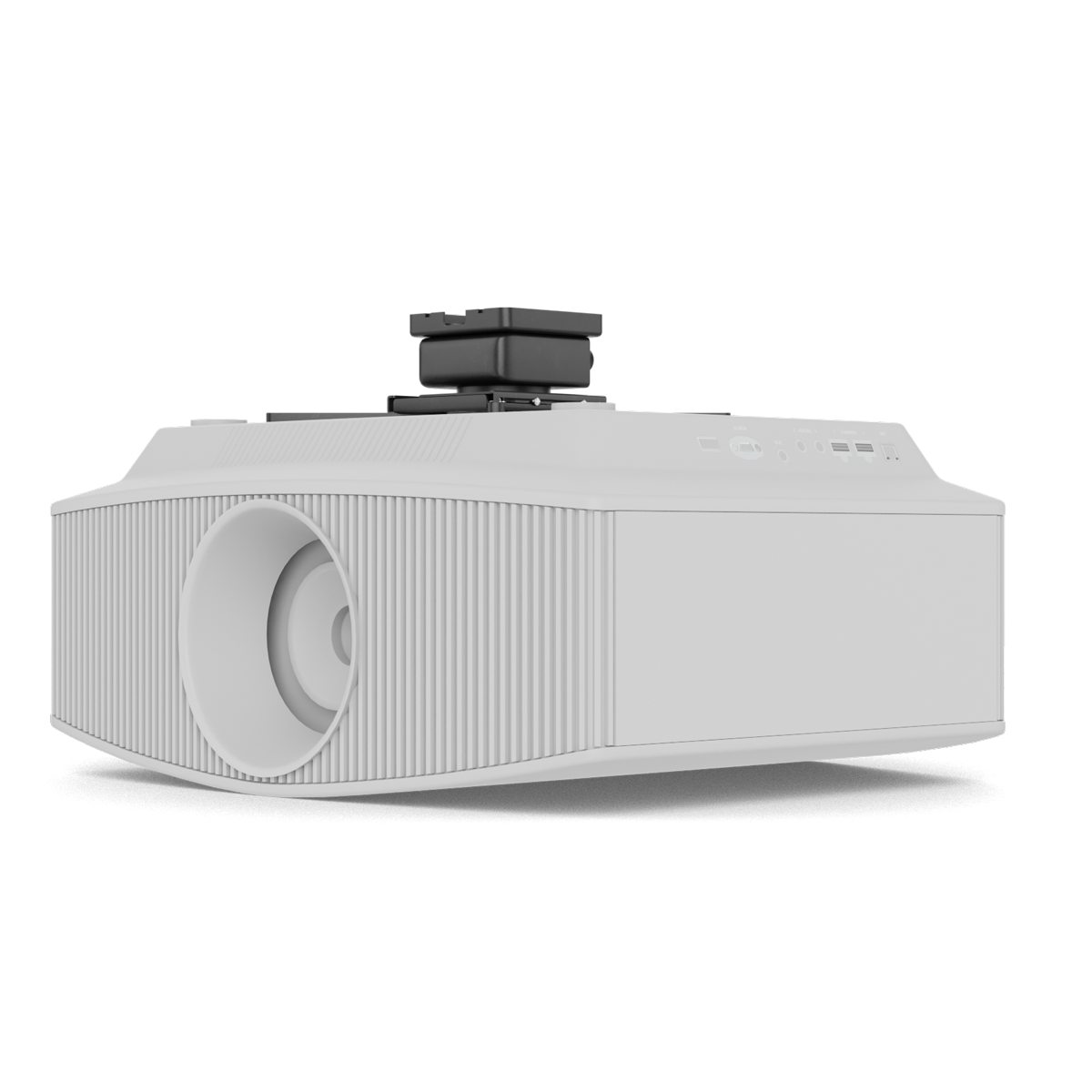

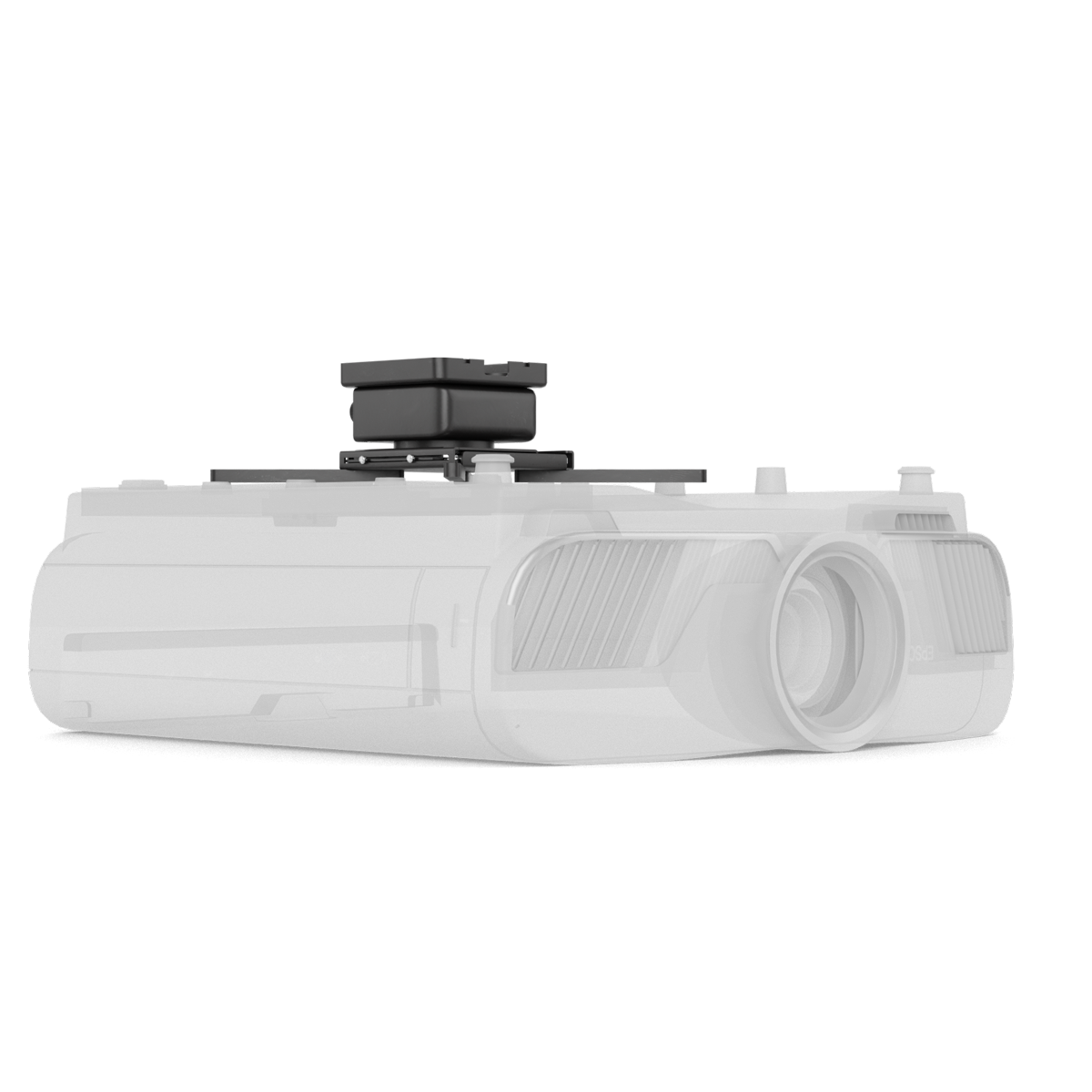

Specially designed to handle large projectors, such as models from Sony, JVC, and Epson, Audio Advice Universal Projector Mounts are equipped with longer mounting arms for maximum installation flexibility. With tool-less adjustments, getting the ideal alignment is a breeze with a simple three-piece design. Includes a plastic cover for a clean, finished look.

Tool-Less Adjustments

Getting a projector image to perfectly align with a screen is easier said than done. Thankfully this mount simplifies the process with easy-to-use vertical tilt, horizontal roll, and yaw adjustments. Just pop off the cover and use the tool-less dials to make micro-adjustments until the ideal alignment is achieved - no tightening or loosening of the screws required.

Easy To Install

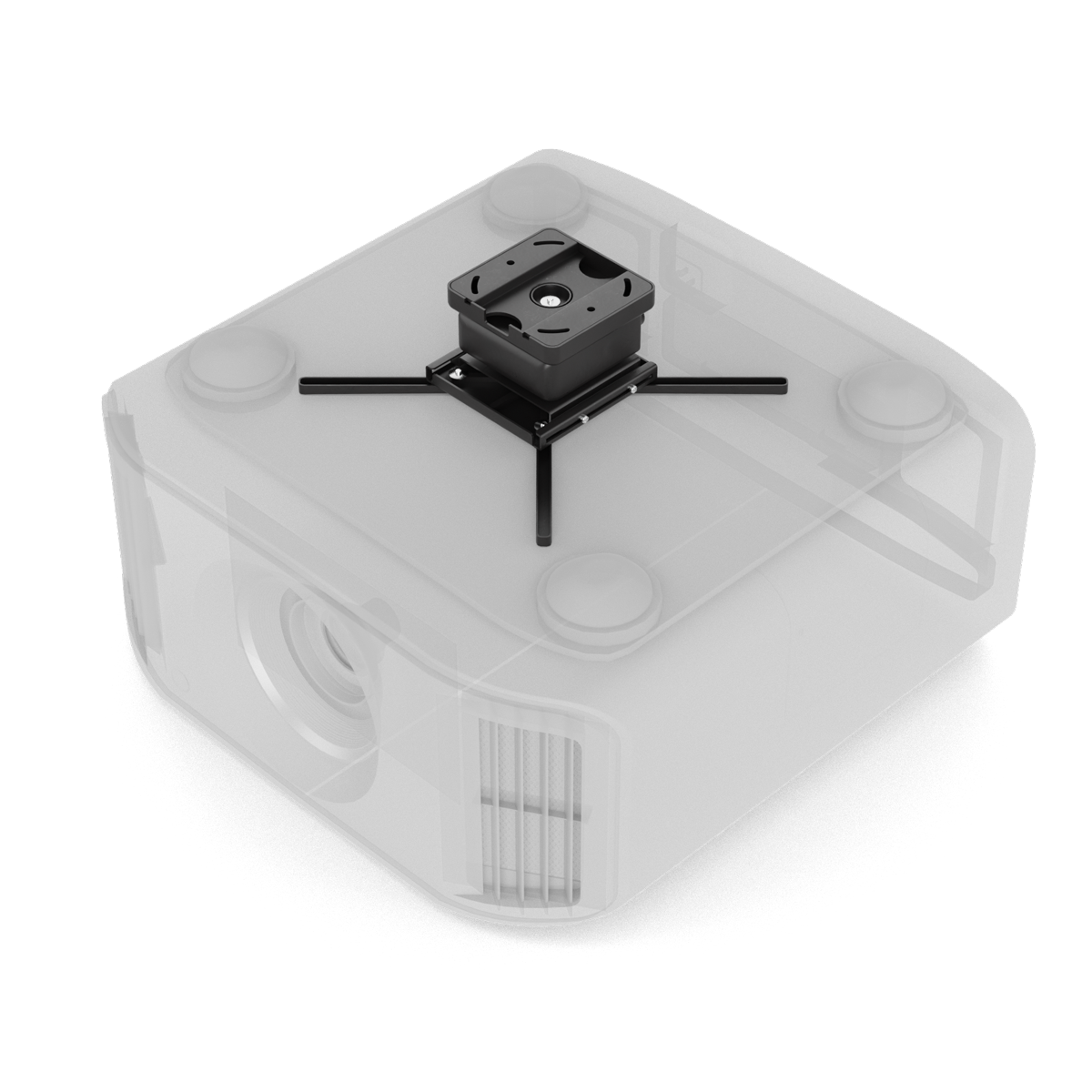

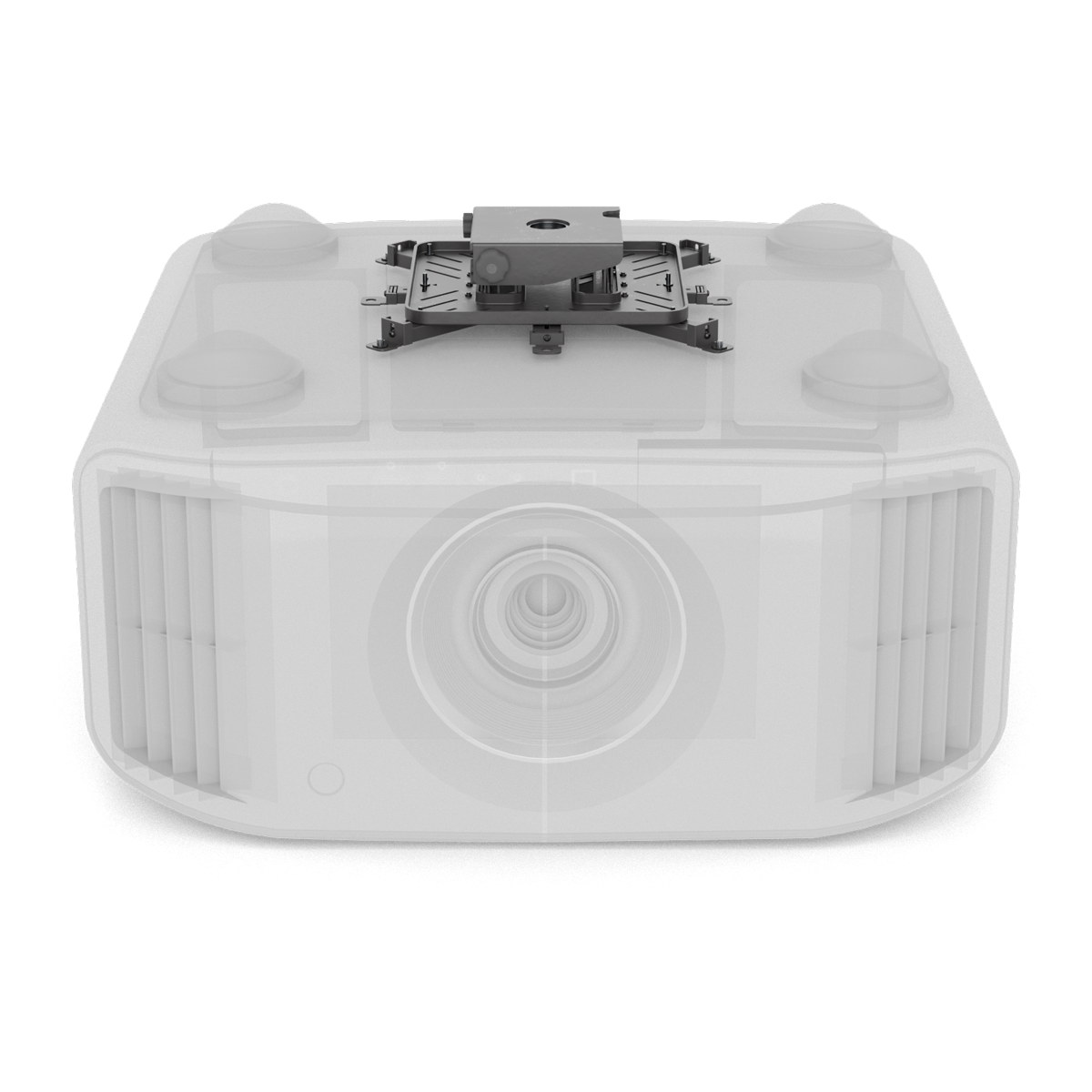

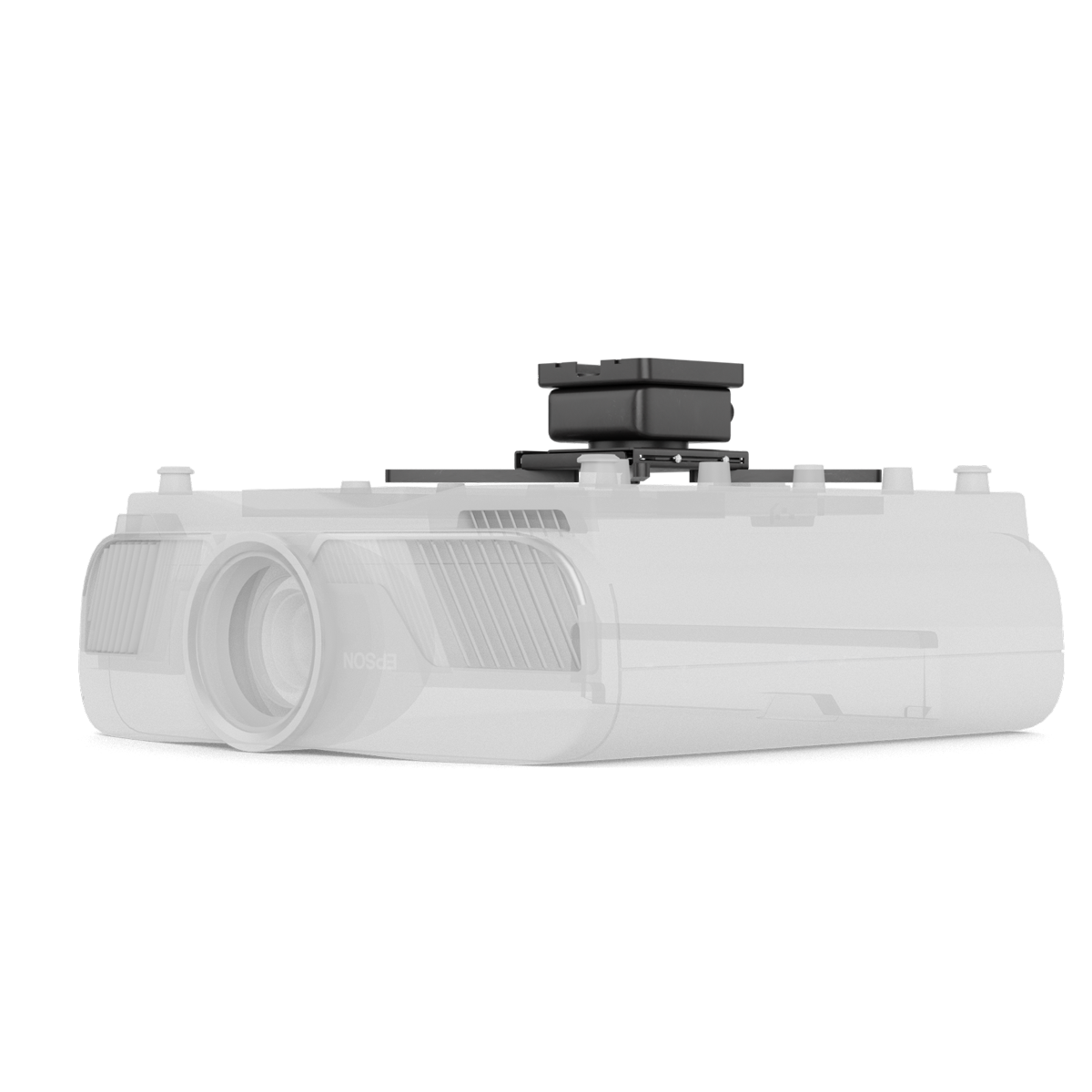

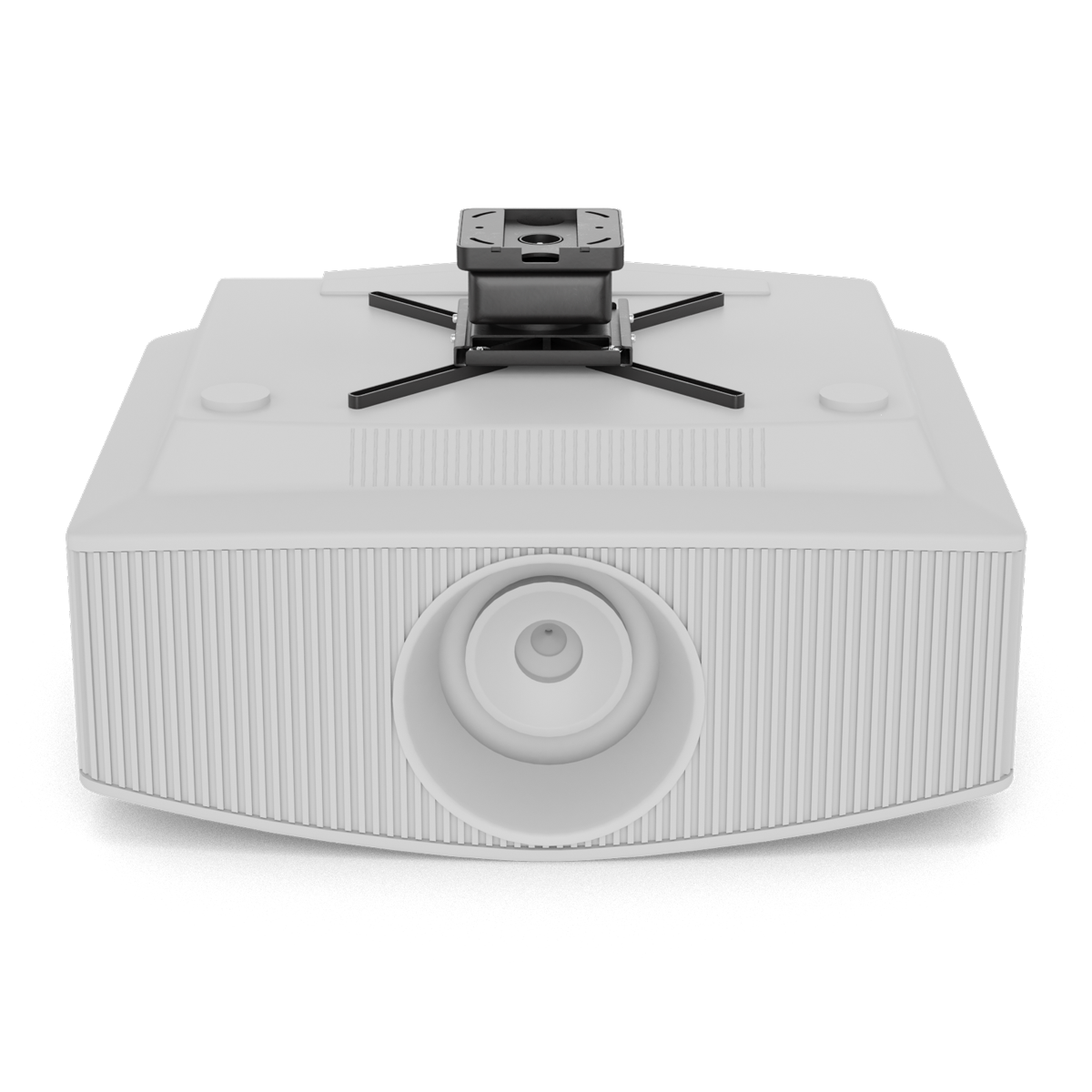

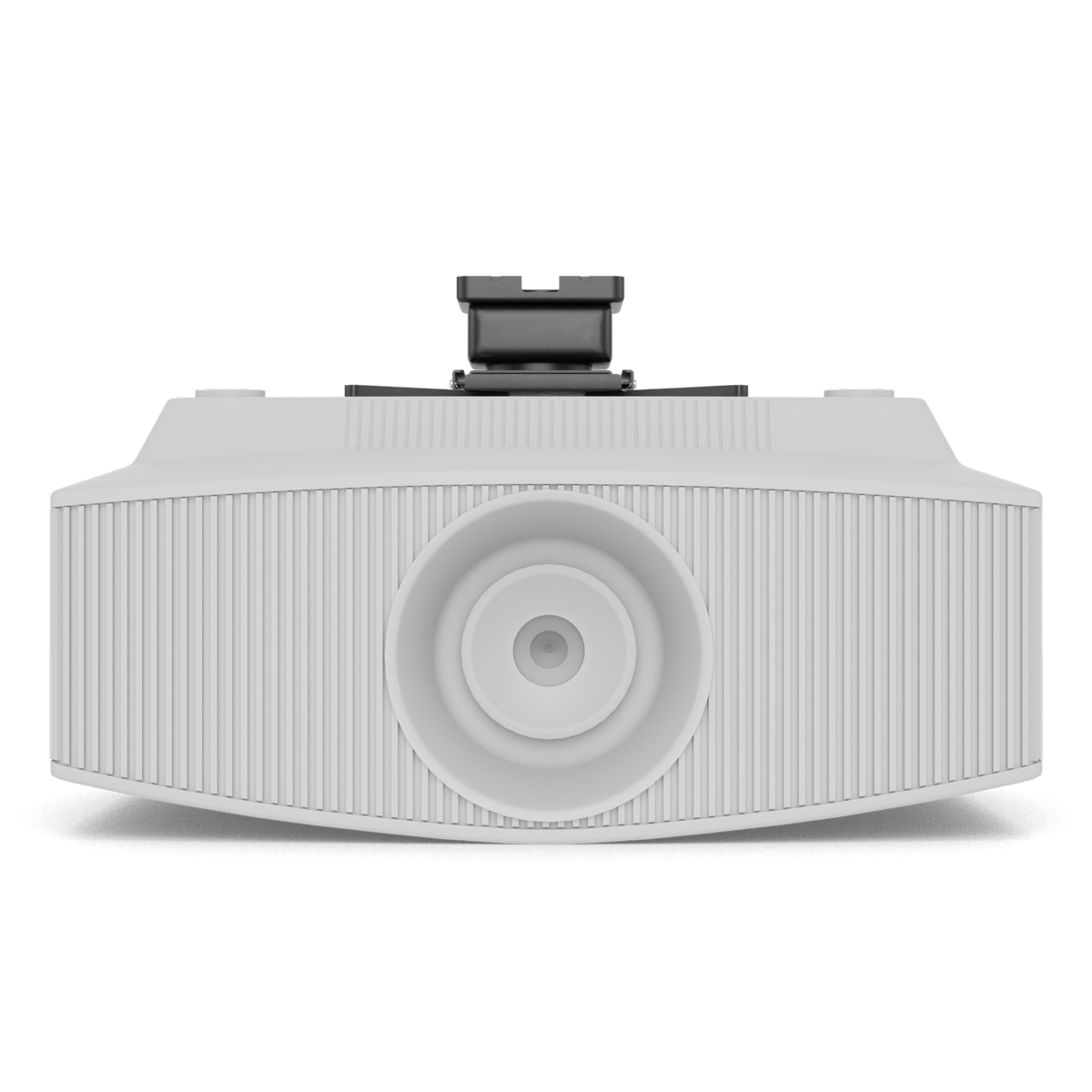

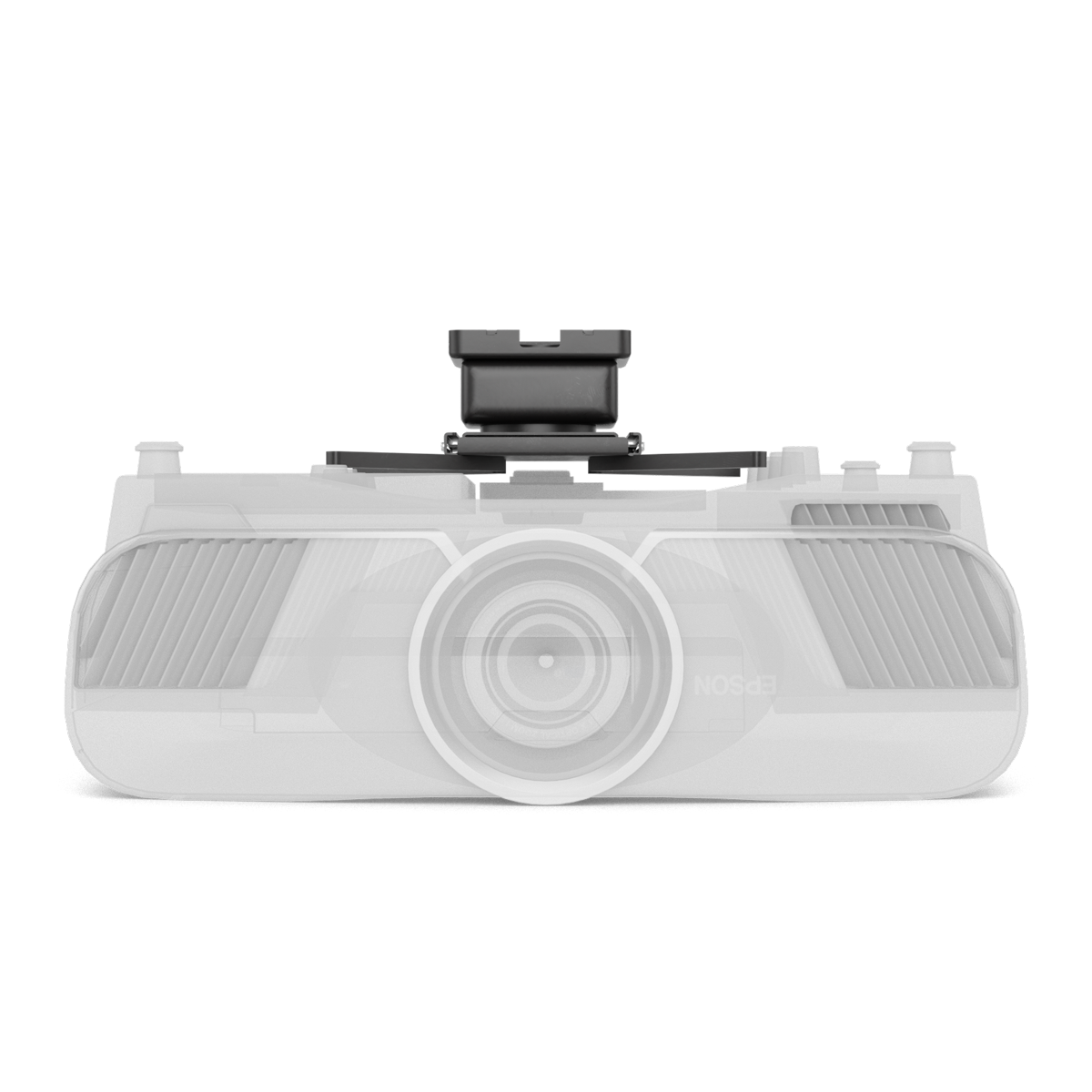

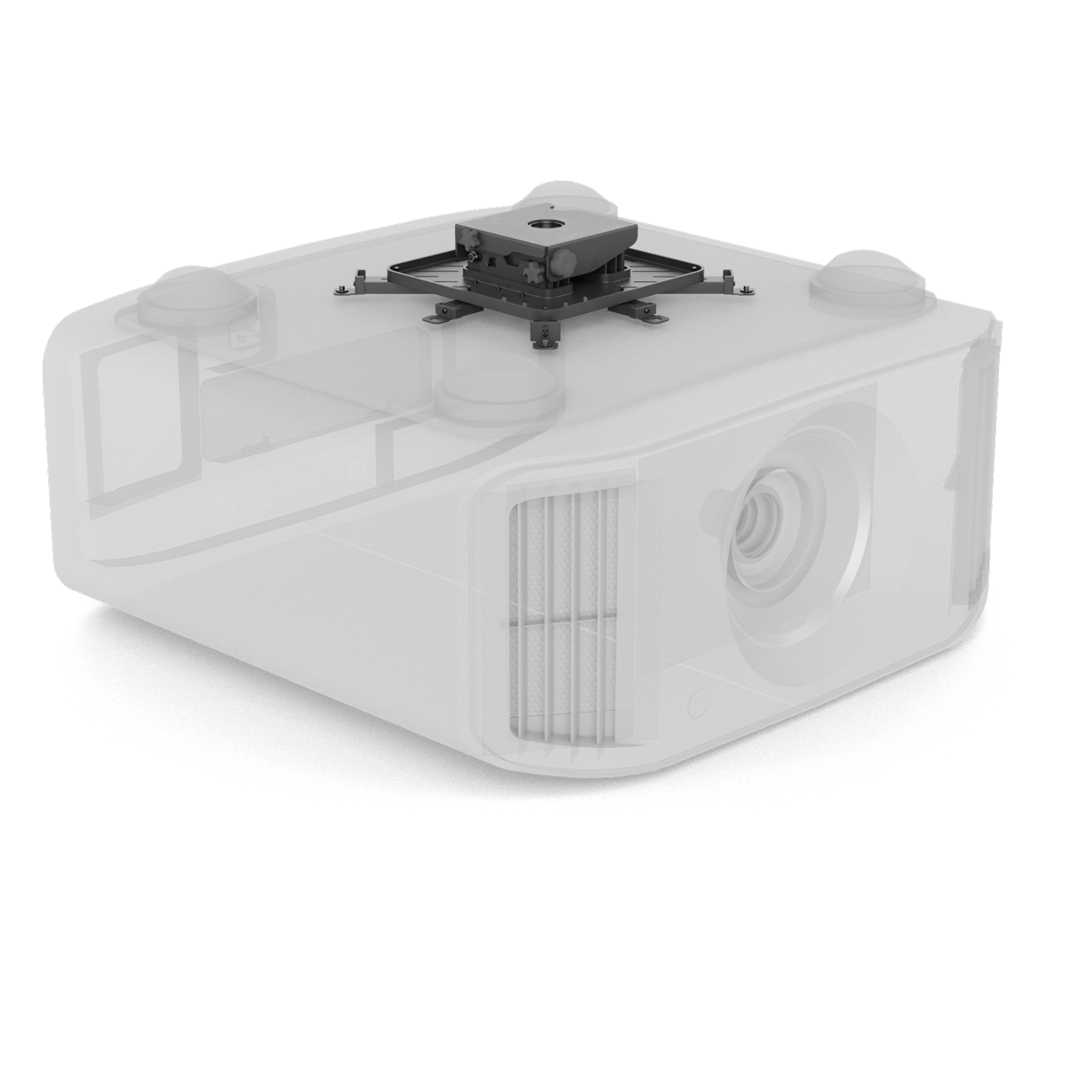

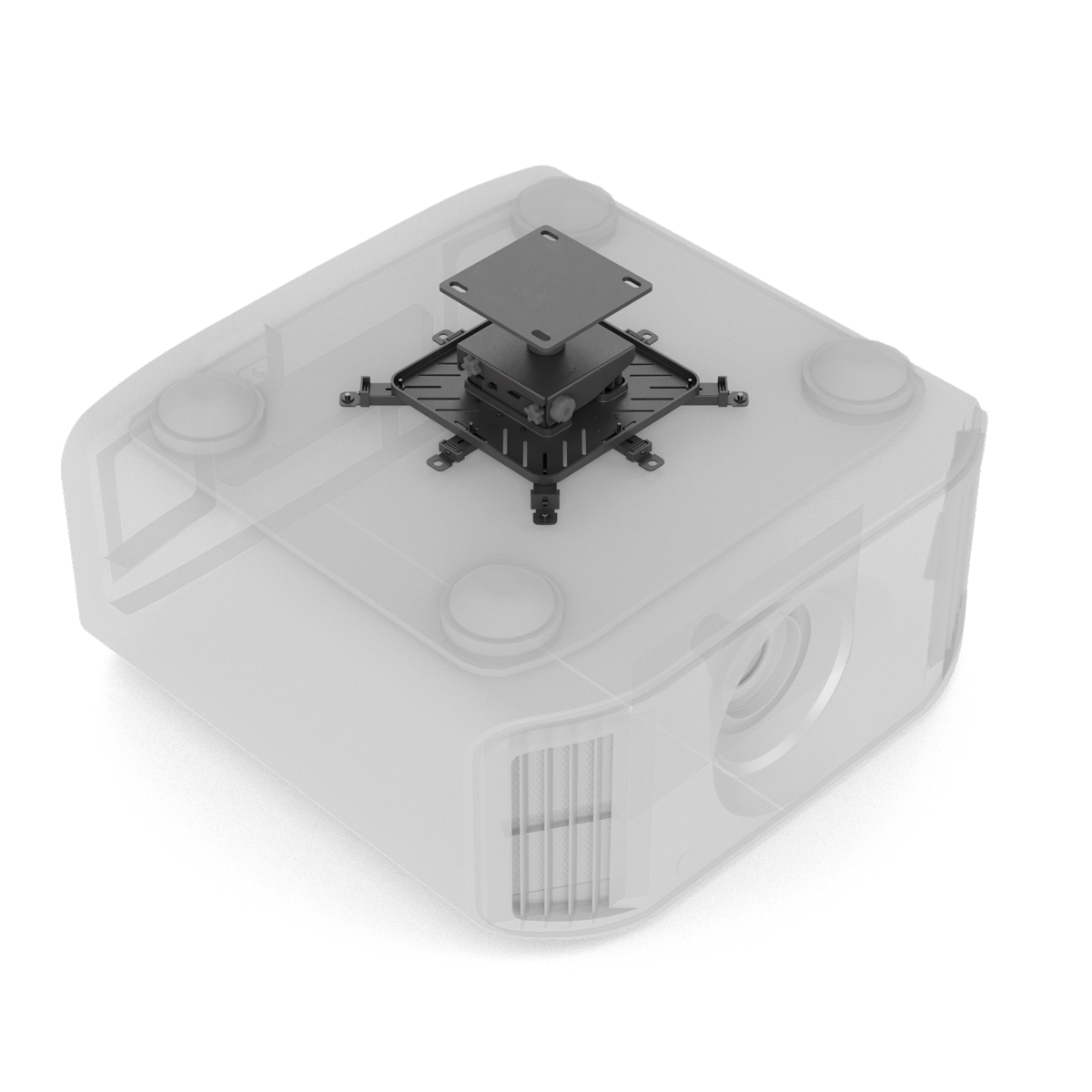

A smart three-piece design makes it easy to get this projector securely installed. The top plate attaches to the ceiling and screws into the mount assembly body, while the bottom plate (with attached projector) simply slides and locks into place.

Great Lock Down Screw System

This mount features multiple security screws for projector attachment, as well as screws on each side of the mounting base - which all help to lock things in place. Move the mount around until you get the perfect center of gravity for the projector, then tighten down the screws and you’re good to go!

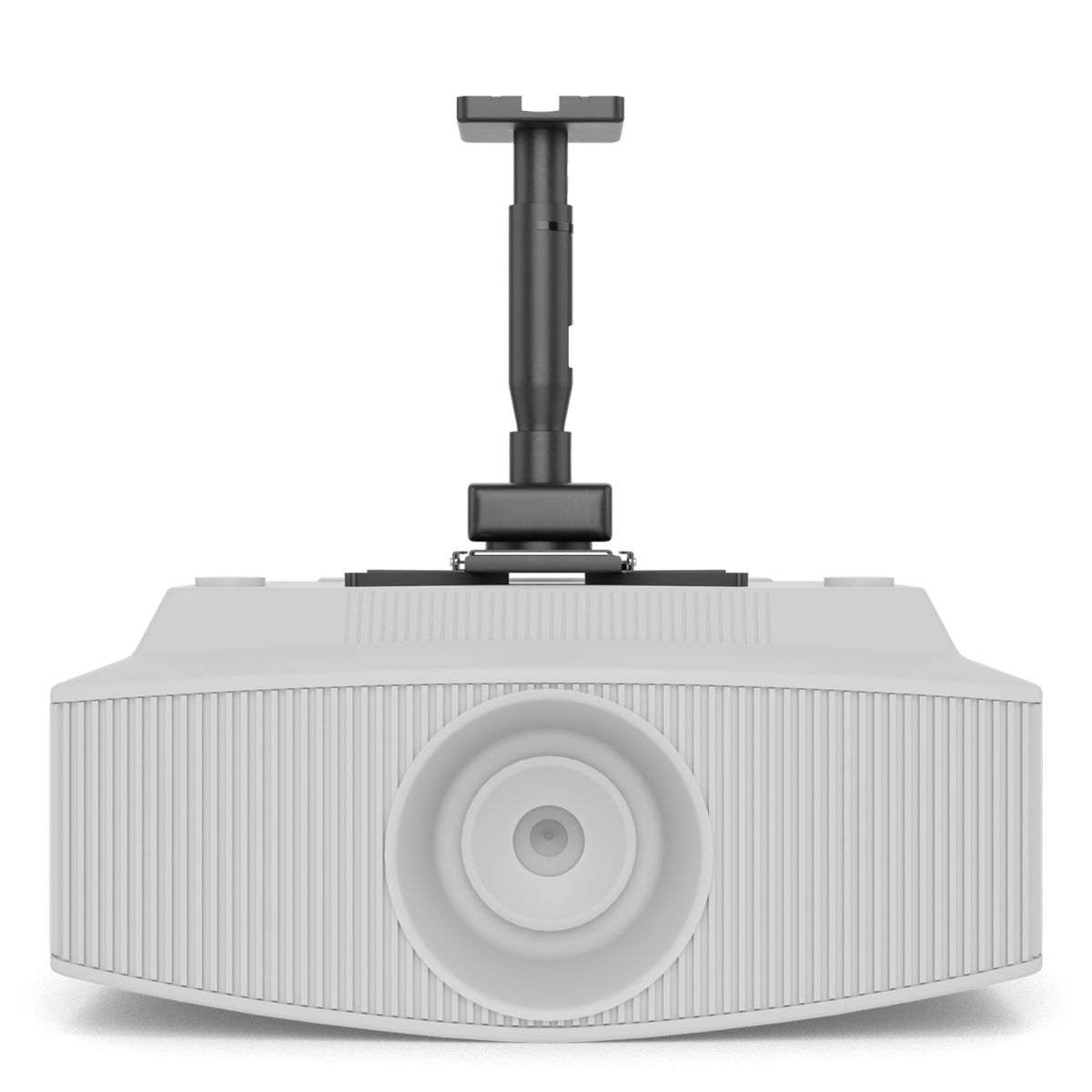

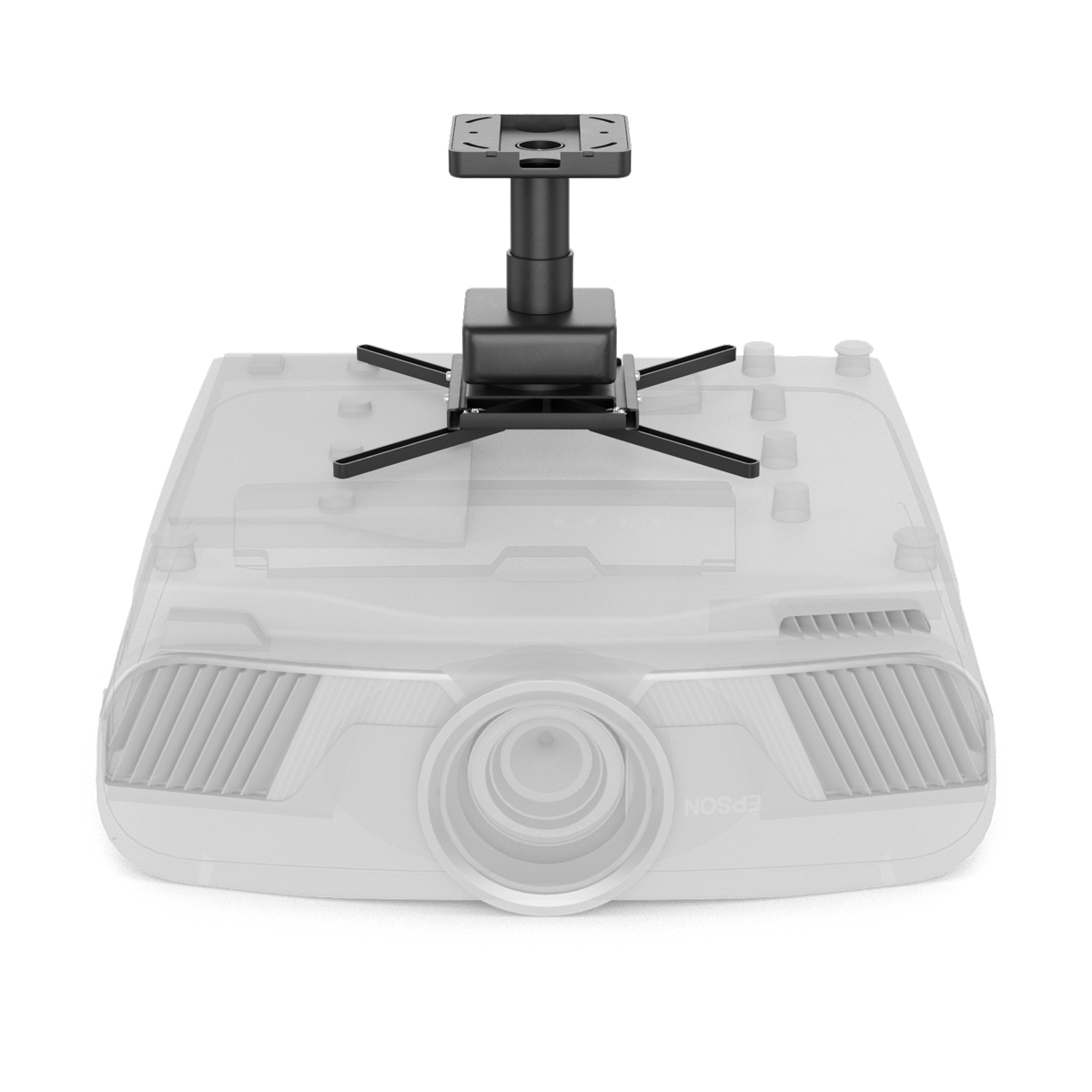

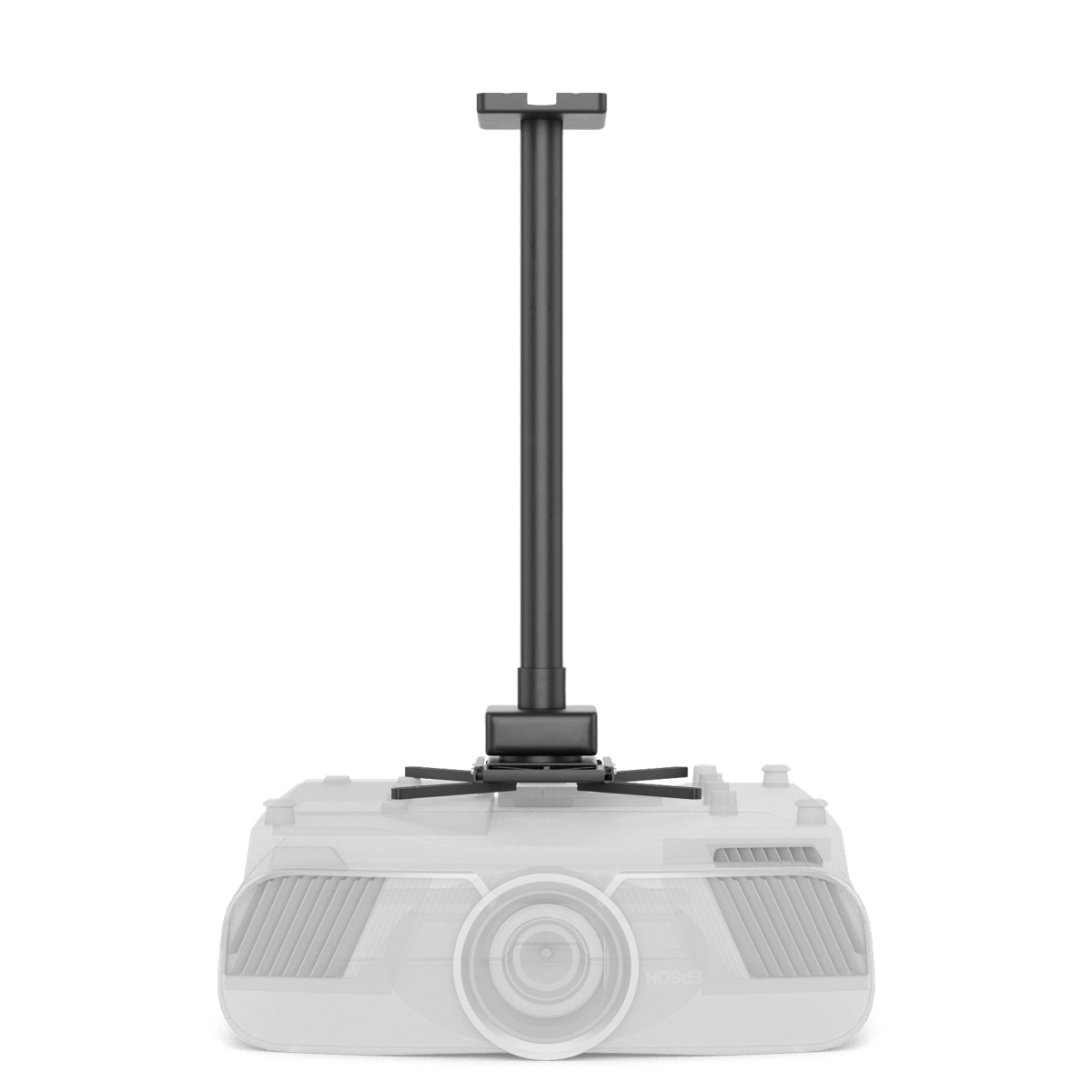

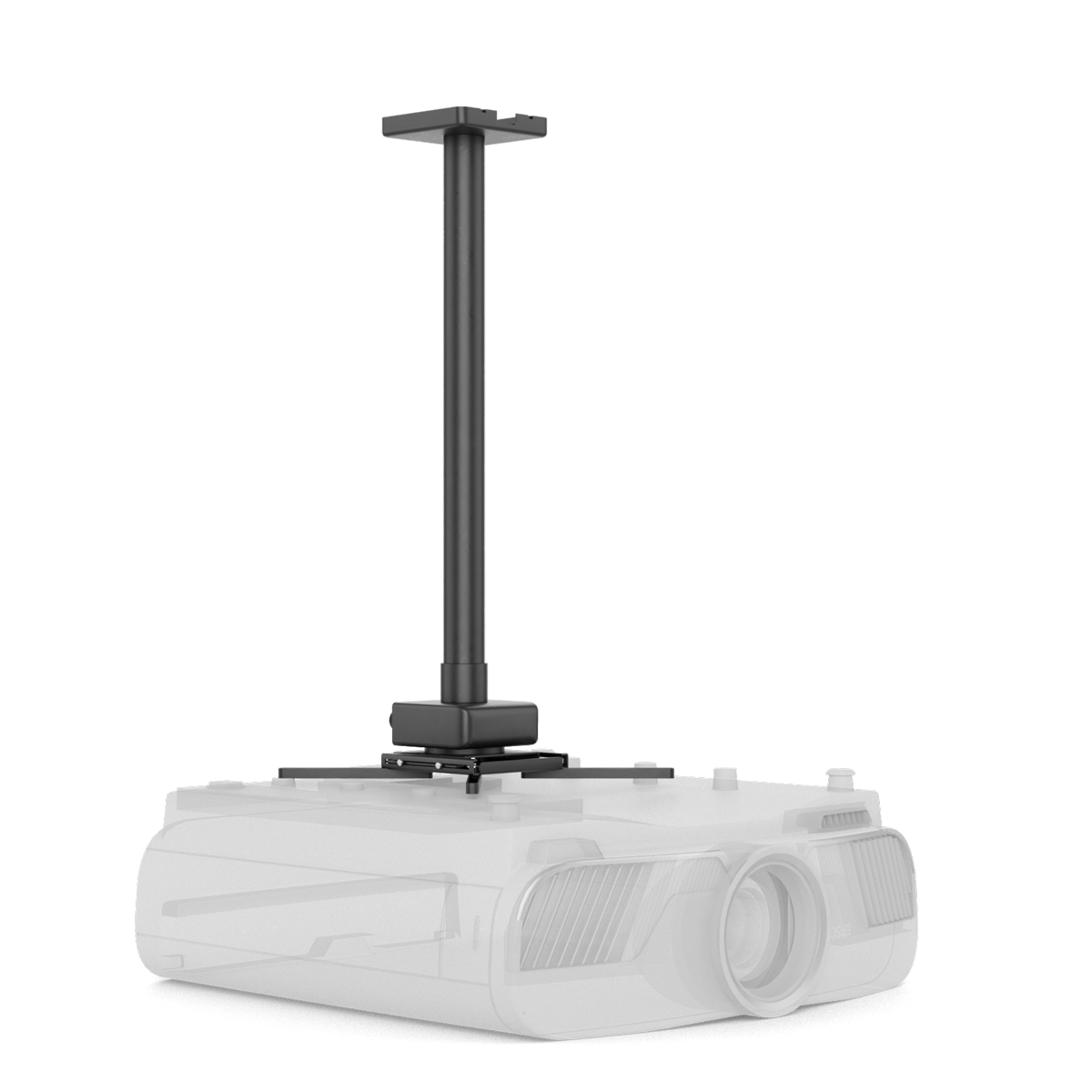

Extension Capability

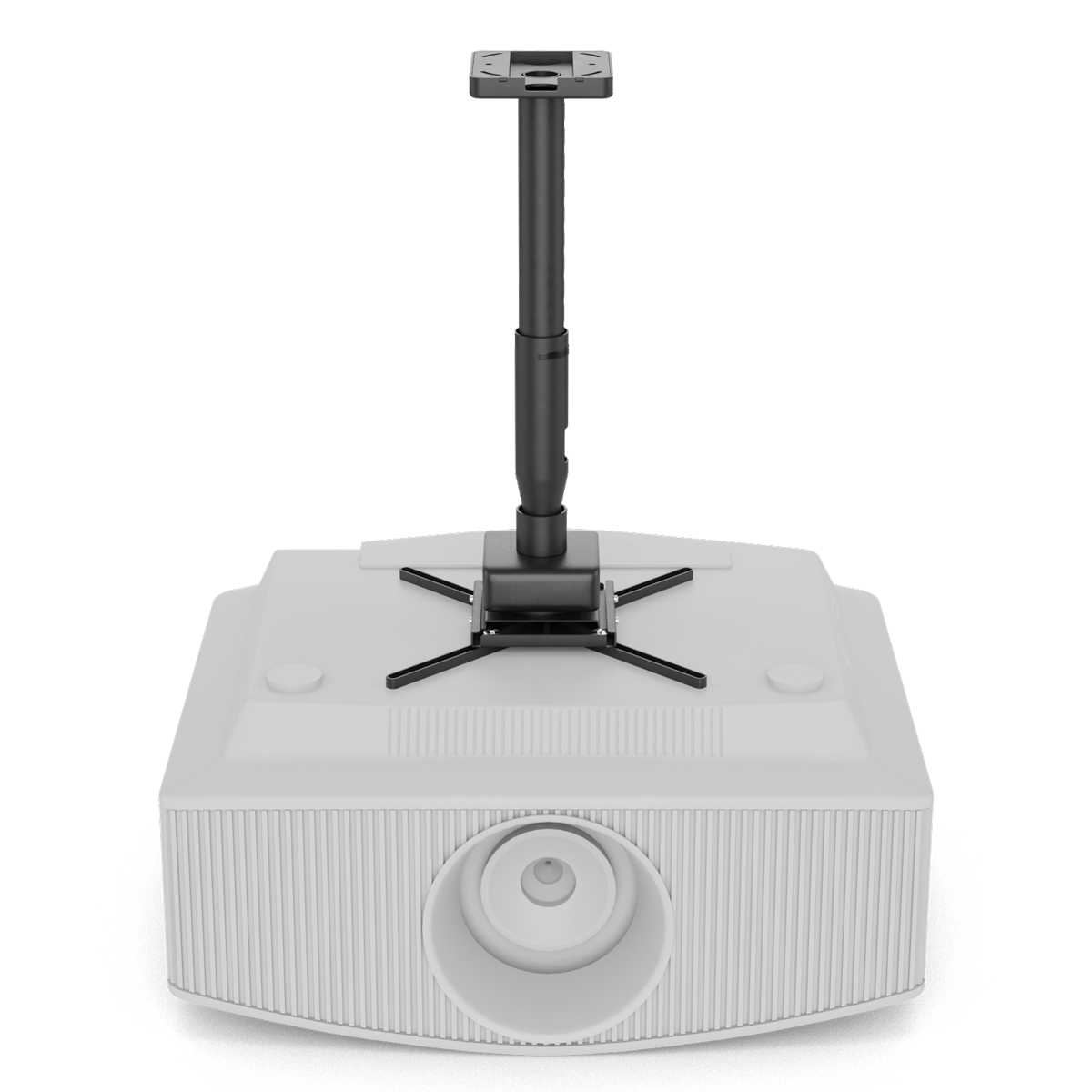

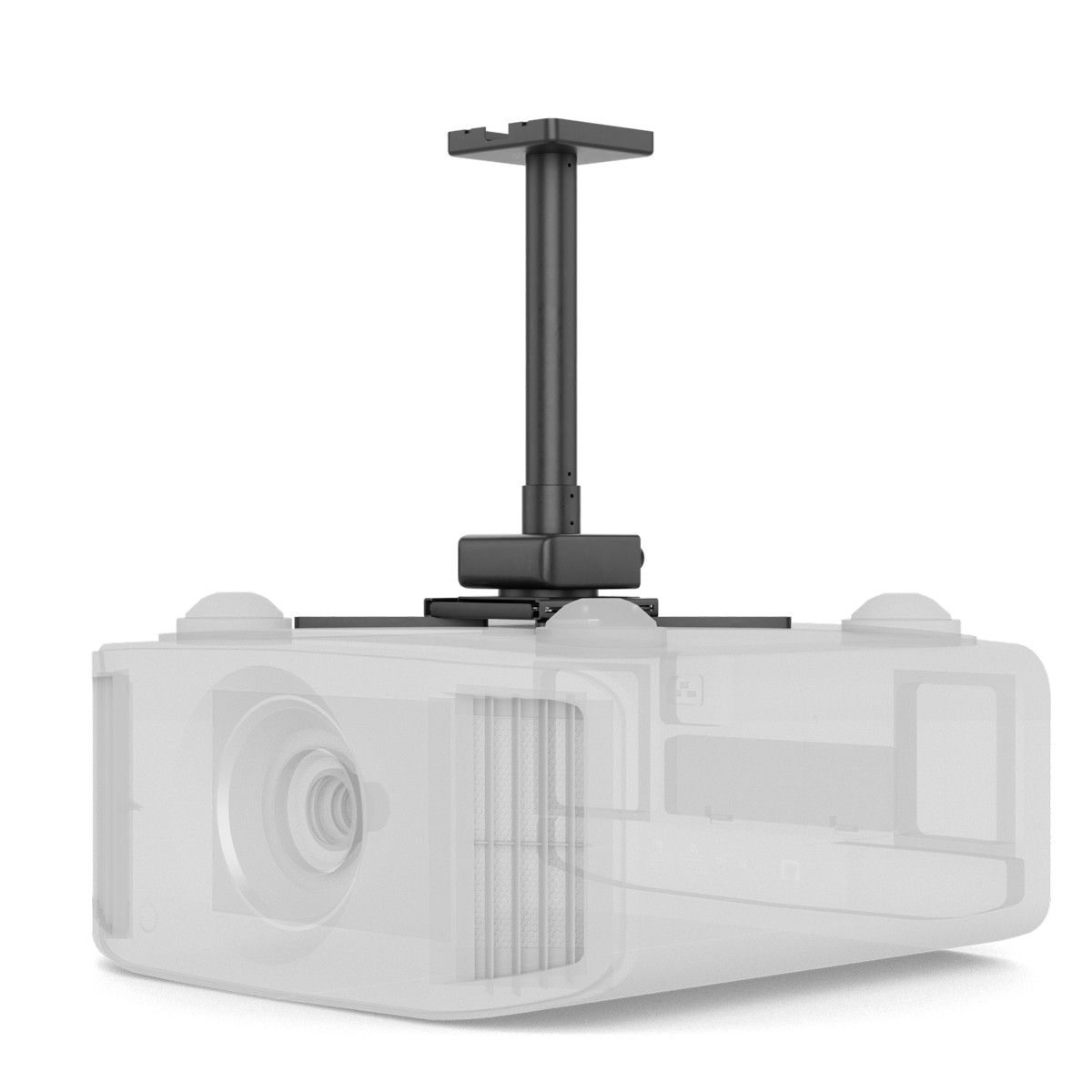

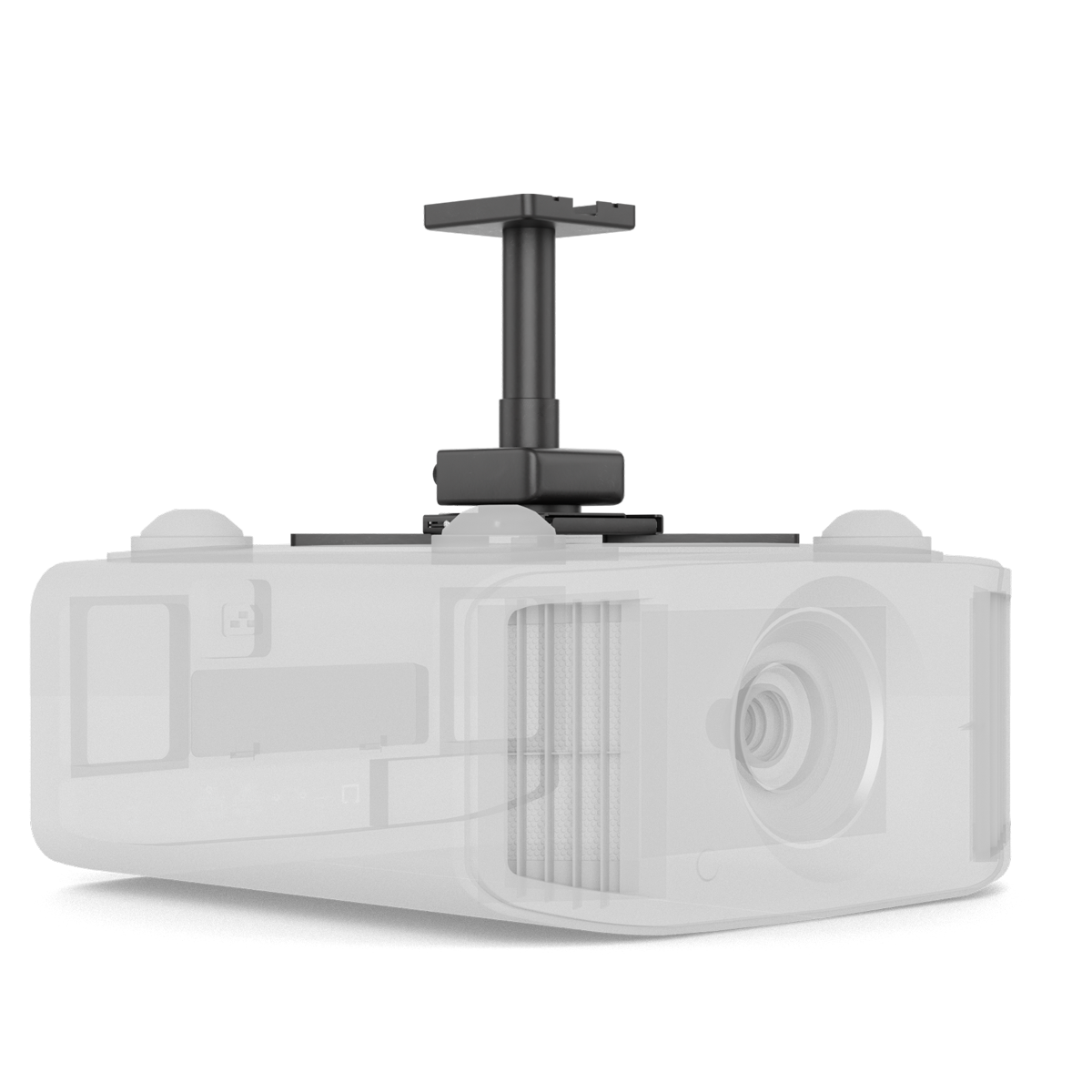

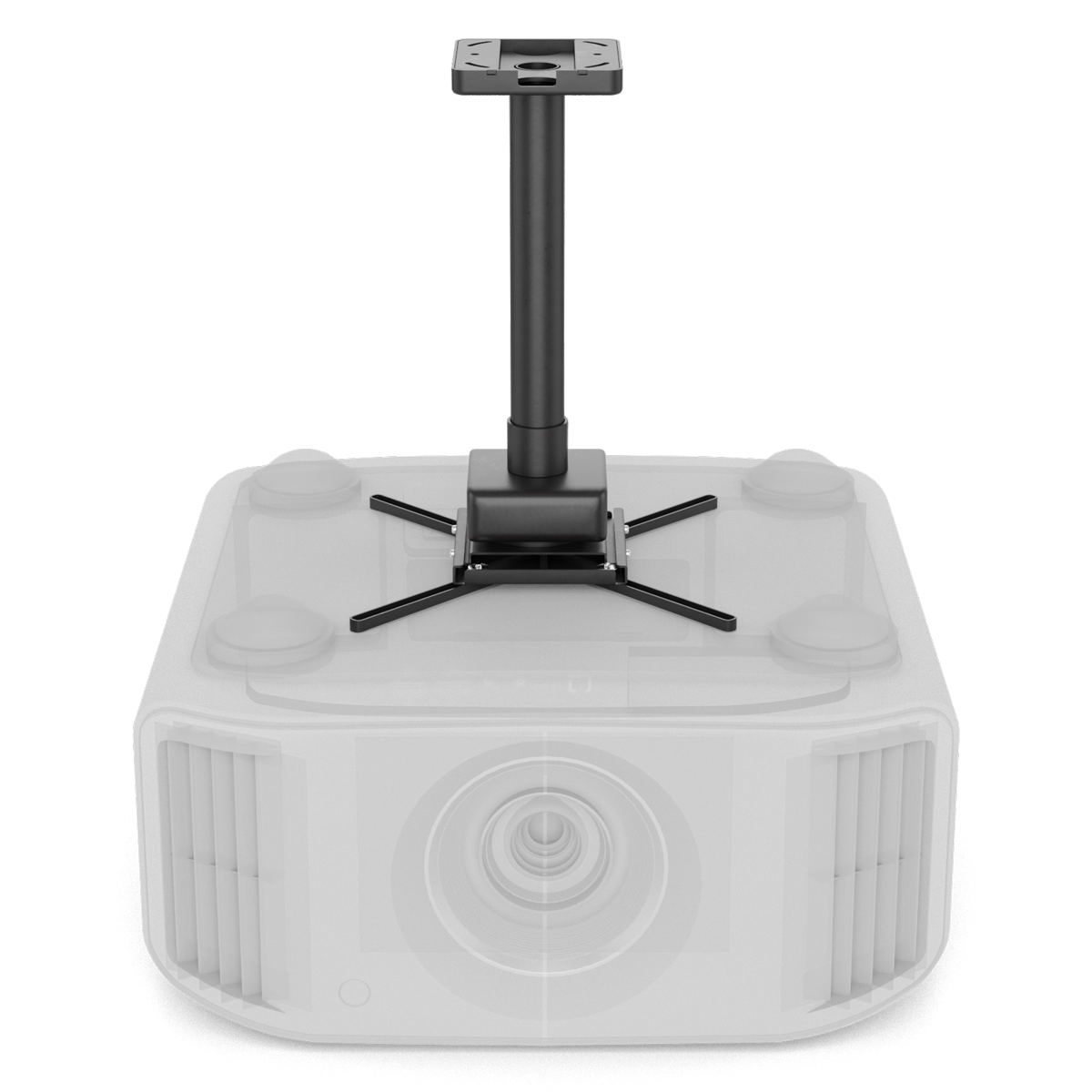

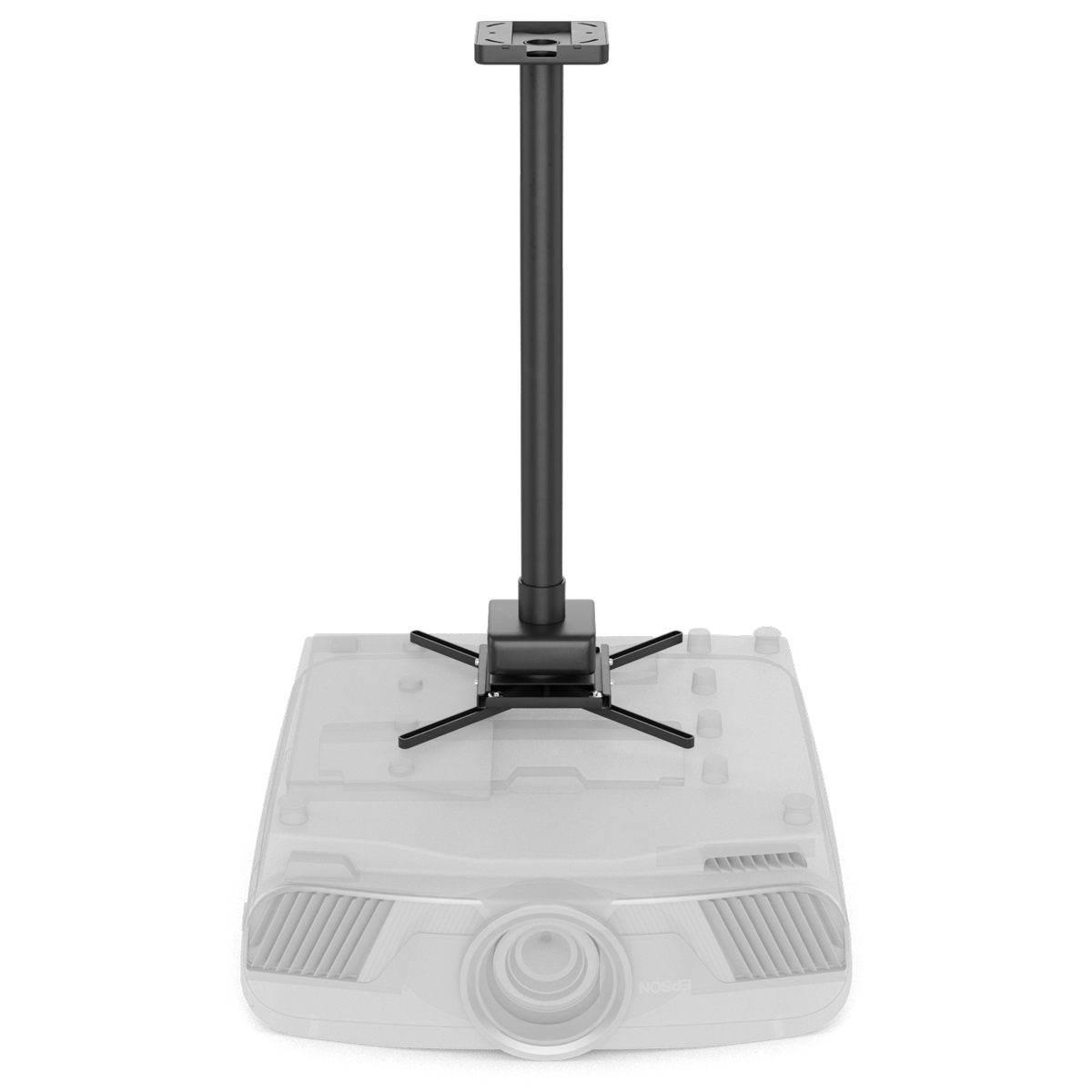

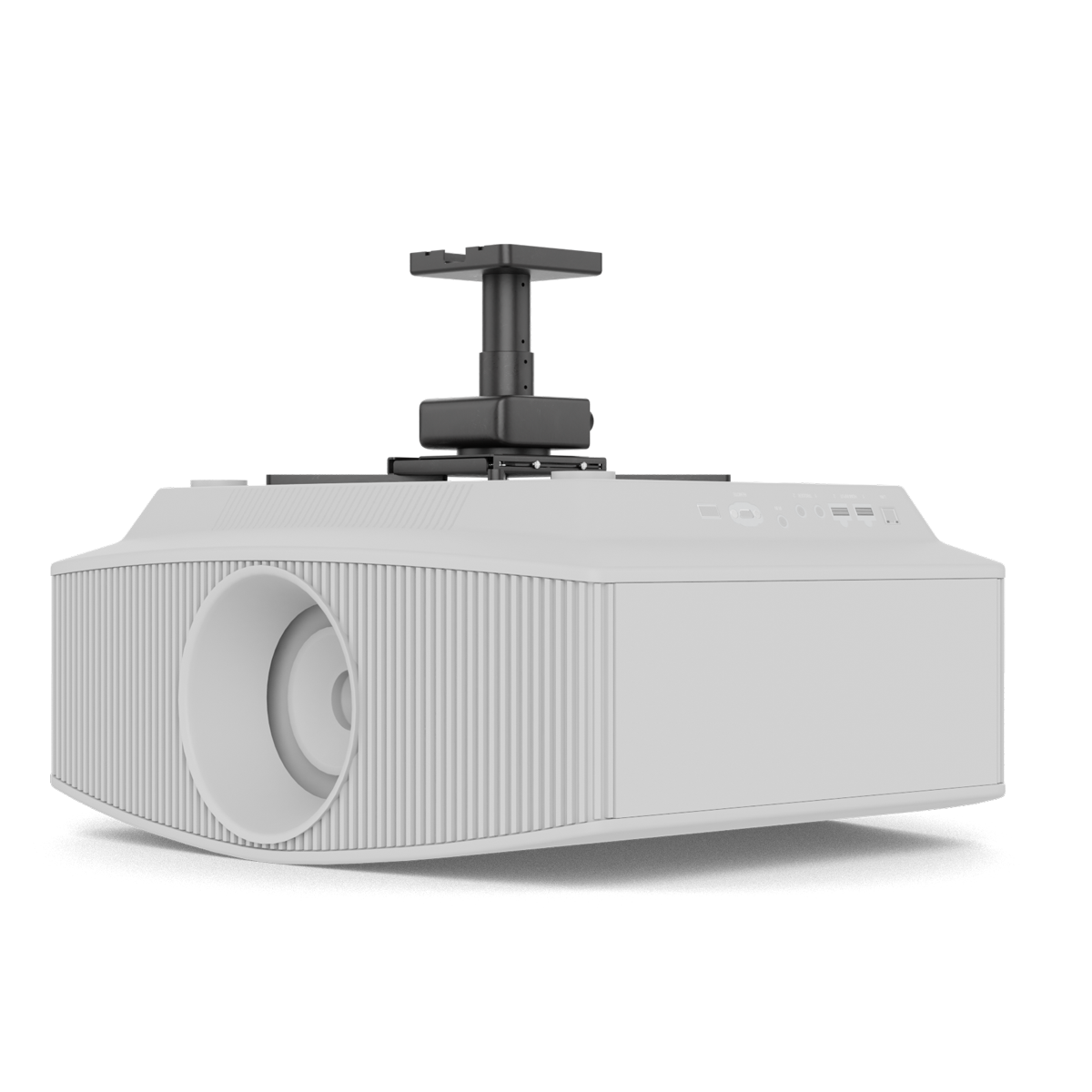

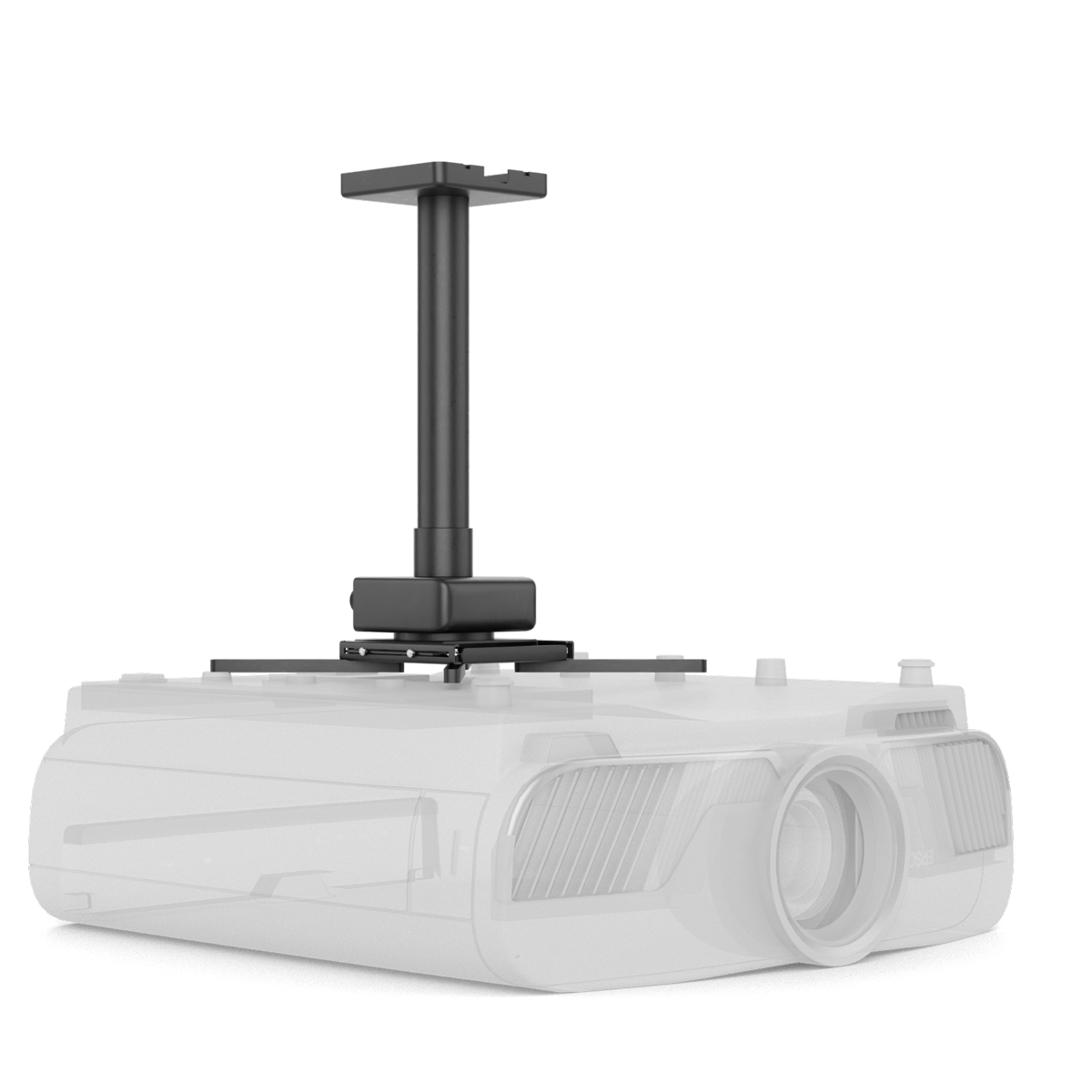

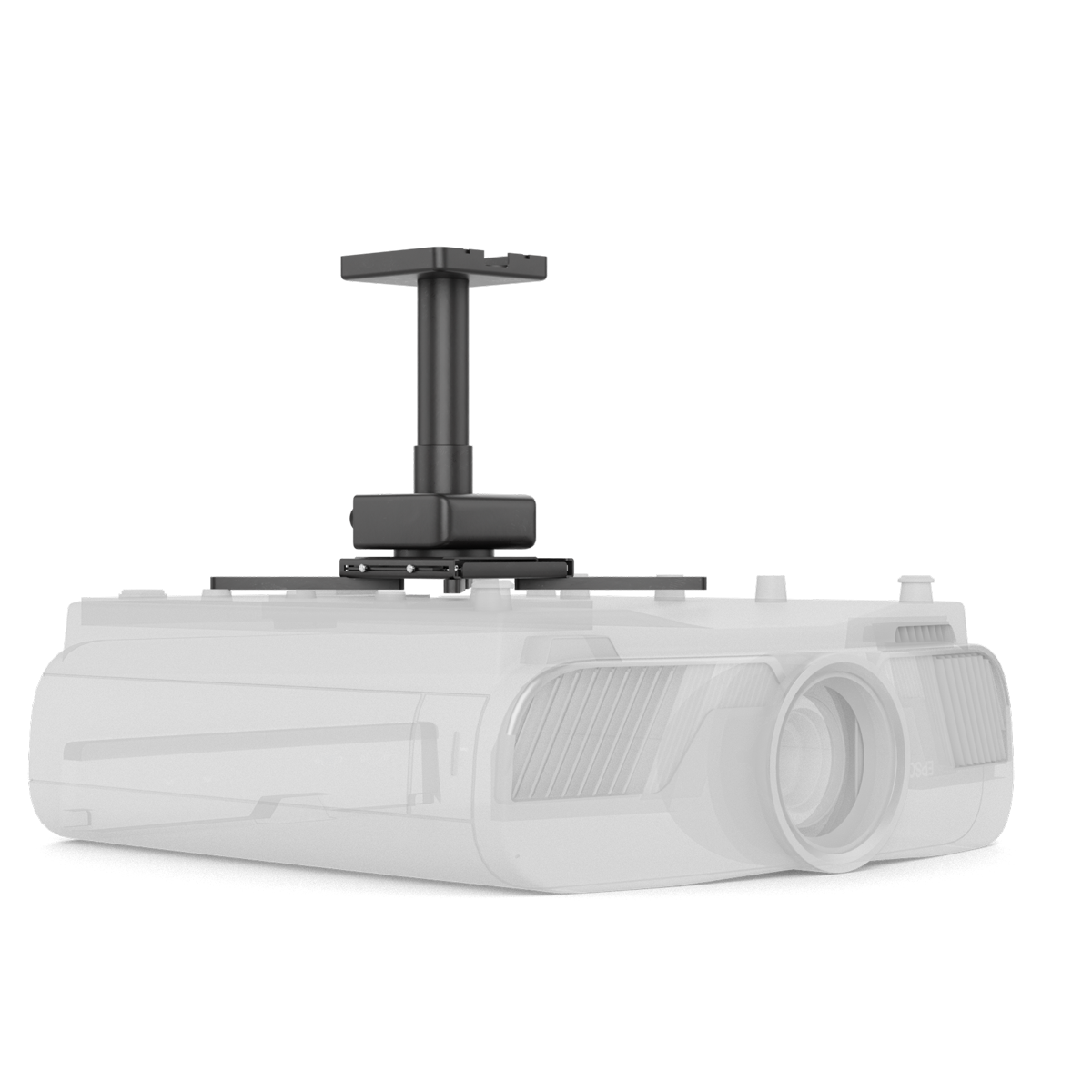

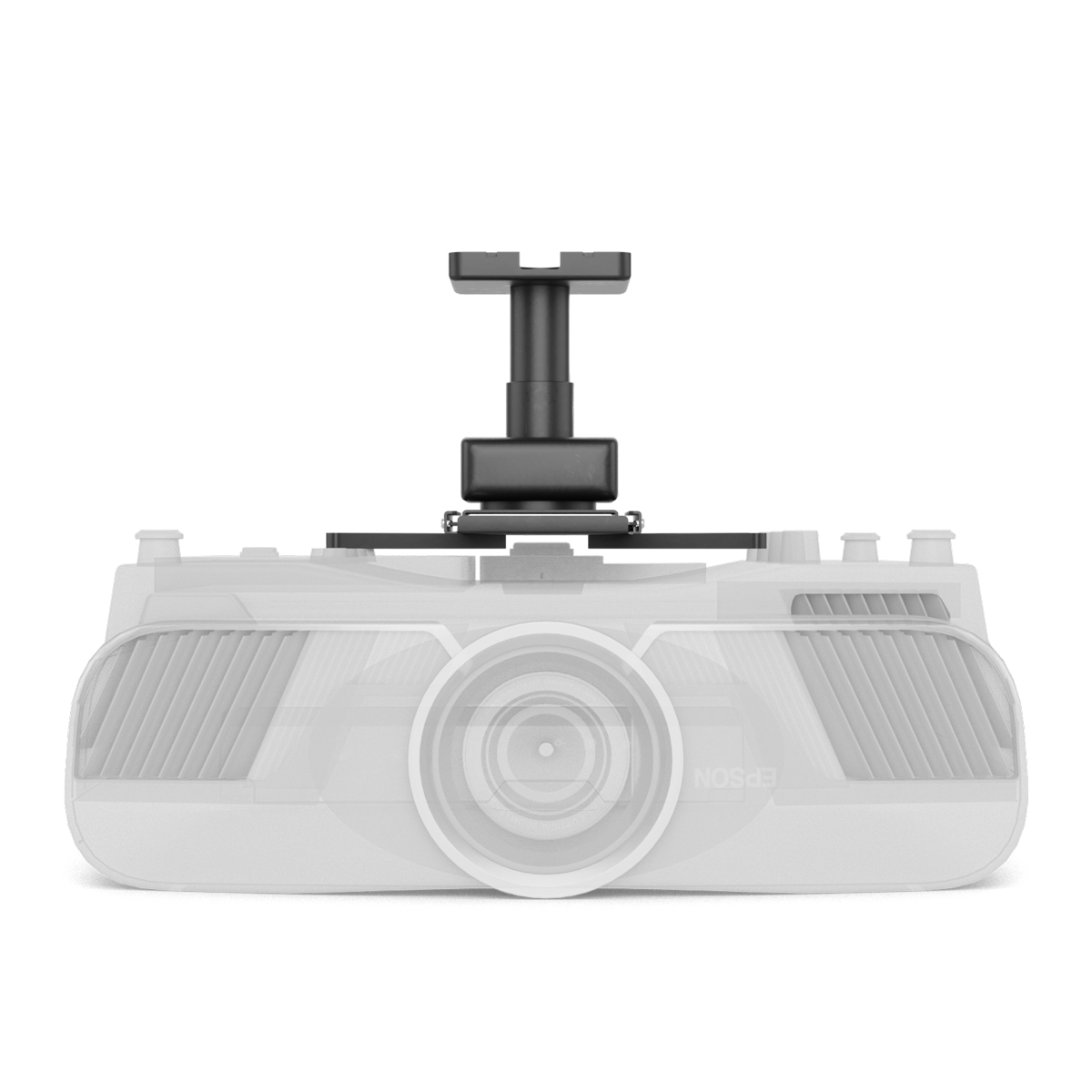

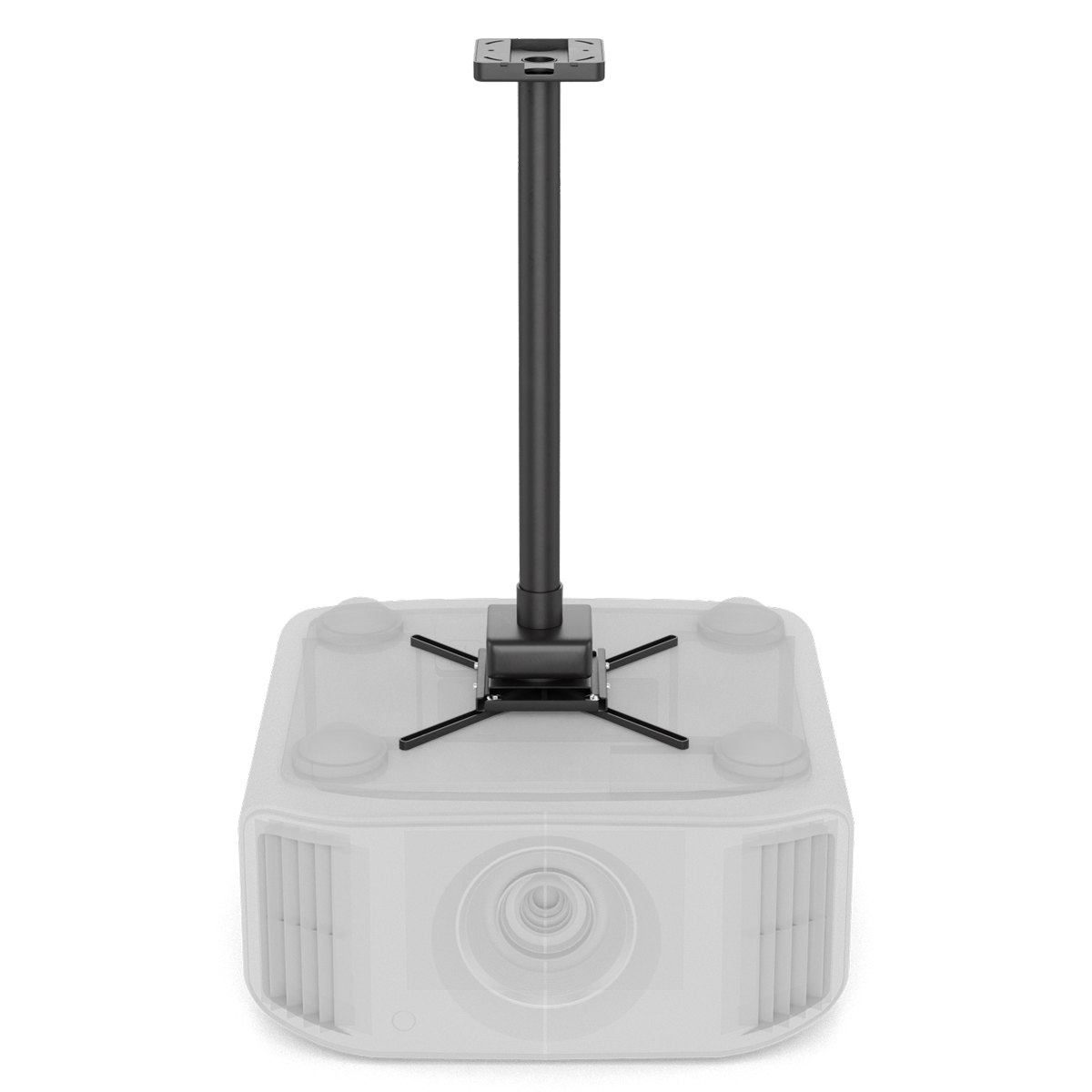

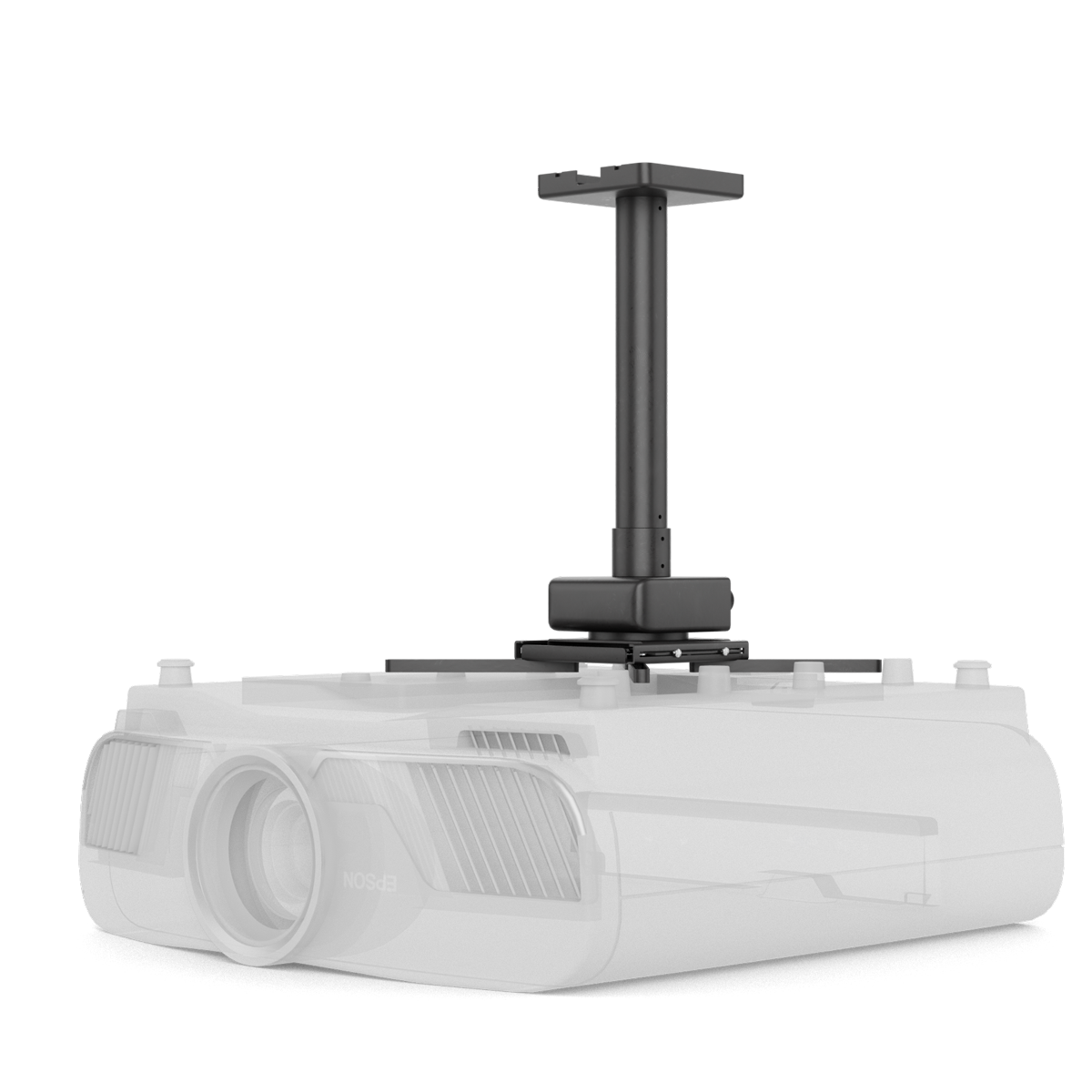

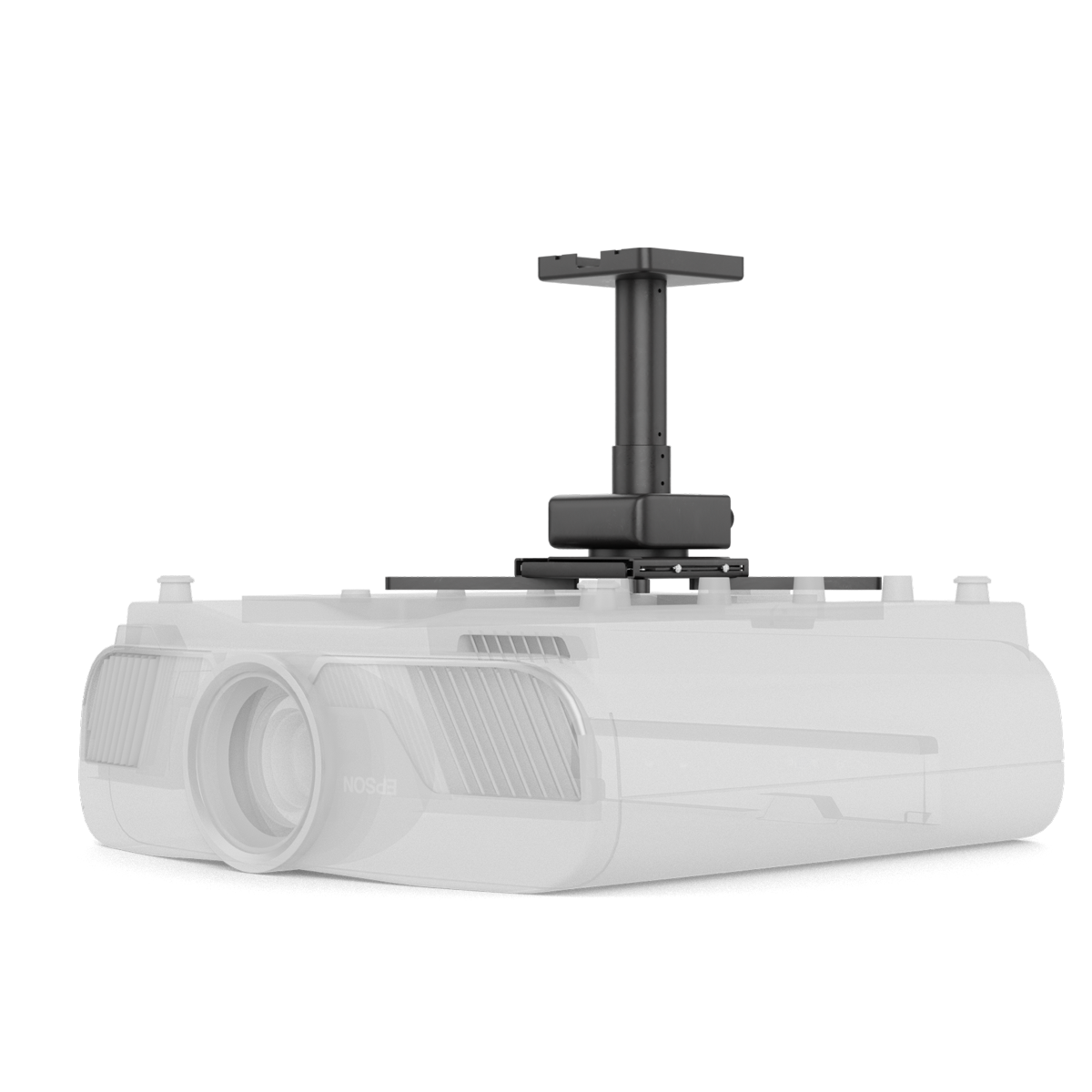

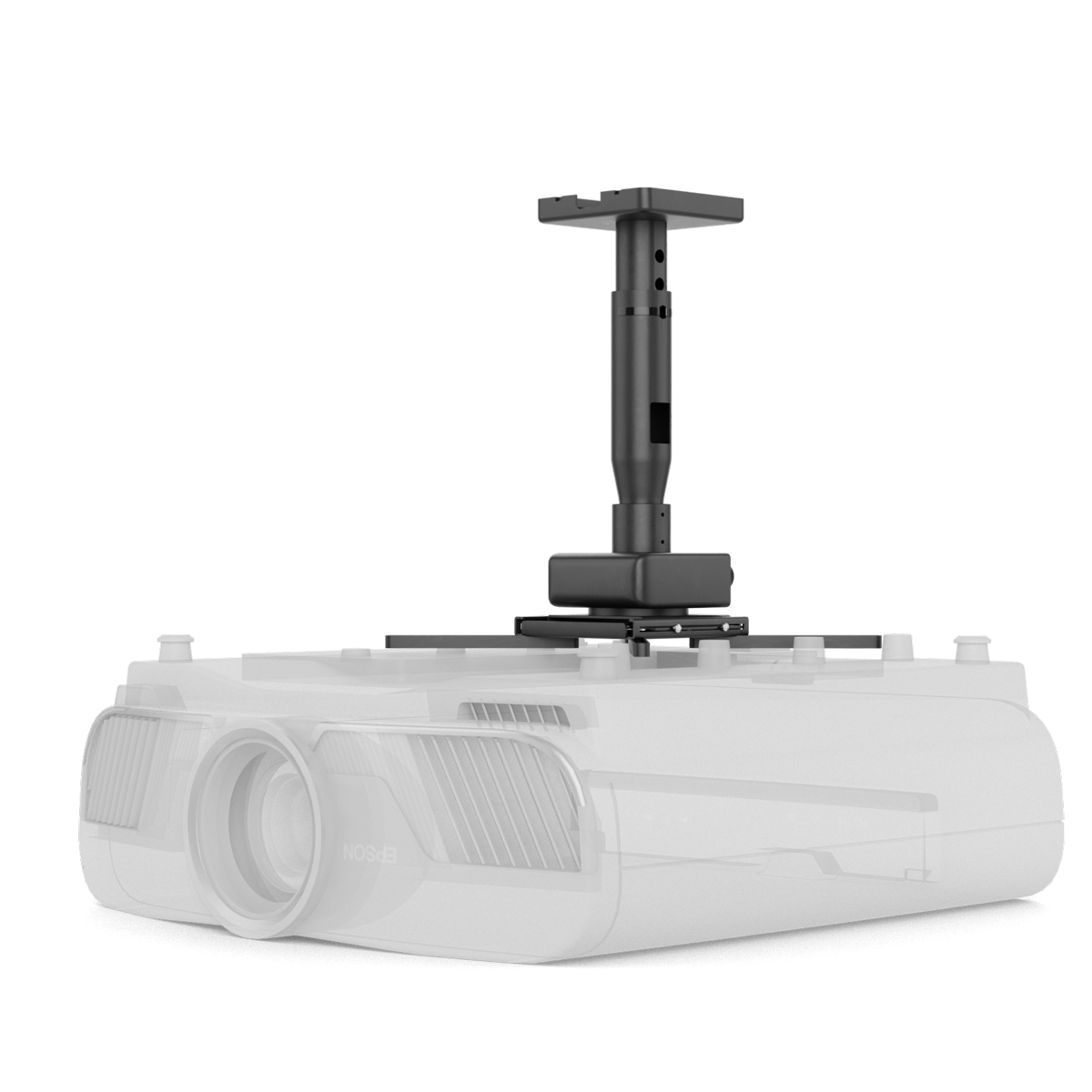

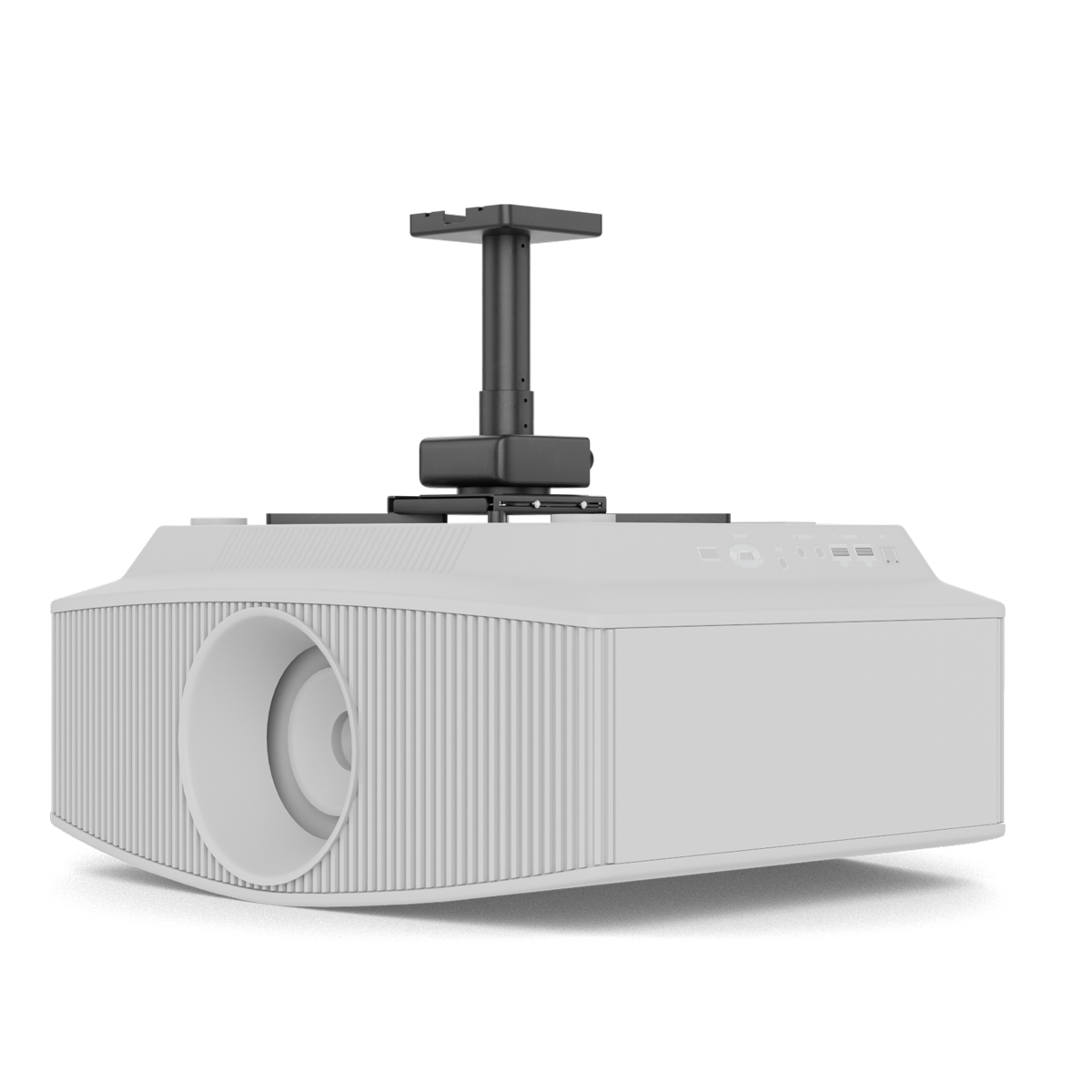

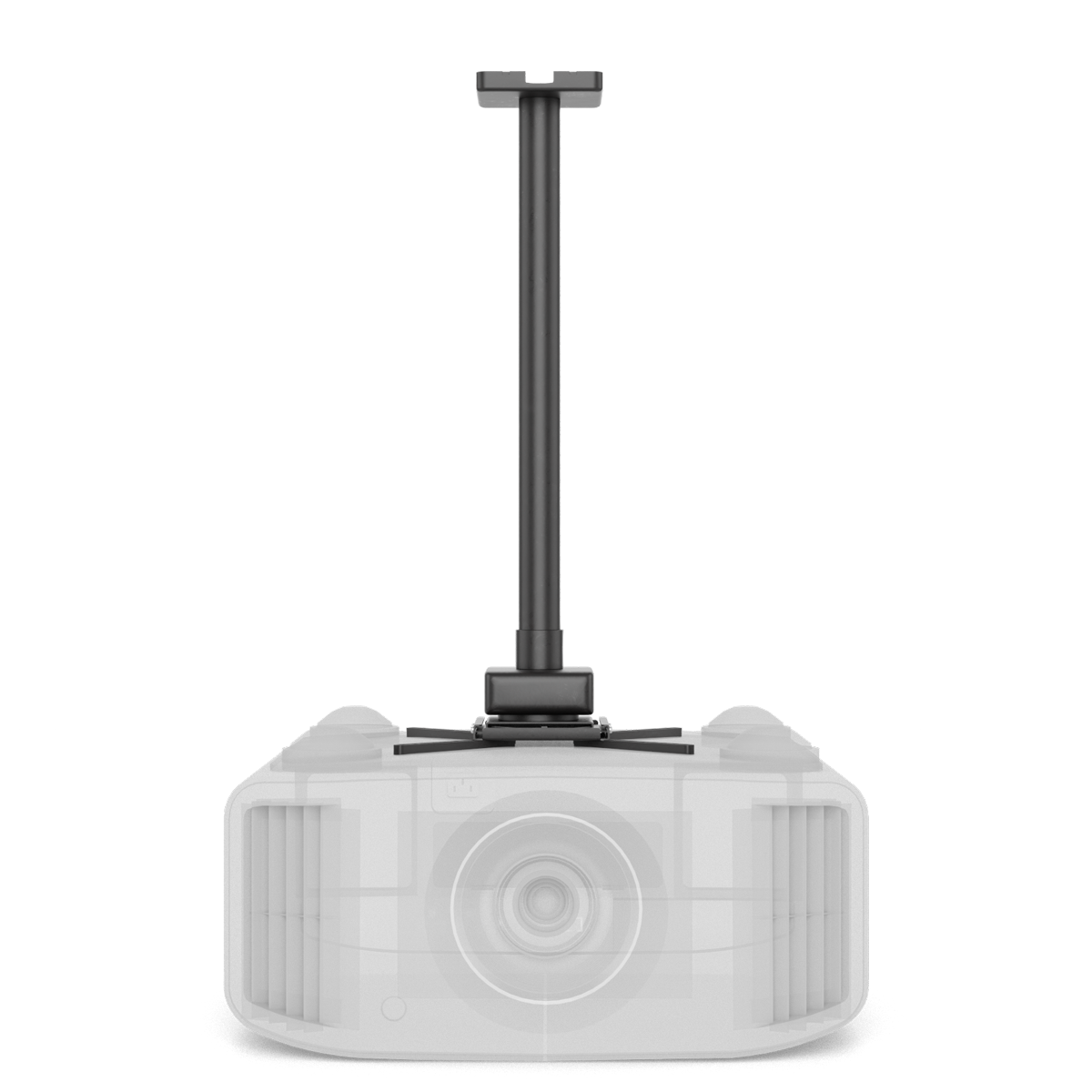

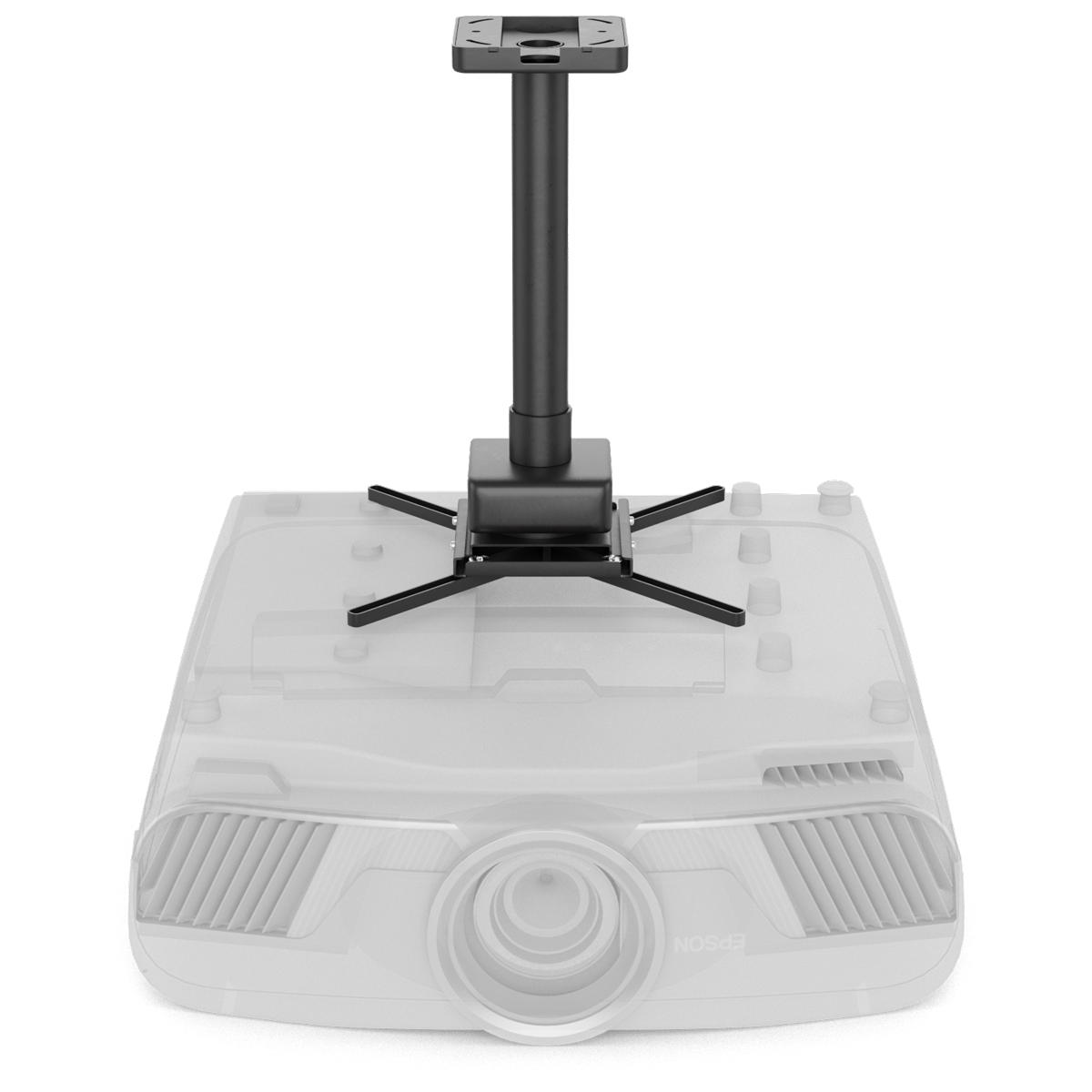

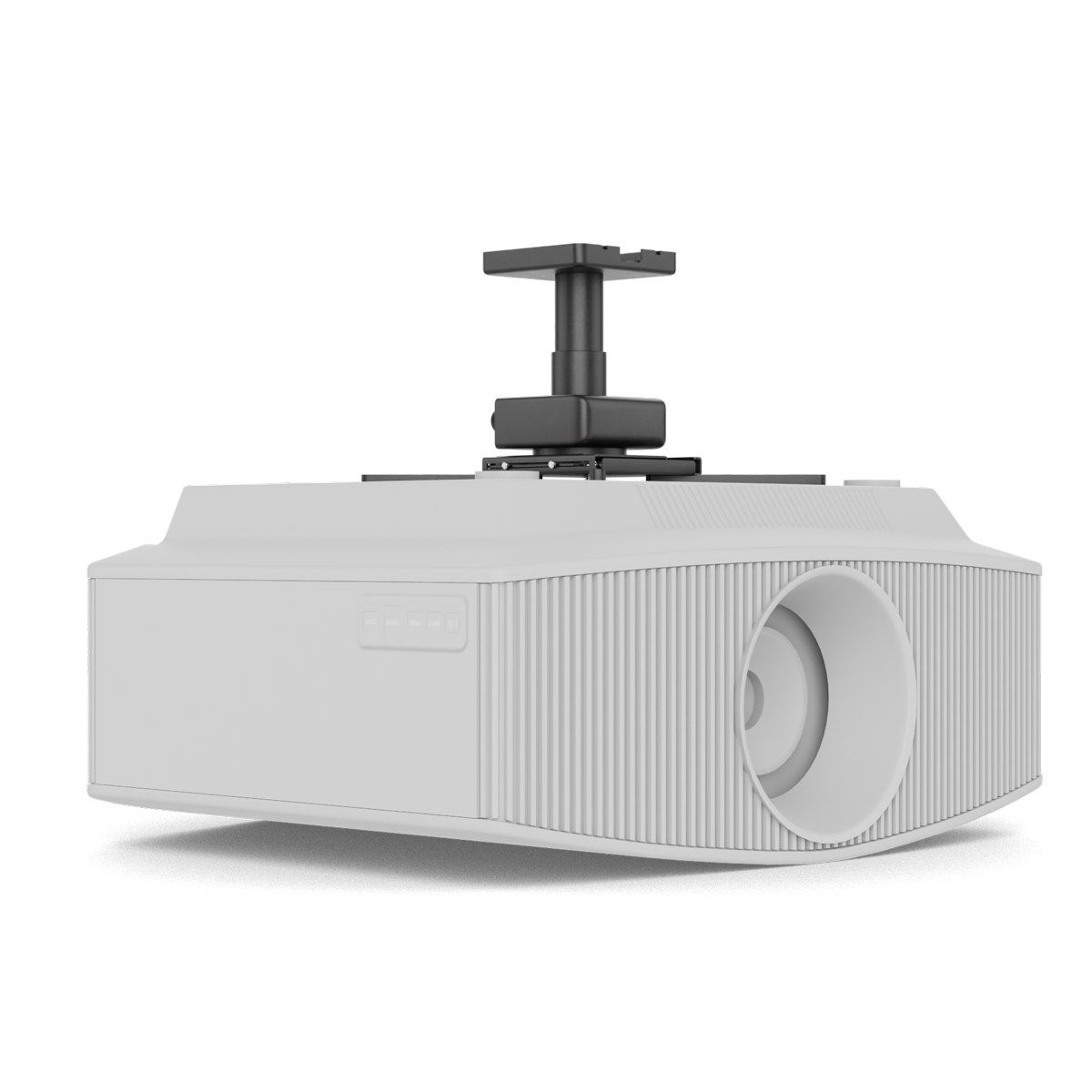

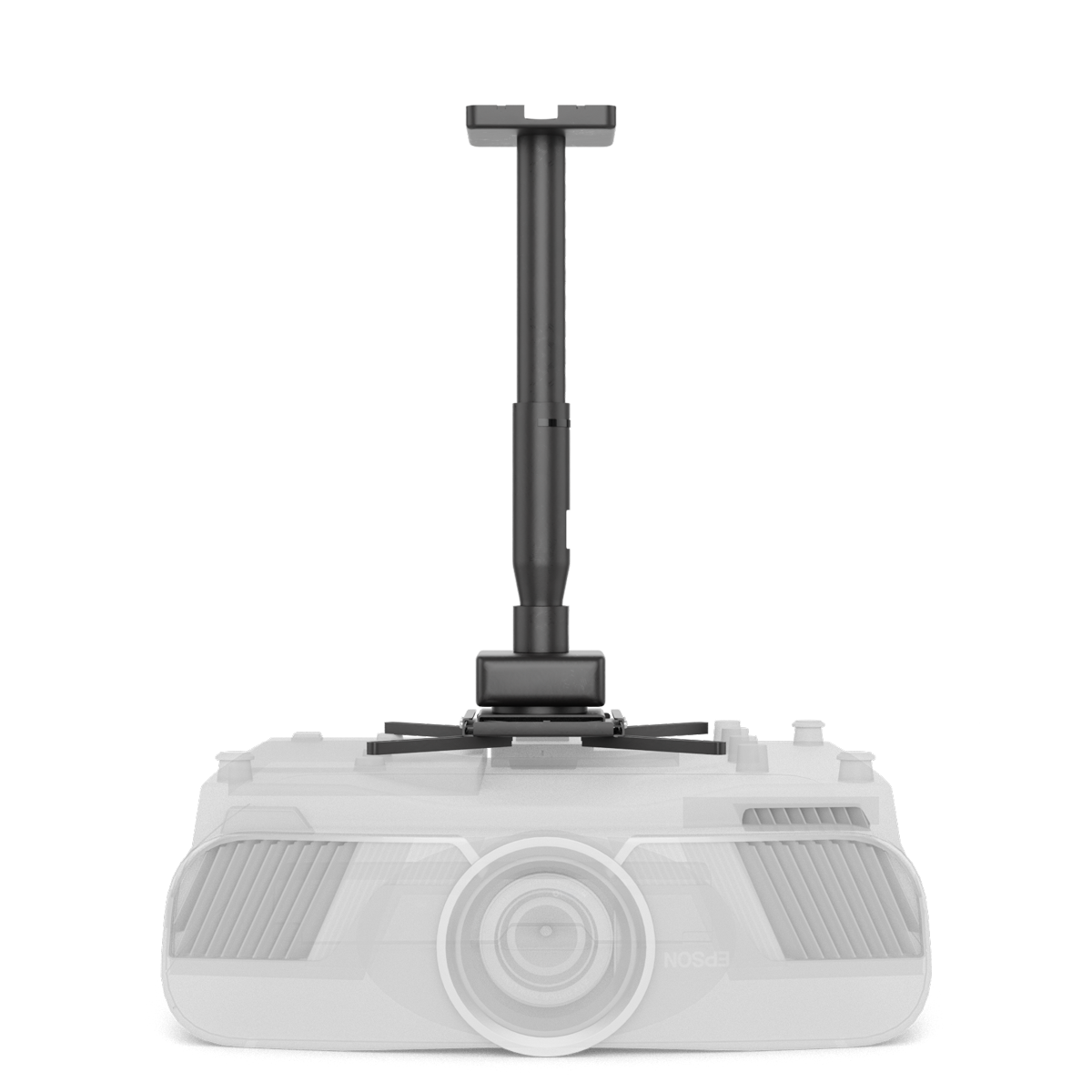

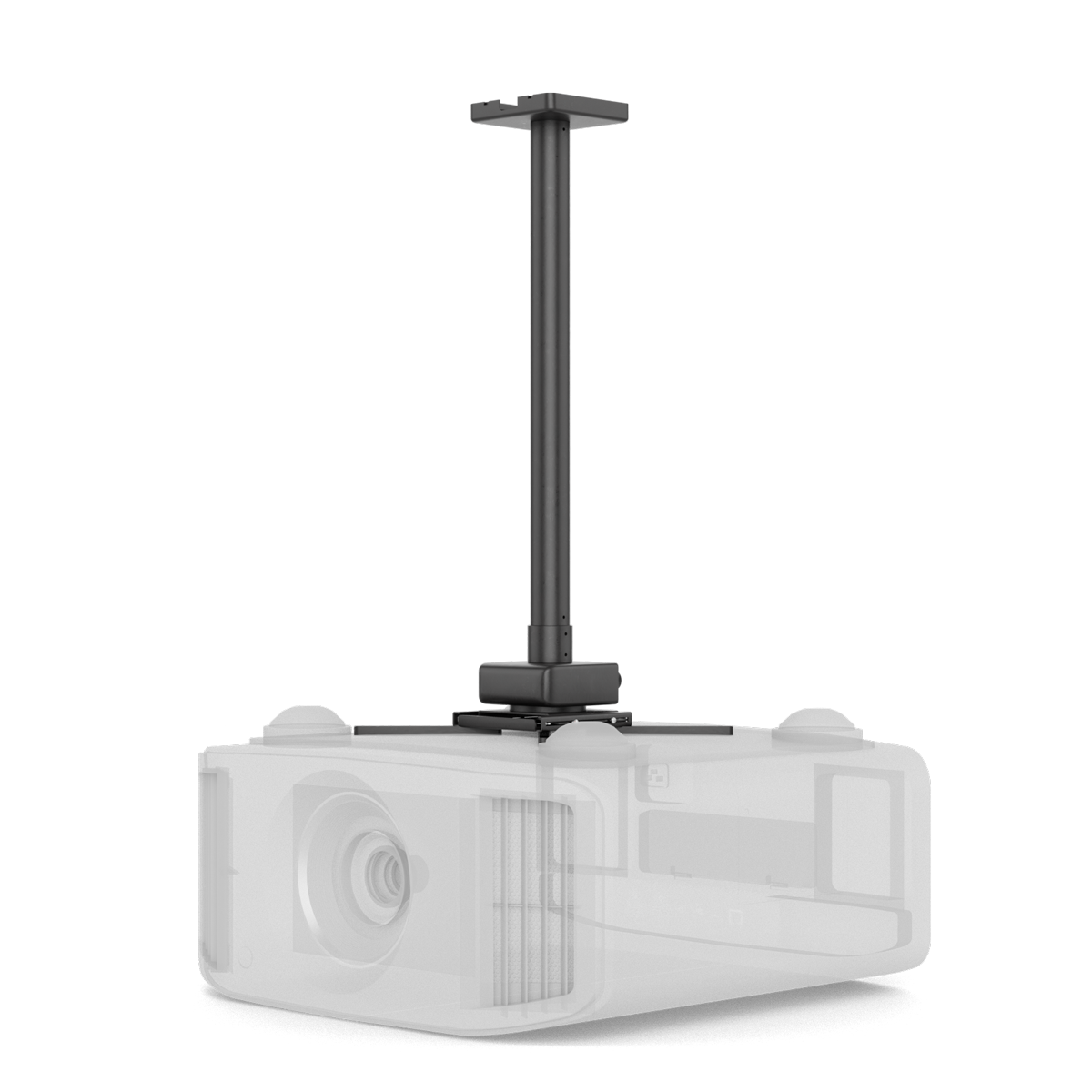

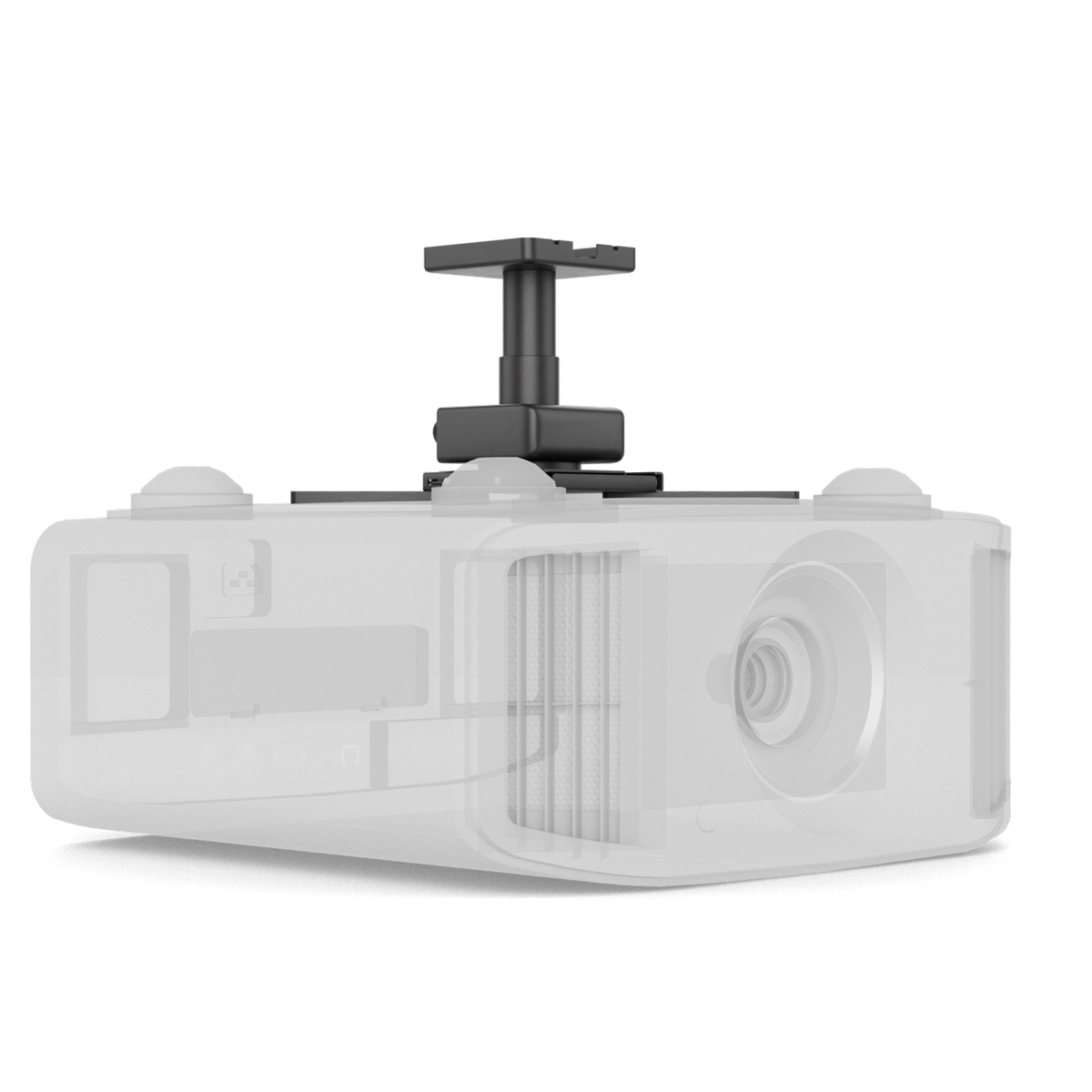

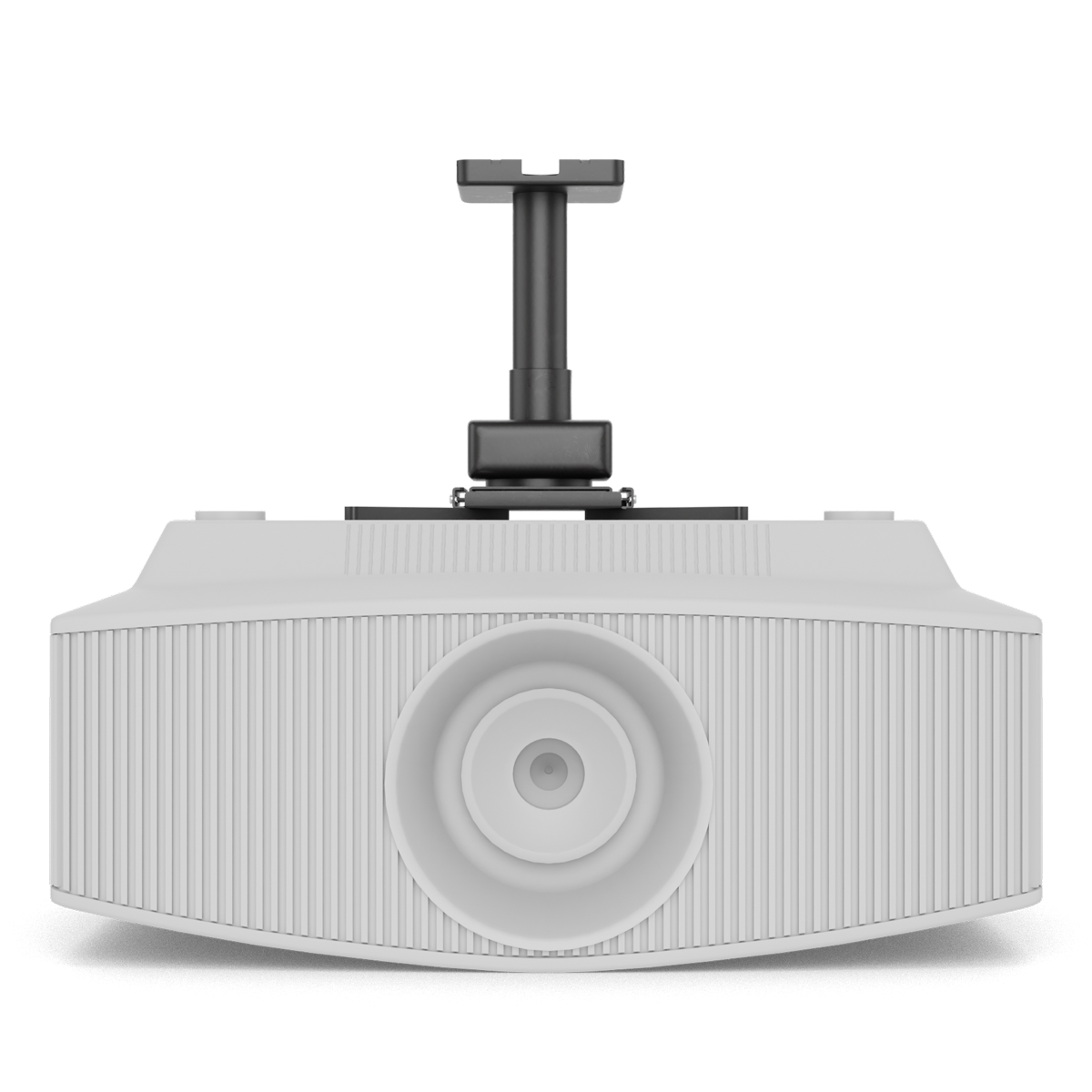

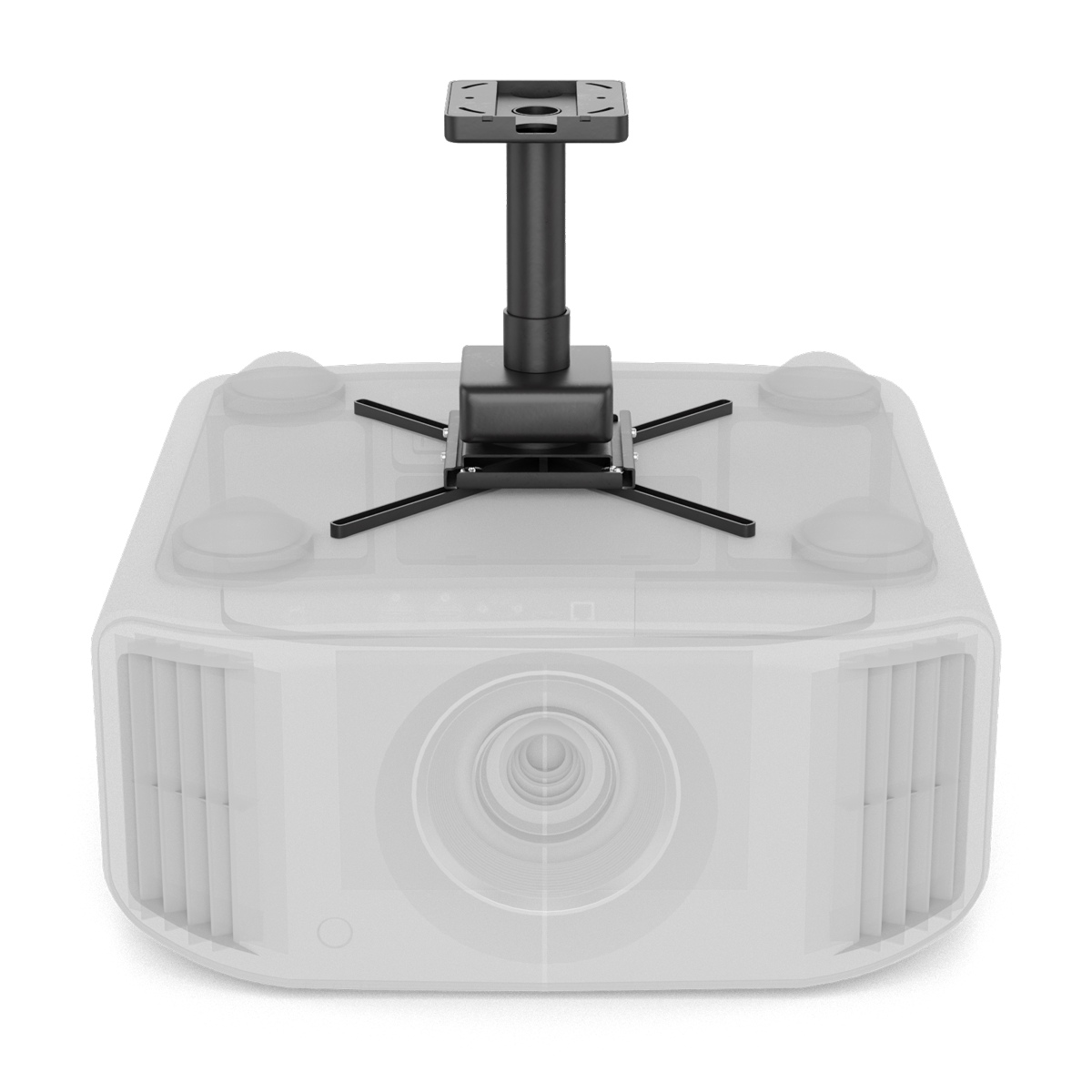

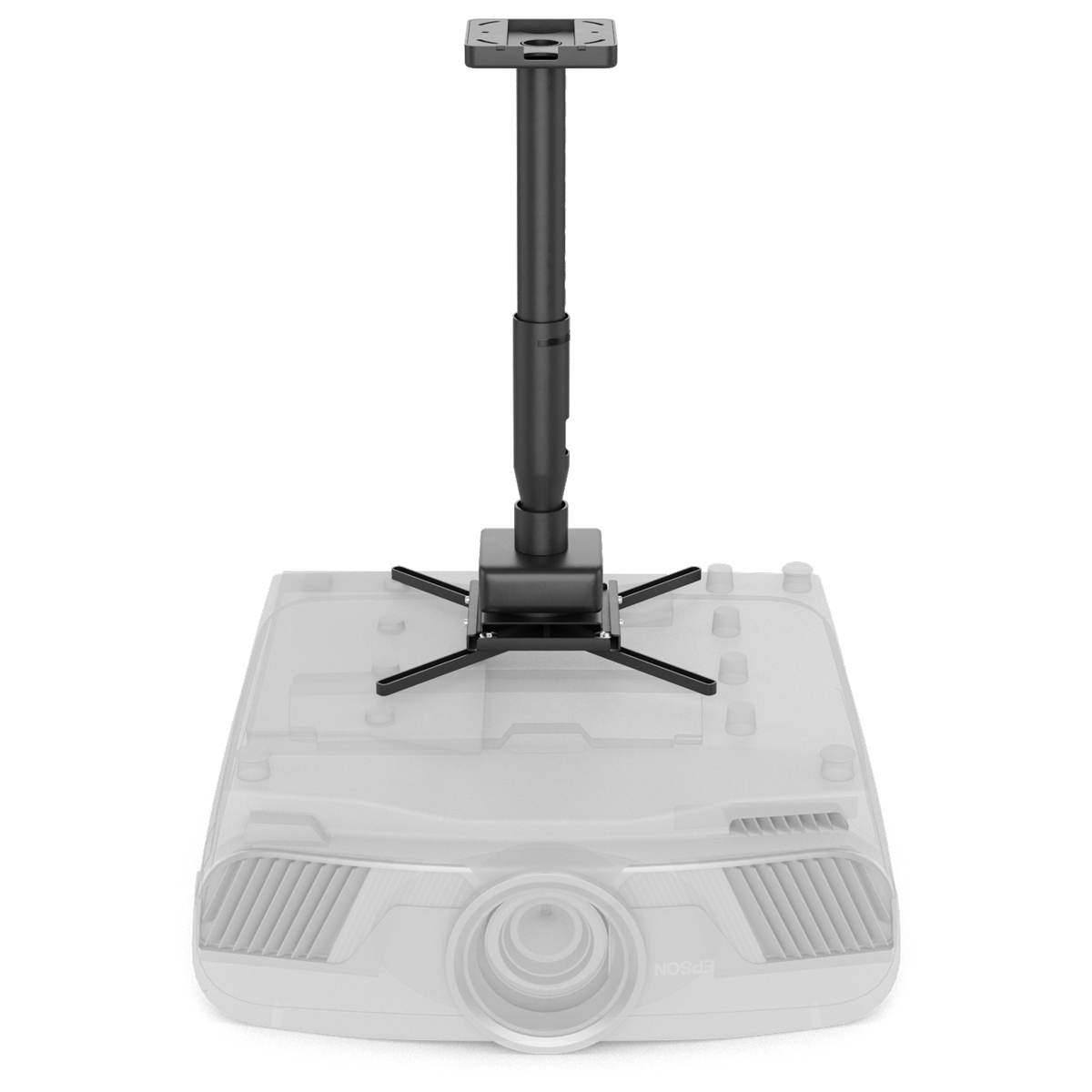

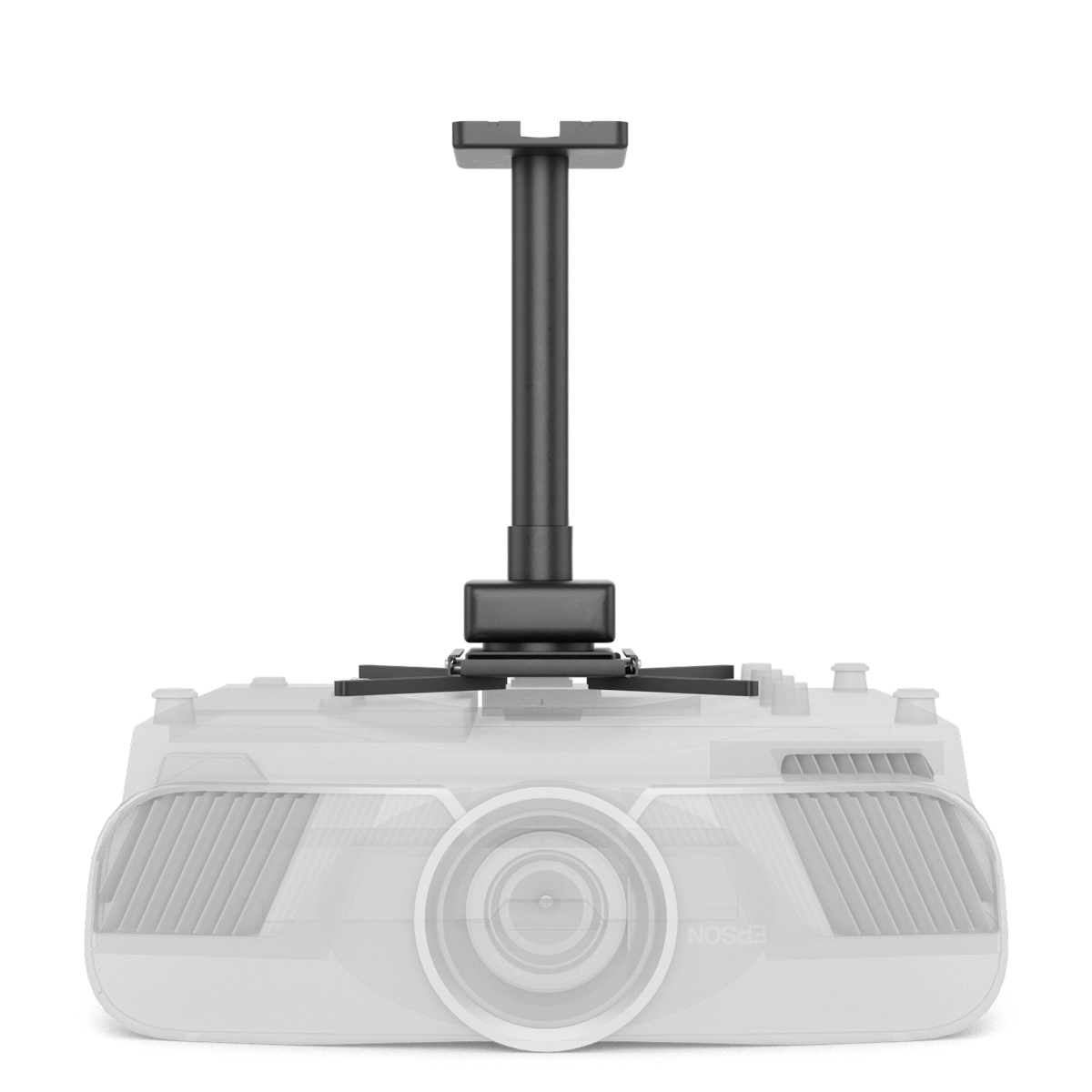

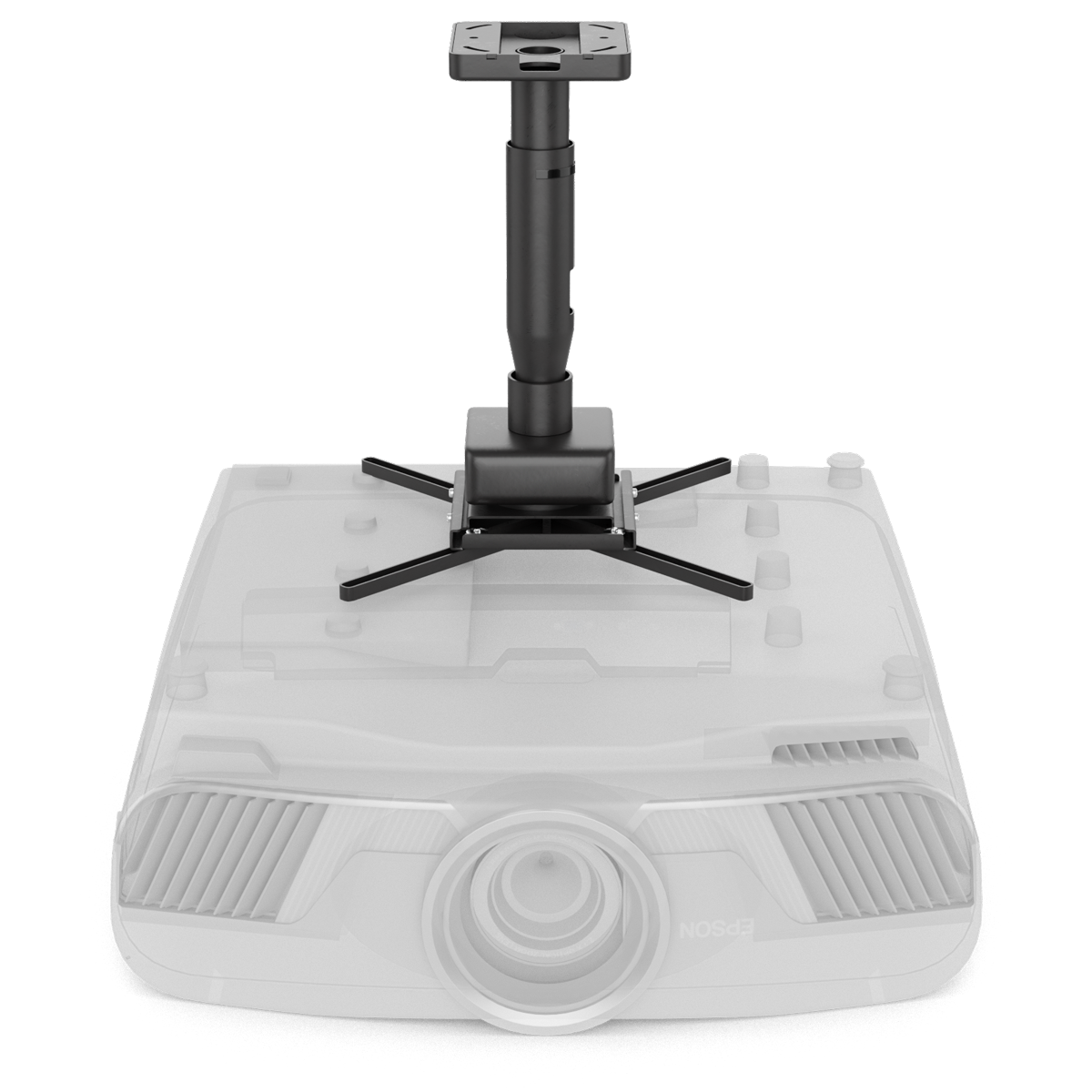

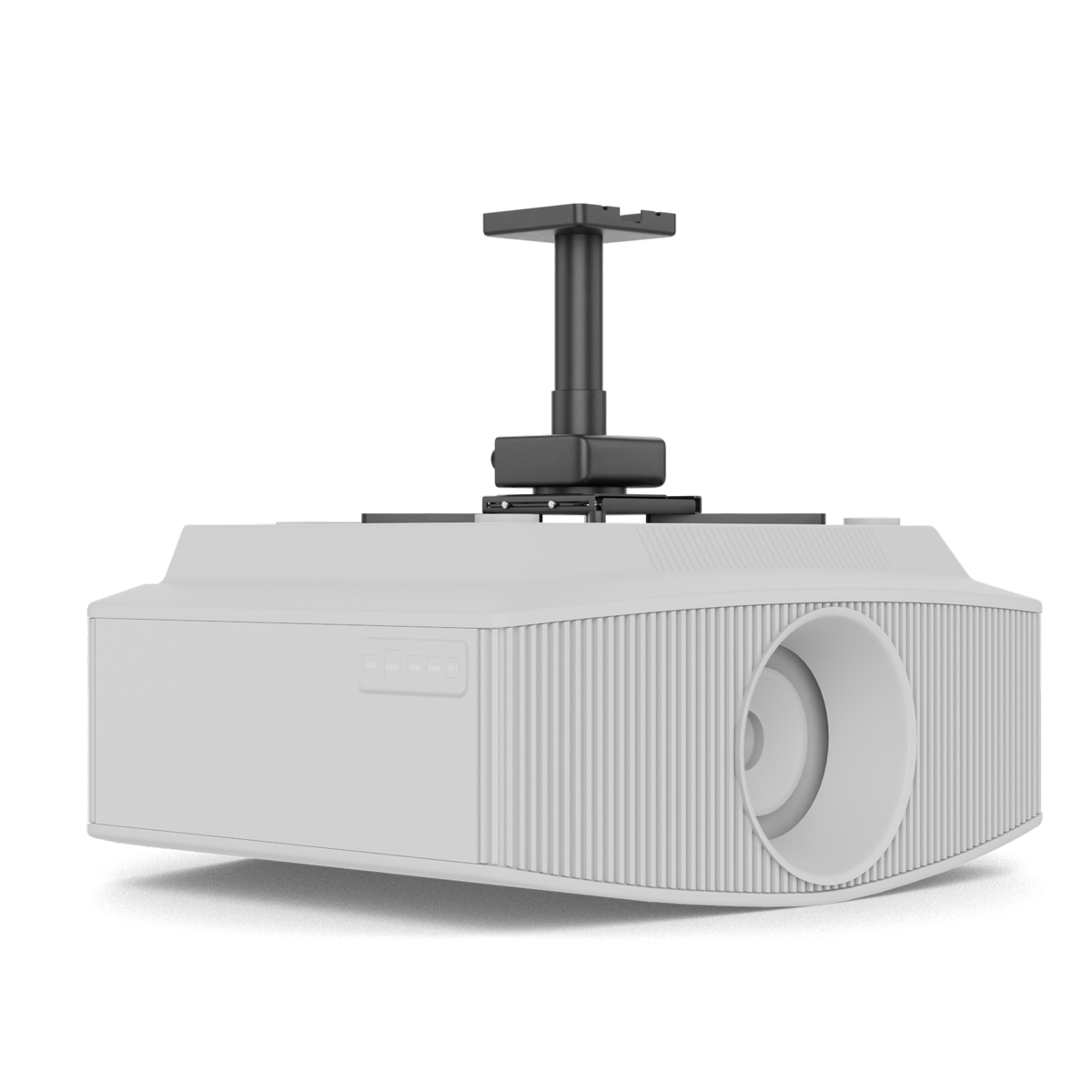

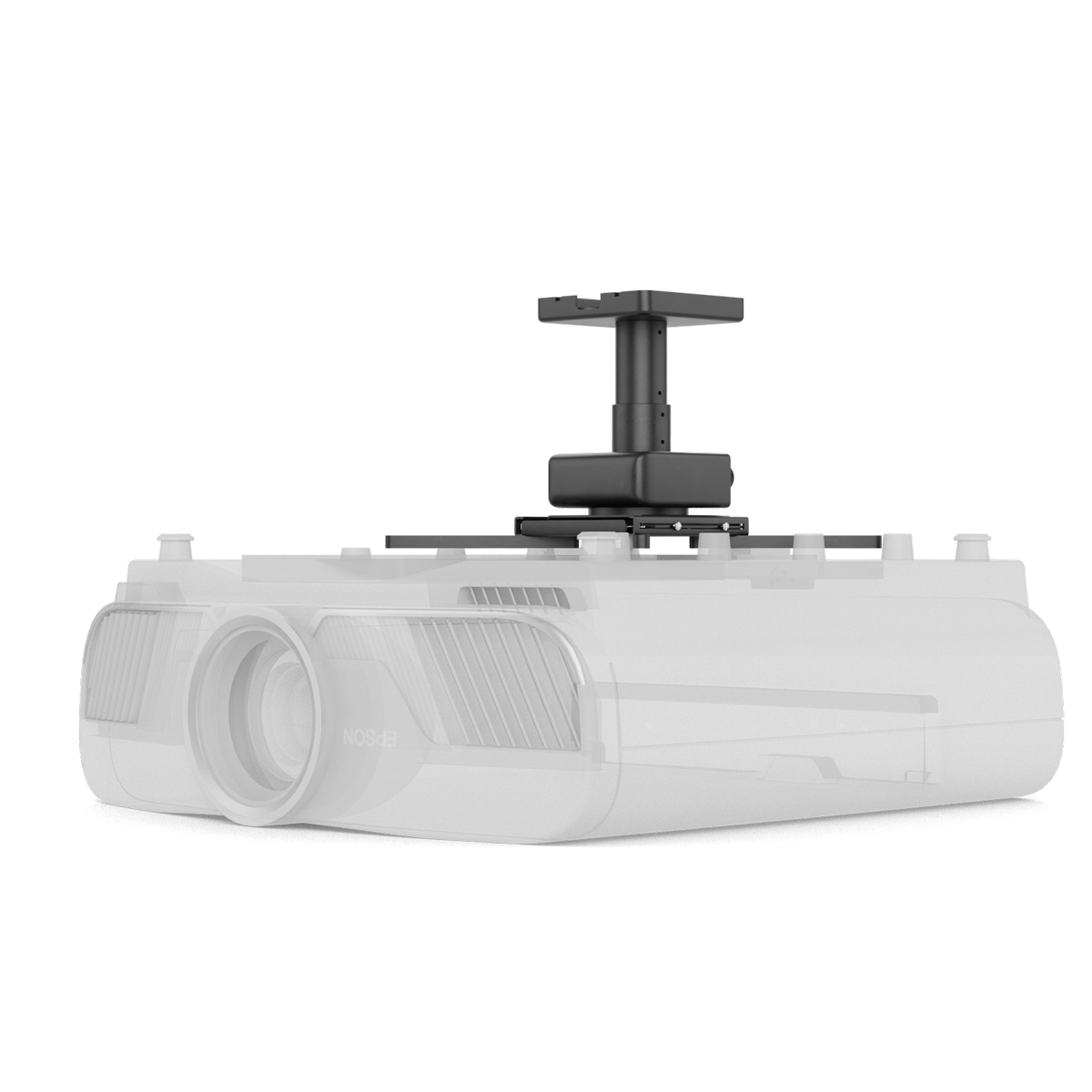

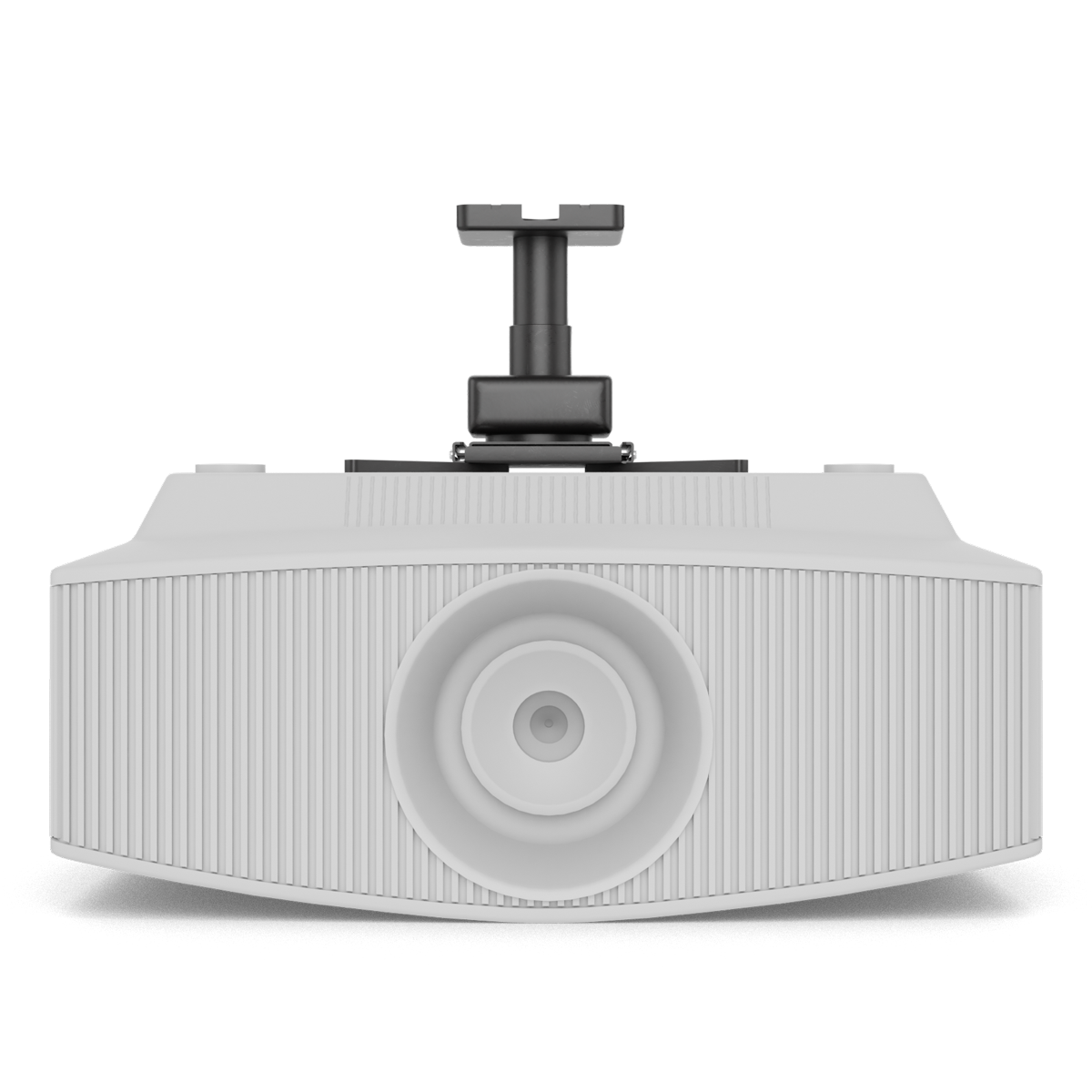

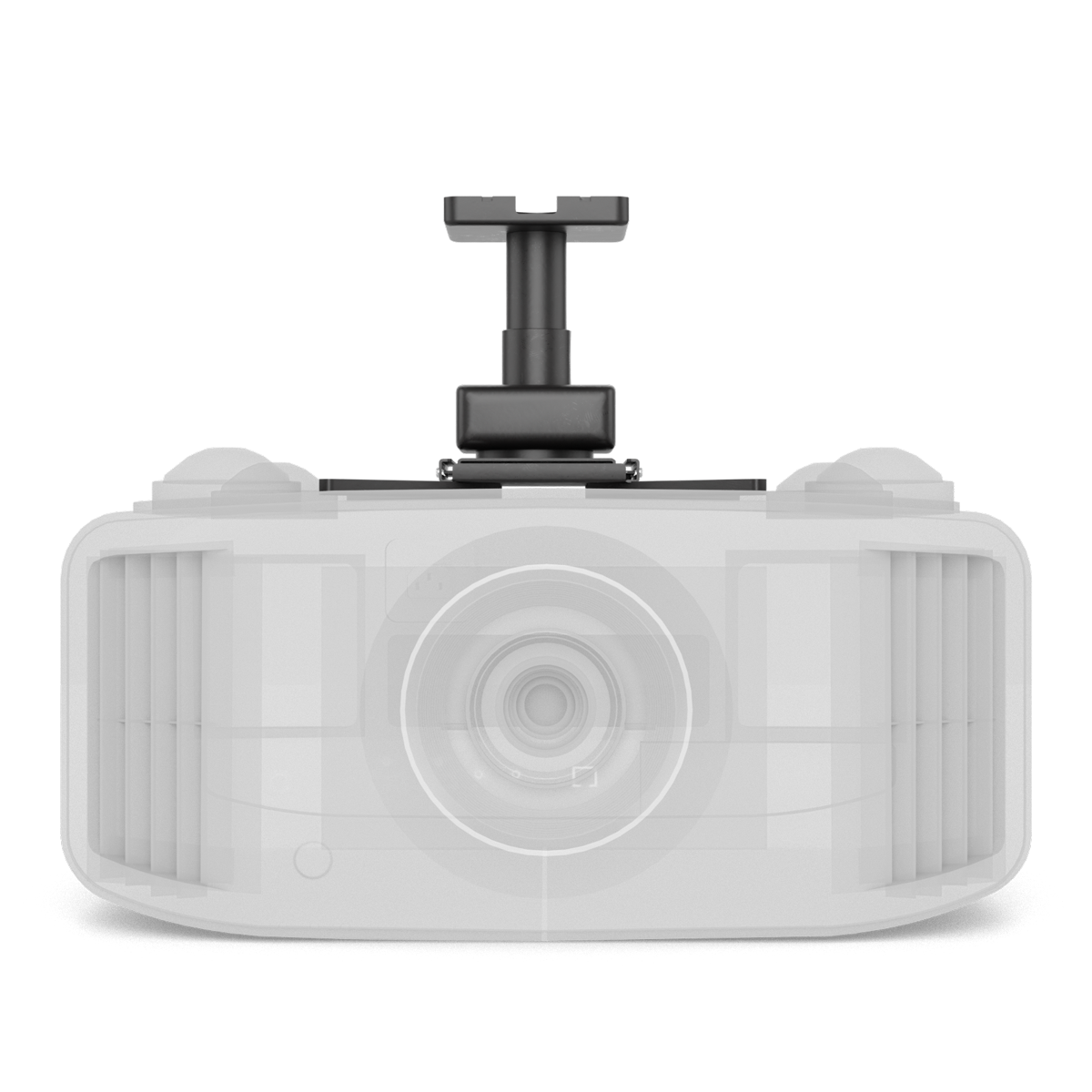

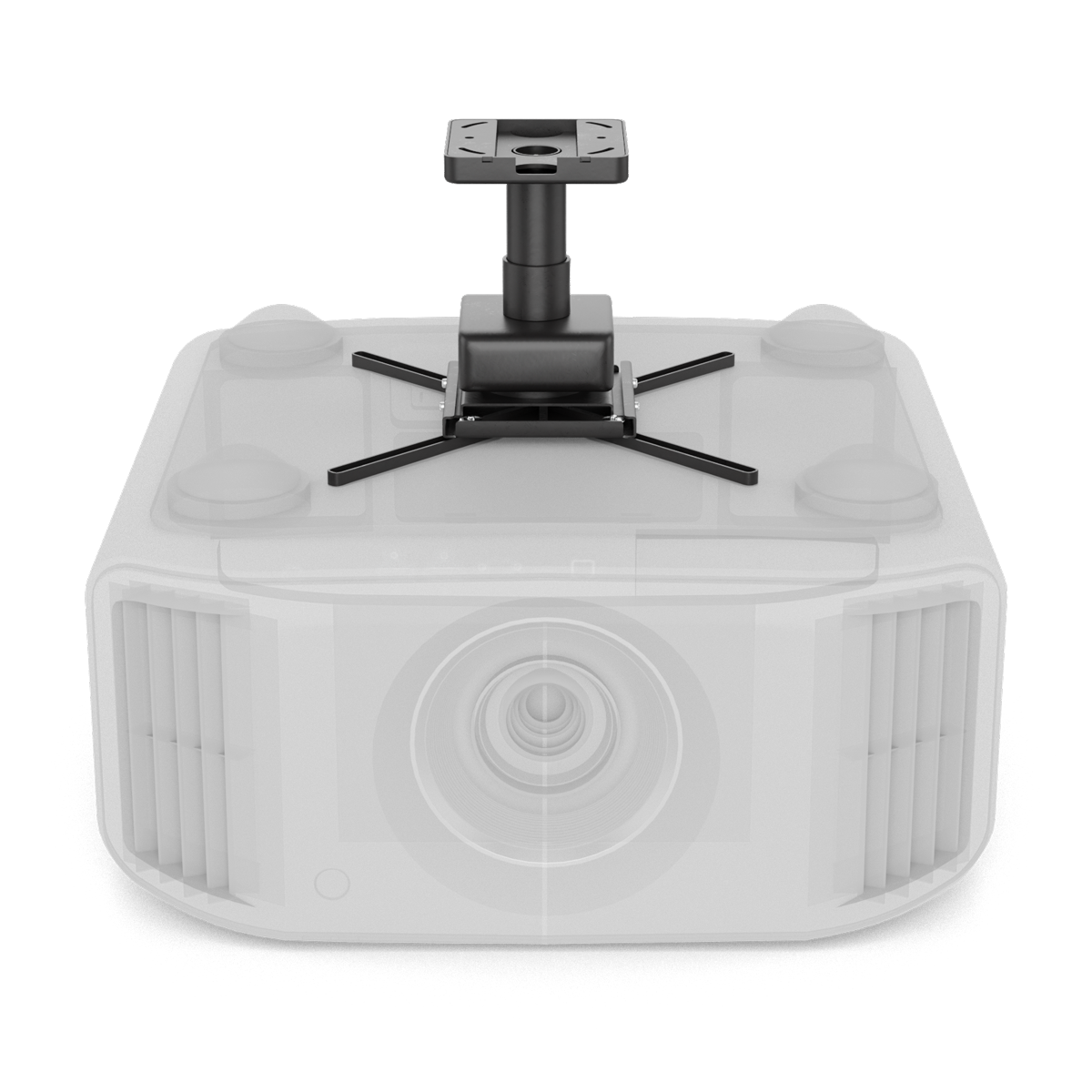

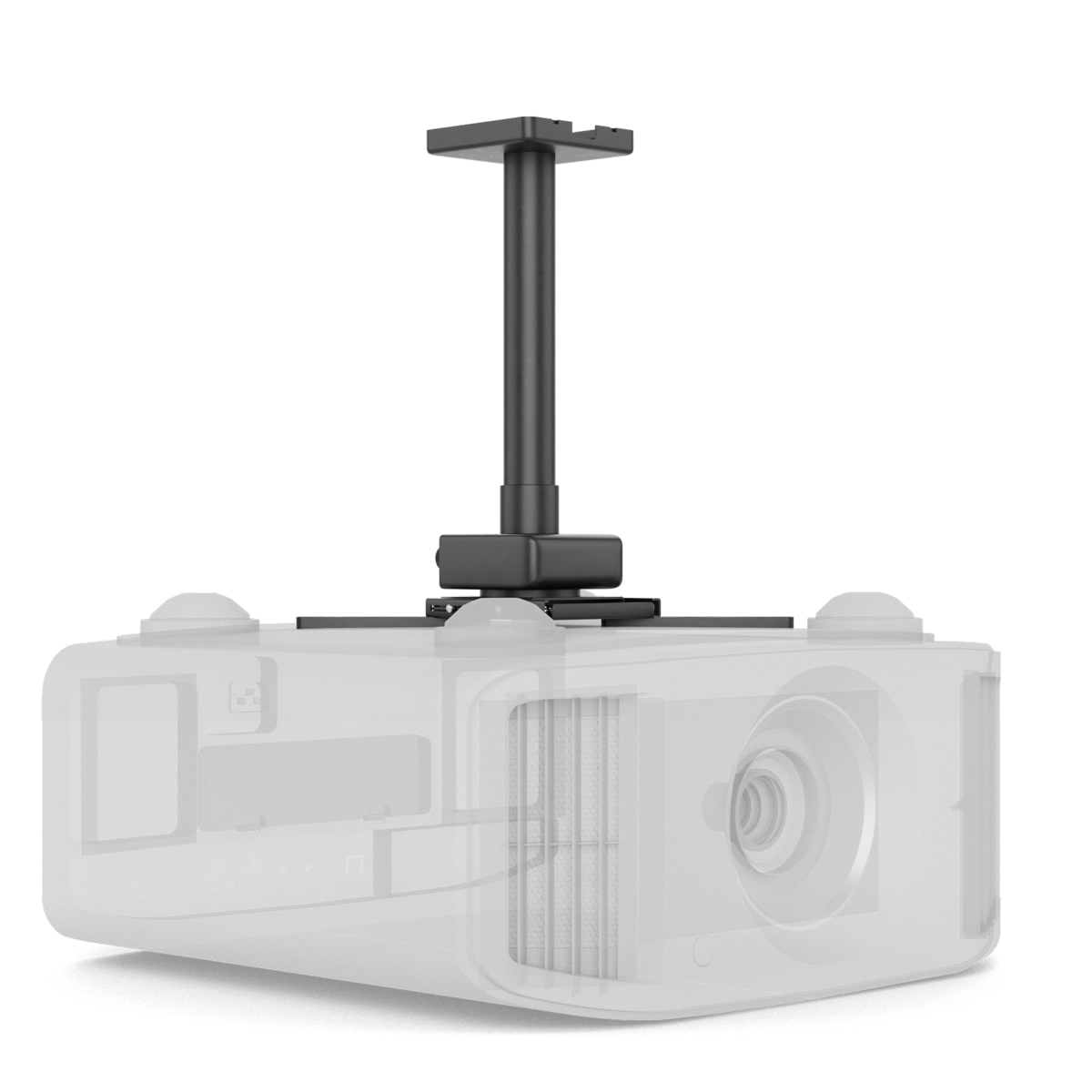

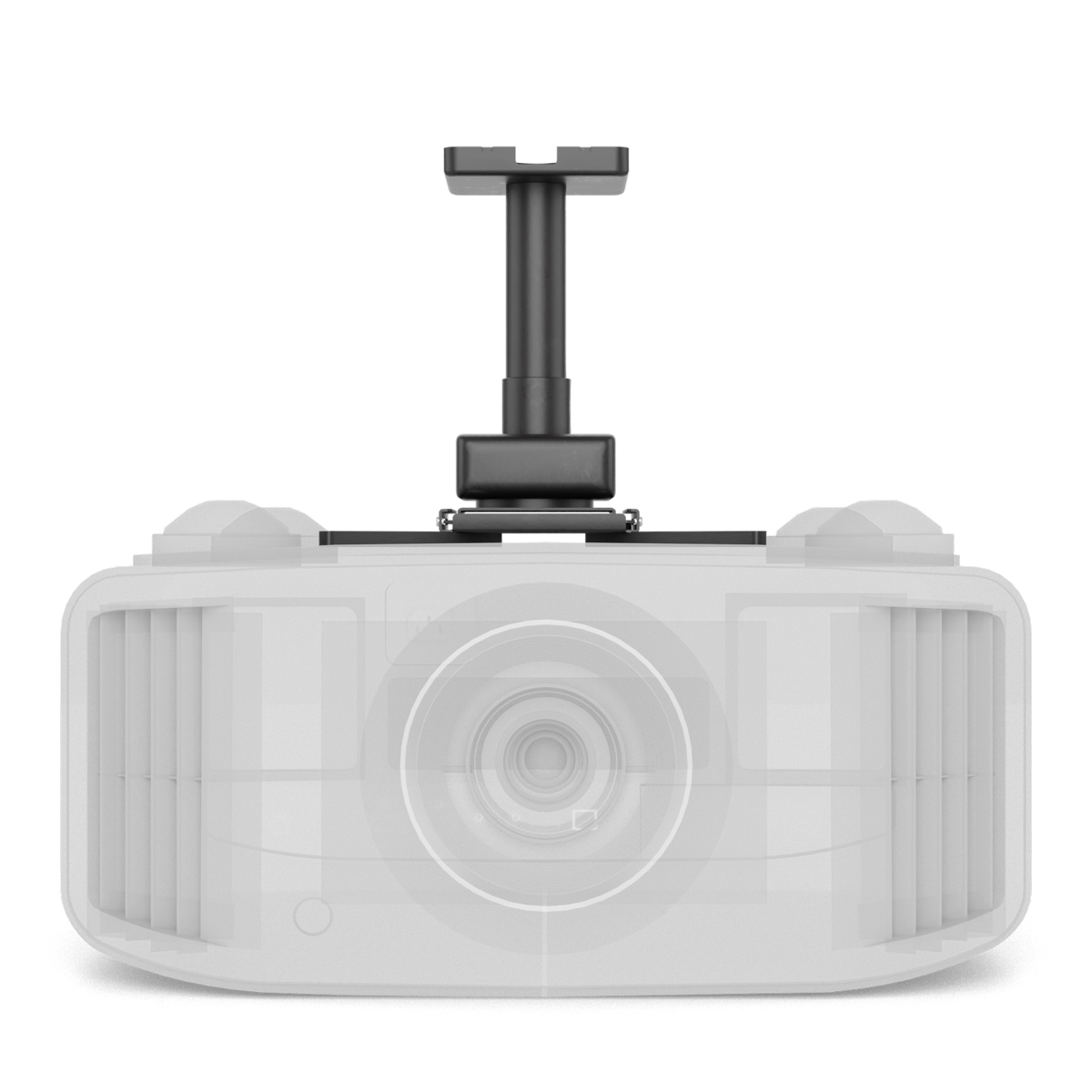

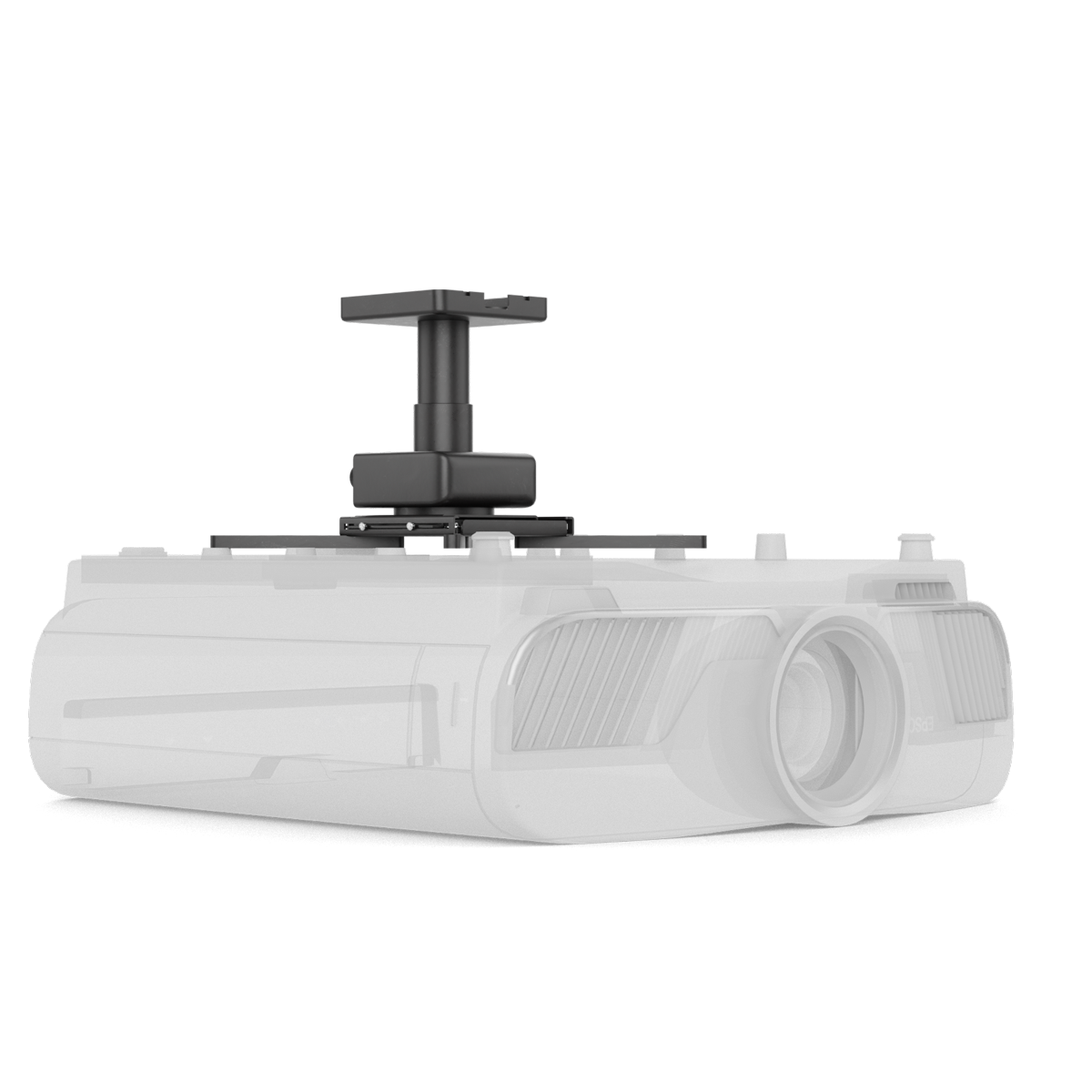

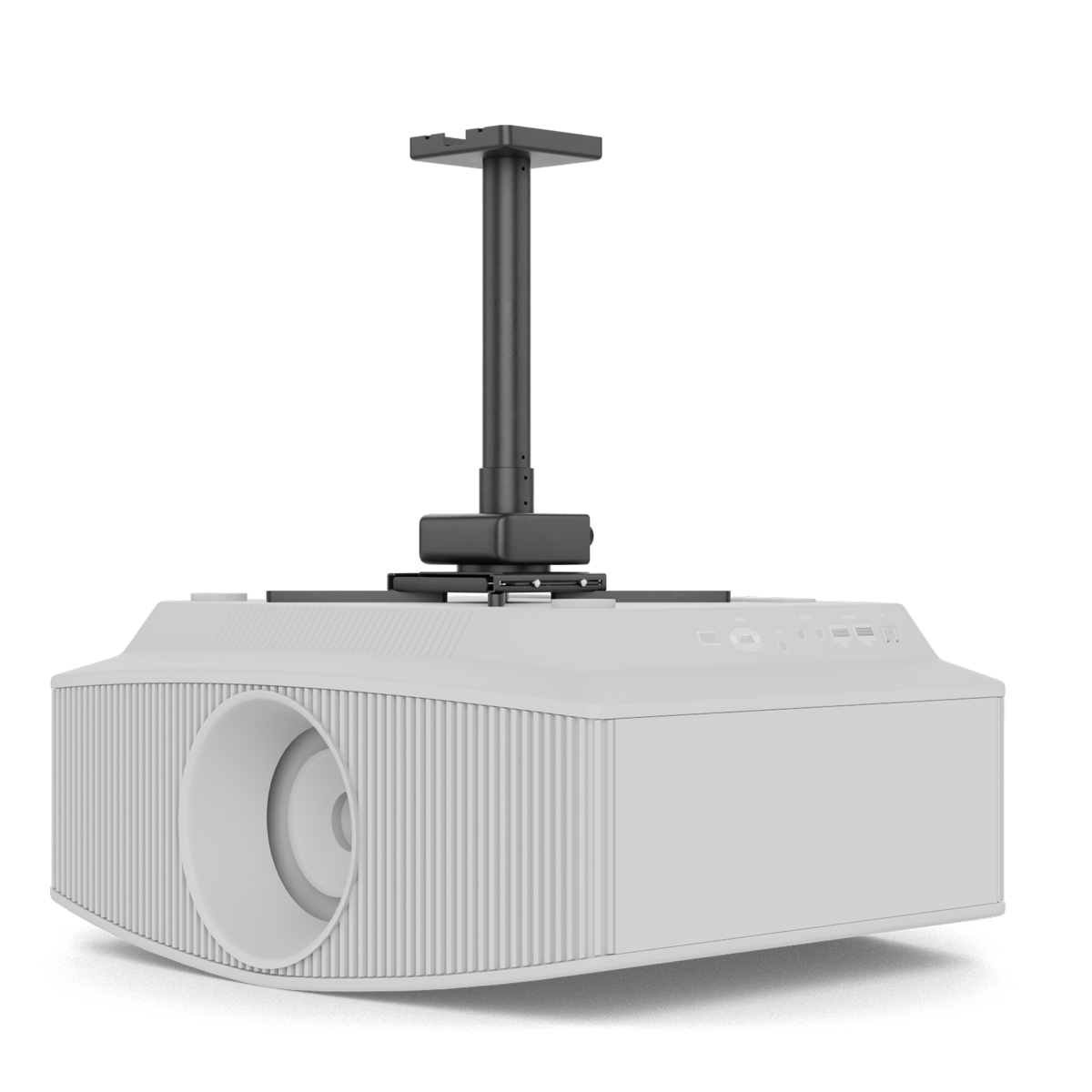

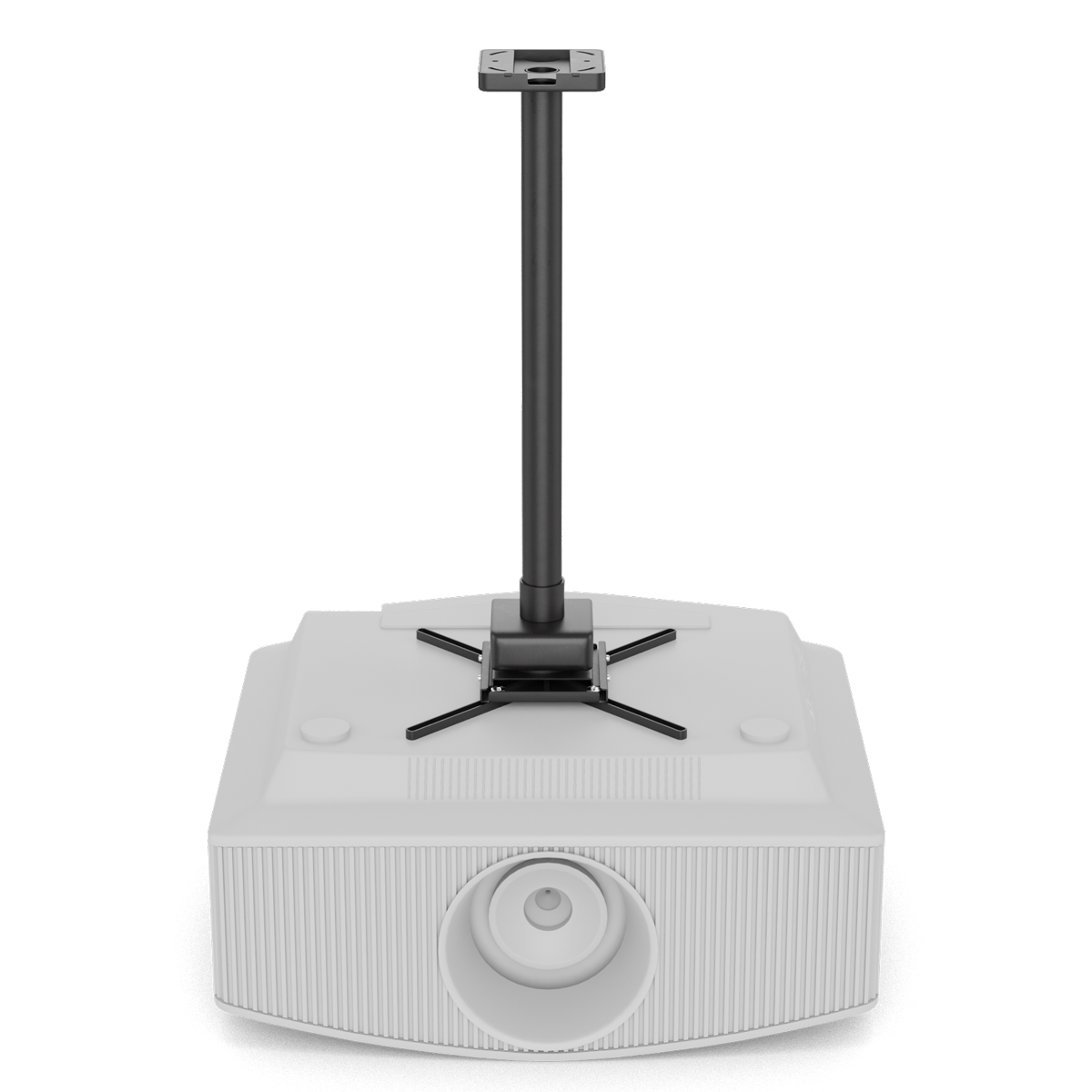

If you want to drop the projector off the ceiling with an extension pole, we've included a separate ceiling plate to allow for easy connection to the pipe. Also included is a plastic cover to keep the install looking neat and tidy. Select from fixed and adjustable extension poles ranging from 3 - 24”. To get the best picture, you should align the top of your projector with the top of your screen. Measure from the ceiling to the top of your screen, and then determine the length of the extension pole needed to ensure the top of your projector is at the same height.

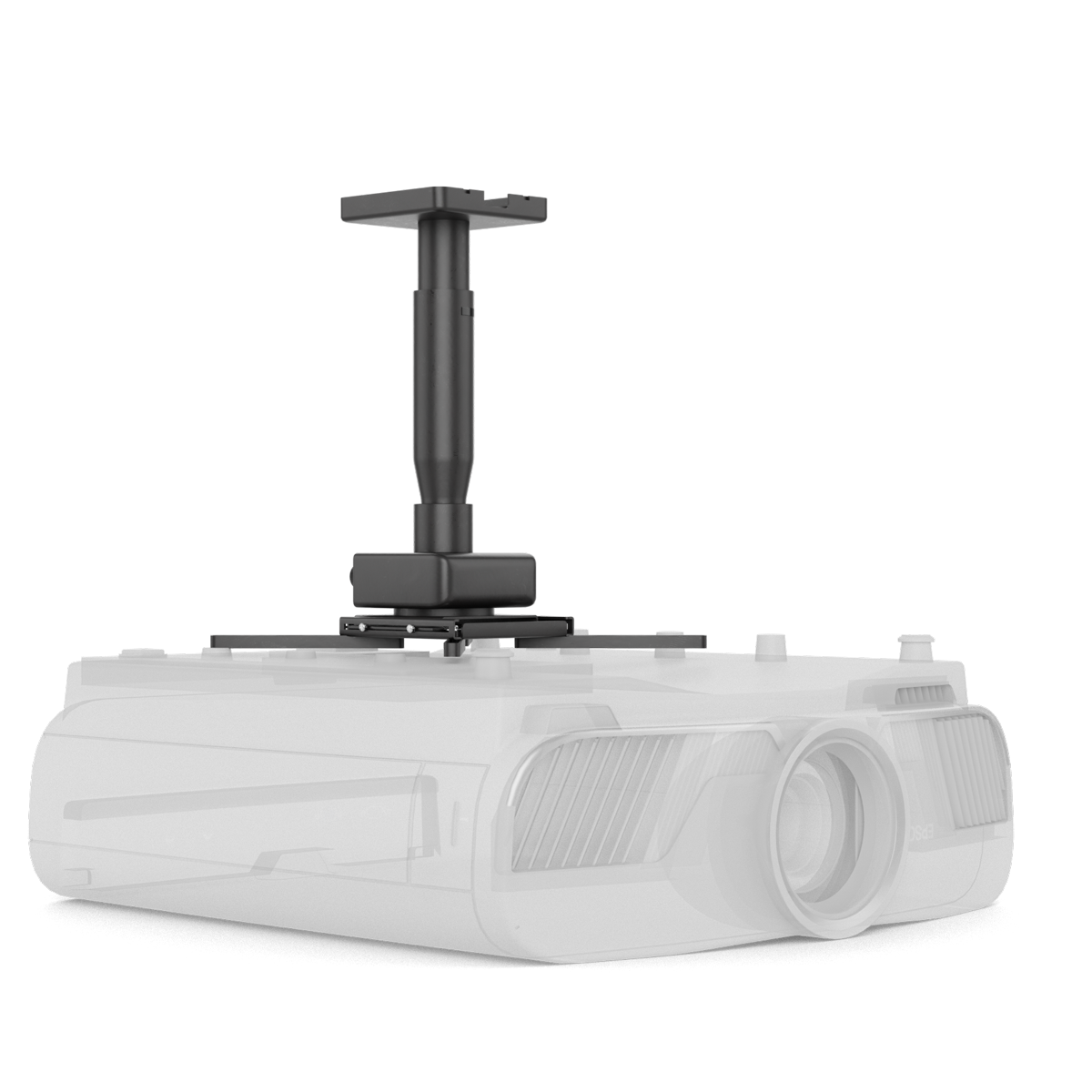

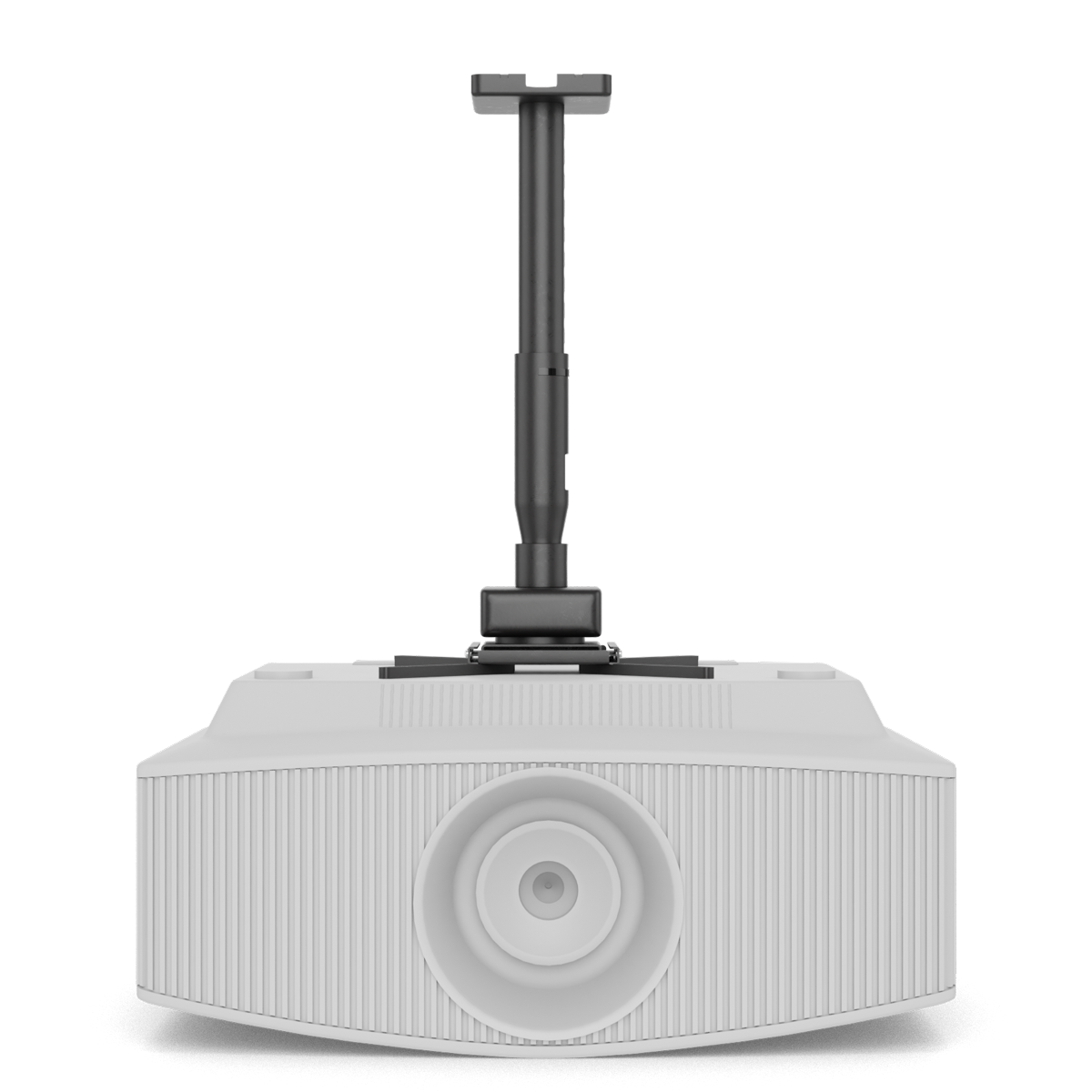

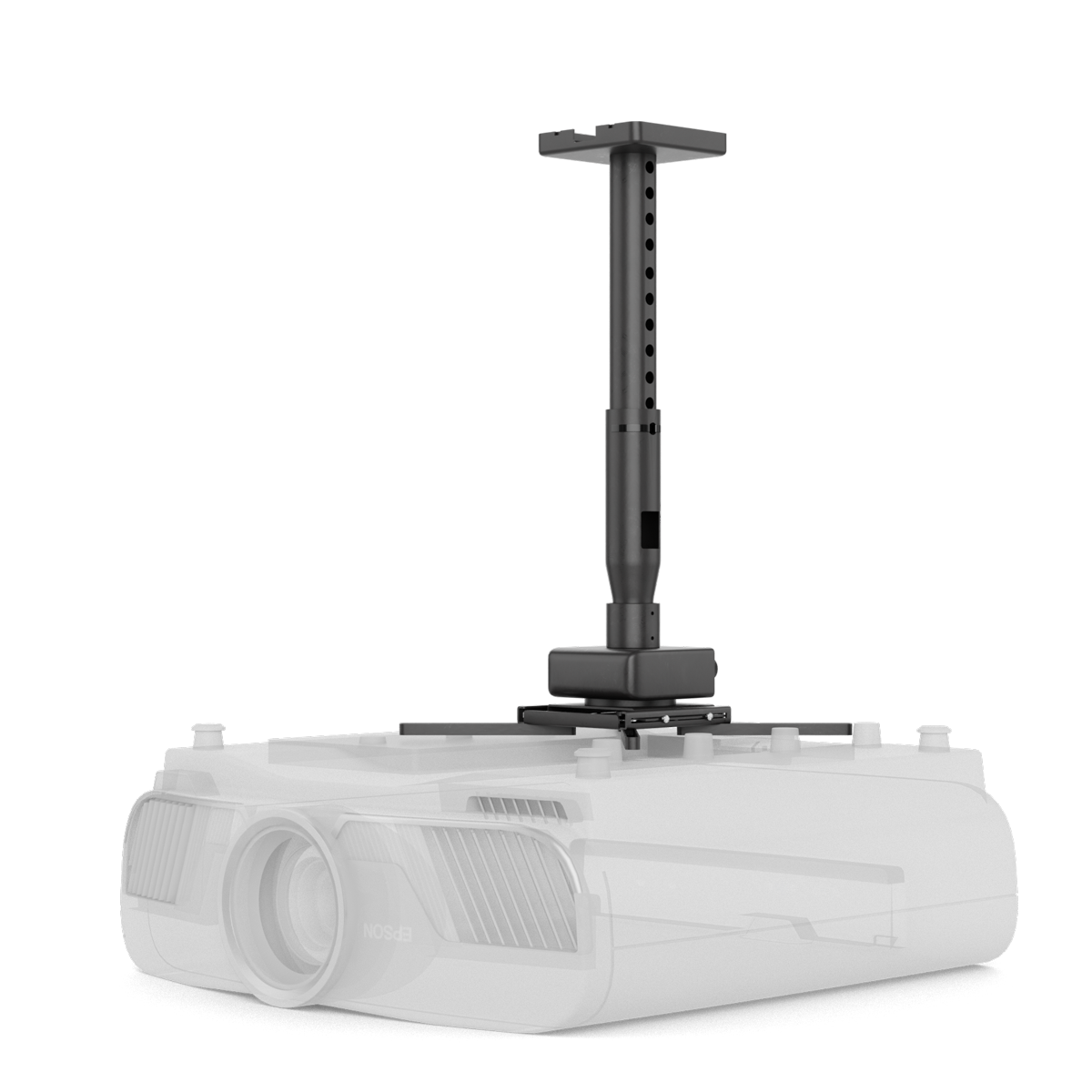

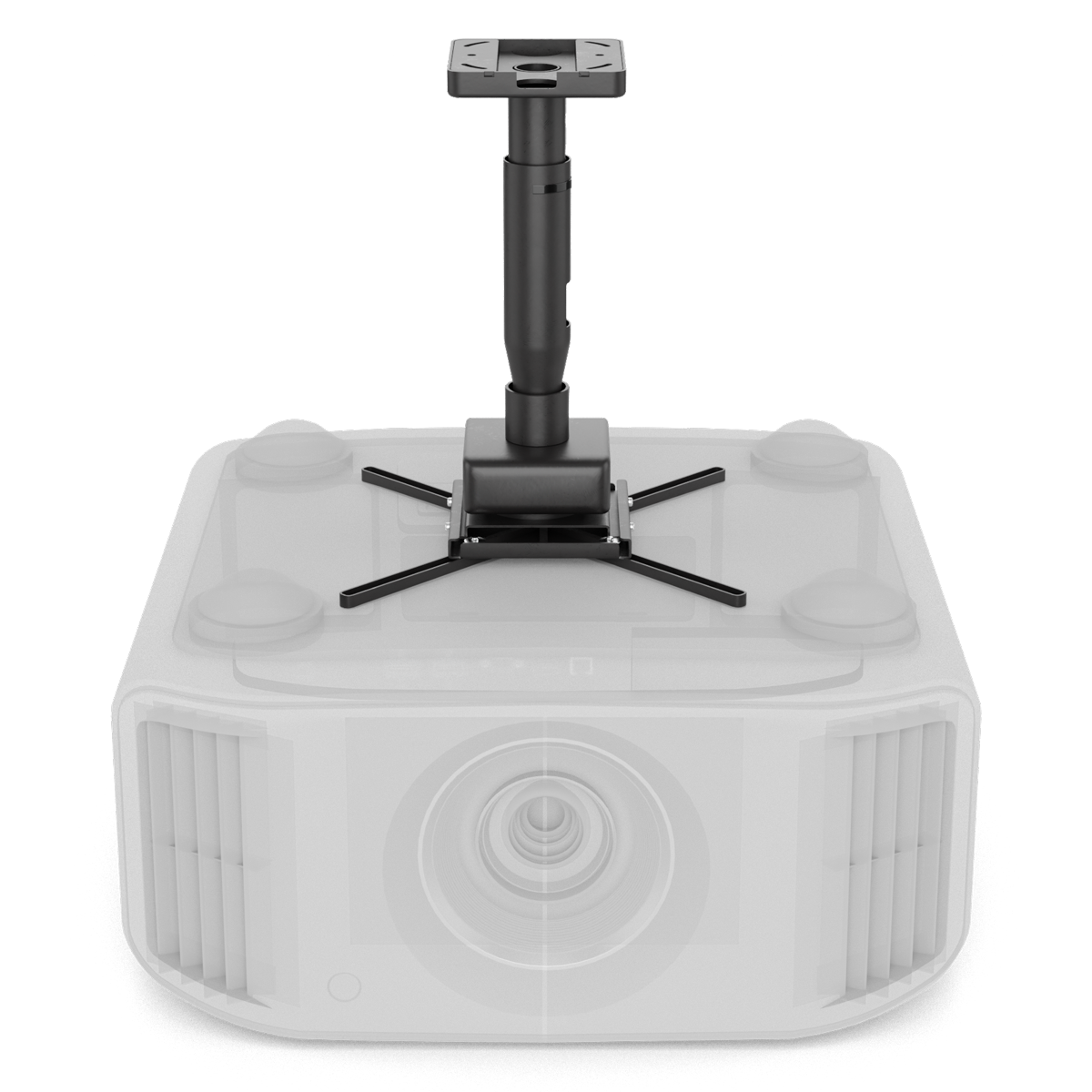

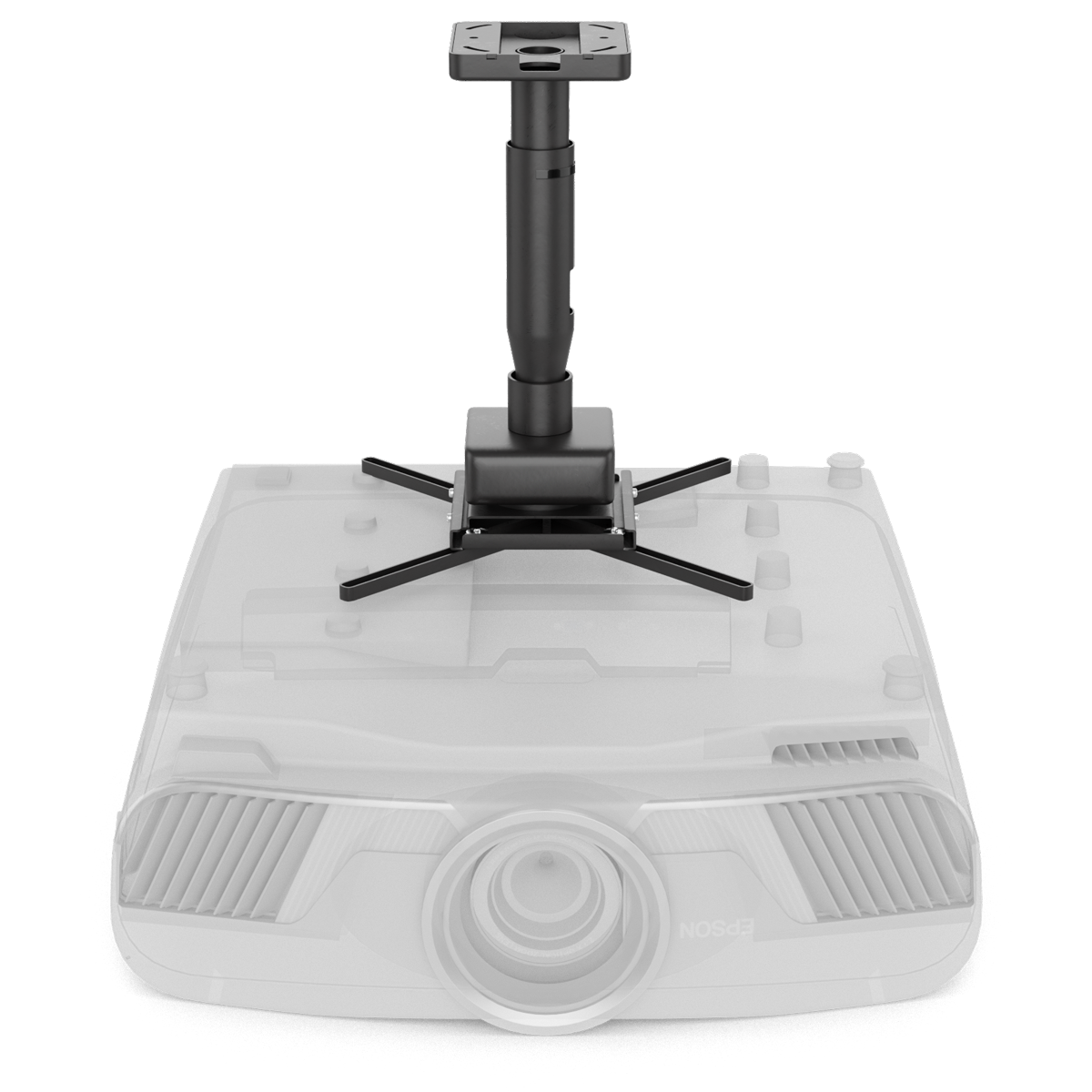

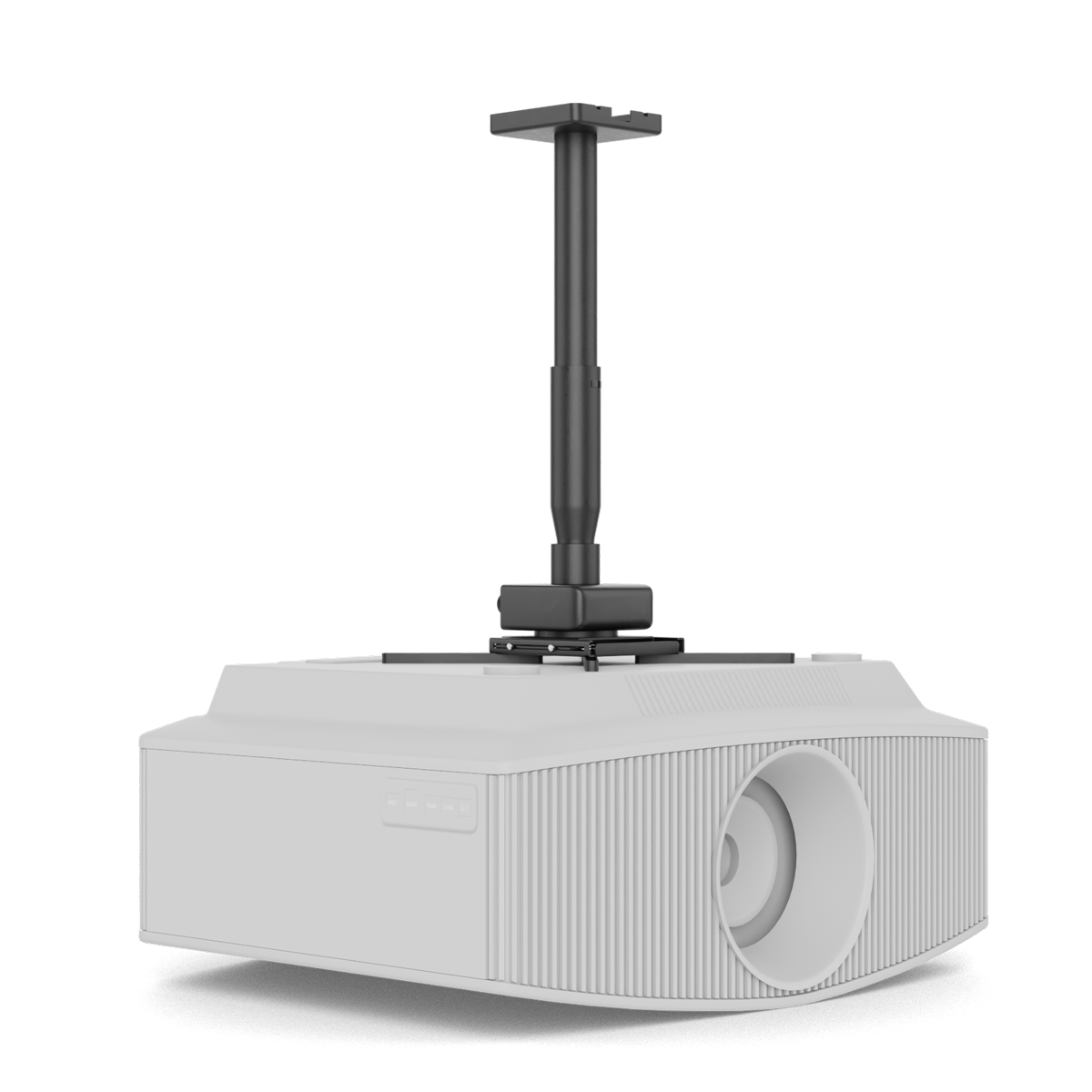

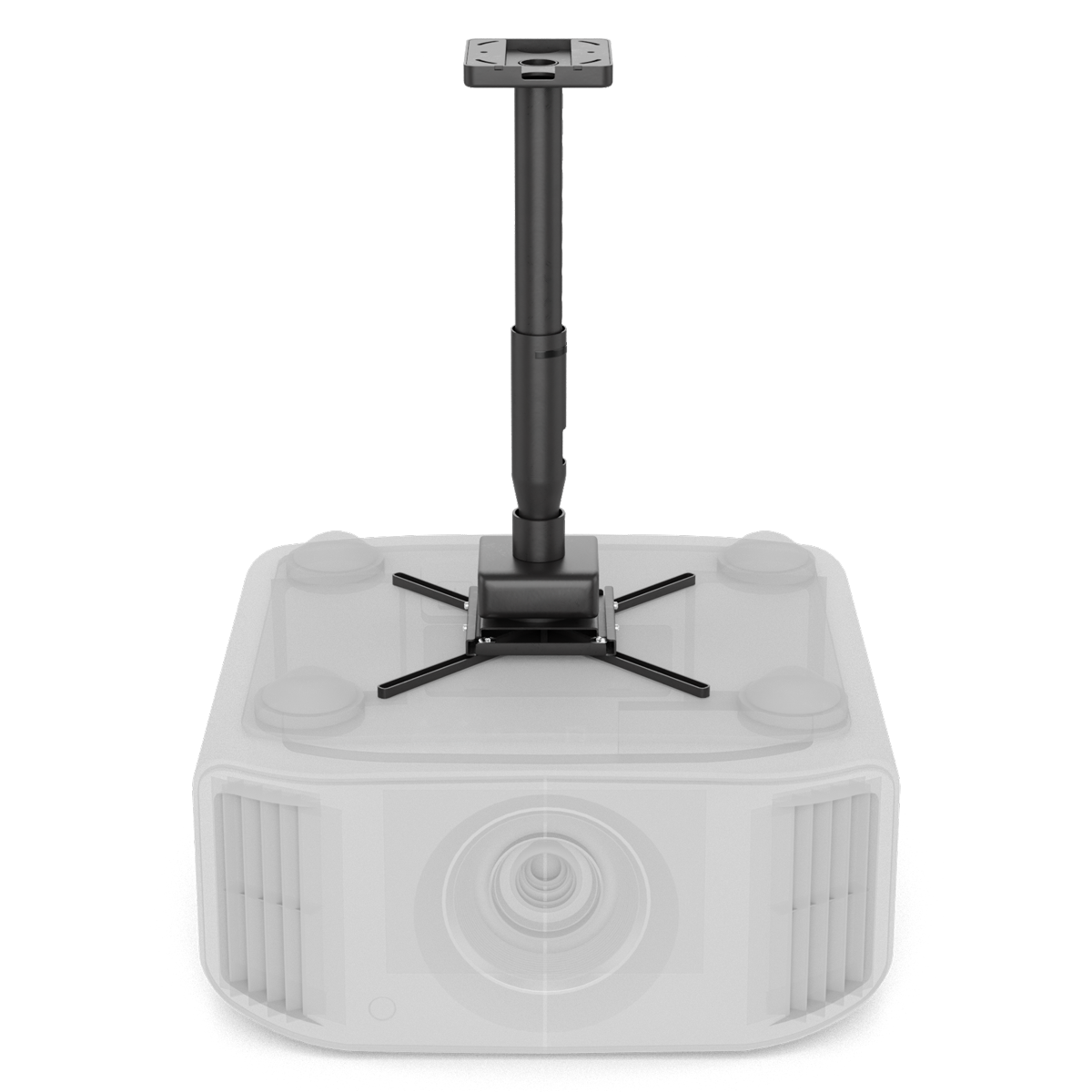

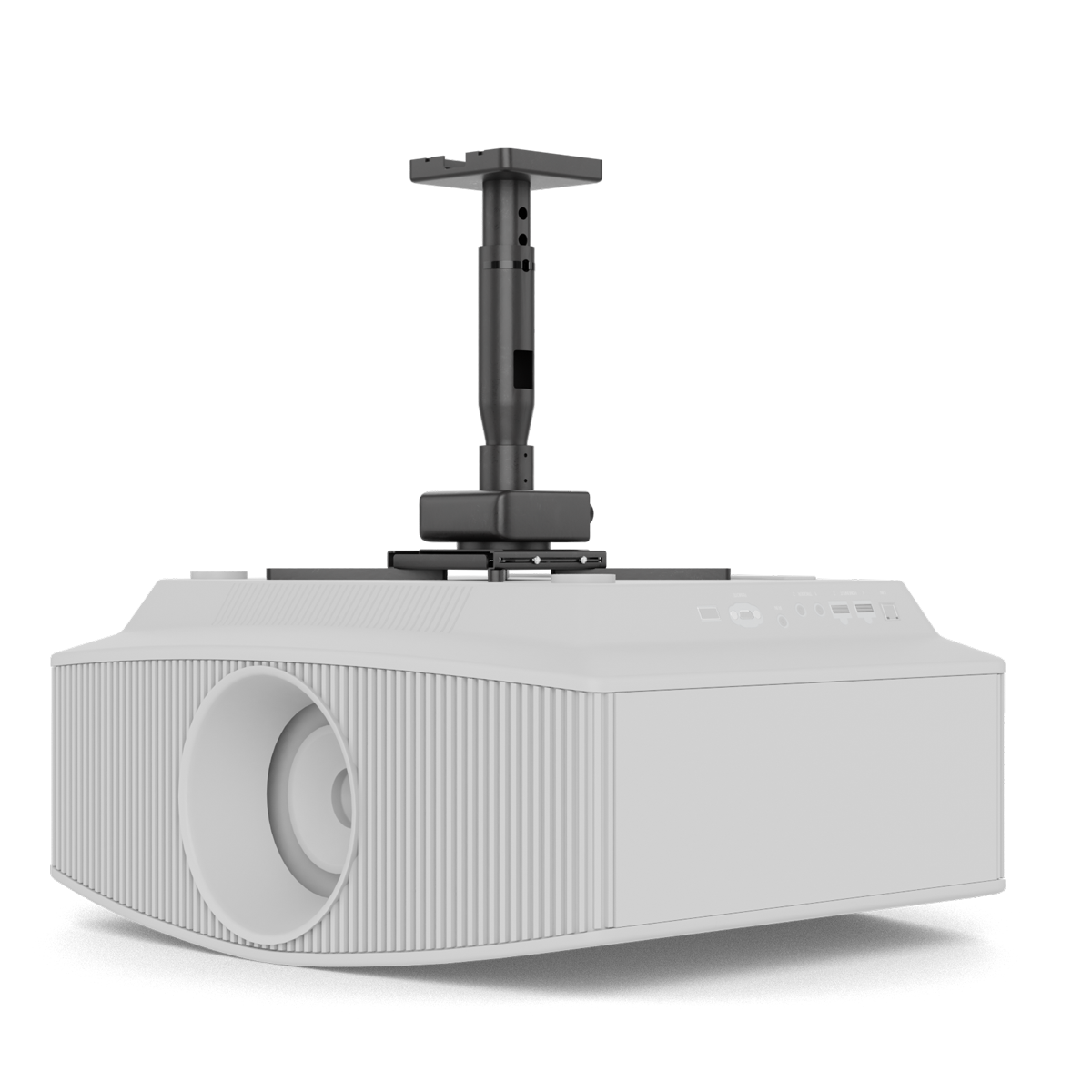

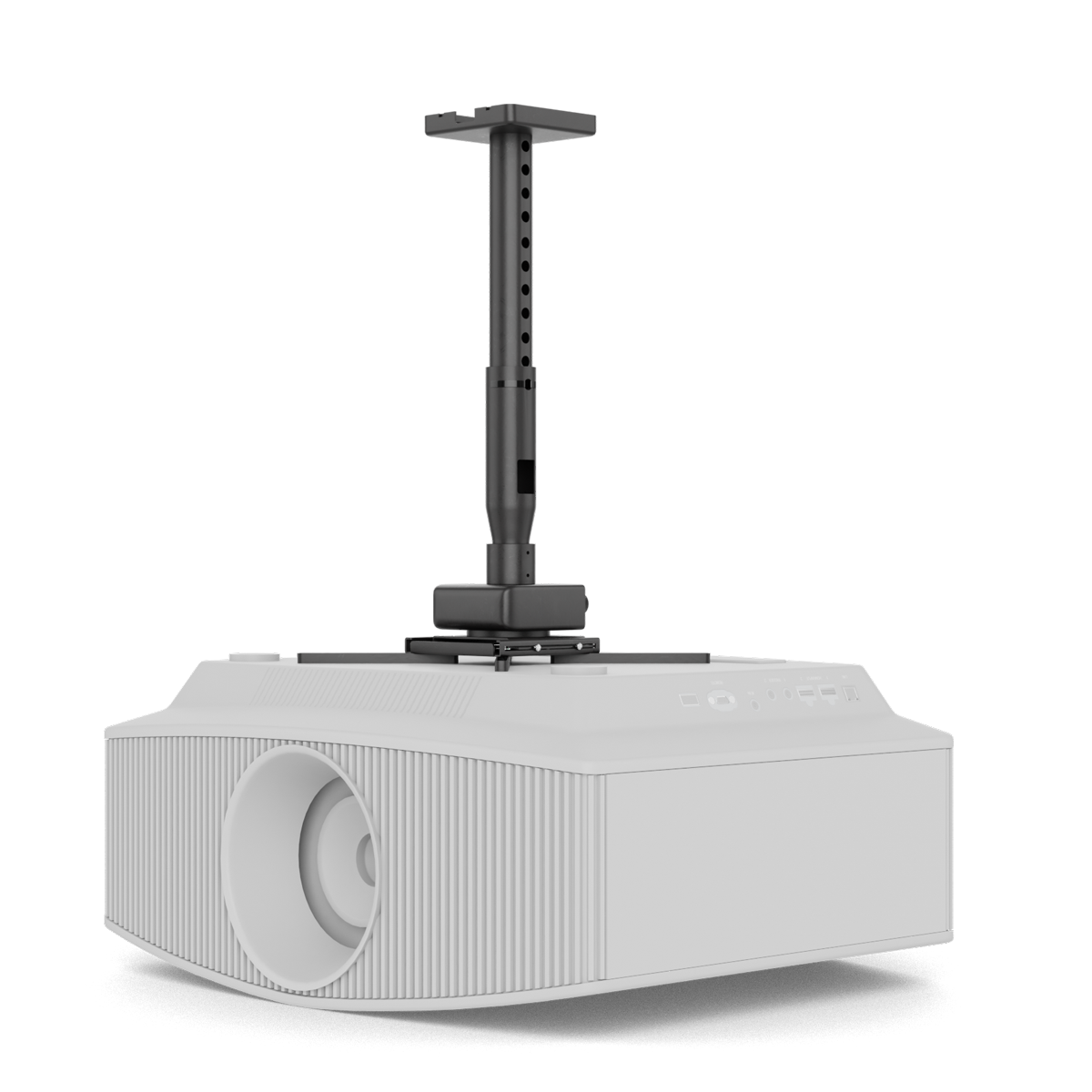

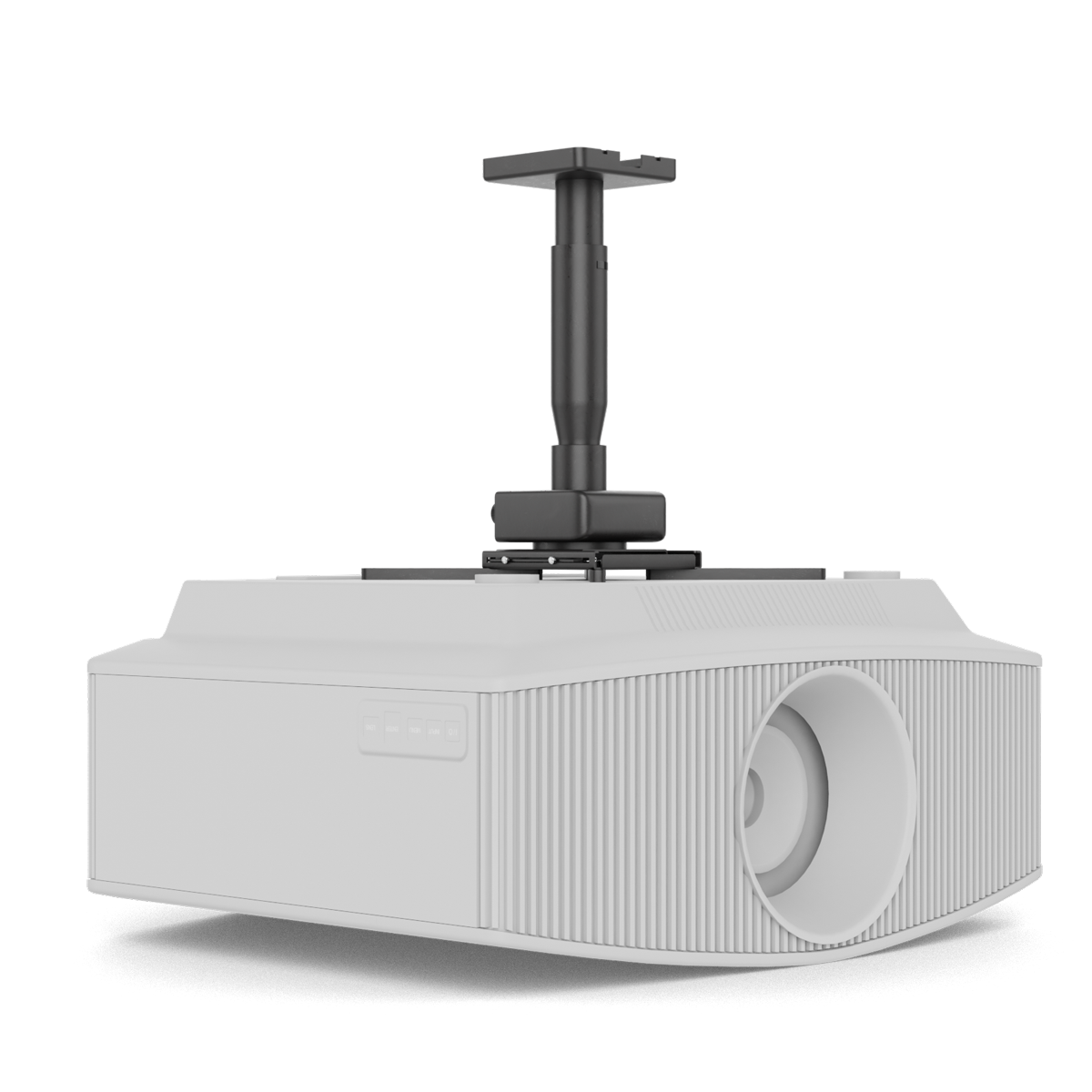

Adjustable or Fixed Extension Poles: If you are not sure of your exact height, choose the adjustable version or if you are, you can save a little with the fixed length.

Warranty

Limited Lifetime — This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled.

Details & Specs

Mount Kit Includes

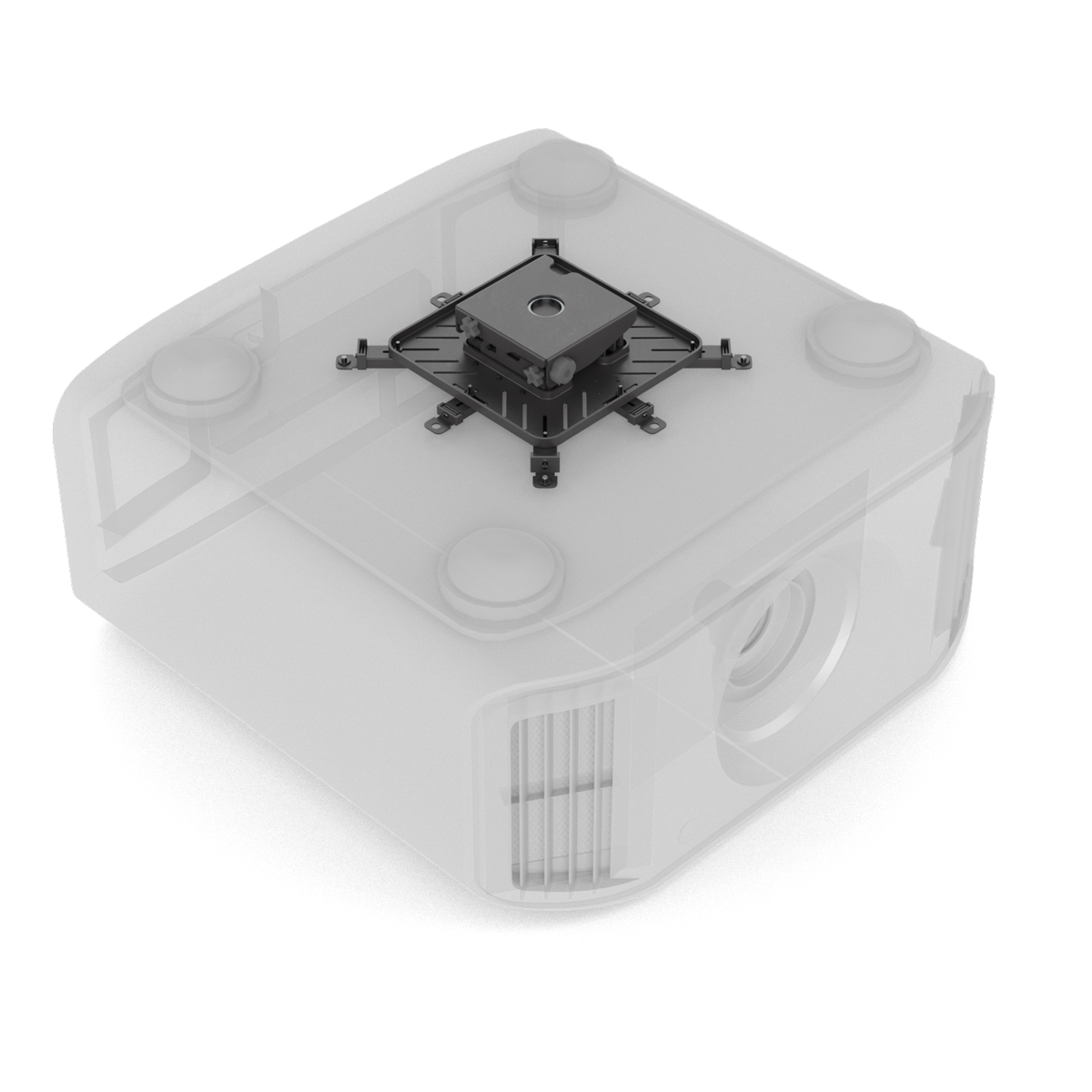

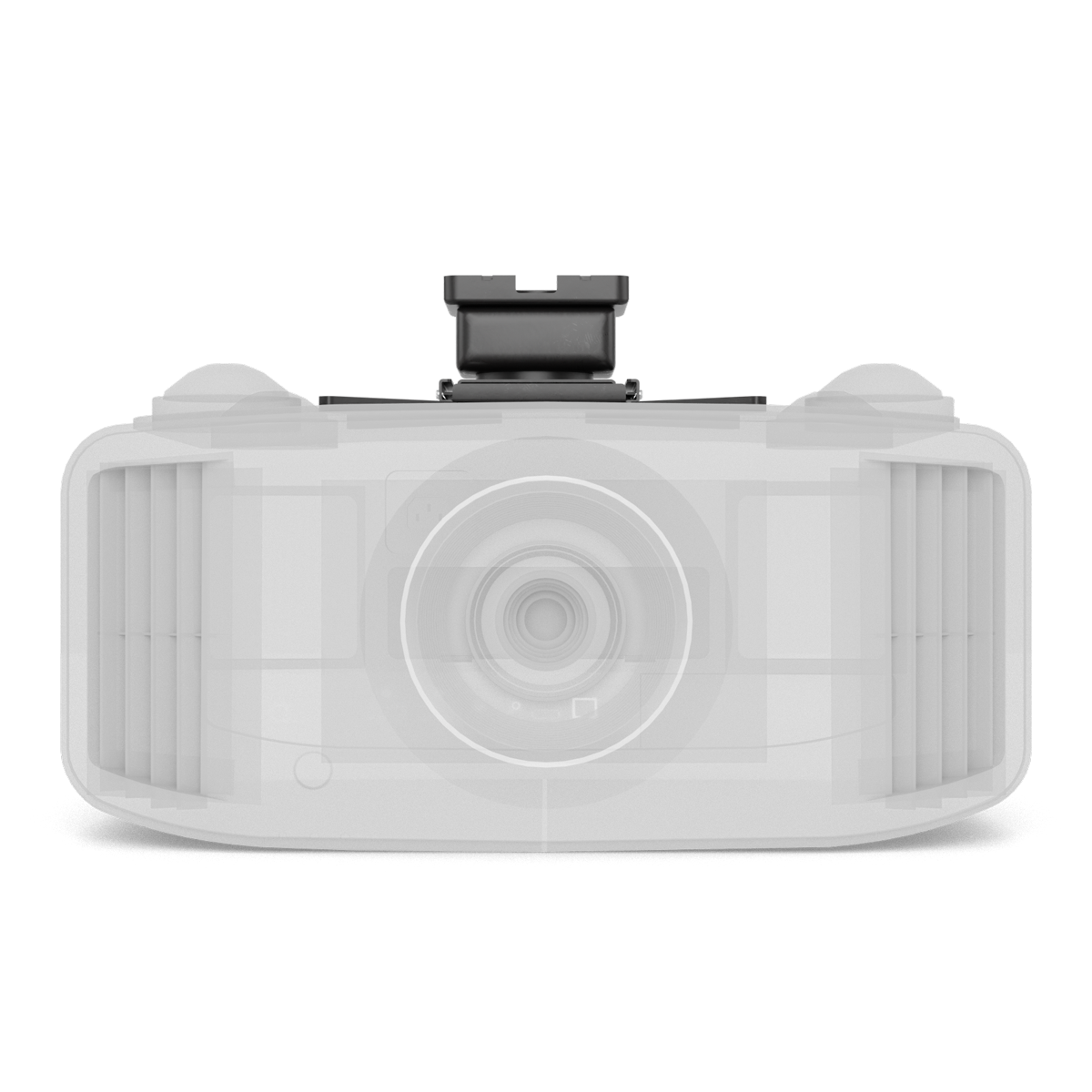

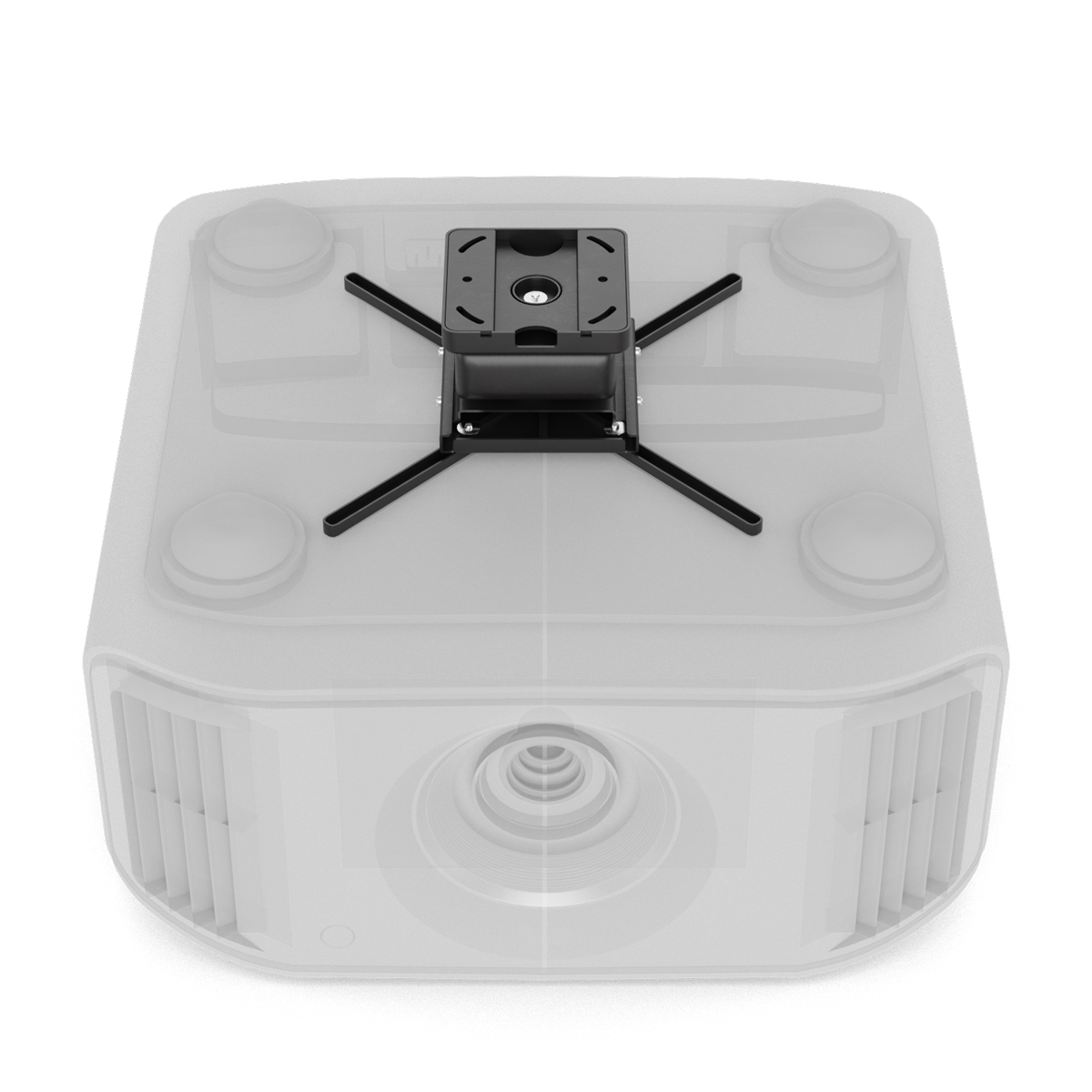

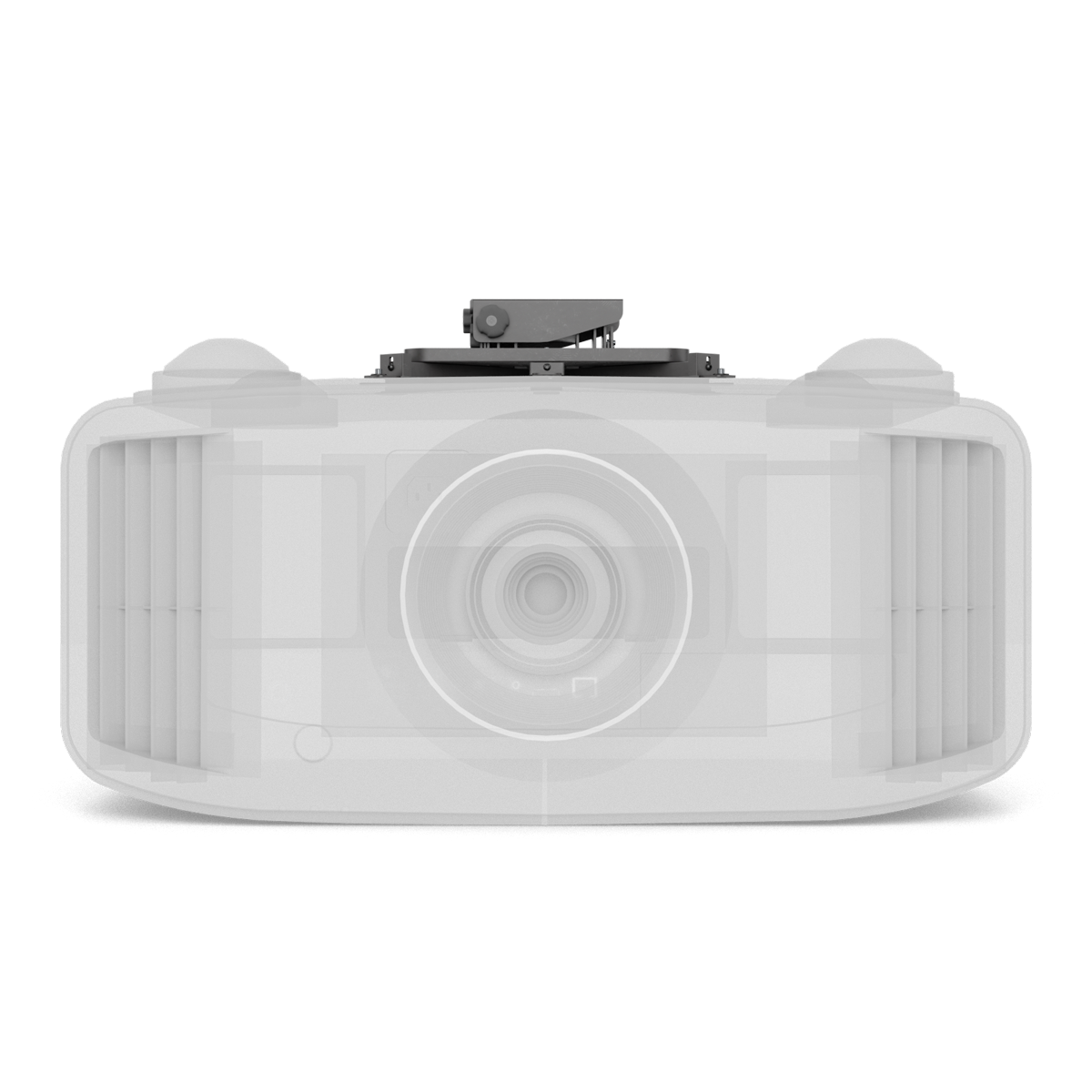

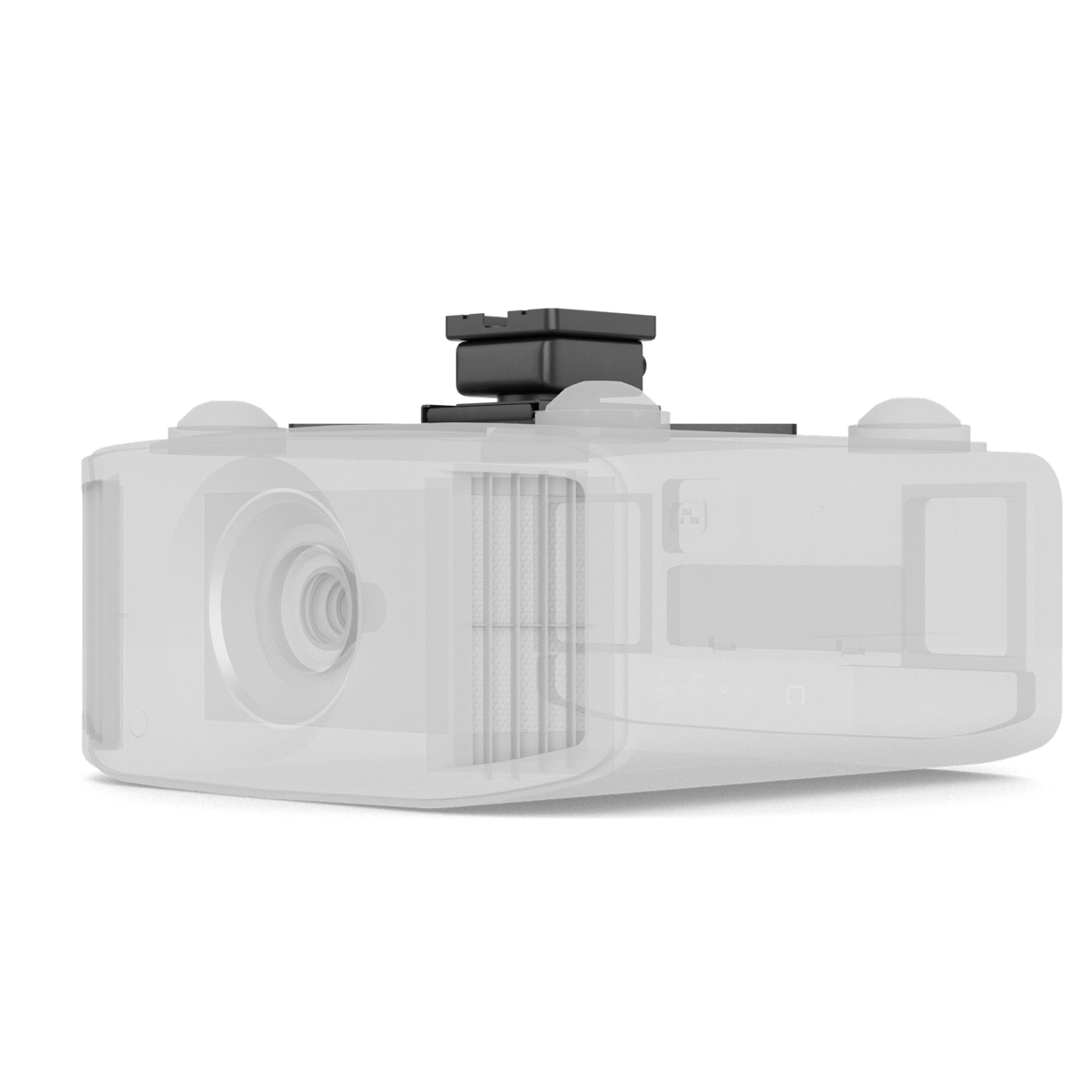

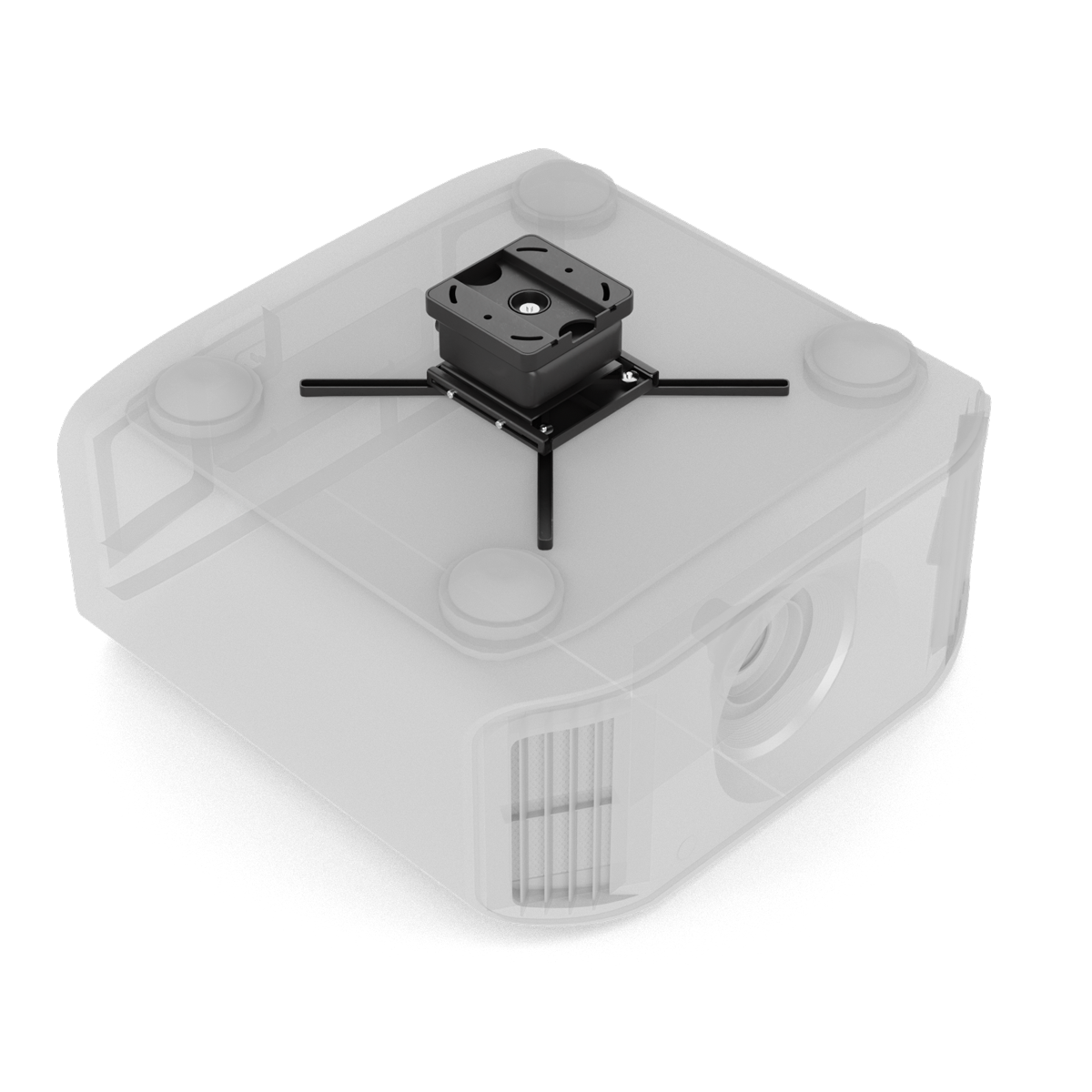

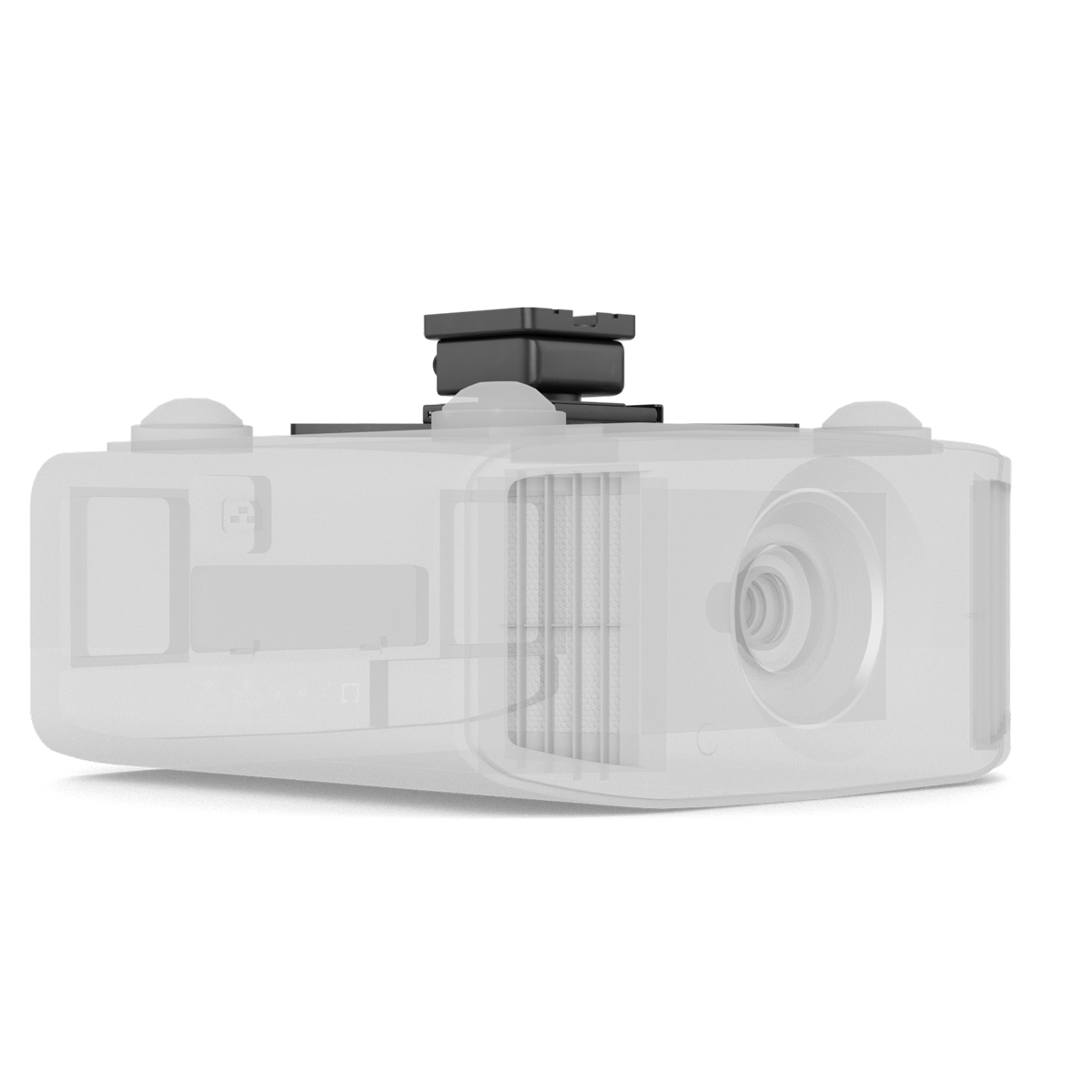

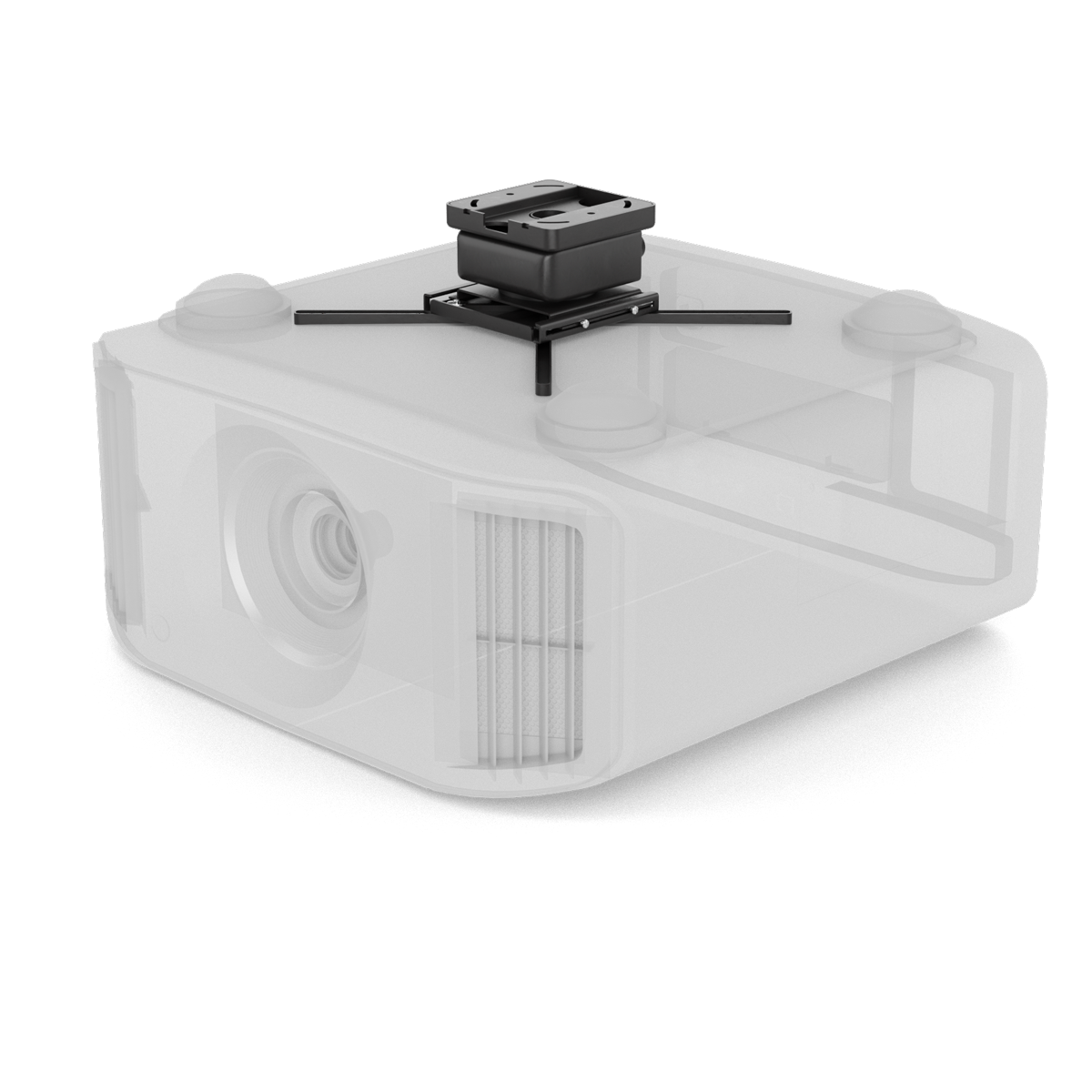

Universal Fine Adjust Projector Mount,  1-½” NPT Coupler,  Choice of Flush Mount, Fixed or Adjustable Extension Poles

Universal Fine Adjust Projector Mount

  • Distance from ceiling: 5-⅕”
  • Roll: -5  / +5°
  • Swivel: -5  / +5°
  • Tilt: -5  / +5°
  • Maximum Load Support: 50 lbs
  • Materials: Steel, Plastic
  • Weight: 5.5 lb

1-½” NPT Coupler

  • Maximum Load Support: 200 lbs
  • Material: Steel

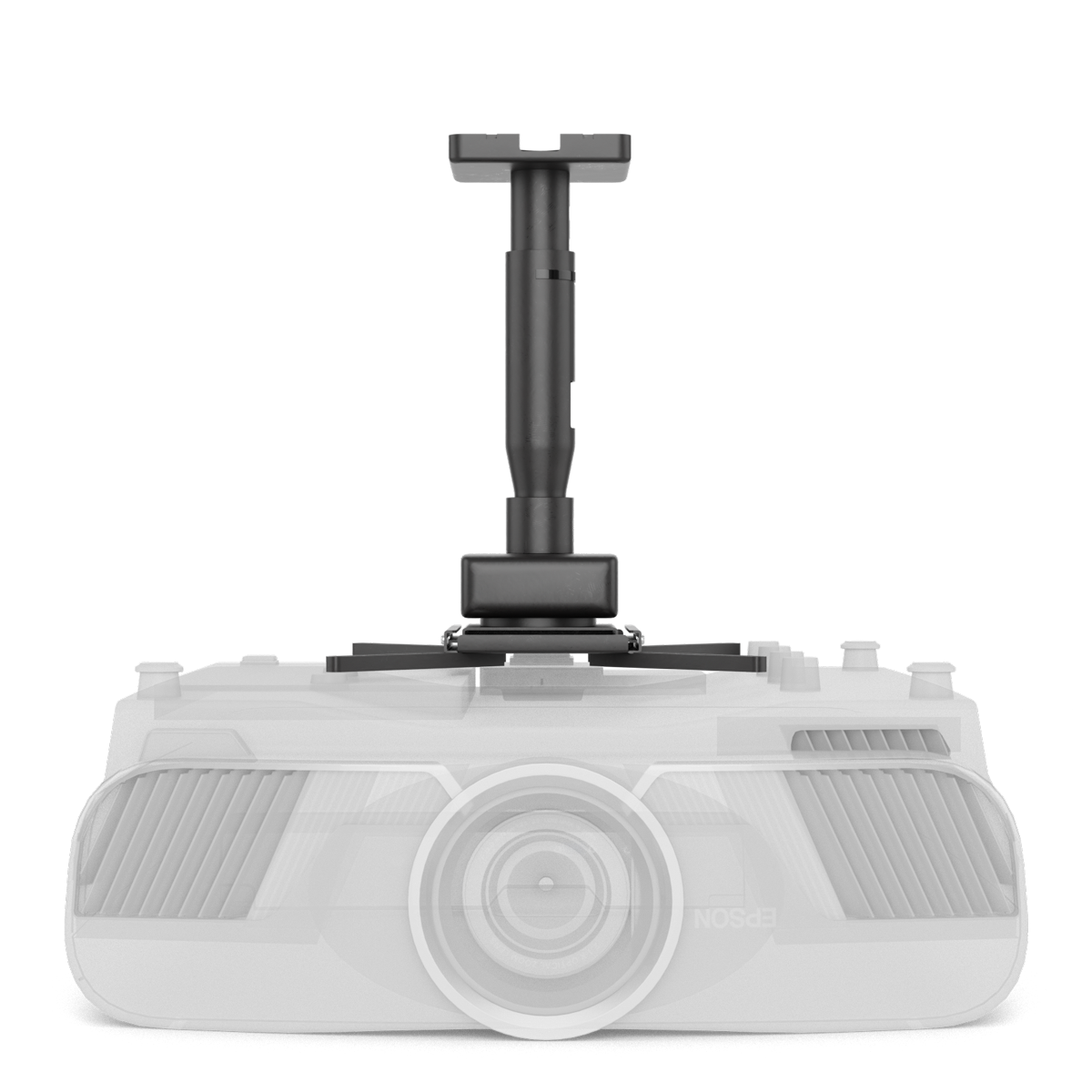

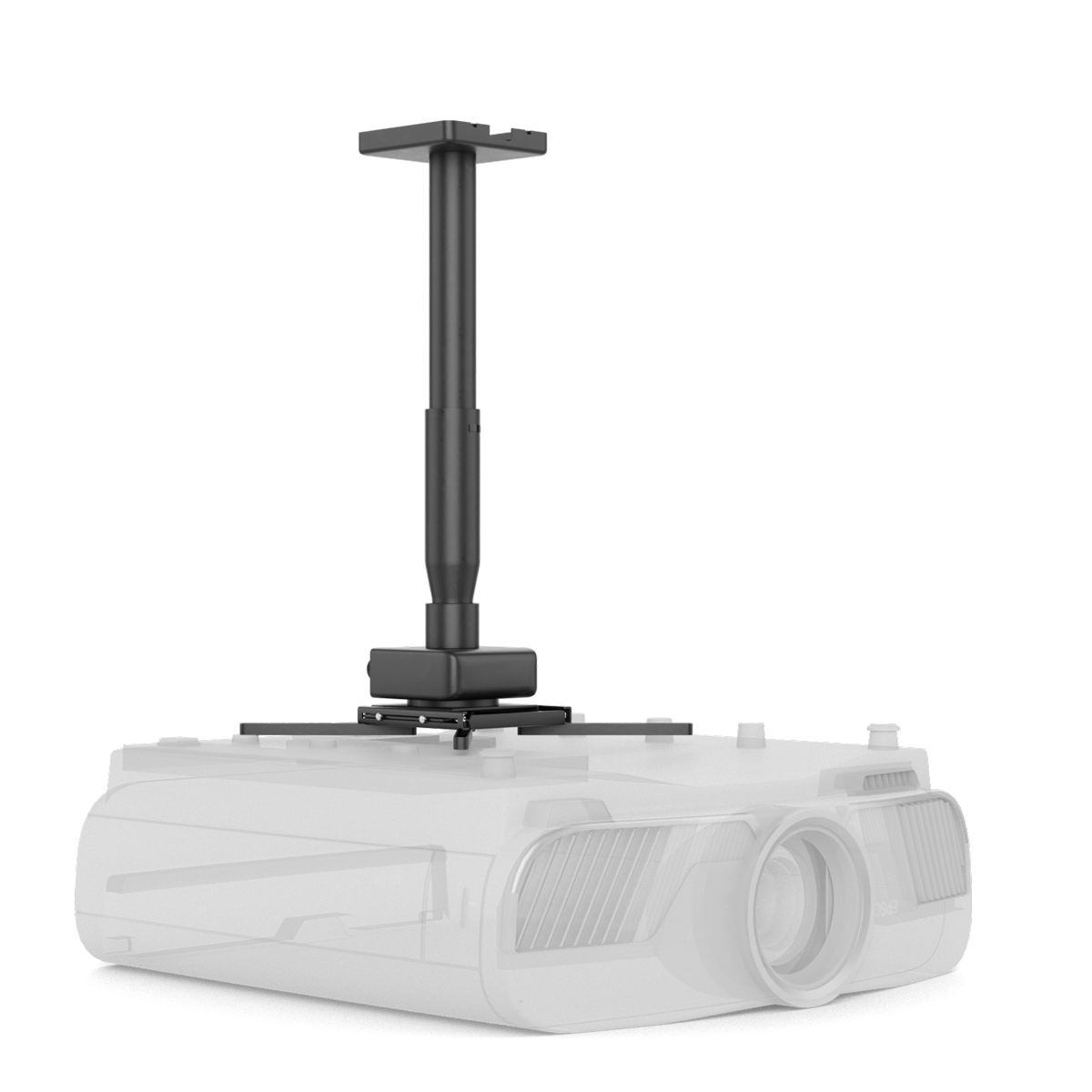

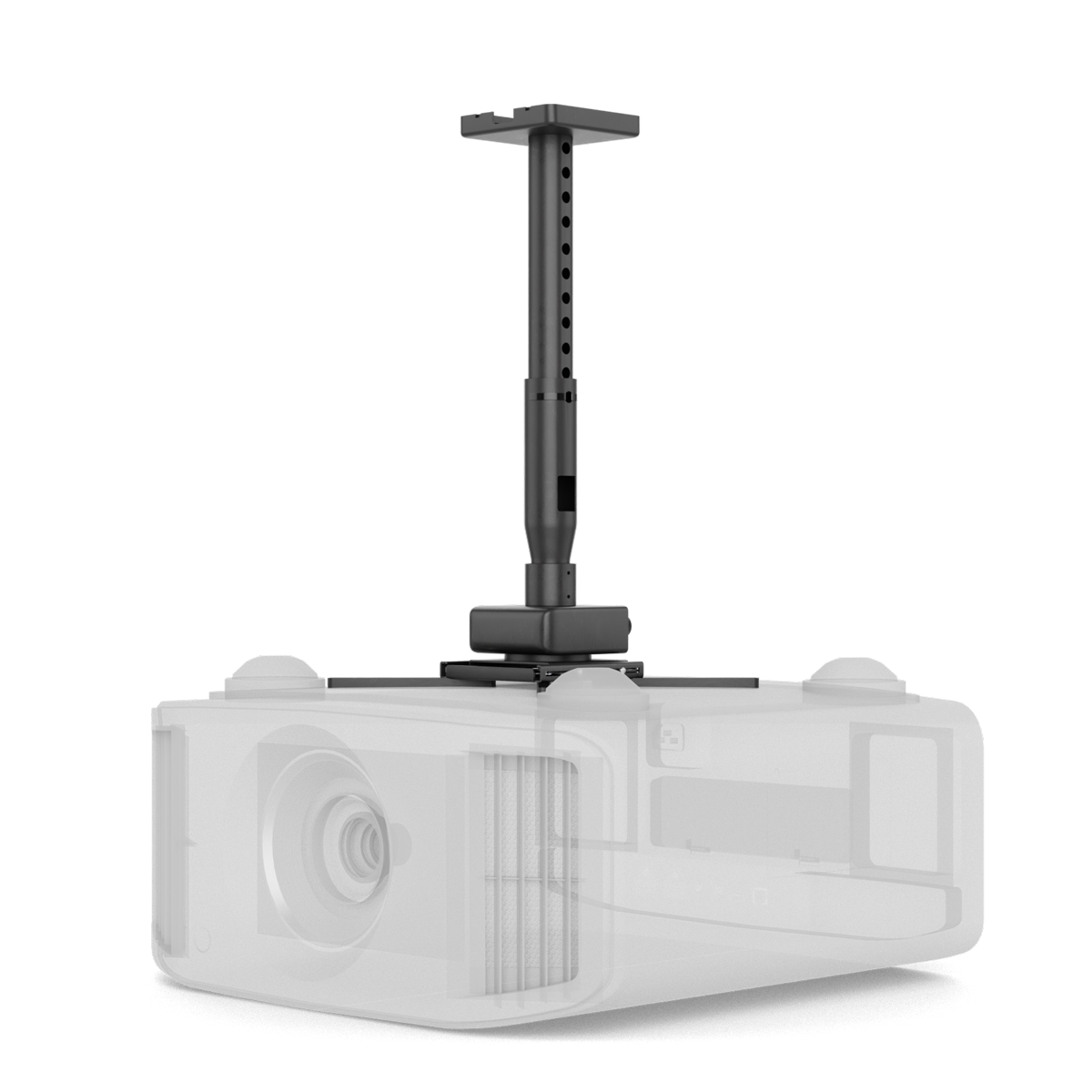

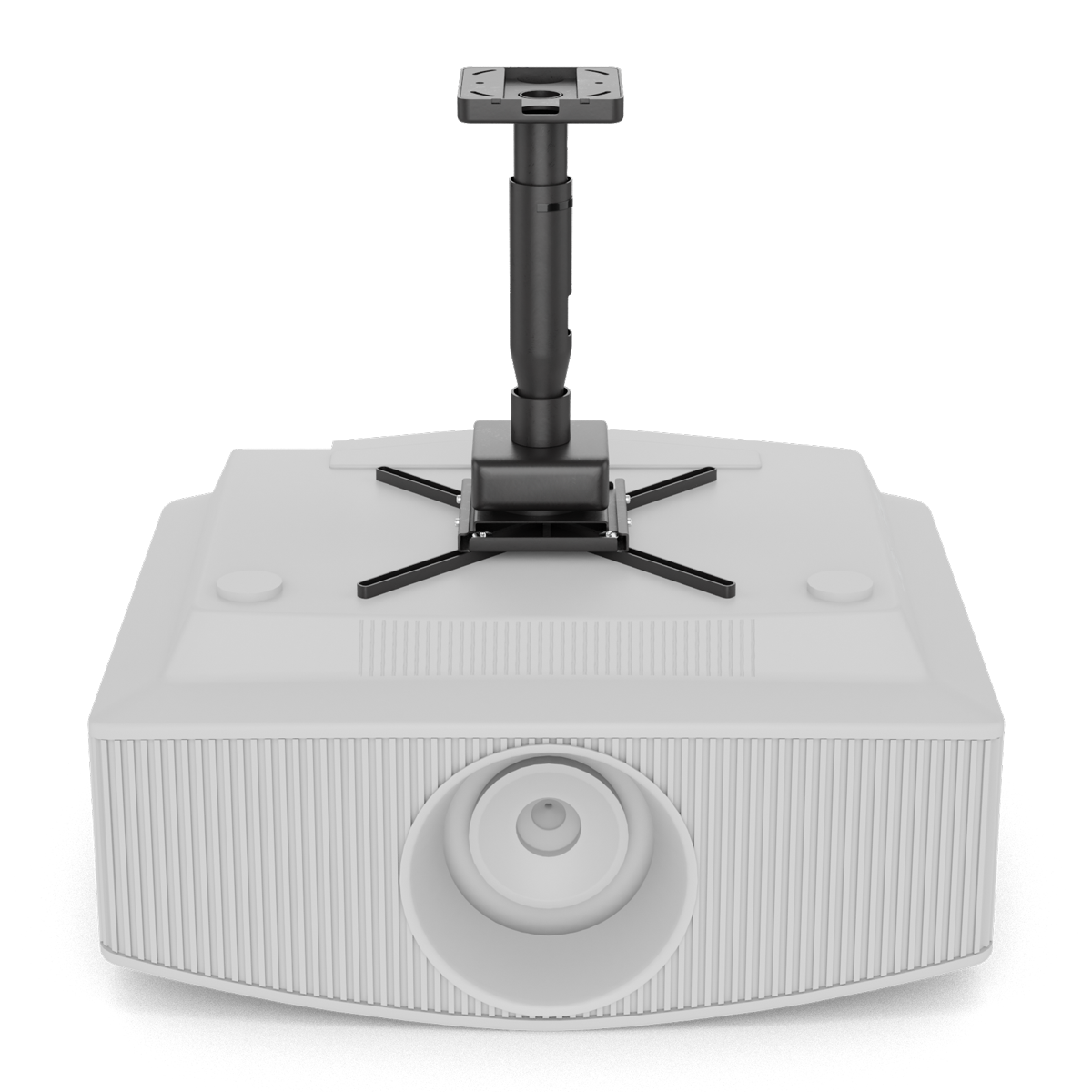

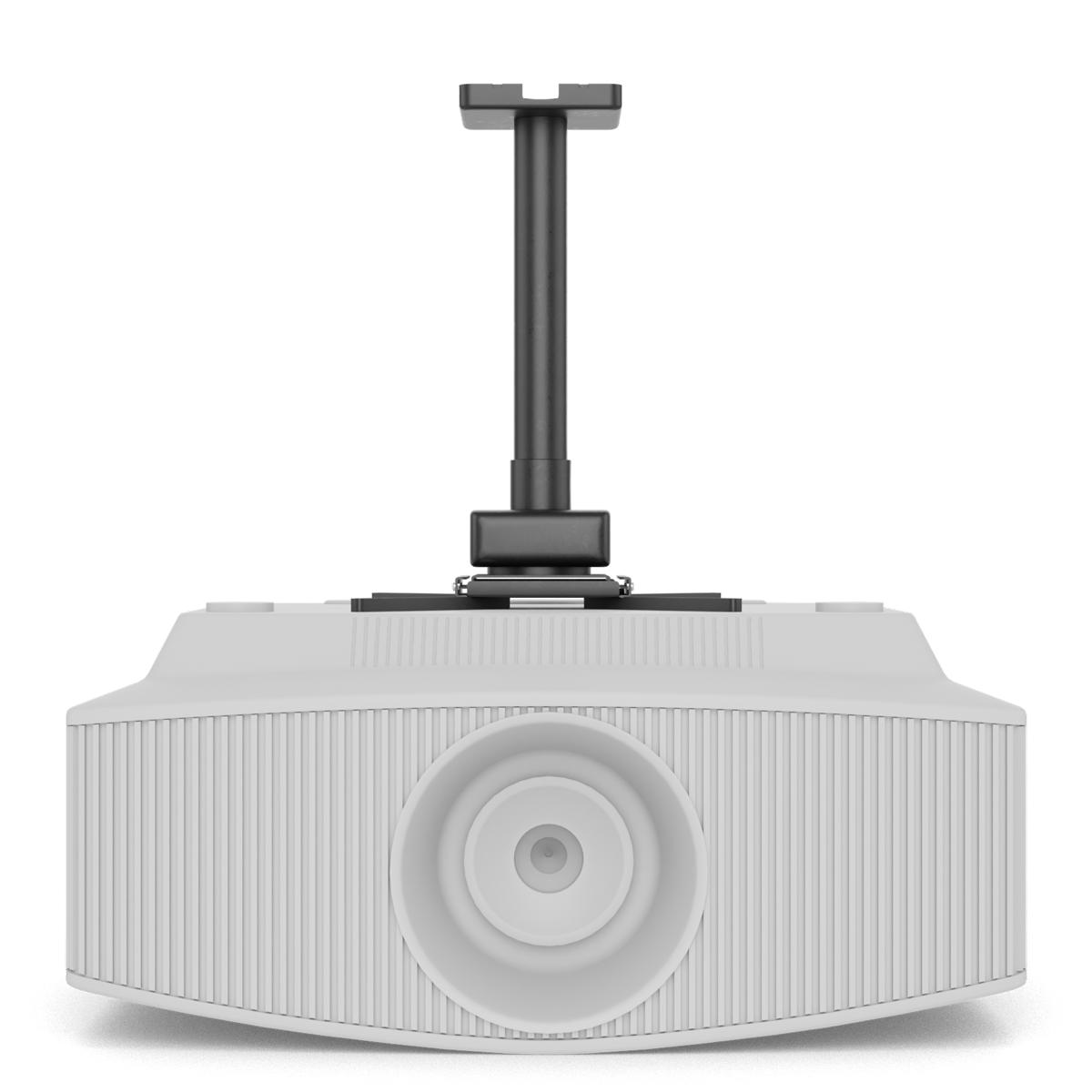

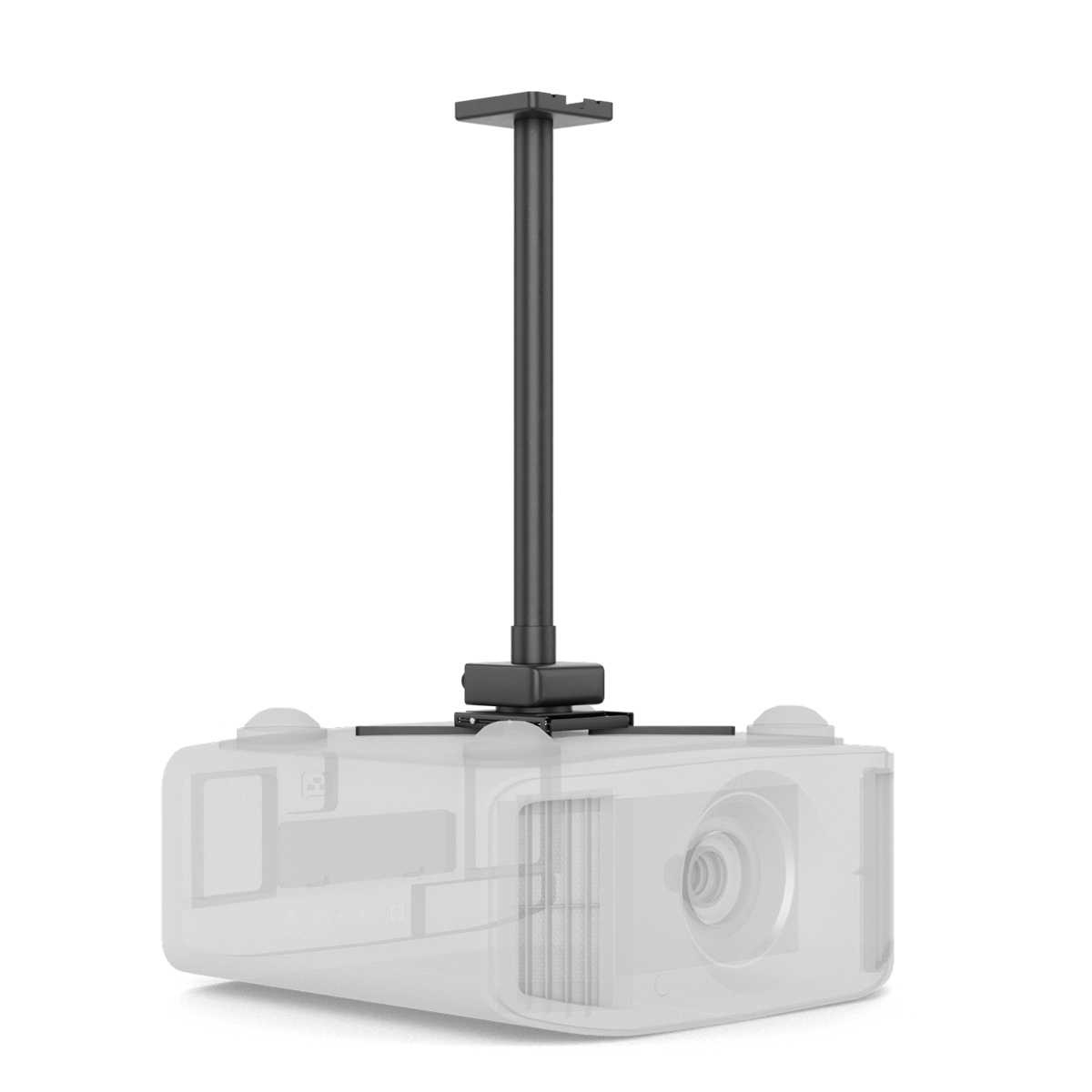

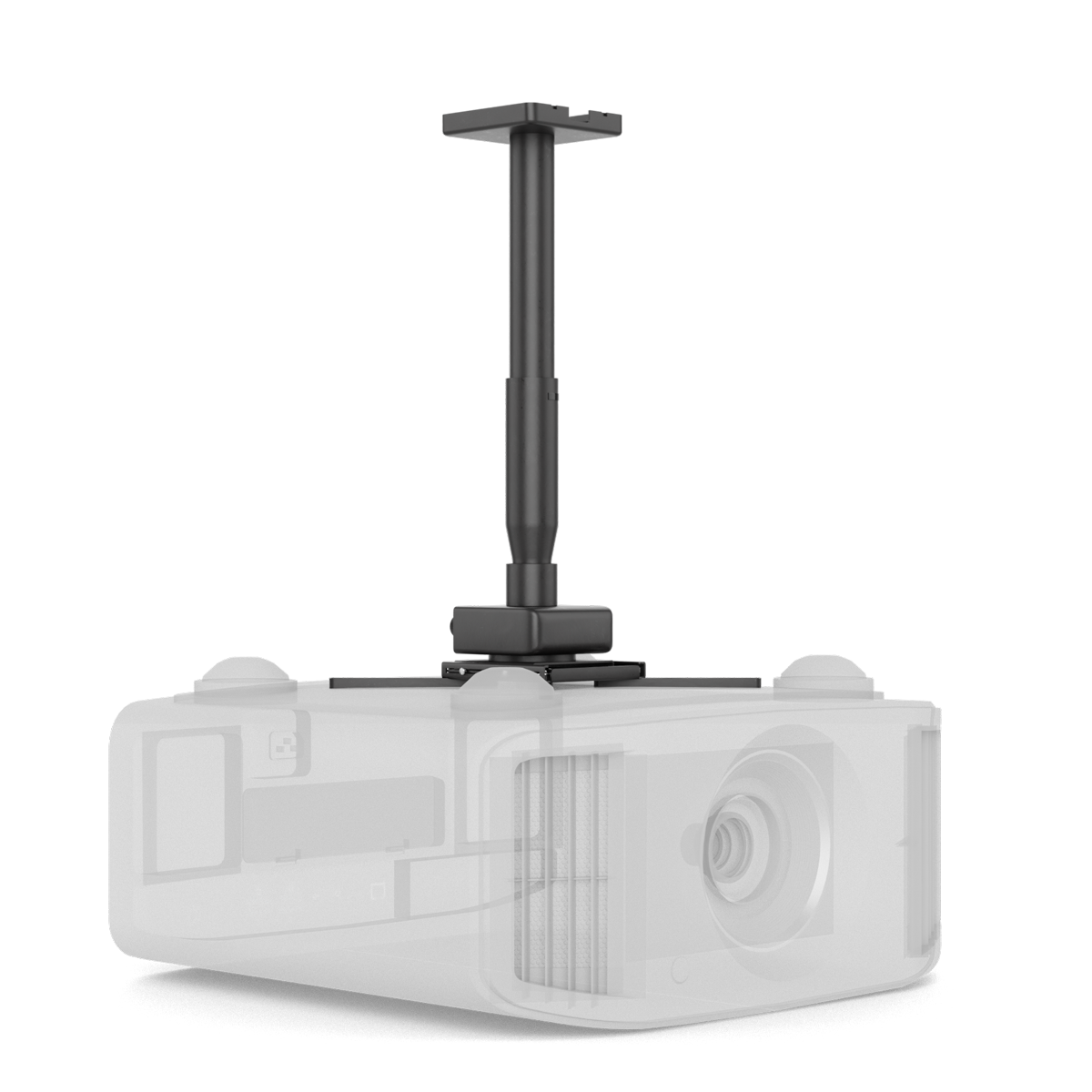

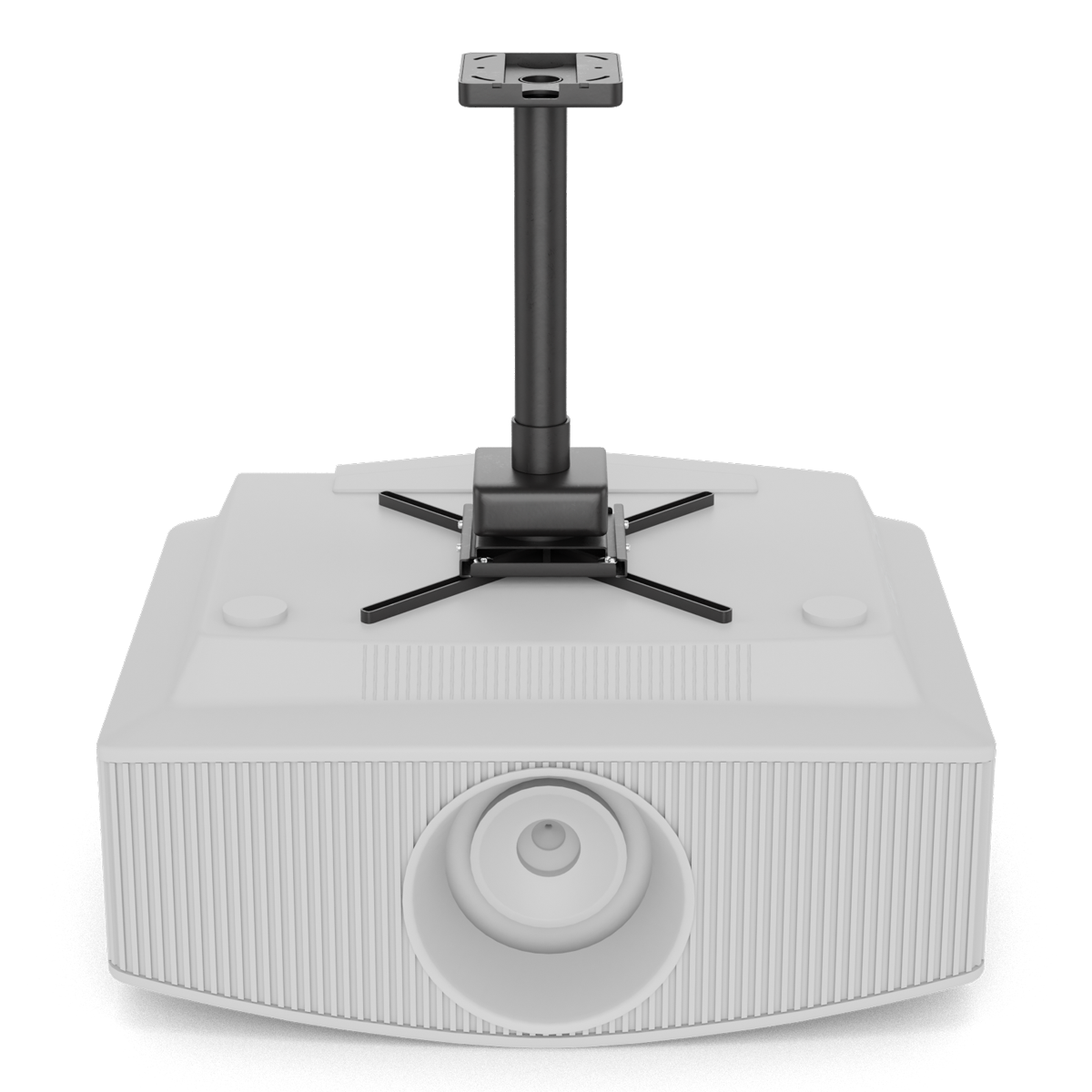

Fixed/Adjustable Extension Poles for Projectors Under 50 lbs:

3" Extension Pole 6" Extension Pole 12" Extension Pole 24" Extension Pole 36" Extension Pole 9-12" Adjustable 13-20" Adjustable
Distance from Ceiling 3" 6" 12" 24" 36" 12" 20"
Adjustable Extension - - - - - 9" - 12" 13" - 20"
Certifications UL UL UL UL UL UL UL
Maximum Load Support 200 lbs 200 lbs 200 lbs 200 lbs 200 lbs 200 lbs 200 lbs
Construction Steel Steel Steel Steel Steel Steel Steel
Weight 1 lb 1 lb 2.4 lb 4.7 lb 7 lb
Compatible Projector Models JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs JVC NX5, NZ7, or LX3, All Sony Models, All Epson Models less than 50 lbs

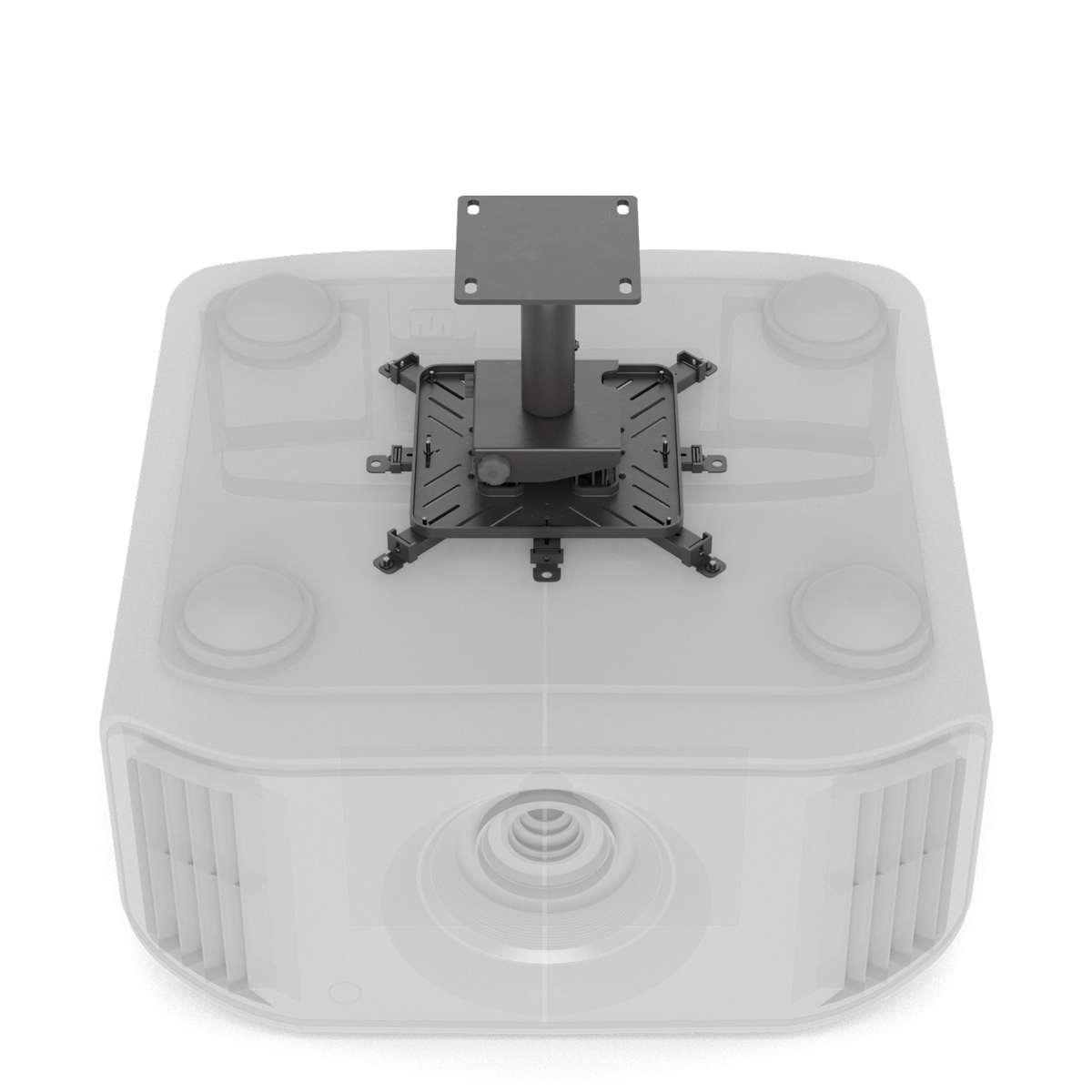

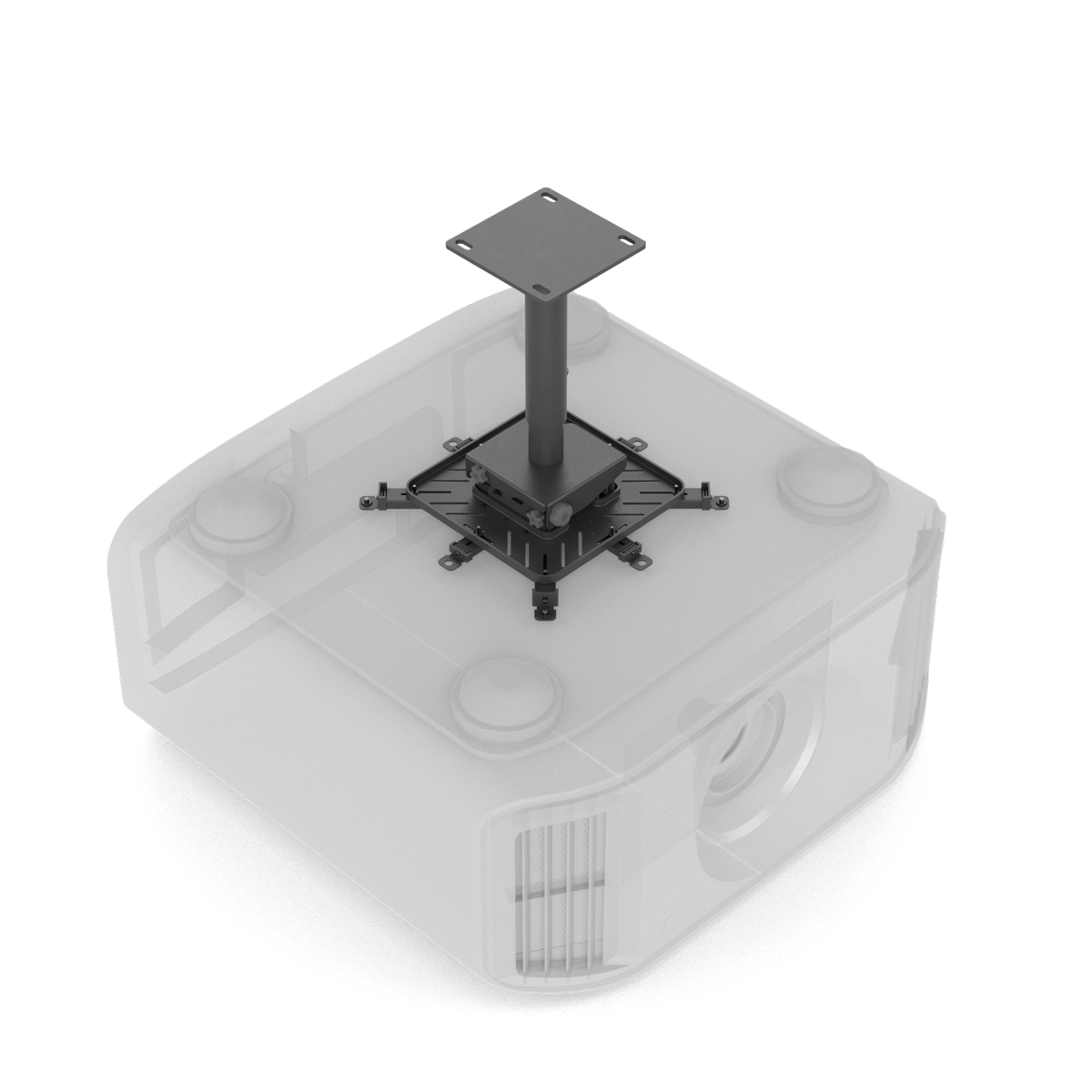

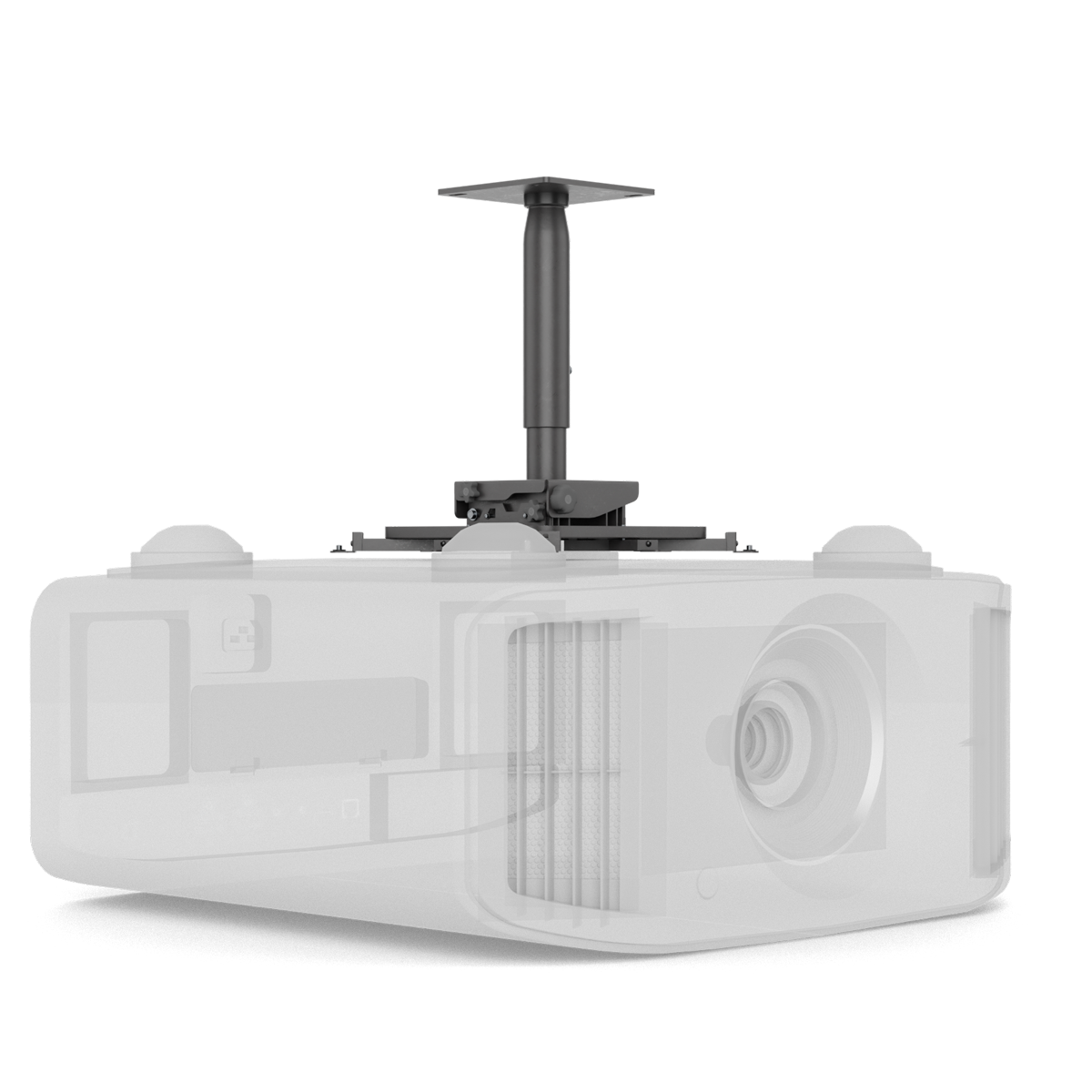

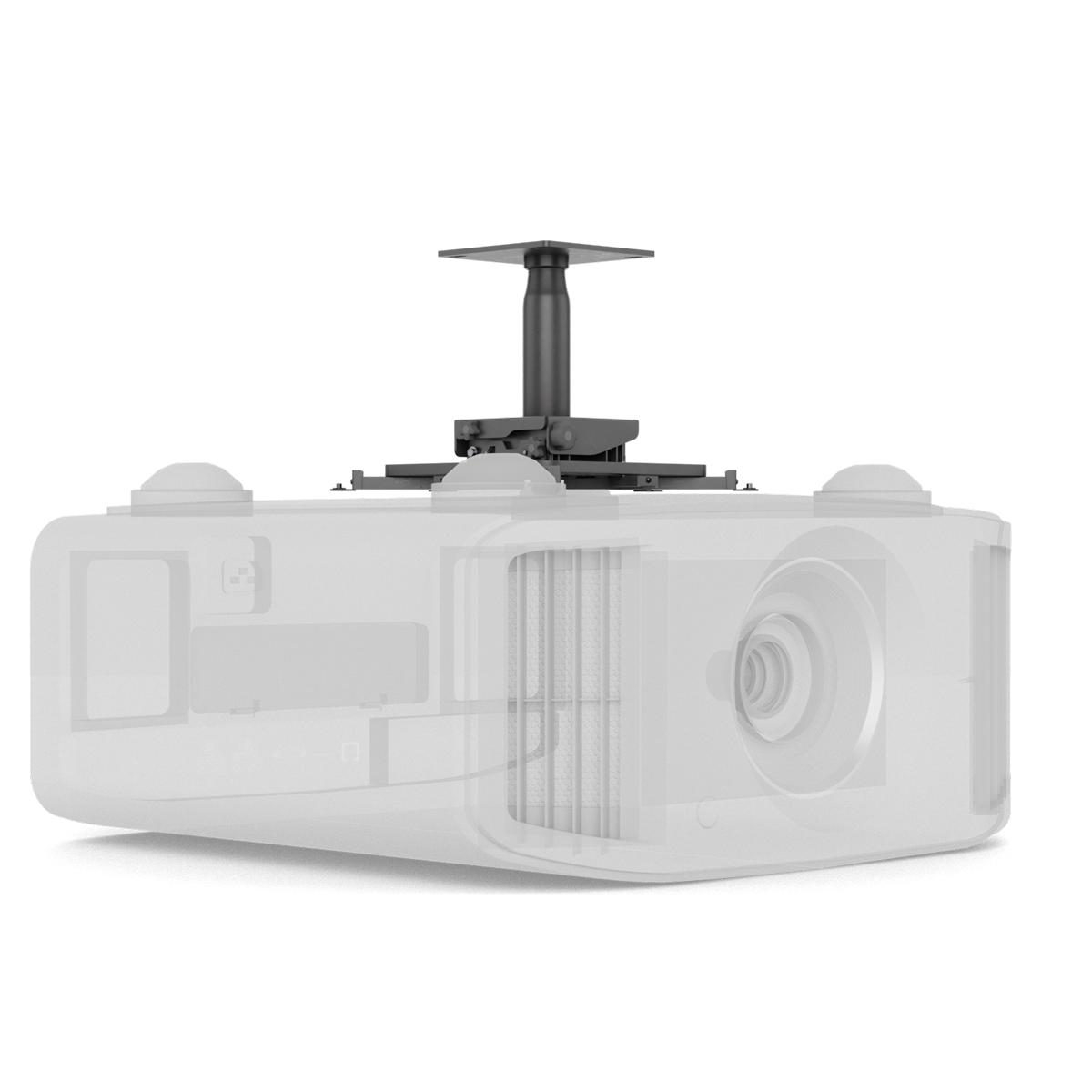

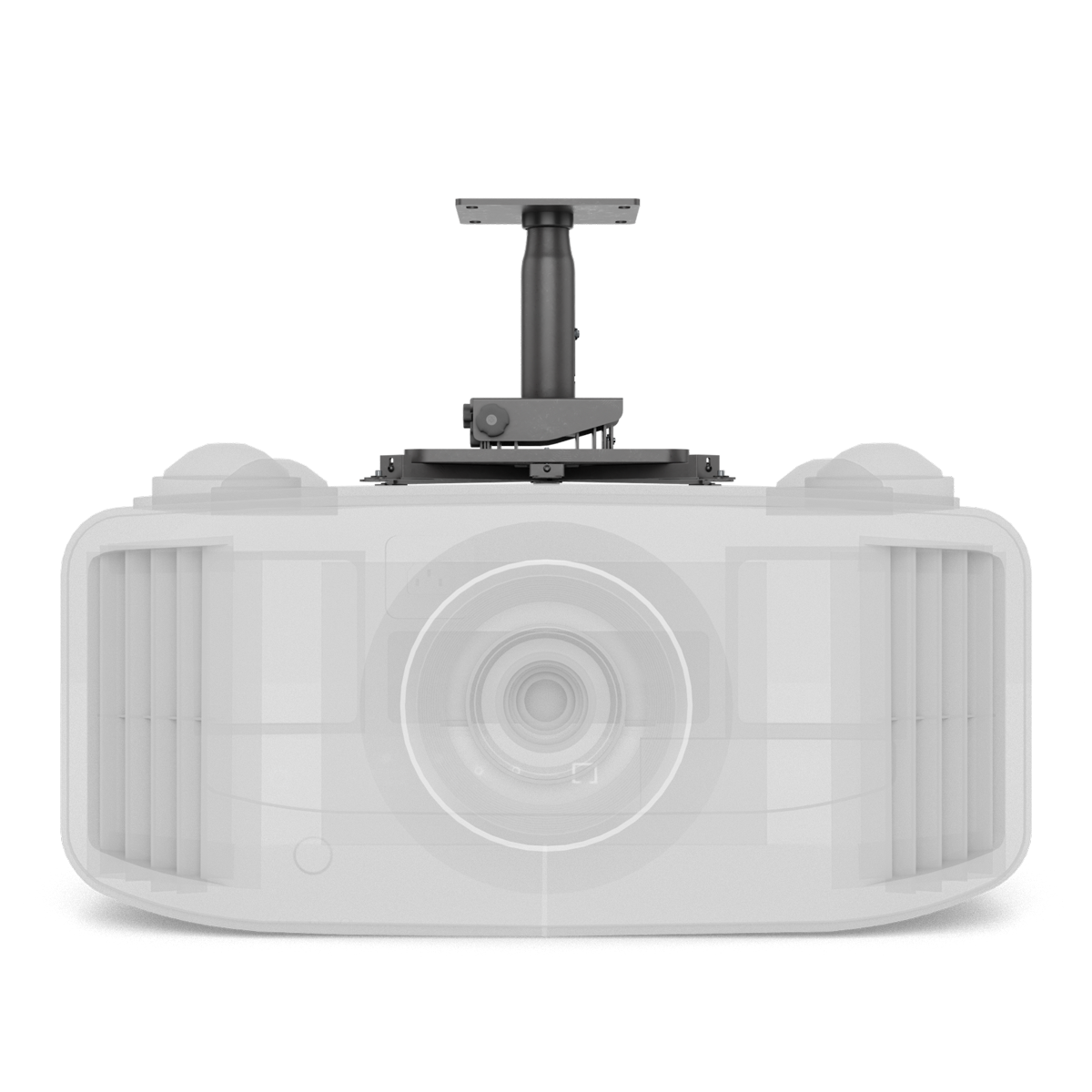

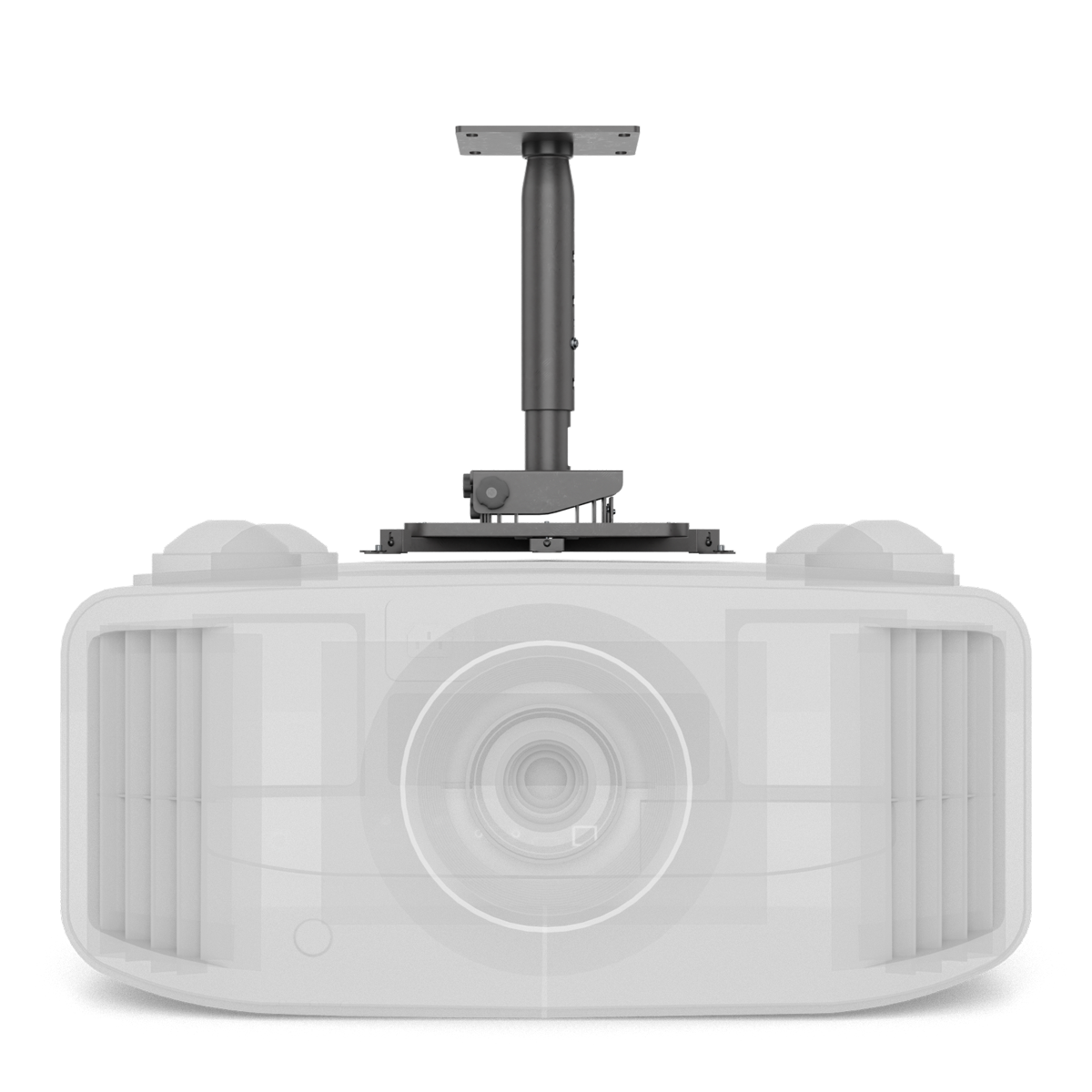

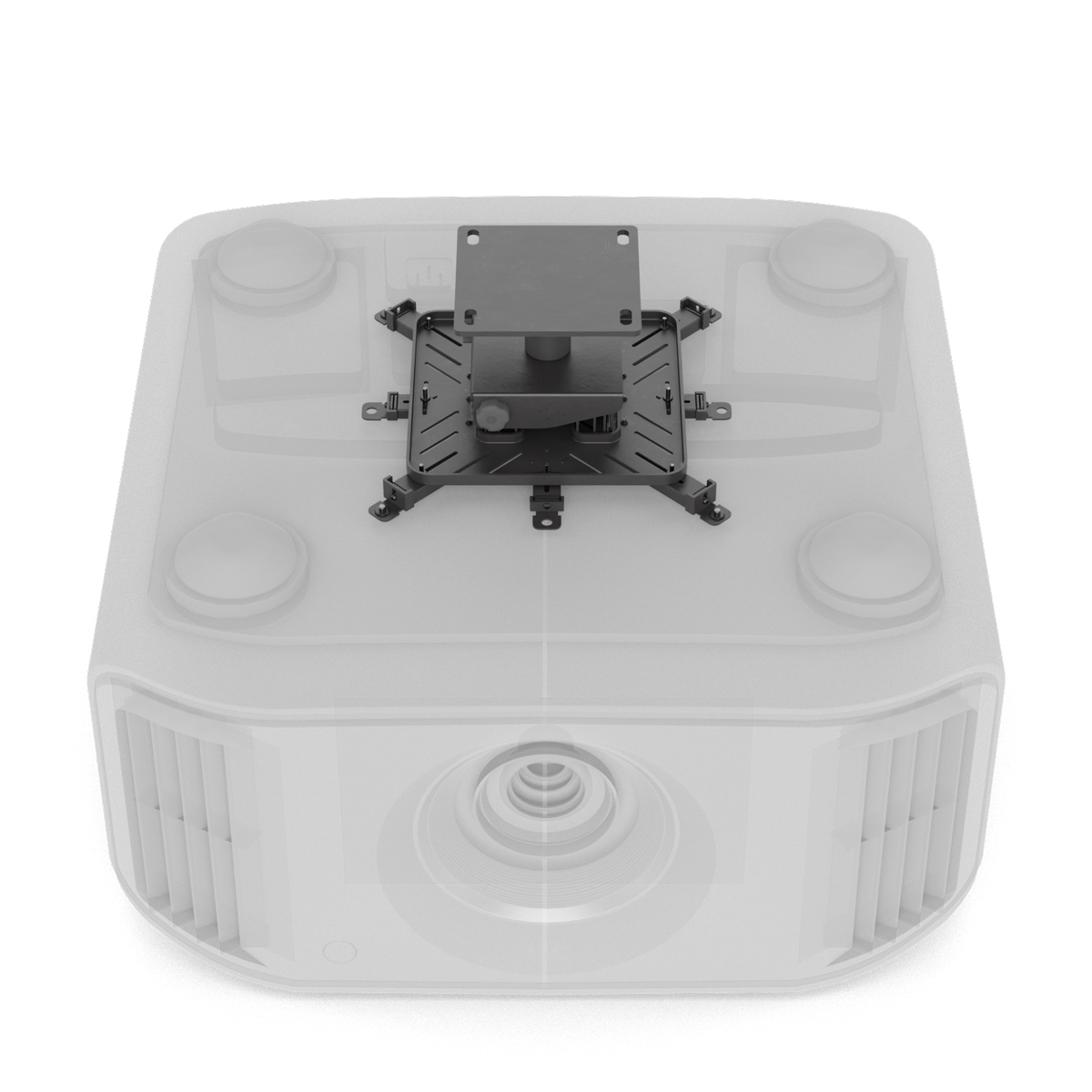

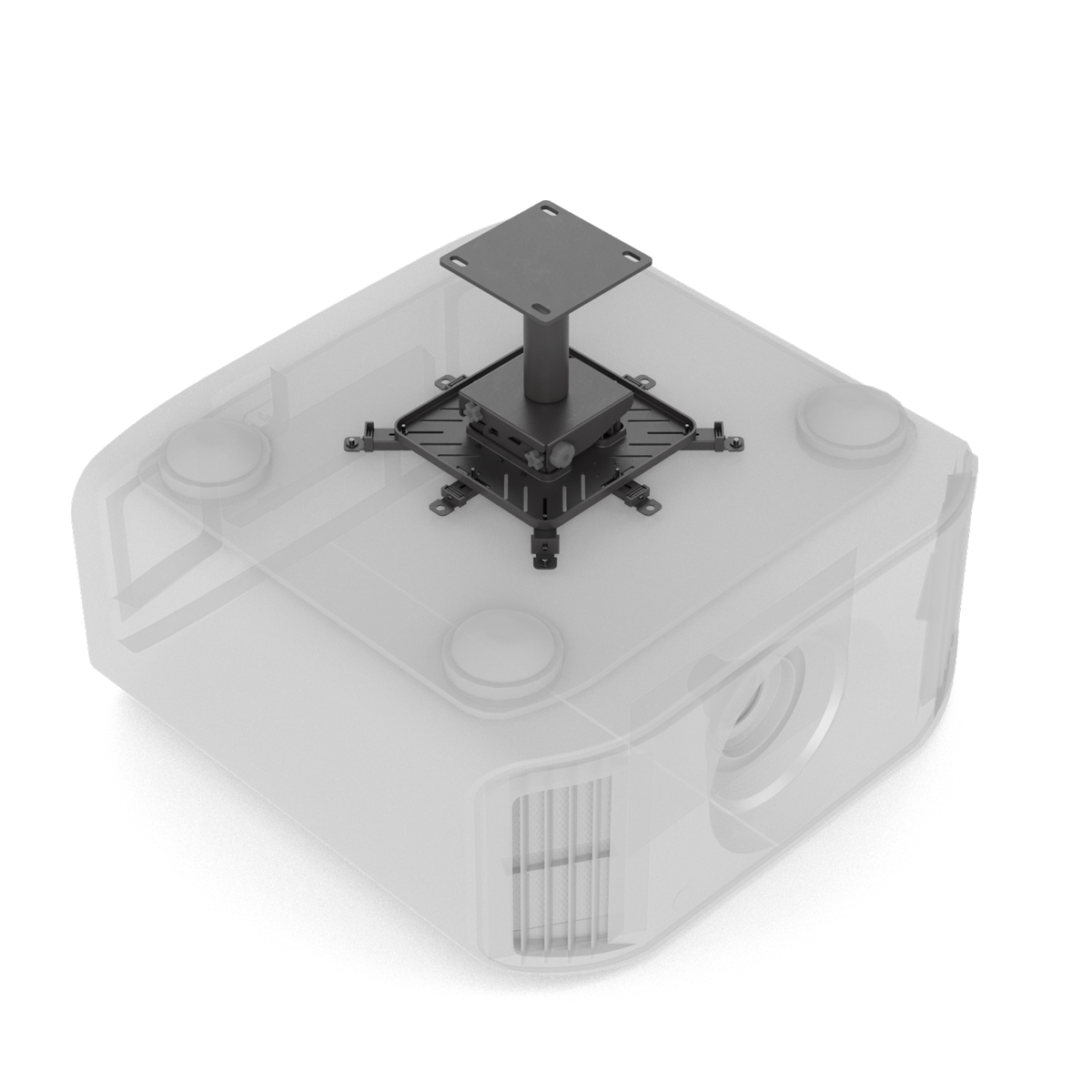

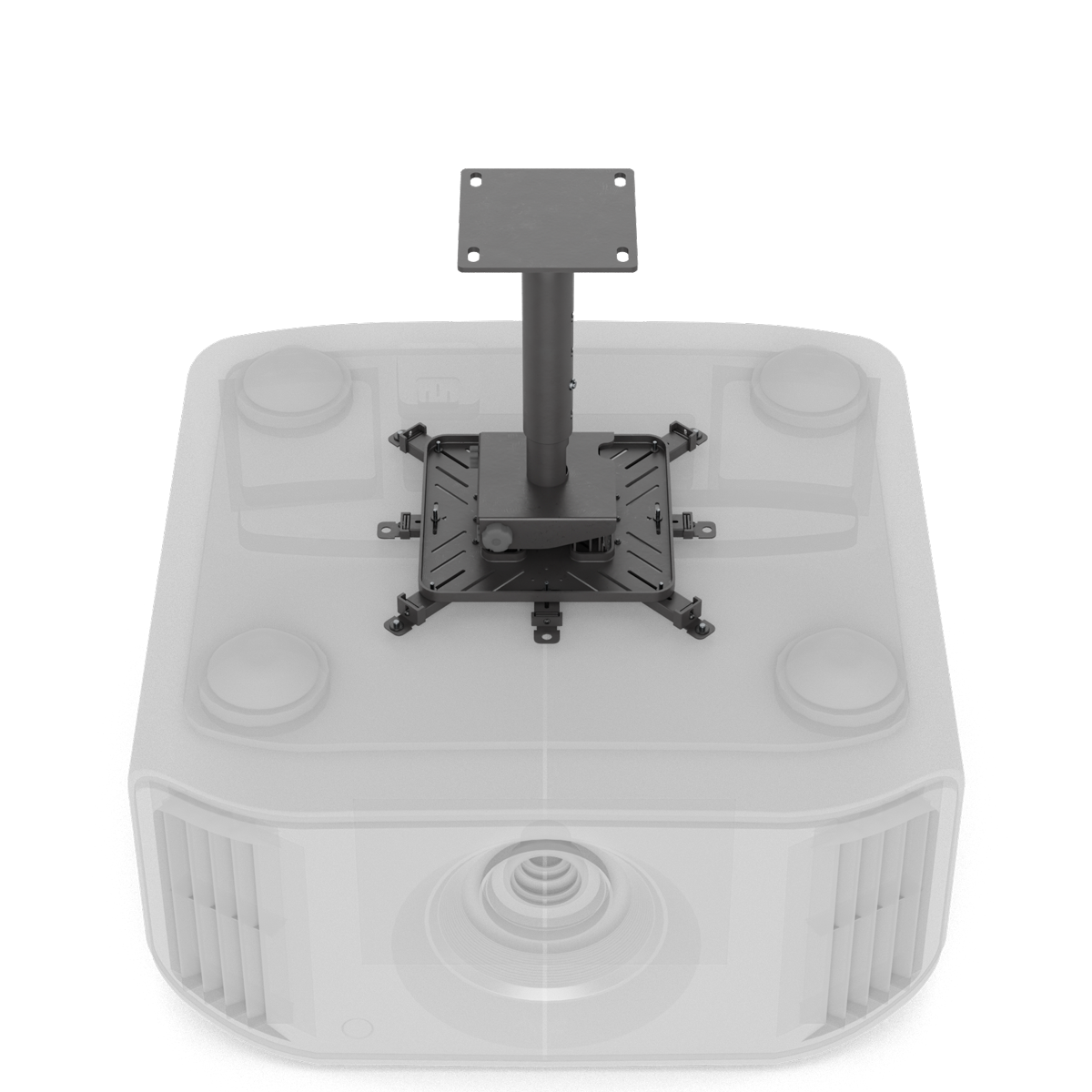

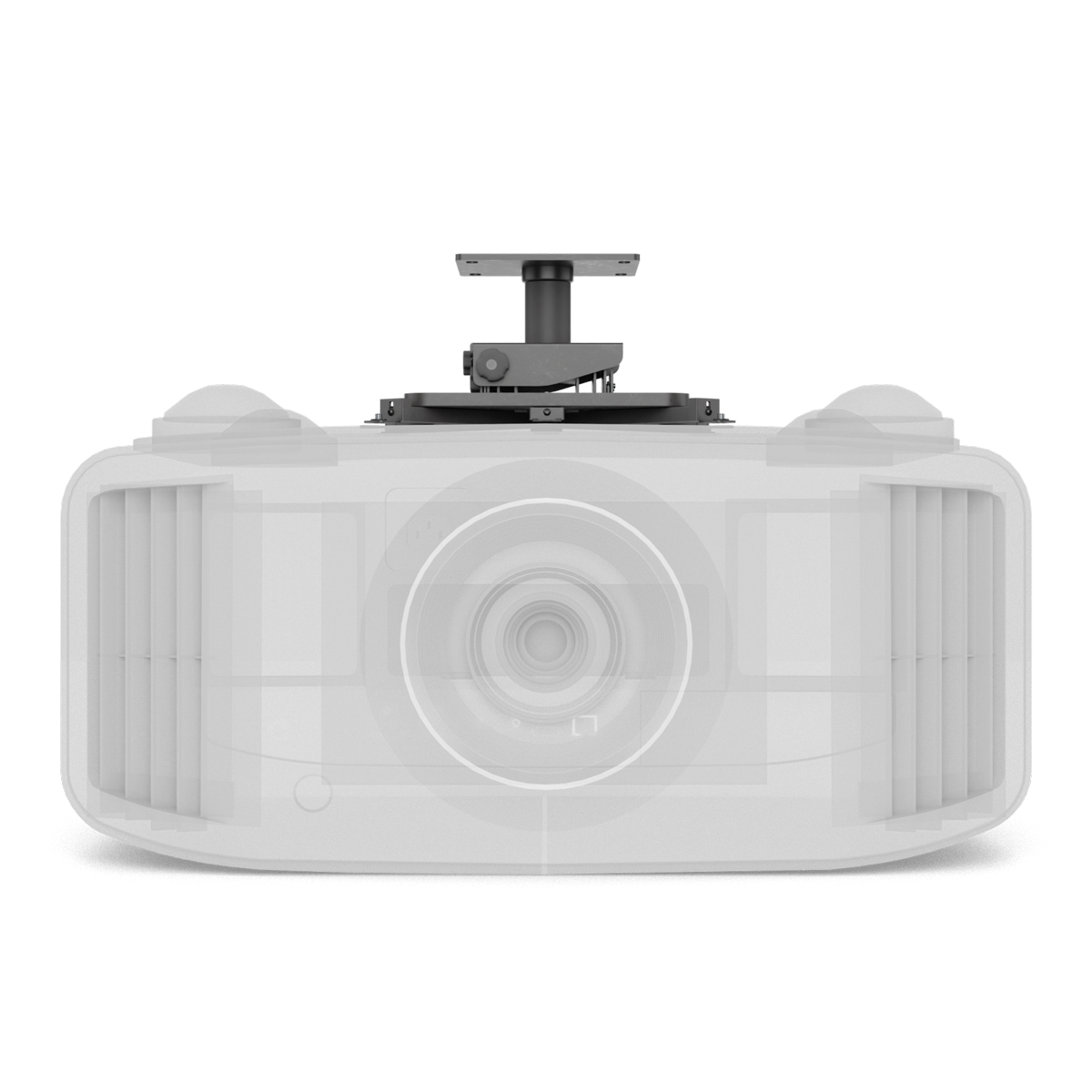

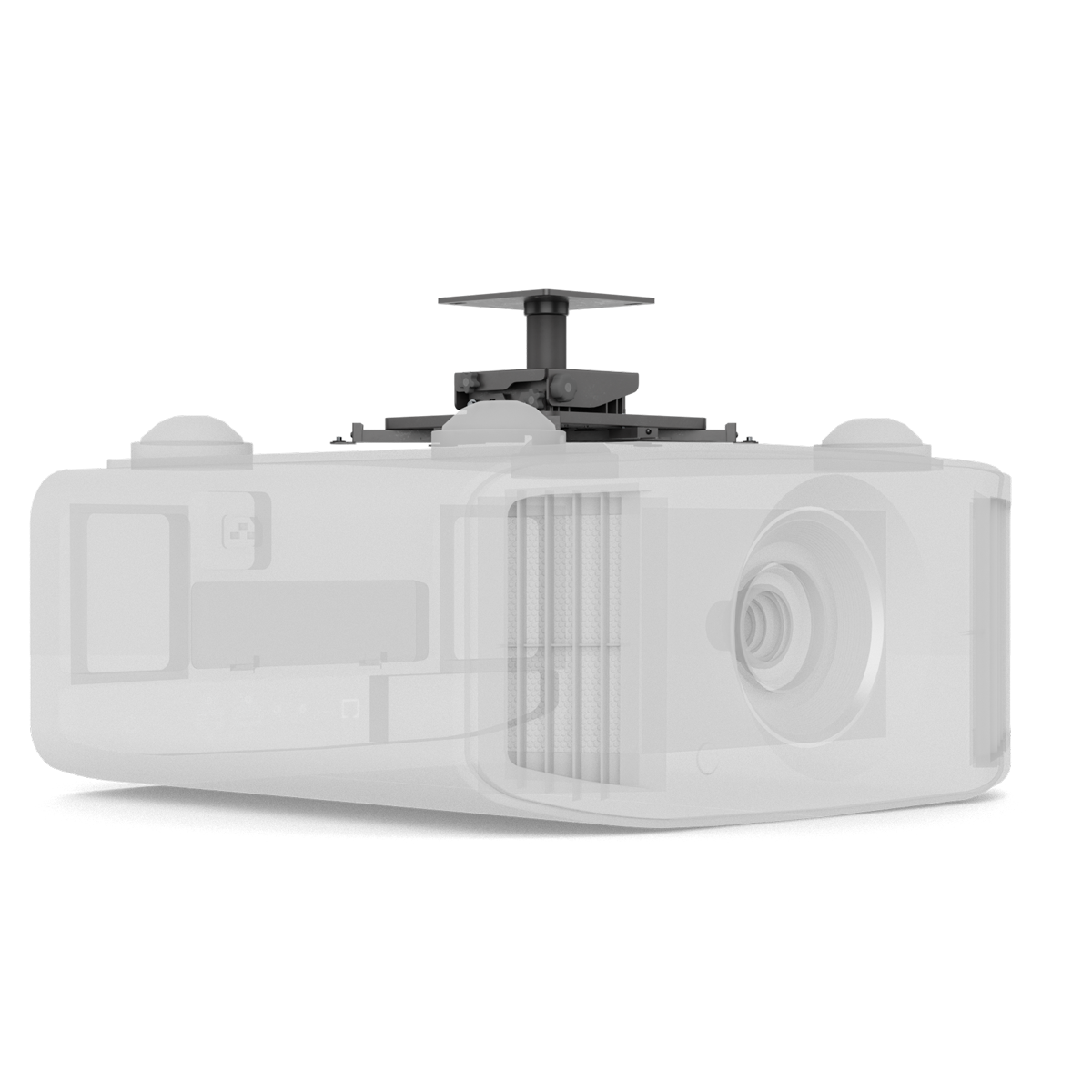

Fixed/Adjustable Extension Poles for Projectors 50 - 150 lbs:

3" Extension Pole 6-9" Adjustable Extension Pole 9-12" Adjustable 12-18" Adjustable 18-24" Adjustable 24.5-46" Adjustable
Distance from Ceiling 3" 9" 12" 18" 24" 46"
Adjustable Extension - 6" - 9" 9" - 12" 12" - 18" 18" - 24" 24" - 46"
Certifications TÜV Certified, UL Listed, TAA Compliant TÜV Certified, UL Listed, TAA Compliant TÜV Certified, UL Listed, TAA Compliant TAA Compliant TÜV Certified, UL Listed, TAA Compliant OSHPD Approved, UL Listed
Maximum Load Support 500 lbs 500 lbs 500 lbs 500 lbs 500 lbs 500 lbs
Construction Steel Steel Steel Steel Steel Steel
Weight 1 lb 2 lbs 2 lbs 8 lbs 4 lbs 15 lbs
Compatible Projector Models JVC NZ8 or NZ9 & Projectors 51 - 150 lbs. JVC NZ8 or NZ9 & Projectors 51 - 150 lbs. JVC NZ8 or NZ9 & Projectors 51 - 150 lbs. JVC NZ8 or NZ9 & Projectors 51 - 150 lbs. JVC NZ8 or NZ9 & Projectors 51 - 150 lbs. JVC NZ8 or NZ9 & Projectors 51 - 150 lbs.
