Item #ARCAV41AM

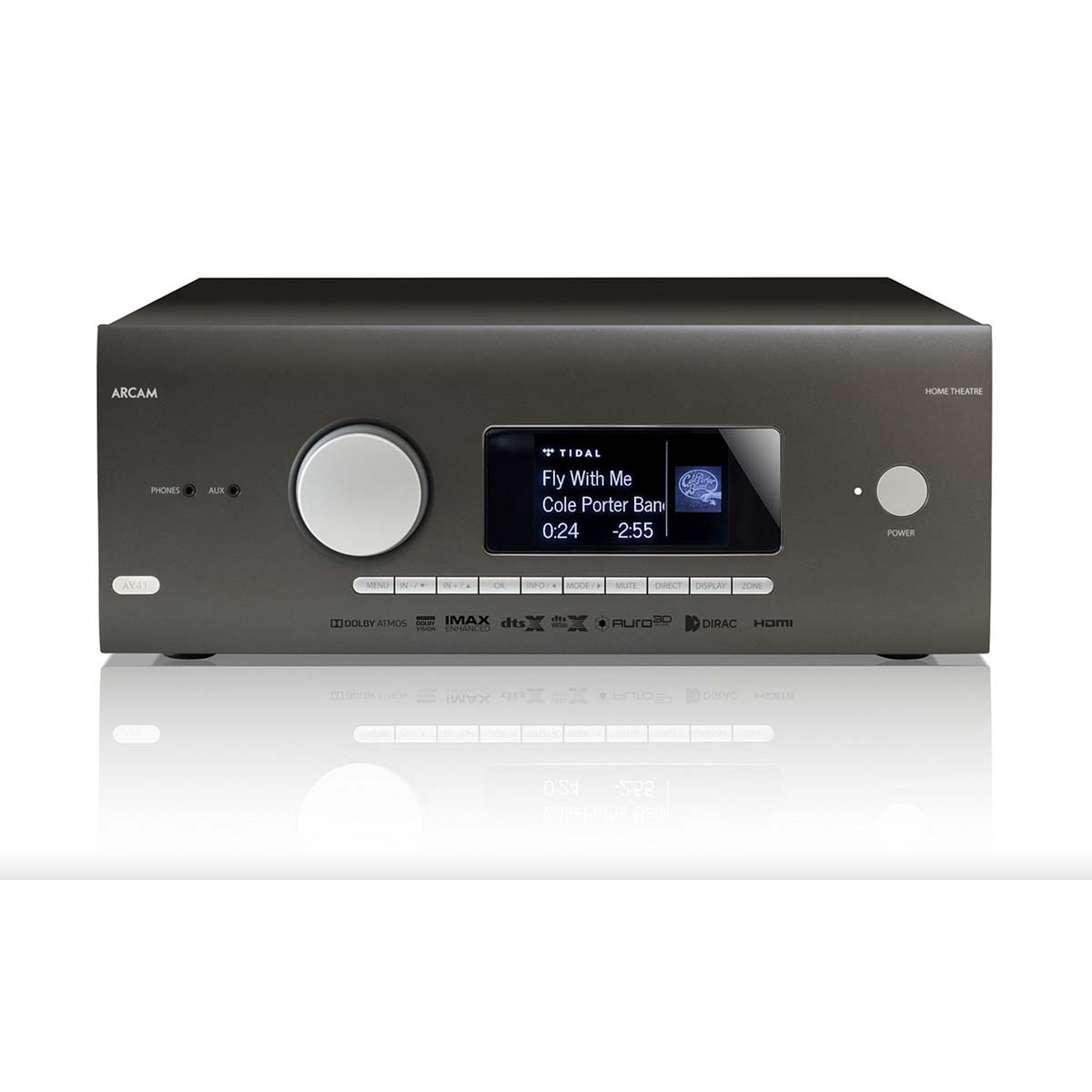

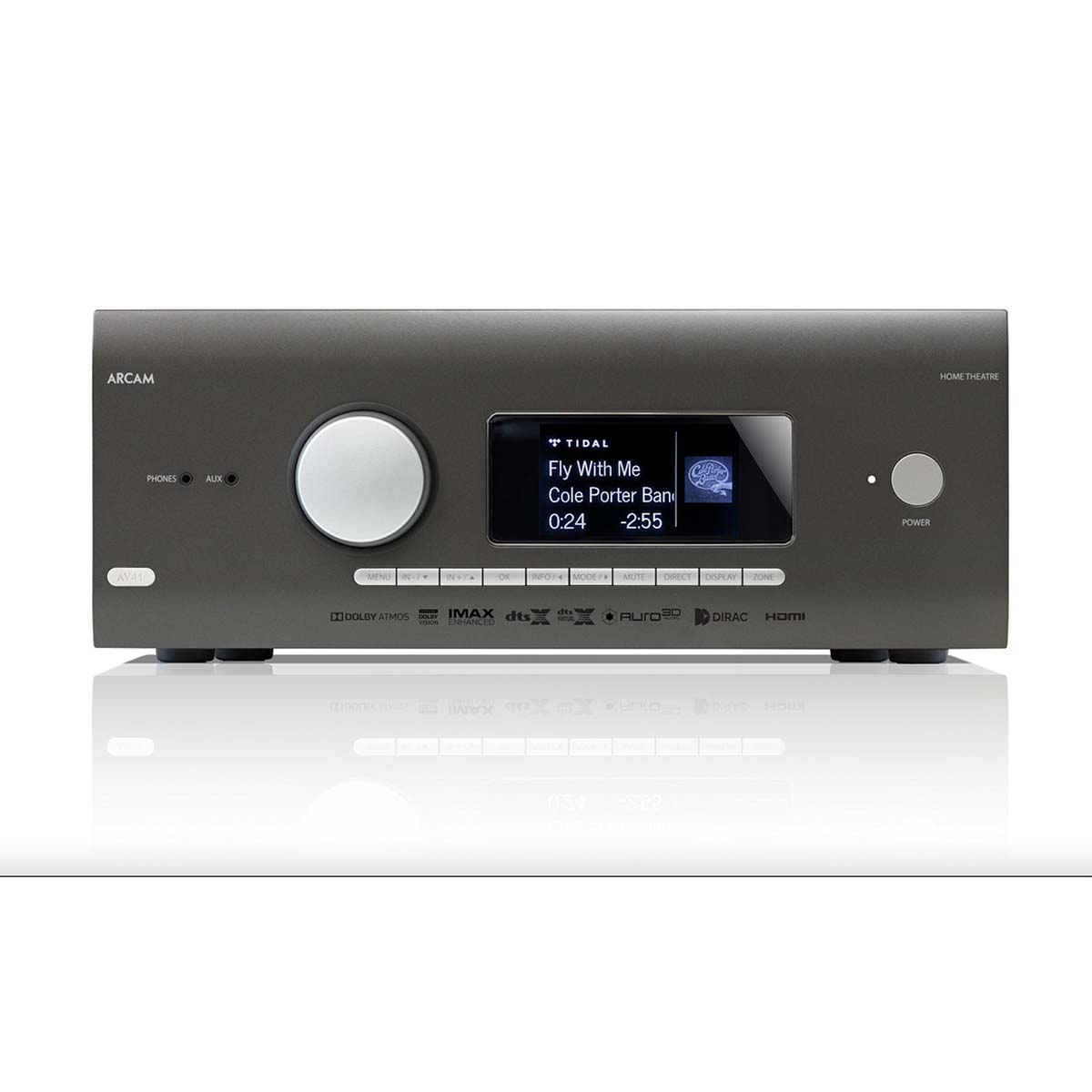

Arcam AV41

16 Channel Surround Sound Processor / Preamplifier
Item #ARCAV41AM

Arcam AV41

16 Channel Surround Sound Processor / Preamplifier
Was $5,250.00 $3,400.00
Save $1,850
More on the way! Order now to reserve risk free.
Contact Us

Overview

The AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos,DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.
Watch our Comparison

The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analog connection to power amplifiers.

The performance and musicality can be assured with Dirac Live®room optimization included and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect, and UPnP with the MusicLife app.

Details & Specs

Stereo Line Inputs

  • Maximum input: 4.5V rms
  • Nominal sensitivity: 1V, 2V, 4V (user adjustable)
  • Input impedance: 47kΩ
  • Signal/noise ratio (A-wtd ref 100W) normal/stereo direct: 100dB/110dB
  • Frequency response: 20Hz—20kHz ± 0.2dB

Preamplifier Outputs

  • Balanced (XLR) nominal output level per channel: 2V RMS (max. 10V RMS)
  • Single-ended (RCA) nominal output level per channel: 1V RMS (max. 5V RMS)
  • Output impedance: 560Ω
  • THD+N (20Hz—20kHz): –100dB

Headphone Output

  • Maximum output level into 32Ω: 5Vrms
  • Output impedance: <100Ω

General

  • Mains voltage: 110–120V or 220–240V, 50–60Hz
  • Power consumption (maximum): 50W (Thermal dissipation approx. 170 BTU/hour)
  • Power consumption (idle, typical): 40W (Thermal dissipation approx. 170 BTU/hour)
  • Power consumption (standby): <0.5W
  • Dimensions W x D (including speaker terminals) x H (including feet): 433 x 425 x 171mm
  • Weight (net): 10.6kg
  • Weight (packed): 13.9kg
  • Supplied accessories:
    • Mains lead
    • Remote control with 2 x AAA batteries
    • Quick Start Guide (full manual online)
    • DAB/FM aerial
    • 3 x Wi-Fi/Bluetooth antennas
    • Calibration microphone
    • USB cable
