Item #CW280

Monitor Audio W280

Series 200 In-Wall Speaker
Item #CW280

Monitor Audio W280

Series 200 In-Wall Speaker
$445.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity.

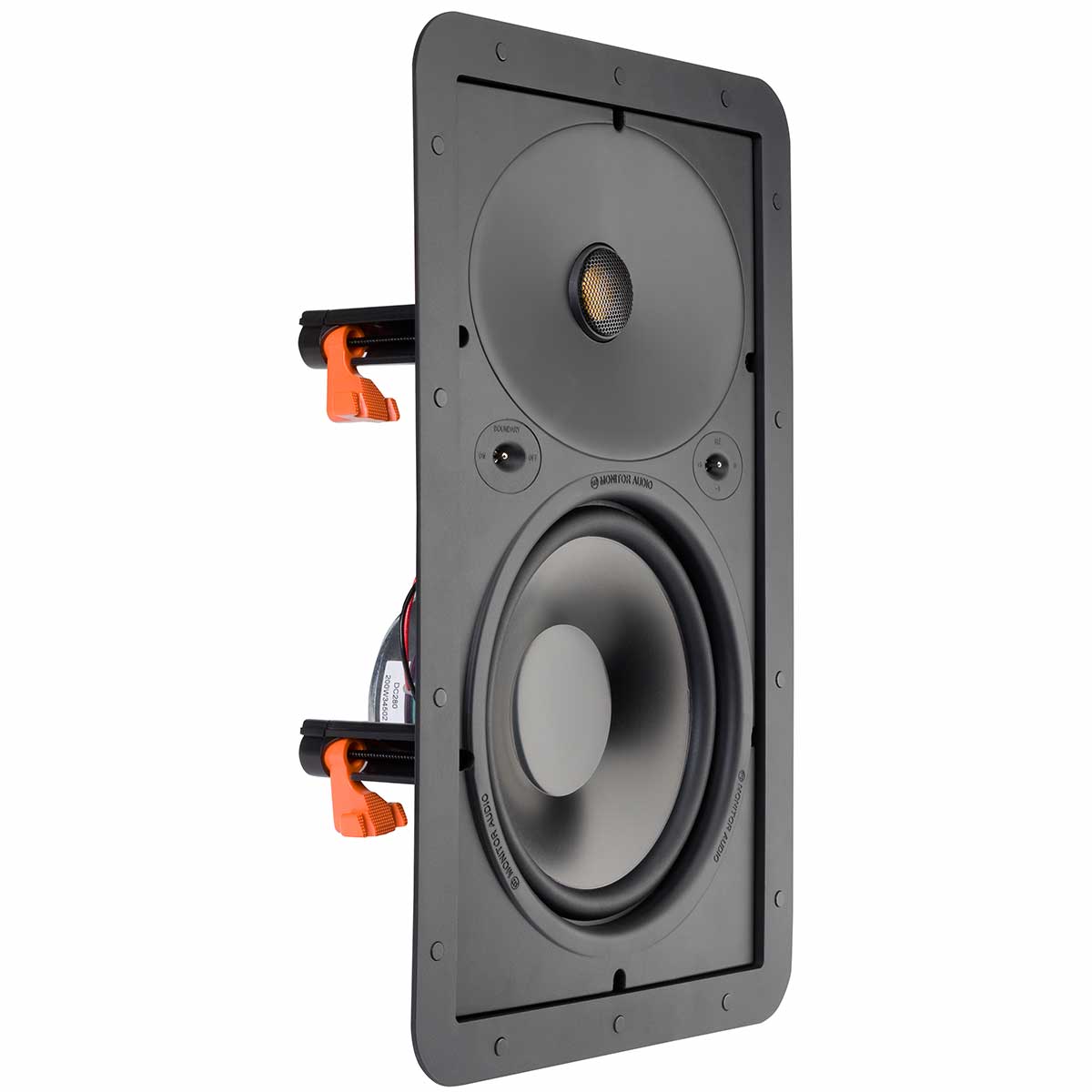

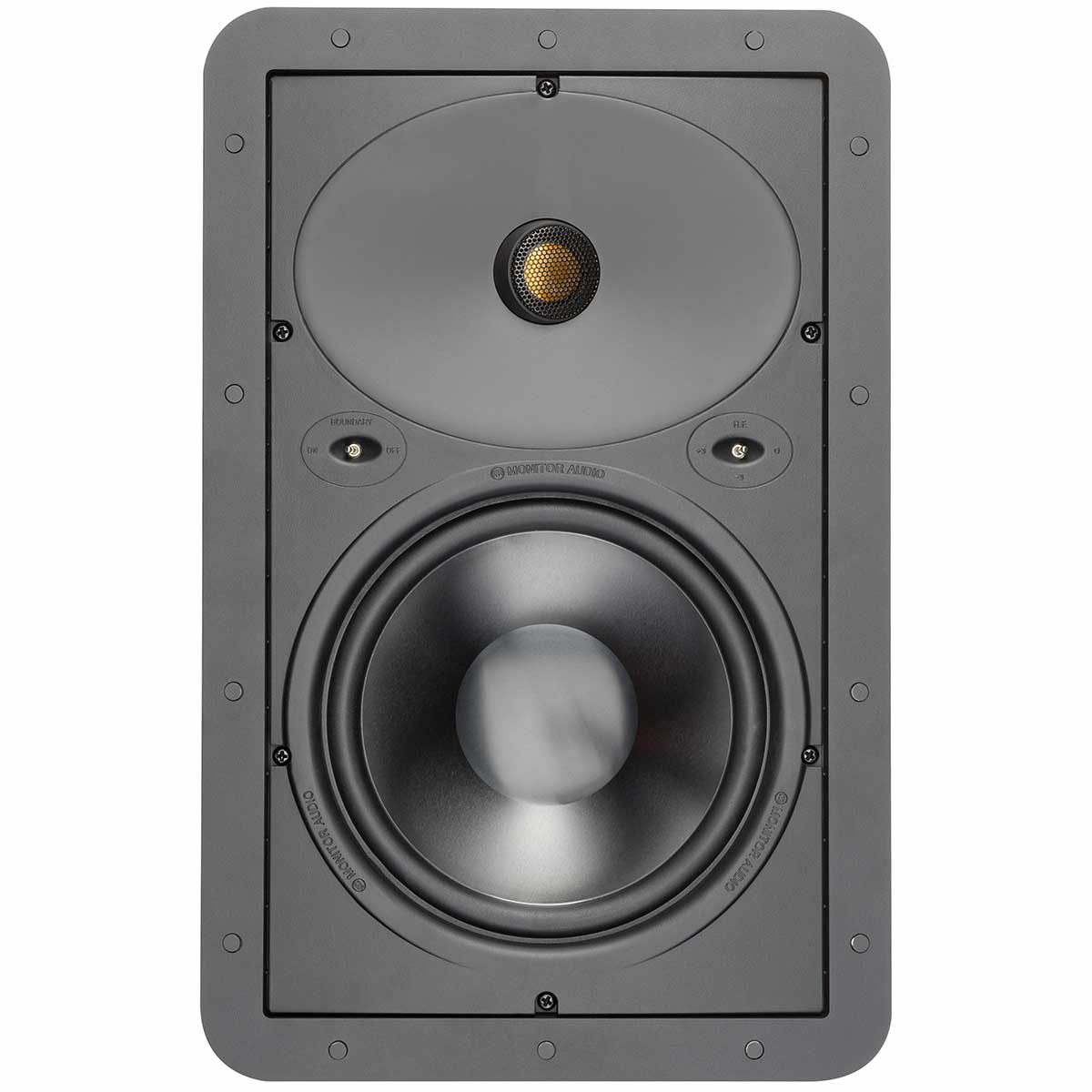

Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Details & Specs

  • Frequency Response - 45 Hz – 30 KHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 90 dB
  • Maximum SPL - 111.6 dBA
  • Power Handling (RMS) - 120 W
  • Recommended Amplifier Requirements - 30 – 120 W
  • Drive Unit Complement -
    • 1 x 8" C-CAM cone bass driver
    • 1 x 1" C-CAM Pivoting Gold Dome tweeter
  • Adjustment Controls -
    • HF Level Switch (+3 dB / 0 dB / -3 dB)
    • Boundary Compensation Switch
  • Overall Diameter (Including Grille) - 441 x 288 mm (17 3/8 x 11 5/16")
  • Overall Depth (Including Grille) - 104 mm (4 1/8")
  • Mounting Depth - 100 mm (3 15/16")
  • Cut-Out Hole Diameter - 387 x 234 mm (15 1/4 x 9 3/16")
  • Fixing Type - 6 position Tri-Grip dog fixings
  • Construction Material - Mineral filled ABS, RoHS compliant
  • Weight - 3.1 kg (6.8 lb)
  • Pre-Construction Bracket - WB8 Pre-Construction Bracket (Green)
  • Back Box - WCBOX-L
